MCV30L-CEPGKA (2001)

Toyota Camry (Nap)

Production Jul 2001 - Jan 2003
Engine 1MZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )NAP

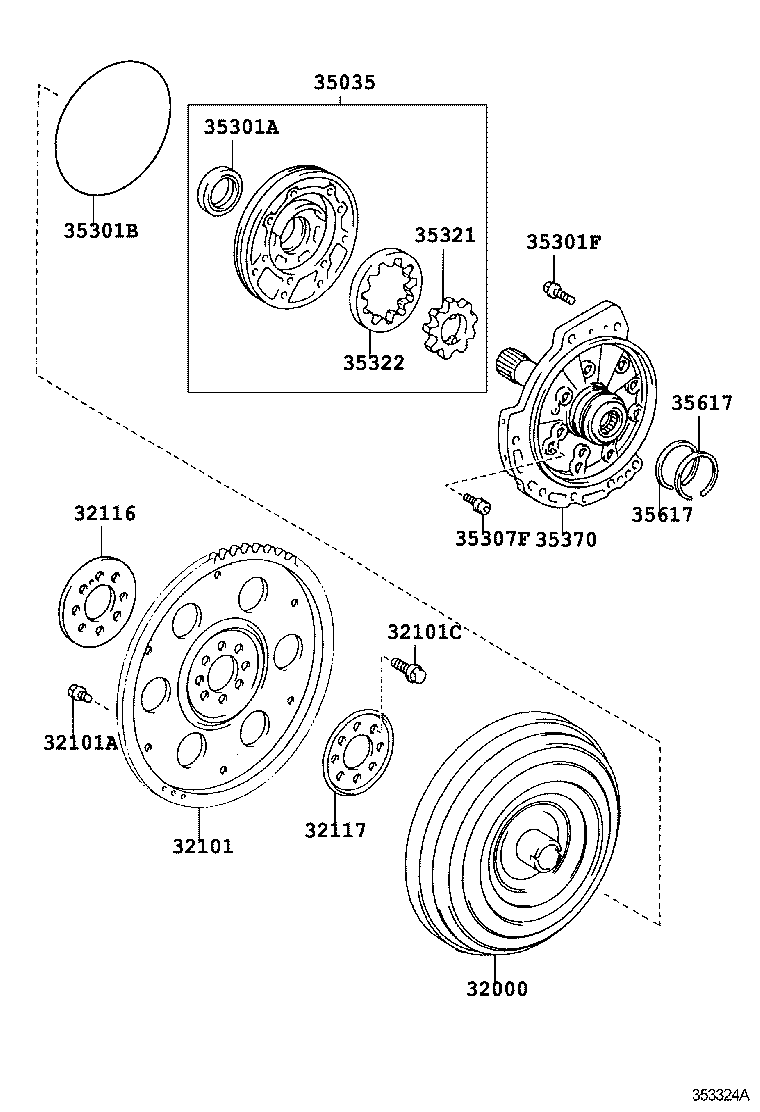

Click highlighted areas on diagram

U140E,U151E,U241E,U250E

diagram 32000 32101 32101A 32101C 32116 32117 35035 35301A 35301B 35301F 35307F 35321 35322 35370 35617 35617
Part # Description Qty Price
32000 - CONVERTER ASSY, TORQUE
32000-06010

MCV30..NAP

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-33010

MCV30..NAP

(J)

 1
32101-06010

MCV3#..NAP

(L)

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-09025

ACV30,MCV3#..NAP

*9-1.25PX12.4-8.4,YELLOW

 1
90109-09001

ACV30,MCV3#..NAP

*9-1.25PX12.4-7.3,GREEN

 1
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10048

MCV3#..NAP

*10-1.25PX18-13,(J)

 1
32116 - SPACER, DRIVE PLATE, FRONT
32116-32020

MCV3#..NAP

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-32020

MCV3#..NAP

 1
35035 - BODY SUB-ASSY, FR OIL PUMP & GEAR
35035-06010

MCV30..NAP

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90080-31068

MCV30..NAP

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90080-30078

MCV30..NAP

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90080-10236

MCV30..NAP

*8-1.25PX28-28

 7
35307F - BOLT (FOR STATOR SHAFT)
90080-14044

MCV30..NAP

 11
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-06010

MCV30..NAP

T=10.690-10.699

 1
35321-06020

MCV30..NAP

T=10.700-10.709

 1
35321-06040

MCV30..NAP

T=10.721-10.730

 1
35321-06030

MCV30..NAP

T=10.710-10.720

 1
35321-06050

MCV30..NAP

T=10.731-10.740

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-06030

MCV30..NAP

T=10.710-10.720

 1
35322-06020

MCV30..NAP

T=10.700-10.709

 1
35322-06010

MCV30..NAP

T=10.690-10.699

 1
35322-06040

MCV30..NAP

T=10.721-10.730

 1
35322-06050

MCV30..NAP

T=10.731-10.740

 1
35370 - SHAFT ASSY, STATOR
35370-06010

MCV30..NAP

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35613-21010

MCV30..NAP

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35613-21010

MCV30..NAP

 2
