MCV30L-CEANKA (2003)
Toyota Camry (Nap)

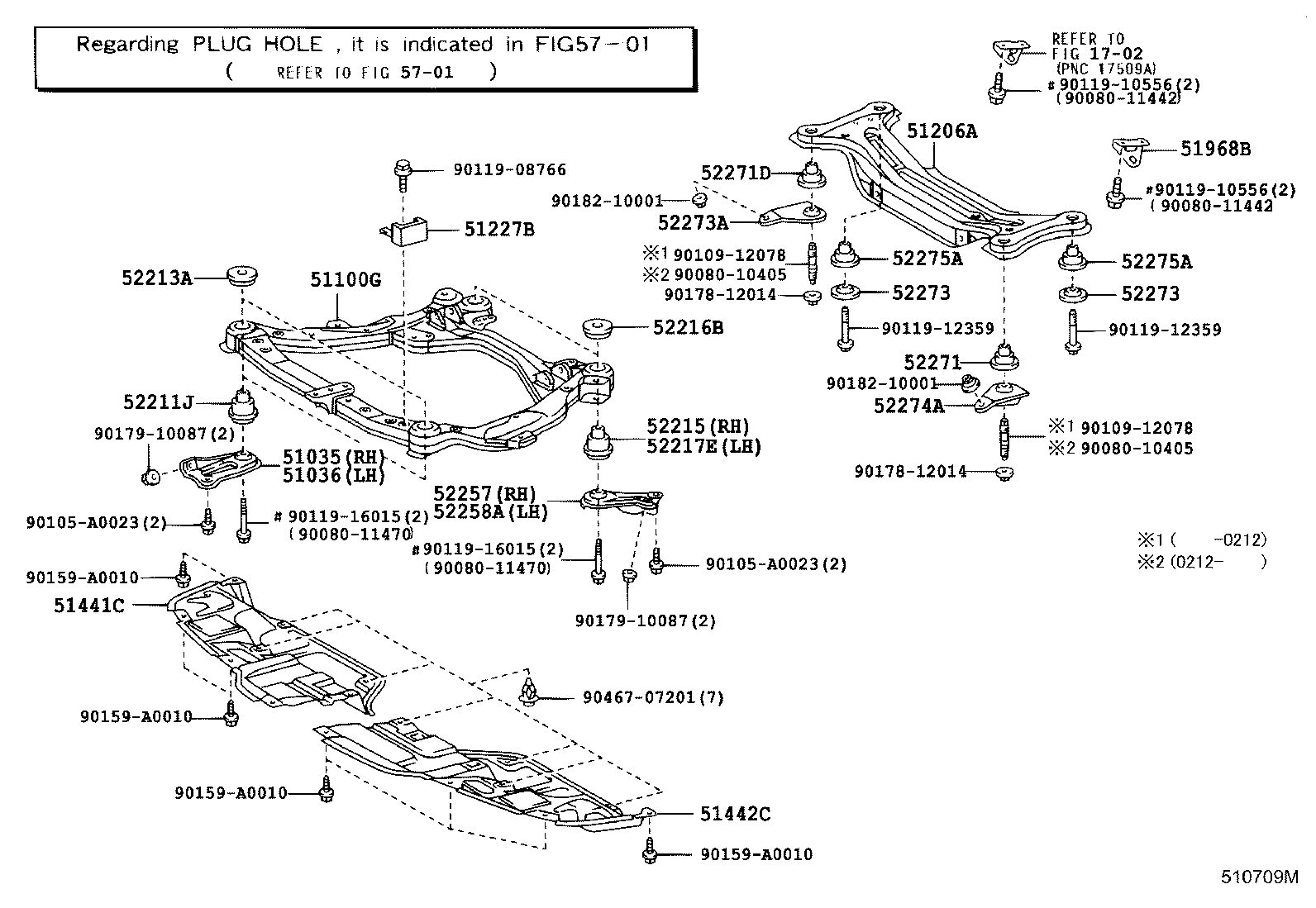

(0107-0307)NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH | ||||
| 51035-33010 |
ACV30,MCV30..NAP |
1 | ||
| 51035-33011 |
ACV30,MCV3#..NAP |
1 | ||
| 51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH | ||||
| 51036-33011 |
ACV30,MCV3#..NAP |
1 | ||
| 51036-33010 |
ACV30,MCV30..NAP |
1 | ||
| 51100G - FRAME ASSY, FRONT | ||||
| 51100-06050 |
ACV30,MCV3#..NAP |
1 | ||
| 51100-06050 |
ACV30,MCV3#..NAP |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-0E011 |
ACV30,MCV3#..NAP |
1 | ||
| 51206-06050 |
ACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC |
1 | ||
| 51206-0E012 |
ACV30,MCV3#..NAP |
1 | ||
| 51206-0E011 |
ACV30,MCV3#..NAP |
1 | ||
| 51206-06050 |
MCV30..NAP |
1 | ||
| 51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC | ||||
| 51227-06030 |
ACV30,MCV3#..NAP (L) |
1 | ||
| 51227-06030 |
ACV30,MCV3#..NAP (L) |
1 | ||
| 51227-33101 |
ACV30,MCV3#..NAP (J) |
1 | ||
| 51227-06031 |
ACV30,MCV3#..NAP (L) |
1 | ||
| 51227-06010 |
MCV30..NAP |
1 | ||
| 51227-33101 |
ACV30,MCV3#..NAP (J) |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-06030 |
ACV30,MCV3#..NAP |
1 | ||
| 51441-06030 |
ACV30,MCV3#..NAP |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-06020 |
ACV30,MCV3#..NAP |
1 | ||
| 51442-06020 |
ACV30,MCV3#..NAP |
1 | ||
| 51968B - HOOK, TRANSPORT, REAR LH | ||||
| 51968-06010 |
ACV30,MCV3#..NAP |
1 | ||
| 51968-06010 |
ACV30,MCV3#..NAP |
1 | ||
| 52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52211-06030 |
ACV30,MCV3#..NAP (L) |
2 | ||
| 52211-28010 |
ACV30,MCV3#..NAP (J) |
2 | ||
| 52211-28010 |
ACV30,MCV3#..NAP (J) |
2 | ||
| 52211-06030 |
ACV30,MCV3#..NAP (L) |
2 | ||
| 52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52213-06030 |
ACV30,MCV3#..NAP (L) |
2 | ||
| 52213-28010 |
ACV30,MCV3#..NAP (J) |
2 | ||
| 52213-06030 |
ACV30,MCV3#..NAP (L) |
2 | ||
| 52213-28010 |
ACV30,MCV3#..NAP (J) |
2 | ||
| 52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52215-06030 |
ACV30,MCV3#..NAP |
1 | ||
| 52215-06030 |
ACV30,MCV3#..NAP |
1 | ||
| 52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52216-06030 |
ACV30,MCV3#..NAP |
2 | ||
| 52216-06030 |
ACV30,MCV3#..NAP |
2 | ||
| 52217E - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH | ||||
| 52217-06010 |
ACV30,MCV3#..NAP |
1 | ||
| 52217-06010 |
ACV30,MCV3#..NAP |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 51023-33040 |
ACV30,MCV3#..NAP |
1 | ||
| 51023-33040 |
ACV30,MCV3#..NAP |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 51024-33050 |
ACV30,MCV3#..NAP |
1 | ||
| 51024-33050 |
ACV30,MCV3#..NAP |
1 | ||
| 52271 - CUSHION, REAR SUSPENSION MEMBER | ||||
| 52272-06040 |
ACV30,MCV3#..NAP |
1 | ||
| 52272-06040 |
ACV30,MCV3#..NAP |
1 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-06050 |
ACV30,MCV3#..NAP |
1 | ||
| 52271-06050 |
ACV30,MCV3#..NAP |
1 | ||
| 52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER | ||||
| 52273-06010 |
ACV30,MCV3#..NAP |
2 | ||
| 52273-06010 |
ACV30,MCV3#..NAP |
2 | ||
| 52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER | ||||
| 52273-06010 |
ACV30,MCV3#..NAP |
2 | ||
| 52273-06010 |
ACV30,MCV3#..NAP |
2 | ||
| 52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52203-33020 |
ACV30,MCV3#..NAP |
1 | ||
| 52203-33020 |
ACV30,MCV3#..NAP |
1 | ||
| 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52204-33020 |
ACV30,MCV3#..NAP |
1 | ||
| 52204-33020 |
ACV30,MCV3#..NAP |
1 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52275-06050 |
ACV30,MCV3#..NAP |
2 | ||
| 52275-06050 |
ACV30,MCV3#..NAP |
2 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52275-06050 |
ACV30,MCV3#..NAP |
2 | ||
| 52275-06050 |
ACV30,MCV3#..NAP |
2 | ||
| Common parts | ||||
| 90080-10405 | ||||
| 90080-11442 | ||||
| 90080-11470 | ||||
| 90105-A0023 | ||||
| 90109-12078 | ||||
| 90119-08766 | ||||
| 90119-10556 | ||||
| 90119-12359 | ||||
| 90119-16015 | ||||
| 90159-A0010 | ||||
| 90178-12014 | ||||
| 90179-10087 | ||||
| 90182-10001 | ||||
| 90467-07201 | ||||
| Linked diagrams | ||||
| 1702 | ||||
| 5701 | ||||

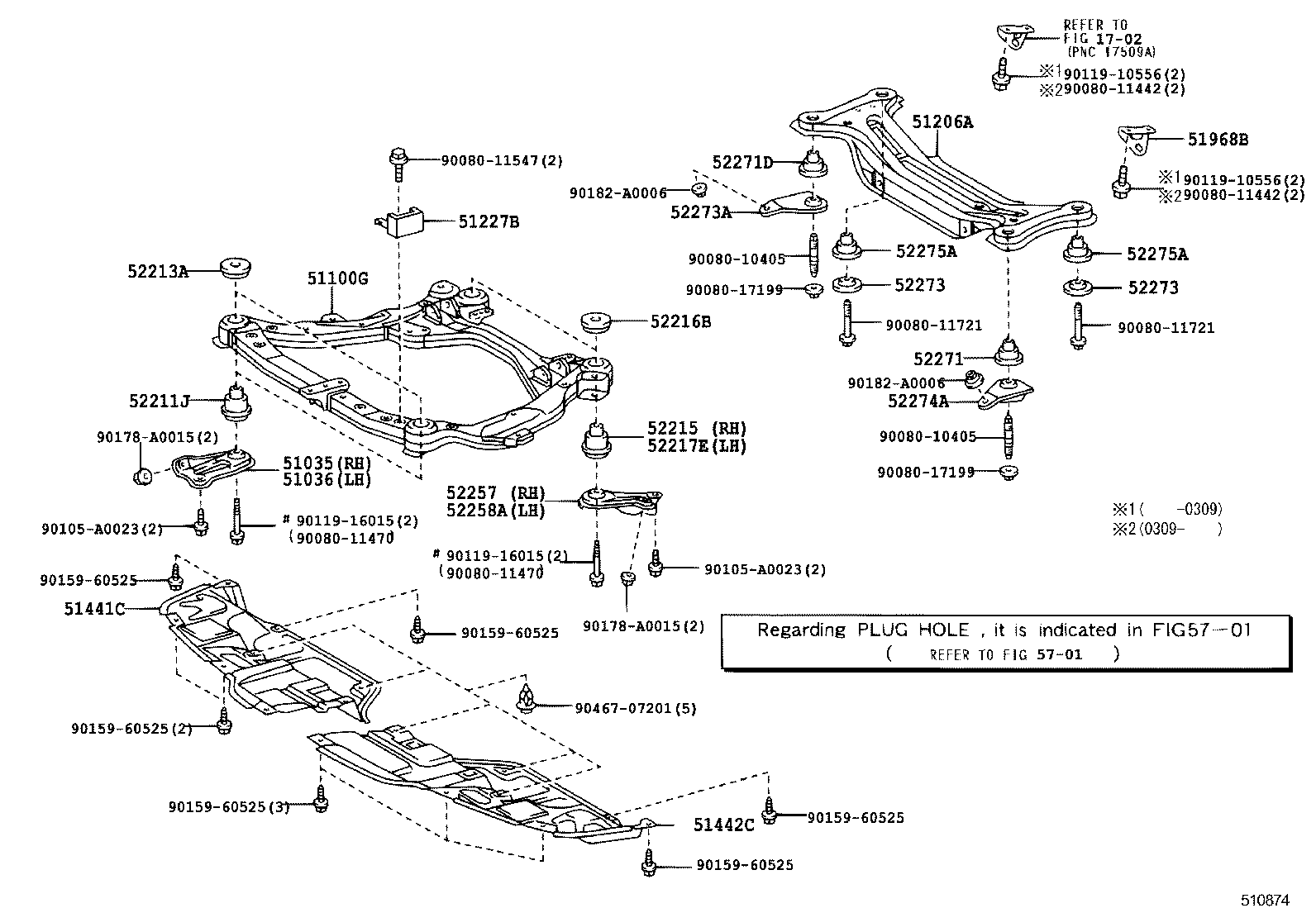

(0307- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH | ||||
| 51035-33010 |
ACV30,MCV30..NAP |
1 | ||
| 51035-33011 |
ACV30,MCV3#..NAP |
1 | ||
| 51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH | ||||
| 51036-33011 |
ACV30,MCV3#..NAP |
1 | ||
| 51036-33010 |
ACV30,MCV30..NAP |
1 | ||
| 51100G - FRAME ASSY, FRONT | ||||
| 51100-06050 |
ACV30,MCV3#..NAP |
1 | ||
| 51100-06050 |
ACV30,MCV3#..NAP |
1 | ||
| 51206A - MEMBER SUB-ASSY, REAR SUSPENSION | ||||
| 51206-0E011 |
ACV30,MCV3#..NAP |
1 | ||
| 51206-06050 |
ACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC |
1 | ||
| 51206-0E012 |
ACV30,MCV3#..NAP |
1 | ||
| 51206-0E011 |
ACV30,MCV3#..NAP |
1 | ||
| 51206-06050 |
MCV30..NAP |
1 | ||
| 51227B - DAMPER, FRONT SUSPENSION MEMBER DYNAMIC | ||||
| 51227-06030 |
ACV30,MCV3#..NAP (L) |
1 | ||
| 51227-06030 |
ACV30,MCV3#..NAP (L) |
1 | ||
| 51227-33101 |
ACV30,MCV3#..NAP (J) |
1 | ||
| 51227-06031 |
ACV30,MCV3#..NAP (L) |
1 | ||
| 51227-06010 |
MCV30..NAP |
1 | ||
| 51227-33101 |
ACV30,MCV3#..NAP (J) |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51441-06030 |
ACV30,MCV3#..NAP |
1 | ||
| 51441-06030 |
ACV30,MCV3#..NAP |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51442-06020 |
ACV30,MCV3#..NAP |
1 | ||
| 51442-06020 |
ACV30,MCV3#..NAP |
1 | ||
| 51968B - HOOK, TRANSPORT, REAR LH | ||||
| 51968-06010 |
ACV30,MCV3#..NAP |
1 | ||
| 51968-06010 |
ACV30,MCV3#..NAP |
1 | ||
| 52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52211-06030 |
ACV30,MCV3#..NAP (L) |
2 | ||
| 52211-28010 |
ACV30,MCV3#..NAP (J) |
2 | ||
| 52211-28010 |
ACV30,MCV3#..NAP (J) |
2 | ||
| 52211-06030 |
ACV30,MCV3#..NAP (L) |
2 | ||
| 52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52213-06030 |
ACV30,MCV3#..NAP (L) |
2 | ||
| 52213-28010 |
ACV30,MCV3#..NAP (J) |
2 | ||
| 52213-06030 |
ACV30,MCV3#..NAP (L) |
2 | ||
| 52213-28010 |
ACV30,MCV3#..NAP (J) |
2 | ||
| 52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52215-06030 |
ACV30,MCV3#..NAP |
1 | ||
| 52215-06030 |
ACV30,MCV3#..NAP |
1 | ||
| 52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52216-06030 |
ACV30,MCV3#..NAP |
2 | ||
| 52216-06030 |
ACV30,MCV3#..NAP |
2 | ||
| 52217E - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH | ||||
| 52217-06010 |
ACV30,MCV3#..NAP |
1 | ||
| 52217-06010 |
ACV30,MCV3#..NAP |
1 | ||
| 52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH | ||||
| 51023-33040 |
ACV30,MCV3#..NAP |
1 | ||
| 51023-33040 |
ACV30,MCV3#..NAP |
1 | ||
| 52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH | ||||
| 51024-33050 |
ACV30,MCV3#..NAP |
1 | ||
| 51024-33050 |
ACV30,MCV3#..NAP |
1 | ||
| 52271 - CUSHION, REAR SUSPENSION MEMBER | ||||
| 52272-06040 |
ACV30,MCV3#..NAP |
1 | ||
| 52272-06040 |
ACV30,MCV3#..NAP |
1 | ||
| 52271D - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT | ||||
| 52271-06050 |
ACV30,MCV3#..NAP |
1 | ||
| 52271-06050 |
ACV30,MCV3#..NAP |
1 | ||
| 52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER | ||||
| 52273-06010 |
ACV30,MCV3#..NAP |
2 | ||
| 52273-06010 |
ACV30,MCV3#..NAP |
2 | ||
| 52273 - STOPPER, REAR SUSPENSION MEMBER, LOWER | ||||
| 52273-06010 |
ACV30,MCV3#..NAP |
2 | ||
| 52273-06010 |
ACV30,MCV3#..NAP |
2 | ||
| 52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH | ||||
| 52203-33020 |
ACV30,MCV3#..NAP |
1 | ||
| 52203-33020 |
ACV30,MCV3#..NAP |
1 | ||
| 52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH | ||||
| 52204-33020 |
ACV30,MCV3#..NAP |
1 | ||
| 52204-33020 |
ACV30,MCV3#..NAP |
1 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52275-06050 |
ACV30,MCV3#..NAP |
2 | ||
| 52275-06050 |
ACV30,MCV3#..NAP |
2 | ||
| 52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR | ||||
| 52275-06050 |
ACV30,MCV3#..NAP |
2 | ||
| 52275-06050 |
ACV30,MCV3#..NAP |
2 | ||
| Common parts | ||||
| 90080-10405 | ||||
| 90080-11442 | ||||
| 90080-11470 | ||||
| 90080-11547 | ||||
| 90080-11721 | ||||
| 90080-17199 | ||||
| 90105-A0023 | ||||
| 90119-10556 | ||||
| 90119-16015 | ||||
| 90159-60525 | ||||
| 90178-A0015 | ||||
| 90182-A0006 | ||||
| 90467-07201 | ||||
| Linked diagrams | ||||
| 1702 | ||||
| 5701 | ||||
