Toyota Camry (nap) MCV30 WIRING & CLAMP

MCV30L-CEAGKA (2003)

Toyota Camry (Nap)

Production Jan 2003 - Feb 2006

Engine 1MZFE

Transmission 5FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

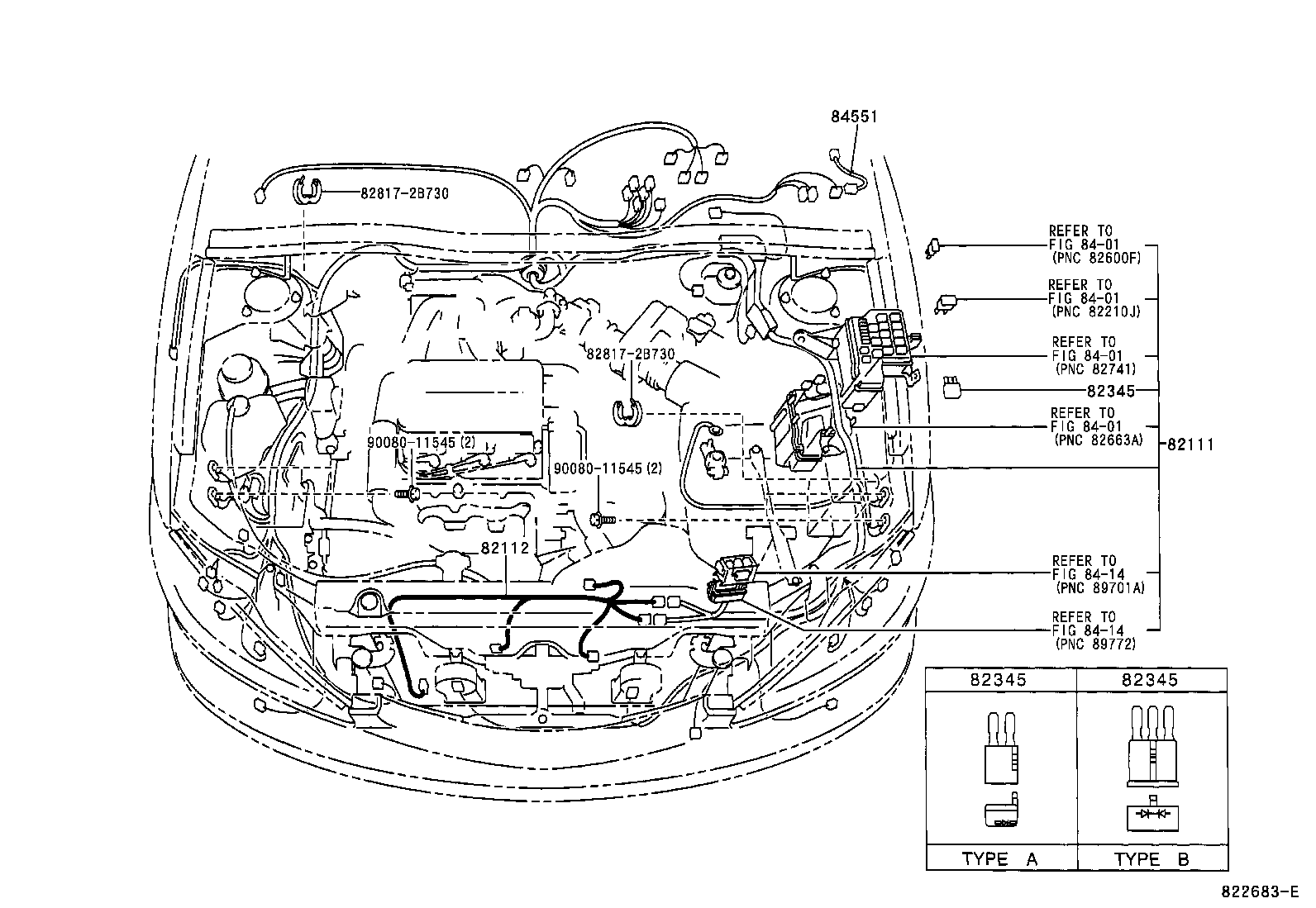

ILLUST NO. 1 OF 8(0107-0406)NAP

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82115-06720	MCV30..NAP..XLE W(VSC)	07/2001 - 02/2003	1
82115-06710	MCV30..NAP..XLE	07/2001 - 02/2003	1
82115-06490	MCV30..NAP..(LE,SE) W(VSC)	07/2001 - 02/2003	1
82115-06480	MCV30..NAP..(LE,SE)	07/2001 - 02/2003	1
82116-06101	MCV30..NAP..(LE,SE) W(ABS & ADJUSTABLE PEDAL)	02/2003 - 09/2003	1
82116-06111	MCV30..NAP..XLE W(ABS & ADJUSTABLE PEDAL)	02/2003 - 09/2003	1
82116-06081	MCV30..NAP..(LE,SE) W(ADJUSTABLE PEDAL)	02/2003 - 09/2003	1
82116-06091	MCV30..NAP..XLE W(ADJUSTABLE PEDAL)	02/2003 - 09/2003	1
82115-06481	MCV30..NAP..(LE,SE)	02/2003 - 09/2003	1
82115-06482	MCV3#..NAP..(LE,SE)	09/2003 - 06/2004	1
82115-06721	MCV30..NAP..XLE W(VSC)	02/2003 - 09/2003	1
82115-06491	MCV30..NAP..(LE,SE) W(VSC)	02/2003 - 09/2003	1
82115-06711	MCV30..NAP..XLE	02/2003 - 09/2003	1
82115-06492	MCV3#..NAP..(LE,SE) W(VSC)	09/2003 - 06/2004	1
82115-06722	MCV30..NAP..XLE W(VSC)	09/2003 - 06/2004	1
82116-06082	MCV3#..NAP..(LE,SE) W(ADJUSTABLE PEDAL)	09/2003 - 06/2004	1
82115-06712	MCV30..NAP..XLE	09/2003 - 06/2004	1
82116-06092	MCV30..NAP..XLE W(ADJUSTABLE PEDAL)	09/2003 - 06/2004	1
82111-06E21	MCV30..NAP..XLE	06/2004 - 02/2006	1
82116-06112	MCV30..NAP..XLE W(ADJUSTABLE PEDAL & VSC)	09/2003 - 06/2004	1
82111-06E51	MCV30..NAP..XLE W(ADJUSTABLE PEDAL)	06/2004 - 02/2006	1
82111-06E71	MCV30..NAP..XLE W(ADJUSTABLE PEDAL & VSC)	06/2004 - 02/2006	1
82111-06E01	MCV3#..NAP..(LE,SE)	06/2004 - 02/2006	1
82111-06E31	MCV30..NAP..XLE W(VSC)	06/2004 - 02/2006	1
82111-06E41	MCV3#..NAP..(LE,SE) W(ADJUSTABLE PEDAL)	06/2004 - 02/2006	1
82111-06E11	MCV3#..NAP..(LE,SE) W(VSC)	06/2004 - 02/2006	1
82112 - WIRE, ENGINE ROOM, NO.2
82112-06030	MCV3#..NAP..(LE,SE)	07/2001 - 06/2004	1
82112-06030	MCV3#..NAP..(LE,SE)	06/2004 - 12/2999	1
82112-06040	MCV30..NAP..XLE	07/2001 - 06/2004	1
82112-06040	MCV30..NAP..XLE	06/2004 - 12/2999	1
82345 - DIODE
82345-32020	MCV3#..NAP	01/2003 - 06/2004	1
82345-32020	MCV3#..NAP	06/2004 - 02/2006	1
84551 - WIRE, PARKING BRAKE SWITCH
84551-33010	ACV30,MCV30..NAP..XLE	06/2004 - 12/2999	1
Common parts
82817-2B730
90080-11545
Linked diagrams
8401
8414

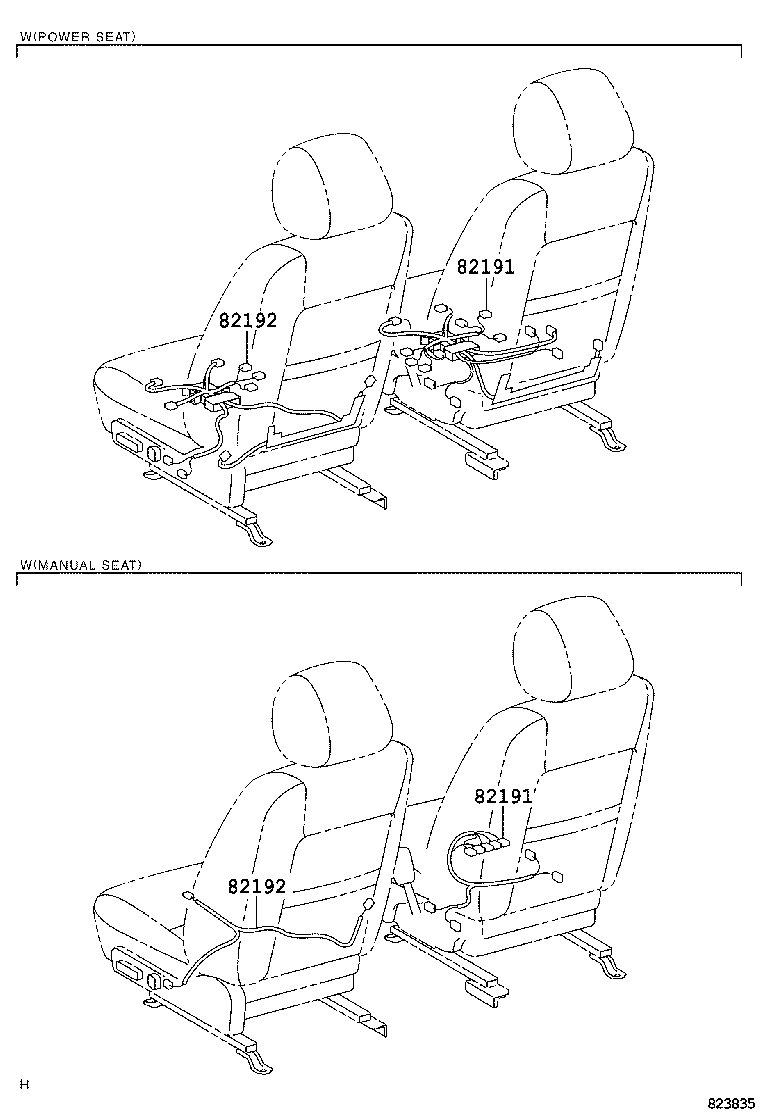

ILLUST NO. 5 OF 8(0107-0406)NAP

Click highlighted areas on diagram

SEAT

Part #	Description	Period	Qty
82191 - WIRE, FRONT SEAT, RH
82191-AA010	MCV30..NAP..XLE W(POWER SEAT)	07/2001 - 01/2003	1
82191-AA020	MCV30..NAP..XLE W(POWER SEAT & SEAT HEATER)	07/2001 - 01/2003	1
82191-06090	ACV30,MCV30..NAP..XLE W(POWER SEAT, DRIVER'S SIDE & PASSENGER'S SIDE & SEAT HEATER)	06/2004 - 12/2999	1
82191-AA040	ACV30,MCV3#..NAP	09/2003 - 06/2004	1
82191-06080	ACV30,MCV30..NAP..XLE W(POWER SEAT, DRIVER'S SIDE & PASSENGER SIDE)	06/2004 - 12/2999	1
82191-AA010	ACV30..NAP..XLE;MCV30..NAP..XLE..5FC W(POWER SEAT)	07/2001 - 09/2003	1
82191-AA020	ACV30..NAP..XLE;MCV30..NAP..XLE..5FC W(POWER SEAT & SEAT HEATER)	07/2001 - 09/2003	1
82191-AA060	ACV30,MCV30..NAP..XLE W(POWER SEAT & SEAT HEATER)	09/2003 - 06/2004	1
82191-AA050	ACV30,MCV30..NAP..XLE W(POWER SEAT)	09/2003 - 06/2004	1
82191 - WIRE, FRONT SEAT, RH
82191-AA010	MCV30..NAP..XLE W(POWER SEAT)	07/2001 - 01/2003	1
82191-AA020	MCV30..NAP..XLE W(POWER SEAT & SEAT HEATER)	07/2001 - 01/2003	1
82191-06090	ACV30,MCV30..NAP..XLE W(POWER SEAT, DRIVER'S SIDE & PASSENGER'S SIDE & SEAT HEATER)	06/2004 - 12/2999	1
82191-AA040	ACV30,MCV3#..NAP	09/2003 - 06/2004	1
82191-06080	ACV30,MCV30..NAP..XLE W(POWER SEAT, DRIVER'S SIDE & PASSENGER SIDE)	06/2004 - 12/2999	1
82191-AA010	ACV30..NAP..XLE;MCV30..NAP..XLE..5FC W(POWER SEAT)	07/2001 - 09/2003	1
82191-AA020	ACV30..NAP..XLE;MCV30..NAP..XLE..5FC W(POWER SEAT & SEAT HEATER)	07/2001 - 09/2003	1
82191-AA060	ACV30,MCV30..NAP..XLE W(POWER SEAT & SEAT HEATER)	09/2003 - 06/2004	1
82191-AA050	ACV30,MCV30..NAP..XLE W(POWER SEAT)	09/2003 - 06/2004	1
82192 - WIRE, FRONT SEAT, LH
82192-AA010	ACV30..NAP;MCV30..NAP..5FC W(POWER SEAT)	07/2001 - 09/2003	1
82192-AA010	MCV30..NAP W(POWER SEAT)	07/2001 - 01/2003	1
82192-AA050	ACV30,MCV3#..NAP W(POWER SEAT)	09/2003 - 06/2004	1
82192-06090	ACV30,MCV3#..NAP..(SE,XLE) W(LEATHER SEAT & POWER SEAT & SEAT HEATER)	06/2004 - 12/2999	1
82192-AA070	ACV30,MCV3#..NAP..(LE,SE) W(MANUAL SEAT)	09/2003 - 06/2004	1
82192-AA020	MCV30..NAP..(SE,XLE) W(POWER SEAT & SEAT HEATER)	07/2001 - 01/2003	1
82192-06080	ACV30,MCV3#..NAP	06/2004 - 12/2999	1
82192-06100	ACV30,MCV3#..NAP..(LE,SE) W/O(POWER SEAT, DRIVER'S SIDE & PASSENGER'S SIDE)	06/2004 - 12/2999	1
82192-AA020	ACV30..NAP..(SE,XLE);MCV30..NAP..(SE,XLE)..5FC W(POWER SEAT & SEAT HEATER)	07/2001 - 09/2003	1
82192-AA060	ACV30,MCV3#..NAP..(SE,XLE) W(POWER SEAT & SEAT HEATER)	09/2003 - 06/2004	1
82192 - WIRE, FRONT SEAT, LH
82192-AA010	ACV30..NAP;MCV30..NAP..5FC W(POWER SEAT)	07/2001 - 09/2003	1
82192-AA010	MCV30..NAP W(POWER SEAT)	07/2001 - 01/2003	1
82192-AA050	ACV30,MCV3#..NAP W(POWER SEAT)	09/2003 - 06/2004	1
82192-06090	ACV30,MCV3#..NAP..(SE,XLE) W(LEATHER SEAT & POWER SEAT & SEAT HEATER)	06/2004 - 12/2999	1
82192-AA070	ACV30,MCV3#..NAP..(LE,SE) W(MANUAL SEAT)	09/2003 - 06/2004	1
82192-AA020	MCV30..NAP..(SE,XLE) W(POWER SEAT & SEAT HEATER)	07/2001 - 01/2003	1
82192-06080	ACV30,MCV3#..NAP	06/2004 - 12/2999	1
82192-06100	ACV30,MCV3#..NAP..(LE,SE) W/O(POWER SEAT, DRIVER'S SIDE & PASSENGER'S SIDE)	06/2004 - 12/2999	1
82192-AA020	ACV30..NAP..(SE,XLE);MCV30..NAP..(SE,XLE)..5FC W(POWER SEAT & SEAT HEATER)	07/2001 - 09/2003	1
82192-AA060	ACV30,MCV3#..NAP..(SE,XLE) W(POWER SEAT & SEAT HEATER)	09/2003 - 06/2004	1

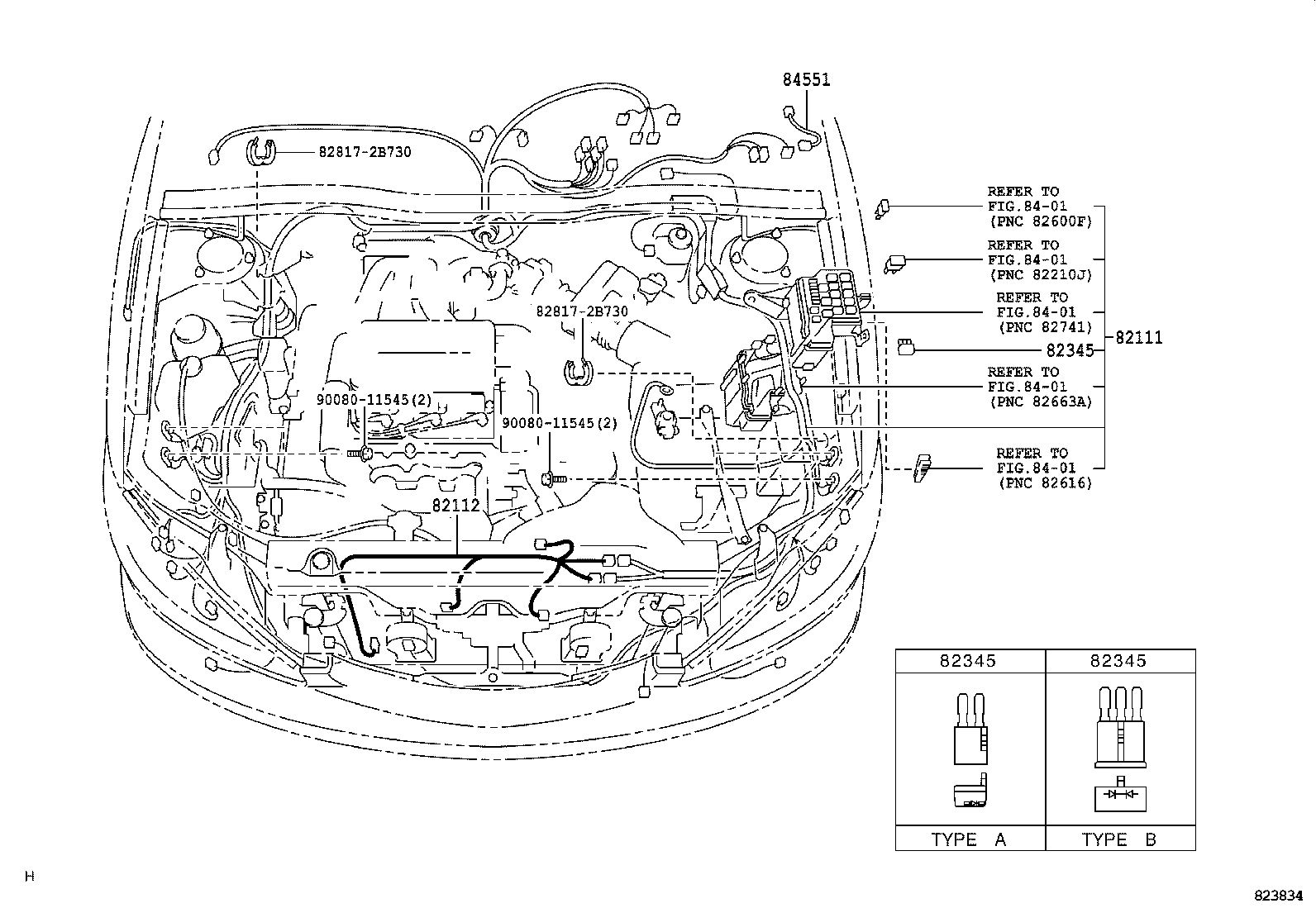

ILLUST NO. 1 OF 8(0406- )NAP

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82115-06720	MCV30..NAP..XLE W(VSC)	07/2001 - 02/2003	1
82115-06710	MCV30..NAP..XLE	07/2001 - 02/2003	1
82115-06490	MCV30..NAP..(LE,SE) W(VSC)	07/2001 - 02/2003	1
82115-06480	MCV30..NAP..(LE,SE)	07/2001 - 02/2003	1
82116-06101	MCV30..NAP..(LE,SE) W(ABS & ADJUSTABLE PEDAL)	02/2003 - 09/2003	1
82116-06111	MCV30..NAP..XLE W(ABS & ADJUSTABLE PEDAL)	02/2003 - 09/2003	1
82116-06081	MCV30..NAP..(LE,SE) W(ADJUSTABLE PEDAL)	02/2003 - 09/2003	1
82116-06091	MCV30..NAP..XLE W(ADJUSTABLE PEDAL)	02/2003 - 09/2003	1
82115-06481	MCV30..NAP..(LE,SE)	02/2003 - 09/2003	1
82115-06482	MCV3#..NAP..(LE,SE)	09/2003 - 06/2004	1
82115-06721	MCV30..NAP..XLE W(VSC)	02/2003 - 09/2003	1
82115-06491	MCV30..NAP..(LE,SE) W(VSC)	02/2003 - 09/2003	1
82115-06711	MCV30..NAP..XLE	02/2003 - 09/2003	1
82115-06492	MCV3#..NAP..(LE,SE) W(VSC)	09/2003 - 06/2004	1
82115-06722	MCV30..NAP..XLE W(VSC)	09/2003 - 06/2004	1
82116-06082	MCV3#..NAP..(LE,SE) W(ADJUSTABLE PEDAL)	09/2003 - 06/2004	1
82115-06712	MCV30..NAP..XLE	09/2003 - 06/2004	1
82116-06092	MCV30..NAP..XLE W(ADJUSTABLE PEDAL)	09/2003 - 06/2004	1
82111-06E21	MCV30..NAP..XLE	06/2004 - 02/2006	1
82116-06112	MCV30..NAP..XLE W(ADJUSTABLE PEDAL & VSC)	09/2003 - 06/2004	1
82111-06E51	MCV30..NAP..XLE W(ADJUSTABLE PEDAL)	06/2004 - 02/2006	1
82111-06E71	MCV30..NAP..XLE W(ADJUSTABLE PEDAL & VSC)	06/2004 - 02/2006	1
82111-06E01	MCV3#..NAP..(LE,SE)	06/2004 - 02/2006	1
82111-06E31	MCV30..NAP..XLE W(VSC)	06/2004 - 02/2006	1
82111-06E41	MCV3#..NAP..(LE,SE) W(ADJUSTABLE PEDAL)	06/2004 - 02/2006	1
82111-06E11	MCV3#..NAP..(LE,SE) W(VSC)	06/2004 - 02/2006	1
82112 - WIRE, ENGINE ROOM, NO.2
82112-06030	MCV3#..NAP..(LE,SE)	07/2001 - 06/2004	1
82112-06030	MCV3#..NAP..(LE,SE)	06/2004 - 12/2999	1
82112-06040	MCV30..NAP..XLE	07/2001 - 06/2004	1
82112-06040	MCV30..NAP..XLE	06/2004 - 12/2999	1
82345 - DIODE
82345-32020	MCV3#..NAP	01/2003 - 06/2004	1
82345-32020	MCV3#..NAP	06/2004 - 02/2006	1
84551 - WIRE, PARKING BRAKE SWITCH
84551-33010	ACV30,MCV30..NAP..XLE	06/2004 - 12/2999	1
Common parts
82817-2B730
90080-11545
Linked diagrams
8401

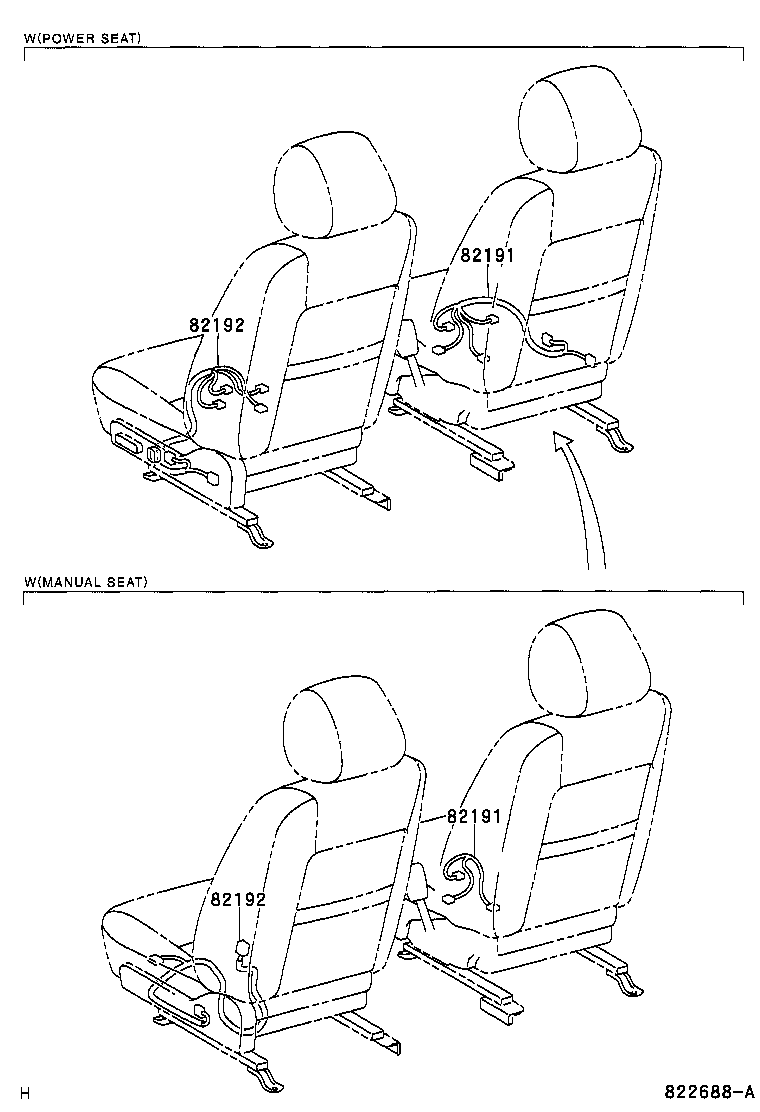

ILLUST NO. 5 OF 8(0406- )NAP

Click highlighted areas on diagram

SEAT

Part #	Description	Period	Qty
82191 - WIRE, FRONT SEAT, RH
82191-AA010	MCV30..NAP..XLE W(POWER SEAT)	07/2001 - 01/2003	1
82191-AA020	MCV30..NAP..XLE W(POWER SEAT & SEAT HEATER)	07/2001 - 01/2003	1
82191-06090	ACV30,MCV30..NAP..XLE W(POWER SEAT, DRIVER'S SIDE & PASSENGER'S SIDE & SEAT HEATER)	06/2004 - 12/2999	1
82191-AA040	ACV30,MCV3#..NAP	09/2003 - 06/2004	1
82191-06080	ACV30,MCV30..NAP..XLE W(POWER SEAT, DRIVER'S SIDE & PASSENGER SIDE)	06/2004 - 12/2999	1
82191-AA010	ACV30..NAP..XLE;MCV30..NAP..XLE..5FC W(POWER SEAT)	07/2001 - 09/2003	1
82191-AA020	ACV30..NAP..XLE;MCV30..NAP..XLE..5FC W(POWER SEAT & SEAT HEATER)	07/2001 - 09/2003	1
82191-AA060	ACV30,MCV30..NAP..XLE W(POWER SEAT & SEAT HEATER)	09/2003 - 06/2004	1
82191-AA050	ACV30,MCV30..NAP..XLE W(POWER SEAT)	09/2003 - 06/2004	1
82191 - WIRE, FRONT SEAT, RH
82191-AA010	MCV30..NAP..XLE W(POWER SEAT)	07/2001 - 01/2003	1
82191-AA020	MCV30..NAP..XLE W(POWER SEAT & SEAT HEATER)	07/2001 - 01/2003	1
82191-06090	ACV30,MCV30..NAP..XLE W(POWER SEAT, DRIVER'S SIDE & PASSENGER'S SIDE & SEAT HEATER)	06/2004 - 12/2999	1
82191-AA040	ACV30,MCV3#..NAP	09/2003 - 06/2004	1
82191-06080	ACV30,MCV30..NAP..XLE W(POWER SEAT, DRIVER'S SIDE & PASSENGER SIDE)	06/2004 - 12/2999	1
82191-AA010	ACV30..NAP..XLE;MCV30..NAP..XLE..5FC W(POWER SEAT)	07/2001 - 09/2003	1
82191-AA020	ACV30..NAP..XLE;MCV30..NAP..XLE..5FC W(POWER SEAT & SEAT HEATER)	07/2001 - 09/2003	1
82191-AA060	ACV30,MCV30..NAP..XLE W(POWER SEAT & SEAT HEATER)	09/2003 - 06/2004	1
82191-AA050	ACV30,MCV30..NAP..XLE W(POWER SEAT)	09/2003 - 06/2004	1
82192 - WIRE, FRONT SEAT, LH
82192-AA010	ACV30..NAP;MCV30..NAP..5FC W(POWER SEAT)	07/2001 - 09/2003	1
82192-AA010	MCV30..NAP W(POWER SEAT)	07/2001 - 01/2003	1
82192-AA050	ACV30,MCV3#..NAP W(POWER SEAT)	09/2003 - 06/2004	1
82192-06090	ACV30,MCV3#..NAP..(SE,XLE) W(LEATHER SEAT & POWER SEAT & SEAT HEATER)	06/2004 - 12/2999	1
82192-AA070	ACV30,MCV3#..NAP..(LE,SE) W(MANUAL SEAT)	09/2003 - 06/2004	1
82192-AA020	MCV30..NAP..(SE,XLE) W(POWER SEAT & SEAT HEATER)	07/2001 - 01/2003	1
82192-06080	ACV30,MCV3#..NAP	06/2004 - 12/2999	1
82192-06100	ACV30,MCV3#..NAP..(LE,SE) W/O(POWER SEAT, DRIVER'S SIDE & PASSENGER'S SIDE)	06/2004 - 12/2999	1
82192-AA020	ACV30..NAP..(SE,XLE);MCV30..NAP..(SE,XLE)..5FC W(POWER SEAT & SEAT HEATER)	07/2001 - 09/2003	1
82192-AA060	ACV30,MCV3#..NAP..(SE,XLE) W(POWER SEAT & SEAT HEATER)	09/2003 - 06/2004	1
82192 - WIRE, FRONT SEAT, LH
82192-AA010	ACV30..NAP;MCV30..NAP..5FC W(POWER SEAT)	07/2001 - 09/2003	1
82192-AA010	MCV30..NAP W(POWER SEAT)	07/2001 - 01/2003	1
82192-AA050	ACV30,MCV3#..NAP W(POWER SEAT)	09/2003 - 06/2004	1
82192-06090	ACV30,MCV3#..NAP..(SE,XLE) W(LEATHER SEAT & POWER SEAT & SEAT HEATER)	06/2004 - 12/2999	1
82192-AA070	ACV30,MCV3#..NAP..(LE,SE) W(MANUAL SEAT)	09/2003 - 06/2004	1
82192-AA020	MCV30..NAP..(SE,XLE) W(POWER SEAT & SEAT HEATER)	07/2001 - 01/2003	1
82192-06080	ACV30,MCV3#..NAP	06/2004 - 12/2999	1
82192-06100	ACV30,MCV3#..NAP..(LE,SE) W/O(POWER SEAT, DRIVER'S SIDE & PASSENGER'S SIDE)	06/2004 - 12/2999	1
82192-AA020	ACV30..NAP..(SE,XLE);MCV30..NAP..(SE,XLE)..5FC W(POWER SEAT & SEAT HEATER)	07/2001 - 09/2003	1
82192-AA060	ACV30,MCV3#..NAP..(SE,XLE) W(POWER SEAT & SEAT HEATER)	09/2003 - 06/2004	1
