MCV30L-CEAGKA (2003)
Toyota Camry (Nap)
(0107-0406)NAP

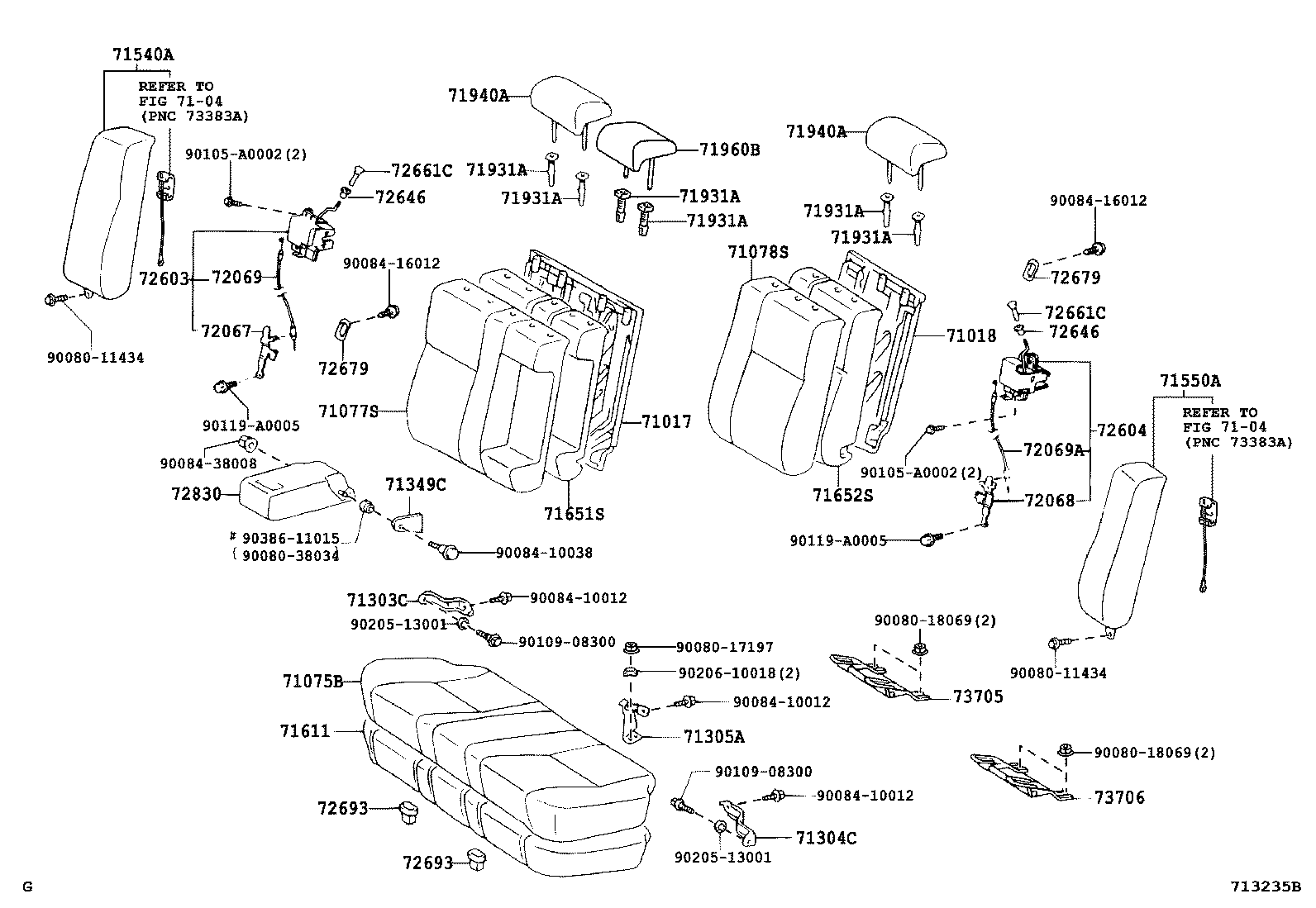

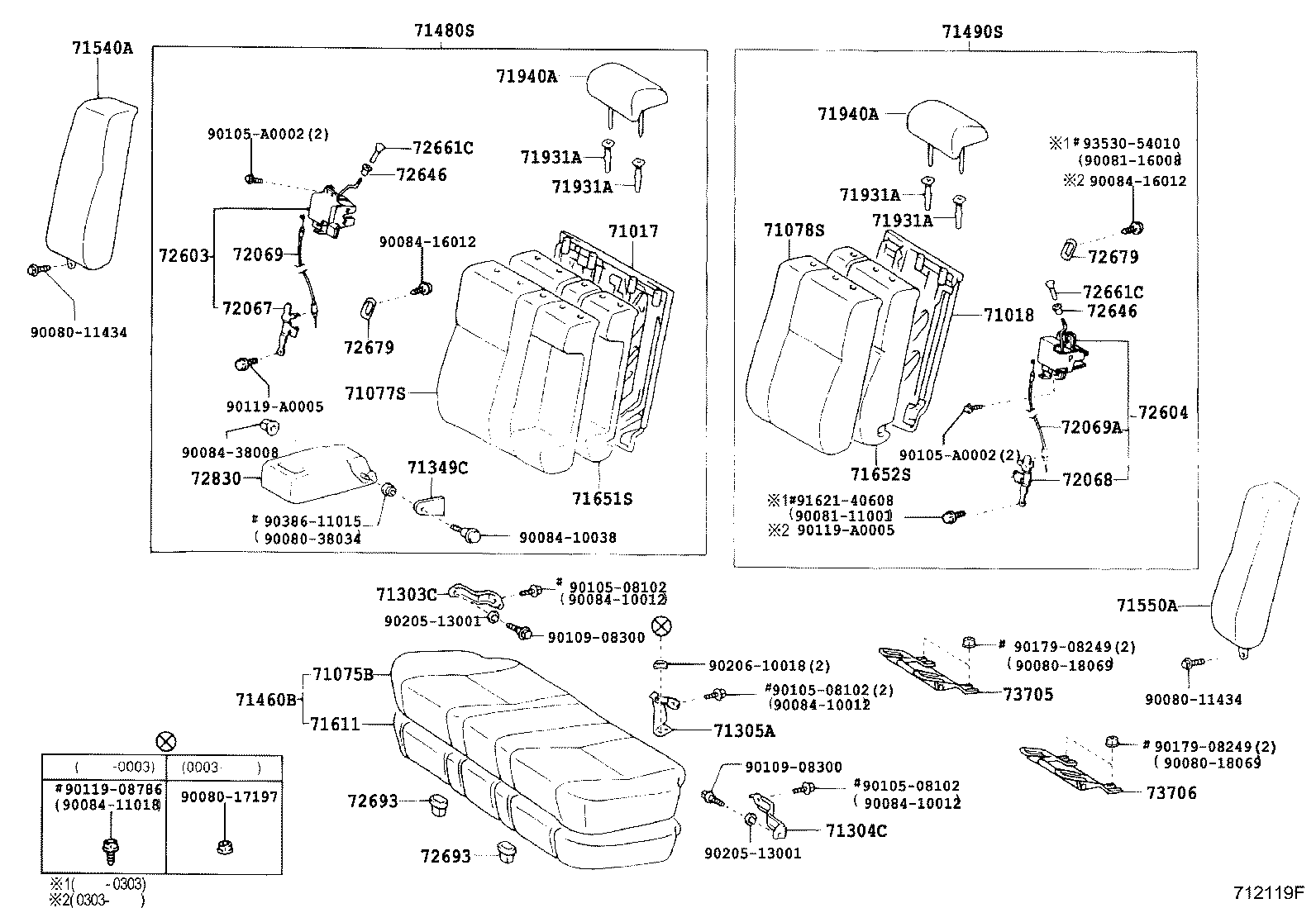

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-06080 |
ACV30,MCV3#..NAP |
1 | ||
| 71017-AA040 |
ACV30,MCV3#..NAP |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-AA030 |
ACV30,MCV3#..NAP |
1 | ||
| 71018-AA030 |
ACV30,MCV3#..NAP |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-AA180E0 |
ACV30,MCV30..NAP..(LE,XLE) FAWN-COMFORT SEAT IN,TRIM4# |
1 | ||
| 71075-AA180B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE-COMFORT SEAT I,TRIM1# |
1 | ||
| 71075-AA200E0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71075-AA200B0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 71075-06280E1 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
1 | ||
| 71075-06280B1 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM9# |
1 | ||
| 71075-06330E0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71075-06330B0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM9# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-AA260E0 |
ACV30,MCV30..NAP..(LE,XLE) FAWN-COMFORT SEAT IN,TRIM4# |
1 | ||
| 71077-AA280B0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 71077-AA260B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE-COMFORT SEAT I,TRIM1# |
1 | ||
| 71077-06320B1 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM9# |
1 | ||
| 71077-AA280E0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71077-06340E0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71077-06320E1 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
1 | ||
| 71077-06340B0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM9# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-AA160B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE-COMFORT SEAT I,TRIM1# |
1 | ||
| 71078-06170B1 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM9# |
1 | ||
| 71078-AA160E0 |
ACV30,MCV30..NAP..(LE,XLE) FAWN-COMFORT SEAT IN,TRIM4# |
1 | ||
| 71078-AA200E0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71078-06190E0 |
ACV30,MCV30..NAP..XLE LEATHER PACKAGE,FAWN,TRIM4# |
1 | ||
| 71078-06190B0 |
ACV30,MCV30..NAP..XLE LEATHER PACKAGE,STONE,TRIM9# |
1 | ||
| 71078-AA200B0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 71078-06170E1 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-AA030 |
ACV30,MCV3#..NAP |
1 | ||
| 71303-AA030 |
MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71345-AA040 |
MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC |
1 | ||
| 71345-AA040 |
ACV30,MCV3#..NAP |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-AA040 |
MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC |
1 | ||
| 71305-AA040 |
ACV30,MCV3#..NAP |
1 | ||
| 71349C - COVER, REAR SEAT BACK HINGE | ||||
| 71349-AA010 |
ACV30,MCV3#..NAP |
1 | ||
| 71349-AA010 |
ACV30,MCV3#..NAP |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-AA160E0 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
1 | ||
| 71460-AA190E0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71460-AA190B0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 71460-AA160B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM1# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-AA220B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM1# |
1 | ||
| 71480-AA220E0 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
1 | ||
| 71480-AA260E0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71480-AA260E2 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71480-AA220E2 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
1 | ||
| 71480-AA220B2 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM1# |
1 | ||
| 71480-AA260B0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 71480-AA260B2 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-AA180E0 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
1 | ||
| 71490-AA200E0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71490-AA180B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM1# |
1 | ||
| 71490-AA200B0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-AA170B0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 71540-AA170E0 |
ACV30,MCV3#..NAP..(SE,XLE) LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71540-AA150E0 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
1 | ||
| 71540-06060K1 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM9# |
1 | ||
| 71540-06060E1 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
1 | ||
| 71540-06080K0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM9# |
1 | ||
| 71540-AA150B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM1# |
1 | ||
| 71540-06080E0 |
ACV30,MCV3#..NAP..(SE,XLE) LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-AA150E0 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
1 | ||
| 71550-AA170B0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 71550-AA150B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM1# |
1 | ||
| 71550-06060K1 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM9# |
1 | ||
| 71550-06060E1 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
1 | ||
| 71550-06080E0 |
ACV30,MCV3#..NAP..(SE,XLE) LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71550-AA170E0 |
ACV30,MCV3#..NAP..(SE,XLE) LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71550-06080K0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM9# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-AA030 |
ACV30,MCV3#..NAP |
1 | ||
| 71503-06080 |
ACV30,MCV3#..NAP..(SE,XLE) LEATHER SEAT |
1 | ||
| 71503-AA030 |
ACV30,MCV3#..NAP |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-06070 |
ACV30,MCV30..NAP..XLE W(LEATHER SEAT) & W(POWER SEAT, DRIVER'S & PASSENGER SIDE) |
1 | ||
| 71651-06080 |
ACV30,MCV3#..NAP |
1 | ||
| 71651-AA050 |
ACV30,MCV30..NAP..XLE W(POWER SEAT, DRIVER'S SIDE & PASSENGER'S SIDE) |
1 | ||
| 71651-AA040 |
ACV30,MCV3#..NAP W(POWER SEAT, DRIVER'S SIDE) & W/O(POWER SEAT, PASSENGER SIDE) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-AA040 |
ACV30,MCV3#..NAP W(POWER SEAT, DRIVER'S SIDE) & W/O(POWER SEAT, PASSENGER SIDE) |
1 | ||
| 71652-AA040 |
ACV30,MCV3#..NAP |
1 | ||
| 71652-AA050 |
ACV30,MCV30..NAP..XLE W(POWER SEAT, DRIVER'S SIDE & PASSENGER'S SIDE) |
1 | ||
| 71652-AA050 |
ACV30,MCV30..NAP..XLE W(LEATHER SEAT) & W(POWER SEAT, DRIVER'S & PASSENGER SIDE) |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM1# |
2 | ||
| 71956-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM9# |
3 | ||
| 71956-47010E0 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
3 | ||
| 71970-47010E0 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
3 | ||
| 71956-02040E1 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
4 | ||
| 71956-02040B0 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM9# |
4 | ||
| 71970-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM9# |
3 | ||
| 71970-02040E1 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
4 | ||
| 71970-47010E0 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
2 | ||
| 71956-47010E0 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
2 | ||
| 71970-02040B0 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM9# |
4 | ||
| 71956-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM1# |
2 | ||
| 71956-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM9# |
3 | ||
| 71956-47010E0 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
3 | ||
| 71970-47010E0 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
3 | ||
| 71956-02040E1 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
4 | ||
| 71956-02040B0 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM9# |
4 | ||
| 71970-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM9# |
3 | ||
| 71970-02040E1 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
4 | ||
| 71970-47010E0 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
2 | ||
| 71956-47010E0 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
2 | ||
| 71970-02040B0 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM9# |
4 | ||
| 71956-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM1# |
2 | ||
| 71956-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM9# |
3 | ||
| 71956-47010E0 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
3 | ||
| 71970-47010E0 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
3 | ||
| 71956-02040E1 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
4 | ||
| 71956-02040B0 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM9# |
4 | ||
| 71970-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM9# |
3 | ||
| 71970-02040E1 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
4 | ||
| 71970-47010E0 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
2 | ||
| 71956-47010E0 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
2 | ||
| 71970-02040B0 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM9# |
4 | ||
| 71956-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM1# |
2 | ||
| 71956-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM9# |
3 | ||
| 71956-47010E0 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
3 | ||
| 71970-47010E0 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
3 | ||
| 71956-02040E1 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
4 | ||
| 71956-02040B0 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM9# |
4 | ||
| 71970-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM9# |
3 | ||
| 71970-02040E1 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
4 | ||
| 71970-47010E0 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
2 | ||
| 71956-47010E0 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
2 | ||
| 71970-02040B0 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM9# |
4 | ||
| 71956-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-AA110E0 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
2 | ||
| 71940-AA110B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM1# |
2 | ||
| 71940-06280E1 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
2 | ||
| 71940-AA130B0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM1# |
2 | ||
| 71940-06290K0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM9# |
2 | ||
| 71940-06280K1 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM9# |
2 | ||
| 71940-06290E0 |
ACV30,MCV3#..NAP..(SE,XLE) LEATHER SEAT,FAWN,TRIM4# |
2 | ||
| 71940-AA130E0 |
ACV30,MCV3#..NAP..(SE,XLE) LEATHER SEAT,FAWN,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-AA110E0 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
2 | ||
| 71940-AA110B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM1# |
2 | ||
| 71940-06280E1 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
2 | ||
| 71940-AA130B0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM1# |
2 | ||
| 71940-06290K0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM9# |
2 | ||
| 71940-06280K1 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM9# |
2 | ||
| 71940-06290E0 |
ACV30,MCV3#..NAP..(SE,XLE) LEATHER SEAT,FAWN,TRIM4# |
2 | ||
| 71940-AA130E0 |
ACV30,MCV3#..NAP..(SE,XLE) LEATHER SEAT,FAWN,TRIM4# |
2 | ||
| 72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH | ||||
| 72067-AA010 |
ACV30,MCV3#..NAP |
1 | ||
| 72067-AA010 |
ACV30,MCV3#..NAP |
1 | ||
| 72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH | ||||
| 72067-AA010 |
ACV30,MCV3#..NAP |
1 | ||
| 72067-AA010 |
ACV30,MCV3#..NAP |
1 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-AA010 |
ACV30,MCV3#..NAP |
1 | ||
| 72069-AA010 |
ACV30,MCV3#..NAP |
1 | ||
| 72069A - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL, LH | ||||
| 72069-AA010 |
ACV30,MCV3#..NAP |
1 | ||
| 72069-AA010 |
ACV30,MCV3#..NAP |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-AA030 |
ACV30,MCV3#..NAP |
1 | ||
| 72630-AA030 |
ACV30,MCV3#..NAP |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-AA030 |
ACV30,MCV3#..NAP |
1 | ||
| 72640-AA030 |
ACV30,MCV3#..NAP |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-AA020E0 |
ACV30,MCV3#..NAP FAWN,TRIM4# |
1 | ||
| 72646-AA020E0 |
ACV30,MCV3#..NAP FAWN,TRIM4# |
1 | ||
| 72646-AA020B1 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM1# |
1 | ||
| 72646-AA020B1 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM9# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-AA020E0 |
ACV30,MCV3#..NAP FAWN,TRIM4# |
1 | ||
| 72646-AA020E0 |
ACV30,MCV3#..NAP FAWN,TRIM4# |
1 | ||
| 72646-AA020B1 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM1# |
1 | ||
| 72646-AA020B1 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM9# |
1 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-AA020B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM1# |
2 | ||
| 72661-AA020B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM9# |
2 | ||
| 72661-AA020E0 |
ACV30,MCV3#..NAP FAWN,TRIM4# |
2 | ||
| 72661-AA020E0 |
ACV30,MCV3#..NAP FAWN,TRIM4# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-AA020B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM1# |
2 | ||
| 72661-AA020B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM9# |
2 | ||
| 72661-AA020E0 |
ACV30,MCV3#..NAP FAWN,TRIM4# |
2 | ||
| 72661-AA020E0 |
ACV30,MCV3#..NAP FAWN,TRIM4# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-06010C0 |
ACV30,MCV3#..NAP BLACK |
2 | ||
| 72679-06010 |
ACV30,MCV3#..NAP |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-06010C0 |
ACV30,MCV3#..NAP BLACK |
2 | ||
| 72679-06010 |
ACV30,MCV3#..NAP |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ACV30,MCV3#..NAP |
2 | ||
| 72693-12080 |
MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ACV30,MCV3#..NAP |
2 | ||
| 72693-12080 |
MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-AA150E0 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
1 | ||
| 72830-AA150B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM1# |
1 | ||
| 72830-AA170B0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 72830-06190K0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM9# |
1 | ||
| 72830-06180K1 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM9# |
1 | ||
| 72830-AA170E0 |
ACV30,MCV3#..NAP..(SE,XLE) LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 72830-06180E1 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
1 | ||
| 72830-06190E0 |
ACV30,MCV3#..NAP..(SE,XLE) LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-AA010 |
MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC |
1 | ||
| 73705-AA010 |
ACV30,MCV3#..NAP |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-AA010 |
MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC |
1 | ||
| 73706-AA010 |
ACV30,MCV3#..NAP |
1 | ||
| Common parts | ||||
| 90080-11434 | ||||
| 90080-17197 | ||||
| 90080-18069 | ||||
| 90080-38034 | ||||
| 90081-11001 | ||||
| 90081-16008 | ||||
| 90084-10012 | ||||
| 90084-10038 | ||||
| 90084-11018 | ||||
| 90084-16012 | ||||
| 90084-38008 | ||||
| 90105-08102 | ||||
| 90105-A0002 | ||||
| 90109-08300 | ||||
| 90119-08786 | ||||
| 90119-A0005 | ||||
| 90179-08249 | ||||
| 90205-13001 | ||||
| 90206-10018 | ||||
| 90386-11015 | ||||
| 91621-40608 | ||||
| 93530-54010 | ||||
(0406- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-06080 |
ACV30,MCV3#..NAP |
1 | ||
| 71017-AA040 |
ACV30,MCV3#..NAP |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-AA030 |
ACV30,MCV3#..NAP |
1 | ||
| 71018-AA030 |
ACV30,MCV3#..NAP |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-AA180E0 |
ACV30,MCV30..NAP..(LE,XLE) FAWN-COMFORT SEAT IN,TRIM4# |
1 | ||
| 71075-AA180B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE-COMFORT SEAT I,TRIM1# |
1 | ||
| 71075-AA200E0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71075-AA200B0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 71075-06280E1 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
1 | ||
| 71075-06280B1 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM9# |
1 | ||
| 71075-06330E0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71075-06330B0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM9# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-AA260E0 |
ACV30,MCV30..NAP..(LE,XLE) FAWN-COMFORT SEAT IN,TRIM4# |
1 | ||
| 71077-AA280B0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 71077-AA260B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE-COMFORT SEAT I,TRIM1# |
1 | ||
| 71077-06320B1 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM9# |
1 | ||
| 71077-AA280E0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71077-06340E0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71077-06320E1 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
1 | ||
| 71077-06340B0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM9# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-AA160B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE-COMFORT SEAT I,TRIM1# |
1 | ||
| 71078-06170B1 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM9# |
1 | ||
| 71078-AA160E0 |
ACV30,MCV30..NAP..(LE,XLE) FAWN-COMFORT SEAT IN,TRIM4# |
1 | ||
| 71078-AA200E0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71078-06190E0 |
ACV30,MCV30..NAP..XLE LEATHER PACKAGE,FAWN,TRIM4# |
1 | ||
| 71078-06190B0 |
ACV30,MCV30..NAP..XLE LEATHER PACKAGE,STONE,TRIM9# |
1 | ||
| 71078-AA200B0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 71078-06170E1 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-AA030 |
ACV30,MCV3#..NAP |
1 | ||
| 71303-AA030 |
MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71345-AA040 |
MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC |
1 | ||
| 71345-AA040 |
ACV30,MCV3#..NAP |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-AA040 |
MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC |
1 | ||
| 71305-AA040 |
ACV30,MCV3#..NAP |
1 | ||
| 71349C - COVER, REAR SEAT BACK HINGE | ||||
| 71349-AA010 |
ACV30,MCV3#..NAP |
1 | ||
| 71349-AA010 |
ACV30,MCV3#..NAP |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-AA170B0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 71540-AA170E0 |
ACV30,MCV3#..NAP..(SE,XLE) LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71540-AA150E0 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
1 | ||
| 71540-06060K1 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM9# |
1 | ||
| 71540-06060E1 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
1 | ||
| 71540-06080K0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM9# |
1 | ||
| 71540-AA150B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM1# |
1 | ||
| 71540-06080E0 |
ACV30,MCV3#..NAP..(SE,XLE) LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-AA150E0 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
1 | ||
| 71550-AA170B0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 71550-AA150B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM1# |
1 | ||
| 71550-06060K1 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM9# |
1 | ||
| 71550-06060E1 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
1 | ||
| 71550-06080E0 |
ACV30,MCV3#..NAP..(SE,XLE) LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71550-AA170E0 |
ACV30,MCV3#..NAP..(SE,XLE) LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 71550-06080K0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM9# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71503-AA030 |
ACV30,MCV3#..NAP |
1 | ||
| 71503-06080 |
ACV30,MCV3#..NAP..(SE,XLE) LEATHER SEAT |
1 | ||
| 71503-AA030 |
ACV30,MCV3#..NAP |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-06070 |
ACV30,MCV30..NAP..XLE W(LEATHER SEAT) & W(POWER SEAT, DRIVER'S & PASSENGER SIDE) |
1 | ||
| 71651-06080 |
ACV30,MCV3#..NAP |
1 | ||
| 71651-AA050 |
ACV30,MCV30..NAP..XLE W(POWER SEAT, DRIVER'S SIDE & PASSENGER'S SIDE) |
1 | ||
| 71651-AA040 |
ACV30,MCV3#..NAP W(POWER SEAT, DRIVER'S SIDE) & W/O(POWER SEAT, PASSENGER SIDE) |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-AA040 |
ACV30,MCV3#..NAP W(POWER SEAT, DRIVER'S SIDE) & W/O(POWER SEAT, PASSENGER SIDE) |
1 | ||
| 71652-AA040 |
ACV30,MCV3#..NAP |
1 | ||
| 71652-AA050 |
ACV30,MCV30..NAP..XLE W(POWER SEAT, DRIVER'S SIDE & PASSENGER'S SIDE) |
1 | ||
| 71652-AA050 |
ACV30,MCV30..NAP..XLE W(LEATHER SEAT) & W(POWER SEAT, DRIVER'S & PASSENGER SIDE) |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM1# |
2 | ||
| 71956-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM9# |
3 | ||
| 71956-47010E0 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
3 | ||
| 71970-47010E0 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
3 | ||
| 71956-02040E1 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
4 | ||
| 71956-02040B0 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM9# |
4 | ||
| 71970-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM9# |
3 | ||
| 71970-02040E1 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
4 | ||
| 71970-47010E0 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
2 | ||
| 71956-47010E0 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
2 | ||
| 71970-02040B0 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM9# |
4 | ||
| 71956-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM1# |
2 | ||
| 71956-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM9# |
3 | ||
| 71956-47010E0 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
3 | ||
| 71970-47010E0 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
3 | ||
| 71956-02040E1 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
4 | ||
| 71956-02040B0 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM9# |
4 | ||
| 71970-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM9# |
3 | ||
| 71970-02040E1 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
4 | ||
| 71970-47010E0 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
2 | ||
| 71956-47010E0 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
2 | ||
| 71970-02040B0 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM9# |
4 | ||
| 71956-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM1# |
2 | ||
| 71956-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM9# |
3 | ||
| 71956-47010E0 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
3 | ||
| 71970-47010E0 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
3 | ||
| 71956-02040E1 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
4 | ||
| 71956-02040B0 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM9# |
4 | ||
| 71970-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM9# |
3 | ||
| 71970-02040E1 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
4 | ||
| 71970-47010E0 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
2 | ||
| 71956-47010E0 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
2 | ||
| 71970-02040B0 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM9# |
4 | ||
| 71956-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM1# |
2 | ||
| 71956-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM9# |
3 | ||
| 71956-47010E0 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
3 | ||
| 71970-47010E0 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
3 | ||
| 71956-02040E1 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
4 | ||
| 71956-02040B0 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM9# |
4 | ||
| 71970-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM9# |
3 | ||
| 71970-02040E1 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
4 | ||
| 71970-47010E0 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
2 | ||
| 71956-47010E0 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
2 | ||
| 71970-02040B0 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM9# |
4 | ||
| 71956-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM1# |
2 | ||
| 71956-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM9# |
3 | ||
| 71956-47010E0 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
3 | ||
| 71970-47010E0 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
3 | ||
| 71956-02040E1 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
4 | ||
| 71956-02040B0 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM9# |
4 | ||
| 71970-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM9# |
3 | ||
| 71970-02040E1 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
4 | ||
| 71970-47010E0 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
2 | ||
| 71956-47010E0 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
2 | ||
| 71970-02040B0 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM9# |
4 | ||
| 71956-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM1# |
2 | ||
| 71956-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM9# |
3 | ||
| 71956-47010E0 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
3 | ||
| 71970-47010E0 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
3 | ||
| 71956-02040E1 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
4 | ||
| 71956-02040B0 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM9# |
4 | ||
| 71970-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM9# |
3 | ||
| 71970-02040E1 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
4 | ||
| 71970-47010E0 |
ACV30,MCV3#..NAP W(LOCK),FAWN,TRIM4# |
2 | ||
| 71956-47010E0 |
ACV30,MCV3#..NAP W/O(LOCK),FAWN,TRIM4# |
2 | ||
| 71970-02040B0 |
ACV30,MCV30..NAP..(LE,XLE) W(LOCK),STONE,TRIM9# |
4 | ||
| 71956-47010B1 |
ACV30,MCV30..NAP..(LE,XLE) W/O(LOCK),STONE,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-AA110E0 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
2 | ||
| 71940-AA110B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM1# |
2 | ||
| 71940-06280E1 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
2 | ||
| 71940-AA130B0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM1# |
2 | ||
| 71940-06290K0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM9# |
2 | ||
| 71940-06280K1 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM9# |
2 | ||
| 71940-06290E0 |
ACV30,MCV3#..NAP..(SE,XLE) LEATHER SEAT,FAWN,TRIM4# |
2 | ||
| 71940-AA130E0 |
ACV30,MCV3#..NAP..(SE,XLE) LEATHER SEAT,FAWN,TRIM4# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-AA110E0 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
2 | ||
| 71940-AA110B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM1# |
2 | ||
| 71940-06280E1 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
2 | ||
| 71940-AA130B0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM1# |
2 | ||
| 71940-06290K0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM9# |
2 | ||
| 71940-06280K1 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM9# |
2 | ||
| 71940-06290E0 |
ACV30,MCV3#..NAP..(SE,XLE) LEATHER SEAT,FAWN,TRIM4# |
2 | ||
| 71940-AA130E0 |
ACV30,MCV3#..NAP..(SE,XLE) LEATHER SEAT,FAWN,TRIM4# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71940-06270K0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM9#,CENTER |
1 | ||
| 71940-06250E1 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
1 | ||
| 71940-06250K1 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM9# |
1 | ||
| 71940-06270E0 |
ACV30,MCV3#..NAP..(SE,XLE) LEATHER SEAT,FAWN,TRIM4#,CENTER |
1 | ||
| 72067 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH | ||||
| 72067-AA010 |
ACV30,MCV3#..NAP |
1 | ||
| 72067-AA010 |
ACV30,MCV3#..NAP |
1 | ||
| 72068 - LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH | ||||
| 72067-AA010 |
ACV30,MCV3#..NAP |
1 | ||
| 72067-AA010 |
ACV30,MCV3#..NAP |
1 | ||
| 72069 - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL | ||||
| 72069-AA010 |
ACV30,MCV3#..NAP |
1 | ||
| 72069-AA010 |
ACV30,MCV3#..NAP |
1 | ||
| 72069A - CABLE SUB-ASSY, REAR SEAT BACK LOCK CONTROL, LH | ||||
| 72069-AA010 |
ACV30,MCV3#..NAP |
1 | ||
| 72069-AA010 |
ACV30,MCV3#..NAP |
1 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-AA030 |
ACV30,MCV3#..NAP |
1 | ||
| 72630-AA030 |
ACV30,MCV3#..NAP |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-AA030 |
ACV30,MCV3#..NAP |
1 | ||
| 72640-AA030 |
ACV30,MCV3#..NAP |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-AA020E0 |
ACV30,MCV3#..NAP FAWN,TRIM4# |
1 | ||
| 72646-AA020E0 |
ACV30,MCV3#..NAP FAWN,TRIM4# |
1 | ||
| 72646-AA020B1 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM1# |
1 | ||
| 72646-AA020B1 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM9# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-AA020E0 |
ACV30,MCV3#..NAP FAWN,TRIM4# |
1 | ||
| 72646-AA020E0 |
ACV30,MCV3#..NAP FAWN,TRIM4# |
1 | ||
| 72646-AA020B1 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM1# |
1 | ||
| 72646-AA020B1 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM9# |
1 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-AA020B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM1# |
2 | ||
| 72661-AA020B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM9# |
2 | ||
| 72661-AA020E0 |
ACV30,MCV3#..NAP FAWN,TRIM4# |
2 | ||
| 72661-AA020E0 |
ACV30,MCV3#..NAP FAWN,TRIM4# |
2 | ||
| 72661C - BUTTON, REAR SEAT BACK LOCK RELEASE | ||||
| 72661-AA020B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM1# |
2 | ||
| 72661-AA020B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM9# |
2 | ||
| 72661-AA020E0 |
ACV30,MCV3#..NAP FAWN,TRIM4# |
2 | ||
| 72661-AA020E0 |
ACV30,MCV3#..NAP FAWN,TRIM4# |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-06010C0 |
ACV30,MCV3#..NAP BLACK |
2 | ||
| 72679-06010 |
ACV30,MCV3#..NAP |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-06010C0 |
ACV30,MCV3#..NAP BLACK |
2 | ||
| 72679-06010 |
ACV30,MCV3#..NAP |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ACV30,MCV3#..NAP |
2 | ||
| 72693-12080 |
MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ACV30,MCV3#..NAP |
2 | ||
| 72693-12080 |
MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-AA150E0 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
1 | ||
| 72830-AA150B0 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM1# |
1 | ||
| 72830-AA170B0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM1# |
1 | ||
| 72830-06190K0 |
ACV30,MCV30..NAP..XLE LEATHER SEAT,STONE,TRIM9# |
1 | ||
| 72830-06180K1 |
ACV30,MCV30..NAP..(LE,XLE) STONE,TRIM9# |
1 | ||
| 72830-AA170E0 |
ACV30,MCV3#..NAP..(SE,XLE) LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 72830-06180E1 |
ACV30,MCV30..NAP..(LE,XLE) FAWN,TRIM4# |
1 | ||
| 72830-06190E0 |
ACV30,MCV3#..NAP..(SE,XLE) LEATHER SEAT,FAWN,TRIM4# |
1 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-AA010 |
MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC |
1 | ||
| 73705-AA010 |
ACV30,MCV3#..NAP |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-AA010 |
MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC |
1 | ||
| 73706-AA010 |
ACV30,MCV3#..NAP |
1 | ||
| Common parts | ||||
| 90080-11434 | ||||
| 90080-17197 | ||||
| 90080-18069 | ||||
| 90080-38034 | ||||
| 90084-10012 | ||||
| 90084-10038 | ||||
| 90084-16012 | ||||
| 90084-38008 | ||||
| 90105-A0002 | ||||
| 90109-08300 | ||||
| 90119-A0005 | ||||
| 90205-13001 | ||||
| 90206-10018 | ||||
| 90386-11015 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
