MCV30L-CEAGKA (2003)
Toyota Camry (Nap)

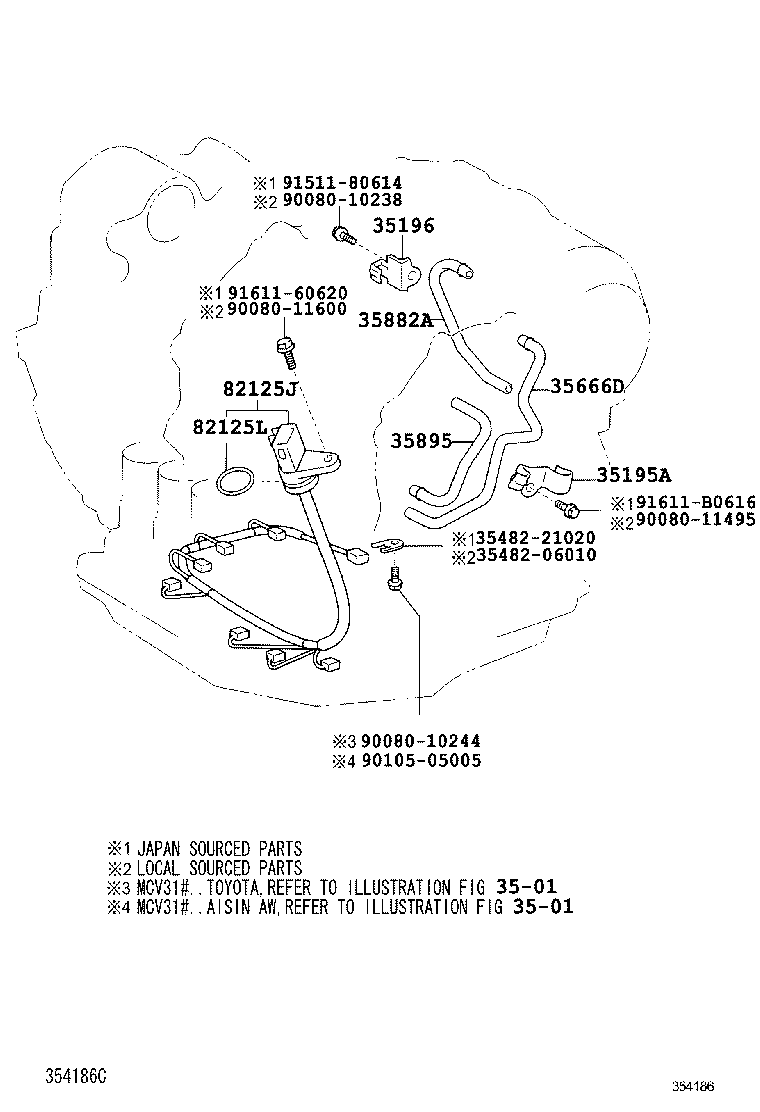

ILLUST NO. 2 OF 2(0301- )NAP..5FC
U151E,U250E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35195A - CLAMP, TRANSAXLE APPLY TUBE, NO.1 | ||||
| 35195-21010 |
MCV30..NAP |
1 | ||
| 35195-21010 |
MCV30..NAP..(LE,XLE) |
1 | ||
| 35195-07010 |
MCV3#..NAP (L) |
1 | ||
| 35195-21010 |
MCV3#..NAP (J) |
1 | ||
| 35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2 | ||||
| 35196-07010 |
MCV3#..NAP (L) |
1 | ||
| 35196-21010 |
MCV30..NAP |
1 | ||
| 35196-21010 |
MCV30..NAP..(LE,XLE) |
1 | ||
| 35196-21010 |
MCV3#..NAP (J) |
1 | ||
| 35666D - TUBE, BRAKE APPLY | ||||
| 35666-08010 |
MCV30..NAP..(LE,XLE) |
1 | ||
| 35666-06010 |
MCV30..NAP |
1 | ||
| 35666-33010 |
MCV3#..NAP AISIN AW:REFER TO ILLUSTRATION FIG.35-01 |
1 | ||
| 35666-08010 |
MCV3#..NAP TOYOTA:REFER TO ILLUSTRATION FIG.35-01 |
1 | ||
| 35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY | ||||
| 35882-06010 |
MCV30..NAP |
1 | ||
| 35882-28010 |
MCV3#..NAP AISIN AW:REFER TO ILLUSTRATION FIG.35-01 |
1 | ||
| 35882-06010 |
MCV3#..NAP TOYOTA:REFER TO ILLUSTRATION FIG.35-01 |
1 | ||
| 35882-06010 |
MCV30..NAP..(LE,XLE) |
1 | ||
| 35895 - TUBE, FRONT CLUTCH APPLY | ||||
| 35895-06010 |
MCV30..NAP (L) |
1 | ||
| 35895-06010 |
MCV3#..NAP TOYOTA:REFER TO ILLUSTRATION FIG.35-01 |
1 | ||
| 35895-06010 |
MCV30..NAP..(LE,XLE) (L) |
1 | ||
| 35895-28010 |
MCV3#..NAP AISIN AW:REFER TO ILLUSTRATION FIG.35-01 |
1 | ||
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-08010 |
MCV3#..NAP (L) |
1 | ||
| 82125-33060 |
MCV3#..NAP (J) |
1 | ||
| 82125-08010 |
MCV3#..NAP |
1 | ||
| 82125L - RING, O(FOR TRANSMISSION WIRE) | ||||
| 90301-21009 |
ACV30,MCV3#..NAP |
1 | ||
| 90301-21009 |
MCV3#..NAP |
2 | ||
| Common parts | ||||
| 35482-06010 | ||||
| 35482-21020 | ||||
| 90080-10238 | ||||
| 90080-10244 | ||||
| 90080-11495 | ||||
| 90080-11600 | ||||
| 90105-05005 | ||||
| 91511-80614 | ||||
| 91611-60620 | ||||
| 91611-B0616 | ||||
| Linked diagrams | ||||
| 3501 | ||||

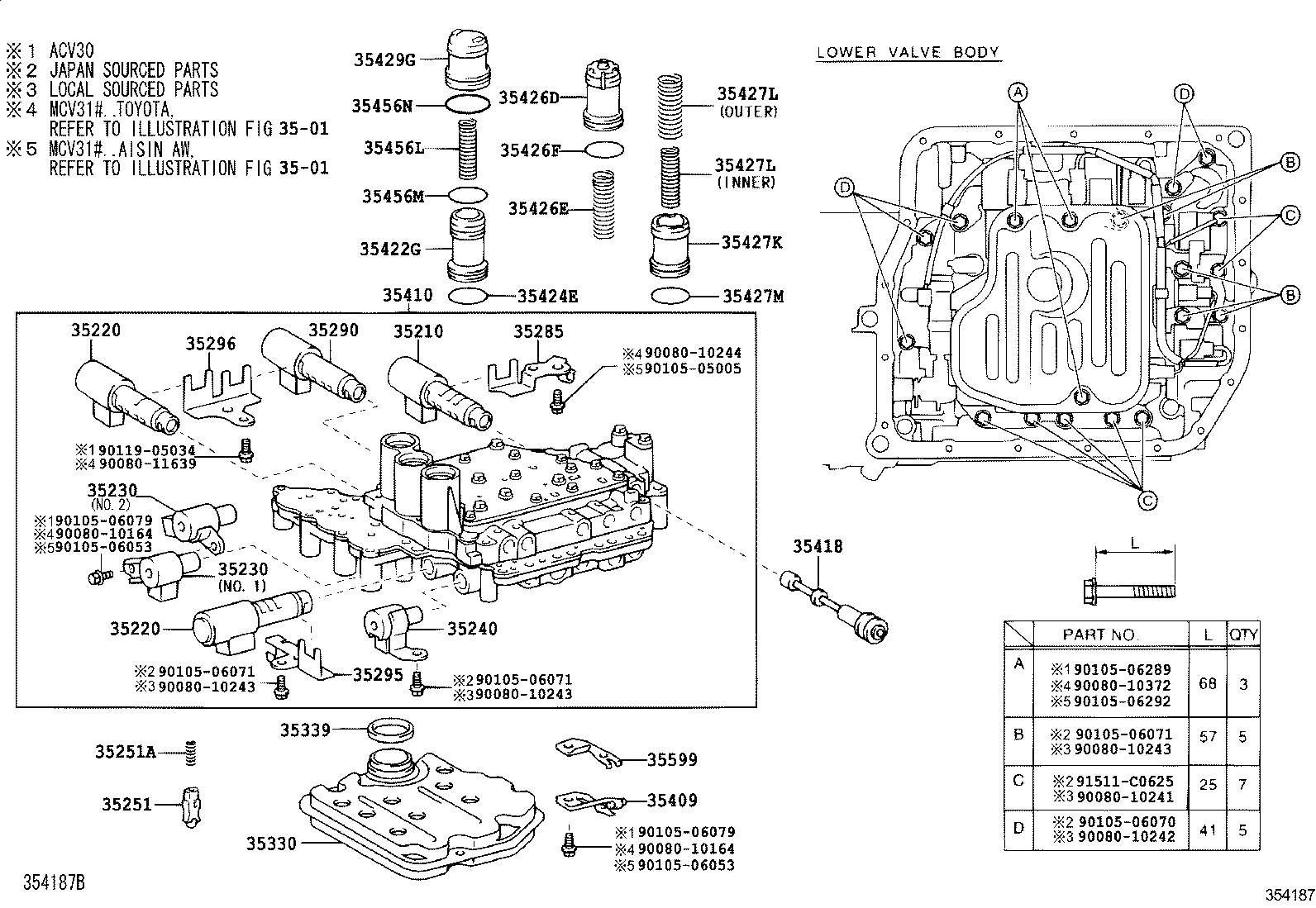

ILLUST NO. 1 OF 2(0301- )NAP..5FC
U151E,U250E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1 | ||||
| 35210-21010 |
MCV30..NAP |
1 | ||
| 35210-45010 |
MCV30..NAP..(LE,XLE) |
1 | ||
| 35210-33020 |
MCV3#..NAP AISIN AW:REFER TO ILLUSTRATION FIG.35-01 |
1 | ||
| 35210-45010 |
MCV3#..NAP TOYOTA:REFER TO ILLUSTRATION FIG.35-01 |
1 | ||
| 35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2 | ||||
| 35220-21010 |
MCV30..NAP |
1 | ||
| 35220-45010 |
MCV30..NAP..(LE,XLE) |
2 | ||
| 35220-33020 |
MCV3#..NAP AISIN AW:REFER TO ILLUSTRATION FIG.35-01 |
2 | ||
| 35220-45010 |
MCV3#..NAP TOYOTA:REFER TO ILLUSTRATION FIG.35-01 |
2 | ||
| 35220 - SOLENOID ASSY, CLUTCH CONTROL, NO.2 | ||||
| 35220-21010 |
MCV30..NAP |
1 | ||
| 35220-45010 |
MCV30..NAP..(LE,XLE) |
2 | ||
| 35220-33020 |
MCV3#..NAP AISIN AW:REFER TO ILLUSTRATION FIG.35-01 |
2 | ||
| 35220-45010 |
MCV3#..NAP TOYOTA:REFER TO ILLUSTRATION FIG.35-01 |
2 | ||
| 35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2 | ||||
| 35230-33020 |
MCV30..NAP..(LE,XLE) NO.2 |
1 | ||
| 35230-33010 |
MCV30..NAP..(LE,XLE) NO.1 |
1 | ||
| 35230-33010 |
ACV30,MCV3#..NAP NO.1 |
1 | ||
| 35230-33020 |
ACV30,MCV3#..NAP NO.2 |
1 | ||
| 35230-21010 |
MCV30..NAP |
1 | ||
| 35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2 | ||||
| 35230-33020 |
MCV30..NAP..(LE,XLE) NO.2 |
1 | ||
| 35230-33010 |
MCV30..NAP..(LE,XLE) NO.1 |
1 | ||
| 35230-33010 |
ACV30,MCV3#..NAP NO.1 |
1 | ||
| 35230-33020 |
ACV30,MCV3#..NAP NO.2 |
1 | ||
| 35230-21010 |
MCV30..NAP |
1 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-21010 |
MCV30..NAP |
1 | ||
| 35240-33030 |
MCV30..NAP..(LE,XLE) |
1 | ||
| 35240-33030 |
ACV30,MCV3#..NAP |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
MCV30..NAP..(LE,XLE) |
1 | ||
| 35251-30020 |
MCV30..NAP |
1 | ||
| 35251-30020 |
ACV30,MCV3#..NAP |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90080-50308 |
MCV30..NAP |
1 | ||
| 90080-50308 |
MCV3#..NAP (L) |
1 | ||
| 90080-50308 |
MCV30..NAP..(LE,XLE) |
1 | ||
| 90501-03005 |
ACV30,MCV3#..NAP (J) |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-45010 |
MCV30..NAP..(LE,XLE) |
1 | ||
| 35285-33030 |
MCV3#..NAP AISIN AW:REFER TO ILLUSTRATION FIG.35-01 |
1 | ||
| 35285-45010 |
MCV3#..NAP TOYOTA:REFER TO ILLUSTRATION FIG.35-01 |
1 | ||
| 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-45010 |
MCV30..NAP..(LE,XLE) |
1 | ||
| 35290-33020 |
MCV3#..NAP AISIN AW:REFER TO ILLUSTRATION FIG.35-01 |
1 | ||
| 35290-45010 |
MCV3#..NAP TOYOTA:REFER TO ILLUSTRATION FIG.35-01 |
1 | ||
| 35295 - PLATE, SOLENOID LOCK, NO.2 | ||||
| 35295-45010 |
MCV30..NAP..(LE,XLE) |
1 | ||
| 35295-45010 |
MCV3#..NAP TOYOTA:REFER TO ILLUSTRATION FIG.35-01 |
1 | ||
| 35295-33010 |
MCV3#..NAP AISIN AW:REFER TO ILLUSTRATION FIG.35-01 |
1 | ||
| 35296 - PLATE, SOLENOID LOCK, NO.3 | ||||
| 35296-45010 |
MCV30..NAP..(LE,XLE) |
1 | ||
| 35296-45010 |
MCV3#..NAP TOYOTA:REFER TO ILLUSTRATION FIG.35-01 |
1 | ||
| 35296-33010 |
MCV3#..NAP AISIN AW:REFER TO ILLUSTRATION FIG.35-01 |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-06010 |
MCV30..NAP |
1 | ||
| 35330-08010 |
MCV30..NAP..(LE,XLE) |
1 | ||
| 35330-08010 |
ACV30,MCV3#..NAP |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 90080-30077 |
MCV30..NAP..(LE,XLE) |
1 | ||
| 90080-30077 |
MCV3#..NAP TOYOTA:REFER TO ILLUSTRATION FIG.35-01 |
1 | ||
| 90080-30077 |
MCV30..NAP (L) |
1 | ||
| 90301-32012 |
MCV3#..NAP AISIN AW:REFER TO ILLUSTRATION FIG.35-01 |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-21010 |
MCV30..NAP |
1 | ||
| 35409-21010 |
ACV30,MCV3#..NAP |
1 | ||
| 35409-21010 |
MCV30..NAP..(LE,XLE) |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-08010 |
MCV30..NAP..(LE,XLE) |
1 | ||
| 35410-06010 |
MCV30..NAP (L) |
1 | ||
| 35410-33130 |
MCV3#..NAP AISIN AW:REFER TO ILLUSTRATION FIG.35-01 |
1 | ||
| 35410-08010 |
MCV3#..NAP TOYOTA:REFER TO ILLUSTRATION FIG.35-01 |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-33010 |
MCV30..NAP..(LE,XLE) |
1 | ||
| 35418-21011 |
MCV30..NAP |
1 | ||
| 35418-33010 |
ACV30,MCV3#..NAP |
1 | ||
| 35422G - PISTON, REVERSE CLUTCH ACCUMULATOR | ||||
| 35422-08010 |
MCV3#..NAP TOYOTA:REFER TO ILLUSTRATION FIG.35-01 |
1 | ||
| 35422-33040 |
MCV3#..NAP AISIN AW:REFER TO ILLUSTRATION FIG.35-01 |
1 | ||
| 35422-08010 |
MCV30..NAP..(LE,XLE) |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90080-30076 |
MCV30..NAP..(LE,XLE) |
1 | ||
| 90080-30076 |
MCV30..NAP |
1 | ||
| 90301-30007 |
ACV30,MCV3#..NAP (J) |
1 | ||
| 90301-27008 |
MCV30..NAP UPPER |
1 | ||
| 90080-30076 |
MCV3#..NAP (L) |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35406-06010 |
MCV3#..NAP (L) |
1 | ||
| 35406-21010 |
MCV30..NAP..(LE,XLE) (J) |
1 | ||
| 35406-21010 |
ACV30,MCV3#..NAP (J) |
1 | ||
| 35406-06010 |
MCV30..NAP (L) |
1 | ||
| 35406-06010 |
MCV30..NAP..(LE,XLE) (L) |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90080-50315 |
MCV30..NAP (L) |
1 | ||
| 90080-50387 |
MCV31..NAP;MCV30..NAP..(LE,XLE) |
1 | ||
| 90080-50387 |
MCV3#..NAP TOYOTA:REFER TO ILLUSTRATION FIG.35-01 |
1 | ||
| 90501-22056 |
MCV3#..NAP AISIN AW:REFER TO ILLUSTRATION FIG.35-01 |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90080-30076 |
MCV30..NAP (L) |
1 | ||
| 90301-30007 |
ACV30,MCV3#..NAP (J) |
1 | ||
| 90080-30076 |
MCV3#..NAP (L) |
1 | ||
| 90080-30076 |
MCV30..NAP..(LE,XLE) |
1 | ||
| 35427K - PISTON, B-3 ACCUMULATOR | ||||
| 35427-06010 |
MCV30..NAP (L) |
1 | ||
| 35427-21010 |
MCV3#..NAP TOYOTA:REFER TO ILLUSTRATION FIG.35-01,(J) |
1 | ||
| 35427-21010 |
MCV30..NAP..(LE,XLE) (J) |
1 | ||
| 35427-06010 |
MCV3#..NAP TOYOTA:REFER TO ILLUSTRATION FIG.35-01,(L) |
1 | ||
| 35427-28010 |
MCV3#..NAP AISIN AW:REFER TO ILLUSTRATION FIG.35-01 |
1 | ||
| 35427-06010 |
MCV30..NAP..(LE,XLE) (L) |
1 | ||
| 35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90080-50309 |
MCV30..NAP (L),INNER |
1 | ||
| 90080-50388 |
MCV31..NAP;MCV30..NAP..(LE,XLE) INNER |
1 | ||
| 90080-50388 |
MCV3#..NAP TOYOTA:REFER TO ILLUSTRATION FIG.35-01,INNER |
1 | ||
| 90080-50389 |
MCV31..NAP;MCV30..NAP..(LE,XLE) OUTER |
1 | ||
| 90080-50389 |
MCV3#..NAP TOYOTA:REFER TO ILLUSTRATION FIG.35-01,OUTER |
1 | ||
| 90501-19037 |
ACV30,MCV3#..NAP AISIN AW:REFER TO ILLUSTRATION FIG.35-01,INNER |
1 | ||
| 90080-50313 |
MCV30..NAP (L),OUTER |
1 | ||
| 90501-26096 |
ACV30,MCV3#..NAP AISIN AW:REFER TO ILLUSTRATION FIG.35-01,OUTER |
1 | ||
| 35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90080-50309 |
MCV30..NAP (L),INNER |
1 | ||
| 90080-50388 |
MCV31..NAP;MCV30..NAP..(LE,XLE) INNER |
1 | ||
| 90080-50388 |
MCV3#..NAP TOYOTA:REFER TO ILLUSTRATION FIG.35-01,INNER |
1 | ||
| 90080-50389 |
MCV31..NAP;MCV30..NAP..(LE,XLE) OUTER |
1 | ||
| 90080-50389 |
MCV3#..NAP TOYOTA:REFER TO ILLUSTRATION FIG.35-01,OUTER |
1 | ||
| 90501-19037 |
ACV30,MCV3#..NAP AISIN AW:REFER TO ILLUSTRATION FIG.35-01,INNER |
1 | ||
| 90080-50313 |
MCV30..NAP (L),OUTER |
1 | ||
| 90501-26096 |
ACV30,MCV3#..NAP AISIN AW:REFER TO ILLUSTRATION FIG.35-01,OUTER |
1 | ||
| 35427M - RING, O (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90301-28008 |
MCV30..NAP..(LE,XLE) |
1 | ||
| 90301-28008 |
MCV30..NAP |
1 | ||
| 90301-28008 |
ACV30,MCV3#..NAP |
1 | ||
| 35429G - SLEEVE, REVERSE CLUTCH ACCUMULATOR | ||||
| 35429-08010 |
MCV30..NAP..(LE,XLE) |
1 | ||
| 35429-08010 |
MCV3#..NAP |
1 | ||
| 35456L - SPRING, COMPRESSION (FOR C-2 CONTROL VALVE) | ||||
| 90501-19038 |
ACV30,MCV3#..NAP (J) |
1 | ||
| 90501-A0039 |
MCV3#..NAP (L) |
1 | ||
| 90080-50300 |
MCV30..NAP |
1 | ||
| 90501-19038 |
MCV31..NAP;MCV30..NAP..(LE,XLE) |
1 | ||
| 35456M - RING, O (FOR C-2 CONTROL) | ||||
| 90301-19016 |
MCV30..NAP..(LE,XLE) |
1 | ||
| 90301-19016 |
ACV30,MCV3#..NAP |
1 | ||
| 35456N - RING, O (FOR C-2 CONTROL) | ||||
| 90301-28011 |
MCV30..NAP..(LE,XLE) |
1 | ||
| 90301-28011 |
ACV30,MCV3#..NAP |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-21010 |
MCV30..NAP |
1 | ||
| 35599-21010 |
MCV30..NAP..(LE,XLE) |
1 | ||
| 35599-21010 |
ACV30,MCV3#..NAP |
1 | ||
| Common parts | ||||
| 90080-10164 | ||||
| 90080-10241 | ||||
| 90080-10242 | ||||
| 90080-10243 | ||||
| 90080-10244 | ||||
| 90080-10372 | ||||
| 90080-11639 | ||||
| 90105-05005 | ||||
| 90105-06053 | ||||
| 90105-06070 | ||||
| 90105-06071 | ||||
| 90105-06079 | ||||
| 90105-06289 | ||||
| 90105-06292 | ||||
| 90119-05034 | ||||
| 91511-C0625 | ||||
| Linked diagrams | ||||
| 3501 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
