Toyota Camry (nap) MCV20 BRAKE MASTER CYLINDER

MCV20L-CEPNKK (1996)

Toyota Camry (Nap)

Production Jul 1996 - Aug 1997

Engine 1MZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

Part #	Description	Period	Qty
04493 - CYLINDER KIT, BRAKE MASTER
04493-33060	MCV20,SXV20..NAP W(ABS)	07/1996 - 06/1998	1
04493-33070	MCV20..NAP..ATM..(LE,XLE) W(TRACTION CONTROL)	07/1996 - 08/1999	1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-07020	MCV20,SXV20..NAP W(ABS)	07/1996 - 06/2000	1
47201-33100	MCV20..NAP..ATM..(LE,XLE) W(TRACTION CONTROL)	07/1996 - 08/1999	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-06011	MCV20,SXV20..NAP	07/1996 - 06/2000	1
47220-33011	MCV20..NAP..ATM..(LE,XLE) W(TRACTION CONTROL)	07/1996 - 12/2999	1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104	MCV20,SXV20..NAP	07/1996 - 08/2000	1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077	MCV20,SXV20..NAP	07/1996 - 12/2999	1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-12040	MCV20,SXV20..NAP	07/1996 - 12/2999	1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-03010	MCV20,SXV20..NAP	07/1996 - 12/2999	2
47255-16010	MCV20..NAP..ATM..(LE,XLE) W(TRACTION CONTROL)	07/1996 - 12/2999	2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-03010	MCV20,SXV20..NAP	07/1996 - 12/2999	2
47255-16010	MCV20..NAP..ATM..(LE,XLE) W(TRACTION CONTROL)	07/1996 - 12/2999	2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-33010	MCV20,SXV20..NAP	07/1996 - 12/2999	1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-12020	MCV20,SXV20..NAP	07/1996 - 12/2999	1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-24010	MCV20,SXV20..NAP	07/1996 - 12/2999	1
Common parts
90080-14003
90149-40006
90179-08146
90179-10065
Linked diagrams
4708

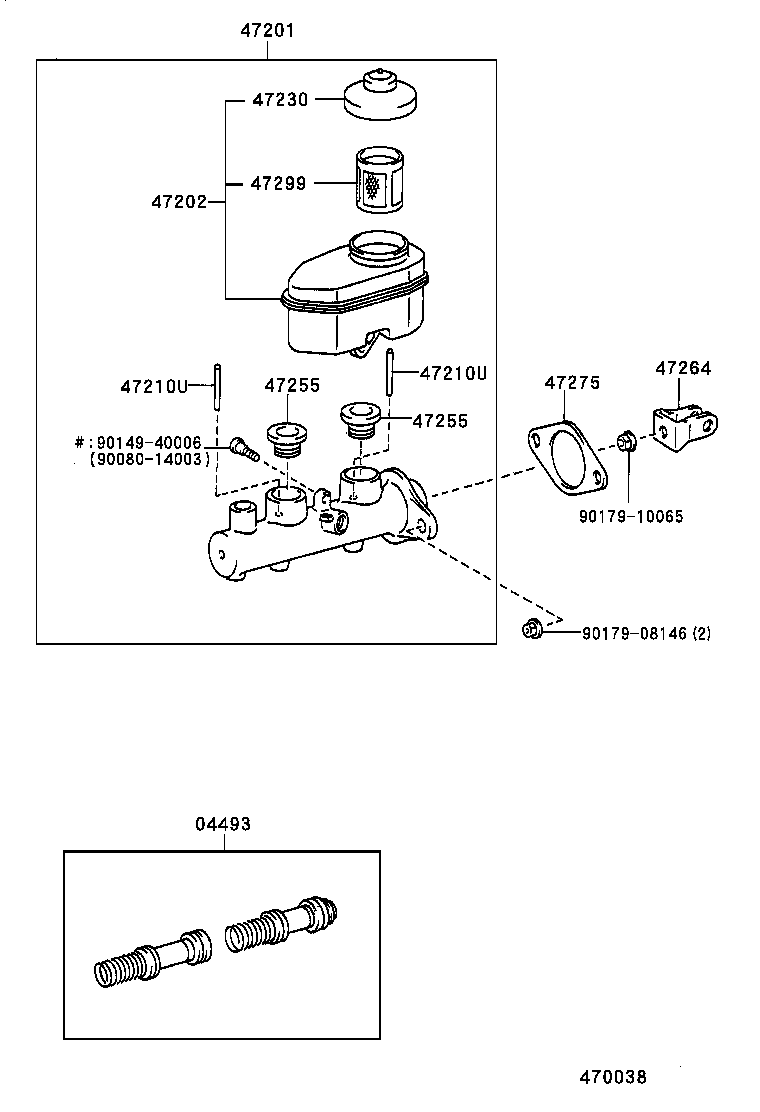

Click highlighted areas on diagram

W(TRACTION CONTROL)

Part #	Description	Period	Qty
04493 - CYLINDER KIT, BRAKE MASTER
04493-33060	MCV20,SXV20..NAP W(ABS)	07/1996 - 06/1998	1
04493-33070	MCV20..NAP..ATM..(LE,XLE) W(TRACTION CONTROL)	07/1996 - 08/1999	1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-07020	MCV20,SXV20..NAP W(ABS)	07/1996 - 06/2000	1
47201-33100	MCV20..NAP..ATM..(LE,XLE) W(TRACTION CONTROL)	07/1996 - 08/1999	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-06011	MCV20,SXV20..NAP	07/1996 - 06/2000	1
47220-33011	MCV20..NAP..ATM..(LE,XLE) W(TRACTION CONTROL)	07/1996 - 12/2999	1
47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)
90029-14204	MCV20..NAP..ATM..(LE,XLE)	07/1996 - 12/2999	2
47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)
90029-14204	MCV20..NAP..ATM..(LE,XLE)	07/1996 - 12/2999	2
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-12040	MCV20,SXV20..NAP	07/1996 - 12/2999	1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-03010	MCV20,SXV20..NAP	07/1996 - 12/2999	2
47255-16010	MCV20..NAP..ATM..(LE,XLE) W(TRACTION CONTROL)	07/1996 - 12/2999	2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-03010	MCV20,SXV20..NAP	07/1996 - 12/2999	2
47255-16010	MCV20..NAP..ATM..(LE,XLE) W(TRACTION CONTROL)	07/1996 - 12/2999	2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-33010	MCV20,SXV20..NAP	07/1996 - 12/2999	1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-12020	MCV20,SXV20..NAP	07/1996 - 12/2999	1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-24010	MCV20,SXV20..NAP	07/1996 - 12/2999	1
Common parts
90080-14003
90149-40006
90179-08146
90179-10065
