MCV20L-CEPNKK (1996)

Toyota Camry (Nap)

Production Jul 1996 - Aug 1997
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9607- )1MZFE..NAP

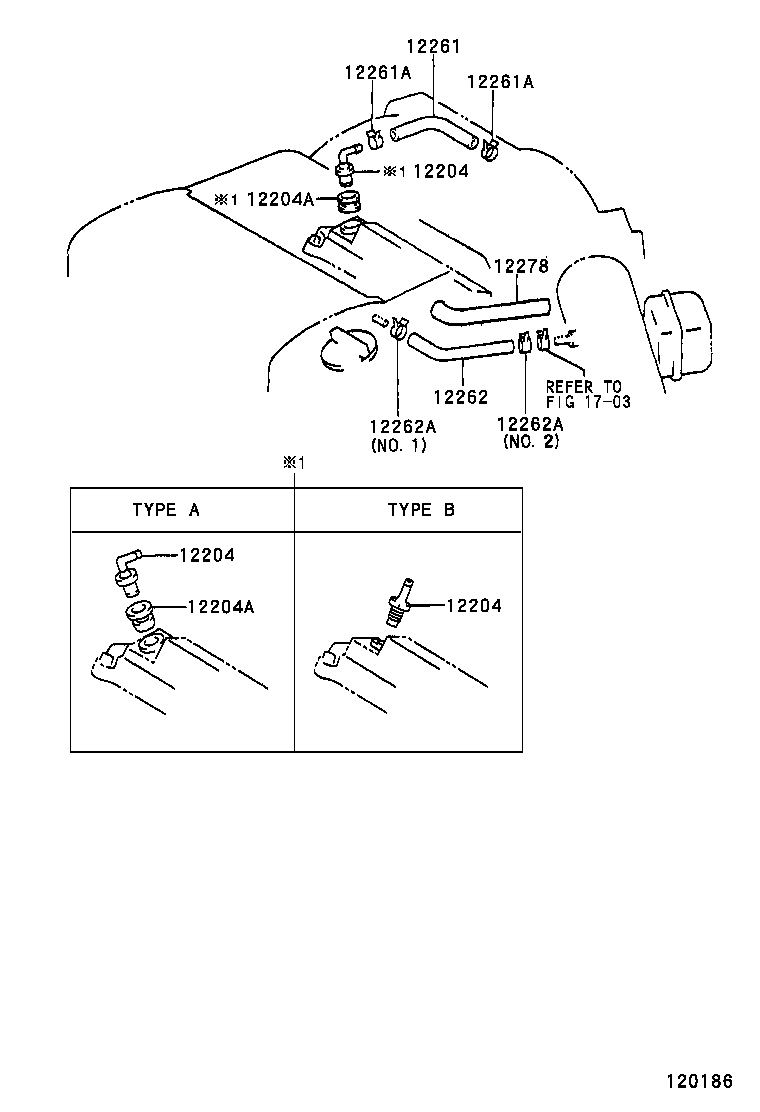

Click highlighted areas on diagram

diagram 12204 12204 12204 12204A 12204A 12261 12261A 12261A 12262 12262A 12262A 12278 1703
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-20020

1MZFE..MCV20..NAP

TYPE A:REFER TO ILLUSTRATION

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-20020

1MZFE..MCV20..NAP

TYPE A:REFER TO ILLUSTRATION

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-20020

1MZFE..MCV20..NAP

TYPE A:REFER TO ILLUSTRATION

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

1MZFE..MCV20..NAP

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

1MZFE..MCV20..NAP

 1
12261 - HOSE, VENTILATION
12261-20010

1MZFE..MCV20..NAP

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14017

1MZFE..MCV20..NAP

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-14017

1MZFE..MCV20..NAP

 2
12262 - HOSE, VENTILATION, NO.2
12262-0A010

1MZFE..MCV20..NAP

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-17011

1MZFE..MCV20..NAP

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-17011

1MZFE..MCV20..NAP

 2
Linked diagrams
1703
