MCV20L-CEPGKA (1996)

Toyota Camry (Nap)

Production Jul 1996 - Jul 2001
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9607- )MCV20..NAP..ATM

Click highlighted areas on diagram

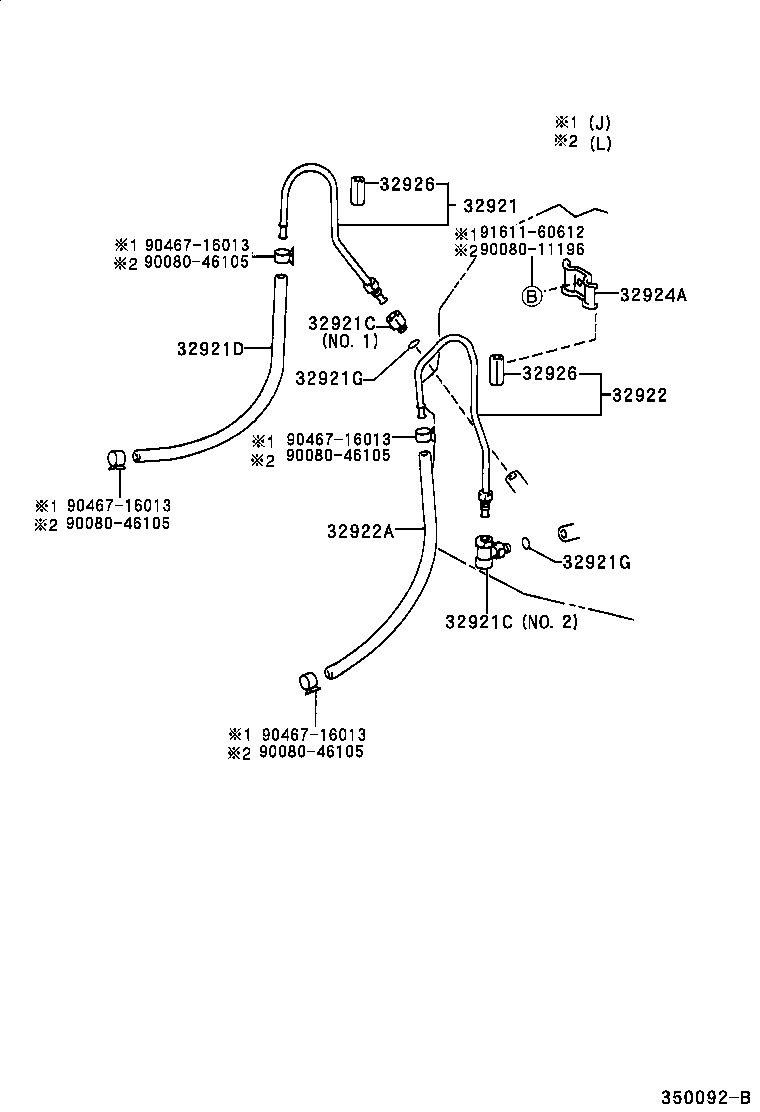

A541E

diagram 32921 32921C 32921C 32921D 32921G 32921G 32922 32922A 32924A 32926 32926 9008011196 9008046105 9008046105 9008046105 9008046105 9046716013 9046716013 9046716013 9046716013 9161160612
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-06070

MCV20..NAP..ATM

 1
32921C - UNION(FOR OIL COOLER TUBE)
32901-32050

MCV20..NAP..ATM

NO.2

 1
90404-16031

MCV20,SXV20..NAP..ATM

NO.1

 1
32921C - UNION(FOR OIL COOLER TUBE)
32901-32050

MCV20..NAP..ATM

NO.2

 1
90404-16031

MCV20,SXV20..NAP..ATM

NO.1

 1
32921D - HOSE(FOR OIL COOLER INLET)
32941-06030

MCV20..NAP..ATM

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

MCV20,SXV20..NAP..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

MCV20,SXV20..NAP..ATM

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-06060

MCV20..NAP..ATM

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90080-44029

MCV20,SXV20..NAP..ATM

 1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12074

MCV20,SXV20..NAP..ATM

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-04010

MCV20,SXV20..NAP..ATM

L=36,ID=10

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-04010

MCV20,SXV20..NAP..ATM

L=36,ID=10

 2
Common parts
90080-11196
90080-46105
90467-16013
91611-60612

(9607- )MCV20..NAP..ATM

Click highlighted areas on diagram

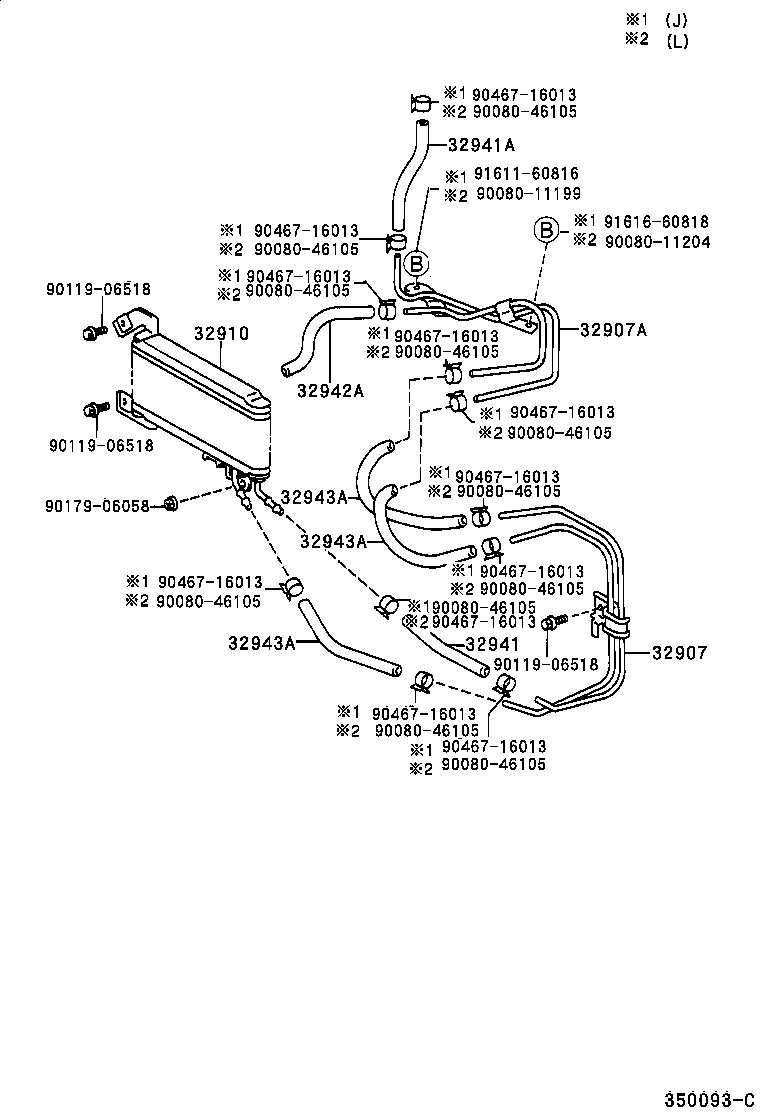

A541E,AIR COOLING OIL COOLER

diagram 32907 32907A 32910 32941 32941A 32942A 32943A 32943A 32943A 9008011199 9008011204 9008046105 9008046105 9008046105 9008046105 9008046105 9008046105 9008046105 9008046105 9008046105 9008046105 9008046105 9011906518 9011906518 9011906518 9017906058 9046716013 9046716013 9046716013 9046716013 9046716013 9046716013 9046716013 9046716013 9046716013 9046716013 9046716013 9161160816 9161660818
Part # Description Qty Price
32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2
32907-33050

MCV20..NAP..ATM

 1
32907A - TUBE, OIL COOLER
32907-33090

MCV20..NAP..ATM

 1
32910 - COOLER ASSY, OIL
32910-33040

MCV20..NAP..ATM

 1
32941 - HOSE, OIL COOLER INLET, NO.1
90445-17101

MCV20..NAP..ATM

 1
32941A - HOSE, OIL COOLER INLET, NO.2
90445-17069

MCV20..NAP..ATM

 1
32942A - HOSE, OIL COOLER OUTLET, NO.2
90445-17151

MCV20..NAP..ATM

 1
32943A - HOSE, TRANSMISSION OIL COOLER, NO.2
90445-17139

MCV20..NAP..ATM

 3
32943A - HOSE, TRANSMISSION OIL COOLER, NO.2
90445-17139

MCV20..NAP..ATM

 3
32943A - HOSE, TRANSMISSION OIL COOLER, NO.2
90445-17139

MCV20..NAP..ATM

 3
Common parts
90080-11199
90080-11204
90080-46105
90119-06518
90179-06058
90467-16013
91611-60816
91616-60818
