MCV20L-CEMDKA (1996)

Toyota Camry (Nap)

Production Jul 1996 - Aug 1998
Engine 1MZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9607- )1MZFE..NAP

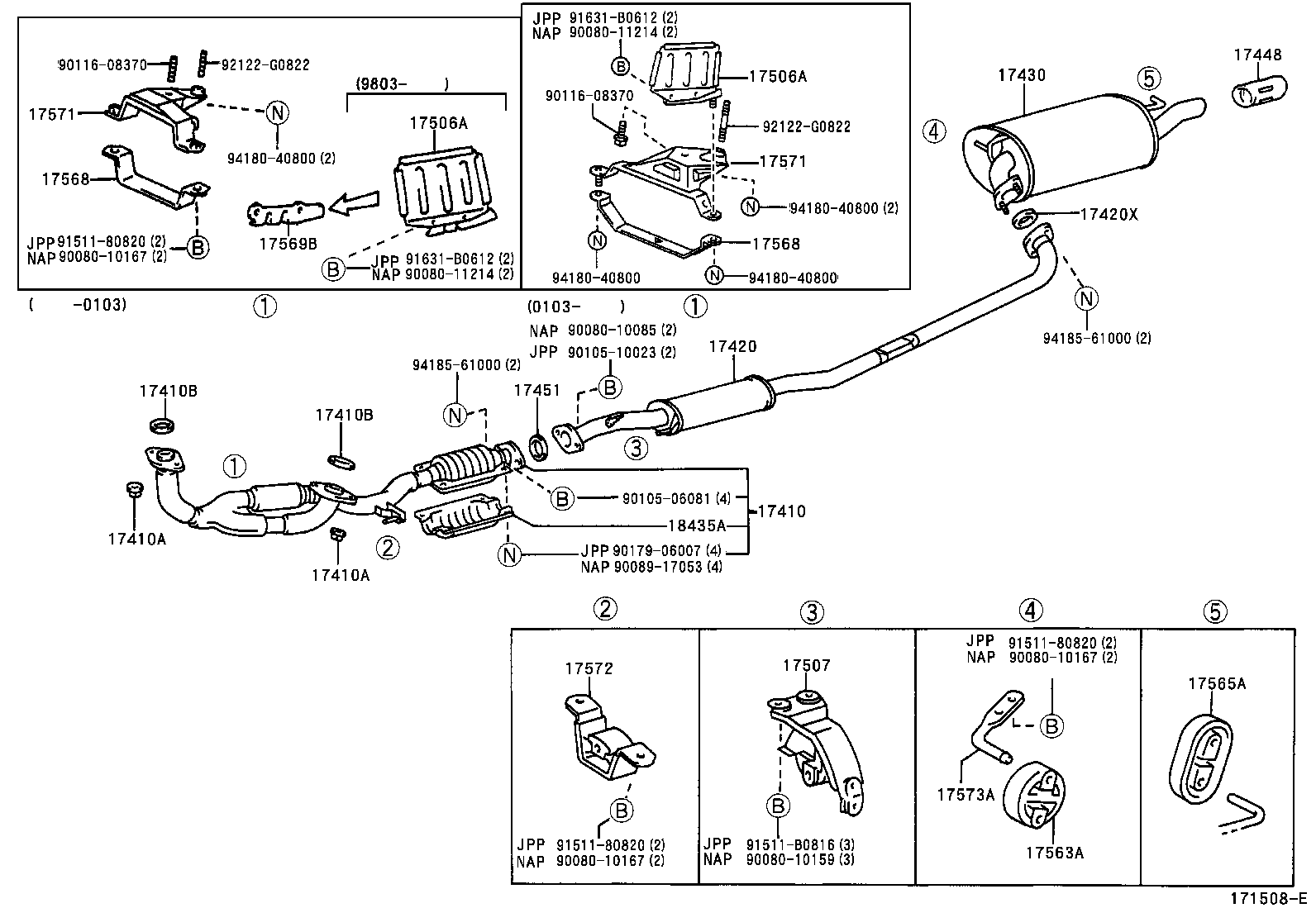

Click highlighted areas on diagram

diagram 17410 17410A 17410A 17410B 17410B 17420 17420X 17430 17448 17451 17506A 17507 17563A 17565A 17568 17568 17569B 17571 17571 17572 17573A 18435A 9008010085 9008010159 9008010167 9008010167 9008010167 9008011214 9008011214 9008917053 9010506081 9010510023 9011608370 9011608370 9017906007 9151180820 9151180820 9151180820 91511B0816 91631B0612 91631B0612 92122G0822 92122G0822 9418040800 9418040800 9418040800 9418040800 9418561000 9418561000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0A090

1MZFE..MCV20..NAP..MTM

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1MZFE..MCV20..NAP

 4
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1MZFE..MCV20..NAP

 4
17410B - GASKET, EXHAUST PIPE
90917-06065

1MZFE..MCV20..NAP

 2
17410B - GASKET, EXHAUST PIPE
90917-06065

1MZFE..MCV20..NAP

 2
17420 - PIPE ASSY, EXHAUST, CENTER
17420-0A060

1MZFE..MCV20..NAP

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06073

1MZFE..MCV20..NAP

 1
90080-43026

1MZFE..MCV20..NAP

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0A081

1MZFE..MCV20..NAP

 1
17430-0A080

1MZFE..MCV20..NAP

 1
17430-0A082

1MZFE..MCV20..NAP

 1
17451 - GASKET, EXHAUST PIPE
90080-43026

1MZFE,5SFE..MCV20,SXV20..NAP

 1
90917-06073

1MZFE,5SFE..MCV20,SXV20..NAP

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-0A060

1MZFE,5SFE..MCV20,SXV20..NAP

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-0A071

1MZFE,5SFE..MCV20,SXV20..NAP

 1
17565-0A070

1MZFE,5SFE..MCV20,SXV20..NAP

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-0A130

1MZFE,5SFE..MCV20,SXV20..NAP

 1
17565-07040

1MZFE,5SFE..MCV20,SXV20..NAP

 1
17565-0A080

1MZFE,5SFE..MCV20,SXV20..NAP

 1
17568 - STAY, EXHAUST PIPE SUPPORT
17568-20080

1MZFE..MCV20..NAP

(J)

 1
17568-0A090

1MZFE..MCV20..NAP

(L)

 1
17568 - STAY, EXHAUST PIPE SUPPORT
17568-20080

1MZFE..MCV20..NAP

(J)

 1
17568-0A090

1MZFE..MCV20..NAP

(L)

 1
17569B - STAY, EXHAUST PIPE SUPPORT, NO.2
17569-0A050

1MZFE..MCV20..NAP

(L)

 1
17569-20040

1MZFE..MCV20..NAP

 1
17569-20040

1MZFE..MCV20..NAP

(J)

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-0A060

1MZFE..MCV20..NAP

(L)

 1
17571-20070

1MZFE..MCV20..NAP

(J)

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-0A060

1MZFE..MCV20..NAP

(L)

 1
17571-20070

1MZFE..MCV20..NAP

(J)

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-0A040

1MZFE..MCV20..NAP

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-74210

1MZFE,5SFE..MCV20,SXV20..NAP

(J)

 1
17573-74211

1MZFE,5SFE..MCV20,SXV20..NAP

(J)

 1
17573-0A021

1MZFE,5SFE..MCV20,SXV20..NAP

(L)

 1
17573-0A020

1MZFE,5SFE..MCV20,SXV20..NAP

(L)

 1
18435A - PROTECTOR, MONOLITHIC CONVERTER
18435-16170

1MZFE..MCV20..NAP

 1
Common parts
90080-10085
90080-10159
90080-10167
90080-11214
90089-17053
90105-06081
90105-10023
90116-08370
90179-06007
91511-80820
91511-B0816
91631-B0612
92122-G0822
94180-40800
94185-61000
