MCV20L-CEMDKA (1996)

Toyota Camry (Nap)

Production Jul 1996 - Aug 1998
Engine 1MZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9607- )1MZFE..NAP

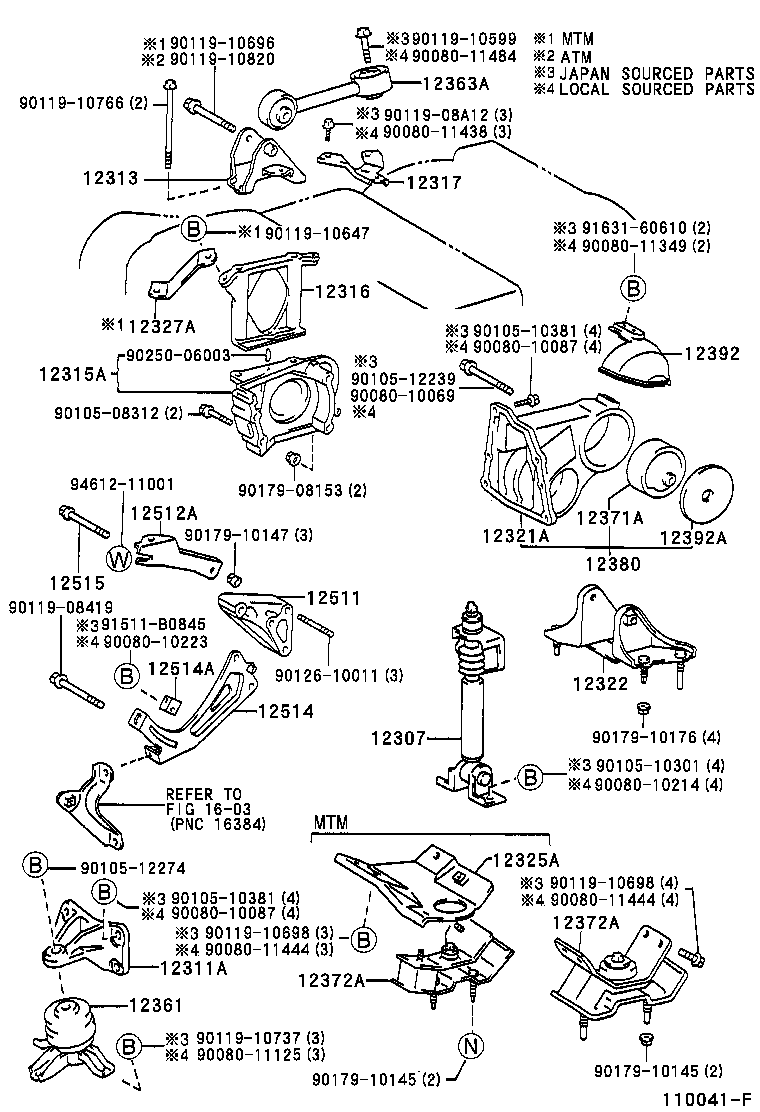

Click highlighted areas on diagram

diagram 12307 12311A 12313 12315A 12316 12317 12321A 12322 12325A 12327A 12361 12363A 12371A 12372A 12372A 12380 12392 12392A 12511 12512A 12514 12514A 12515 1603 9008010069 9008010087 9008010087 9008010214 9008010223 9008011125 9008011349 9008011438 9008011444 9008011444 9008011484 9010508312 9010510301 9010510381 9010510381 9010512239 9010512274 9011908419 9011908A12 9011910599 9011910647 9011910696 9011910698 9011910698 9011910737 9011910766 9011910820 9012610011 9017908153 9017910145 9017910145 9017910147 9017910176 9025006003 91511B0845 9163160610 9461211001
Part # Description Qty Price
12307 - ABSORBER SUB-ASSY, ENGINE MOUNTING
12307-20020

1MZFE..MCV20..NAP

 1
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-20040

1MZFE..MCV20..NAP

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-0A010

1MZFE..MCV20..NAP..MTM

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-20020

1MZFE..MCV20..NAP..ATM;1MZFE..MCV20..NAP..CE..USA

(J)

 1
12316 - BRACKET, ENGINE MOUNTING, NO.2 RH
12316-0A010

1MZFE..MCV20..NAP

 1
12317 - STAY, ENGINE MOUNTING, RH
12317-0A010

1MZFE..MCV20..NAP

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-20030

1MZFE..MCV20..NAP..MTM

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-0A010

1MZFE..MCV20..NAP

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-62030

1MZFE..MCV20..NAP..MTM

 1
12327A - STAY, ENGINE MOUNTING, NO.2 RH
12327-20020

1MZFE..MCV20..NAP..MTM

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-0A020

1MZFE..MCV20..NAP..MTM

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-0A020

1MZFE..MCV20..NAP..MTM

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-62050

1MZFE..MCV20..NAP..MTM

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-62070

1MZFE..MCV20..NAP..MTM

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-62070

1MZFE..MCV20..NAP..MTM

 1
12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR
12380-20020

1MZFE..MCV20..NAP..MTM

 1
12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH
12392-07010

1MZFE..MCV20..NAP

 1
12392A - INSULATOR, ENGINE MOUNTING HEAT, REAR
12392-62030

1MZFE..MCV20..NAP..MTM

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-20020

1MZFE..MCV20..NAP

 1
12512A - BRACKET, ALTERNATOR, NO.2
12512-20020

1MZFE..MCV20..NAP..MTM

 1
12514 - BAR, ALTERNATOR BELT ADJUSTING
12514-20010

1MZFE..MCV20..NAP..ATM;1MZFE..MCV20..NAP..CE..USA

(J)

 1
12514A - SLIDER, FAN BELT ADJUSTING
16385-20010

1MZFE..MCV20..NAP

 1
12515 - BOLT, ALTERNATOR THROUGH
12515-20010

1MZFE..MCV20..NAP..ATM;1MZFE..MCV20..NAP..CE..USA

(J)

 1
Common parts
90080-10069
90080-10087
90080-10214
90080-10223
90080-11125
90080-11349
90080-11438
90080-11444
90080-11484
90105-08312
90105-10301
90105-10381
90105-12239
90105-12274
90119-08419
90119-08A12
90119-10599
90119-10647
90119-10696
90119-10698
90119-10737
90119-10766
90119-10820
90126-10011
90179-08153
90179-10145
90179-10147
90179-10176
90250-06003
91511-B0845
91631-60610
94612-11001
Linked diagrams
1603
