MCV10L-CWPNKK (1993)
Toyota Camry (Nap)

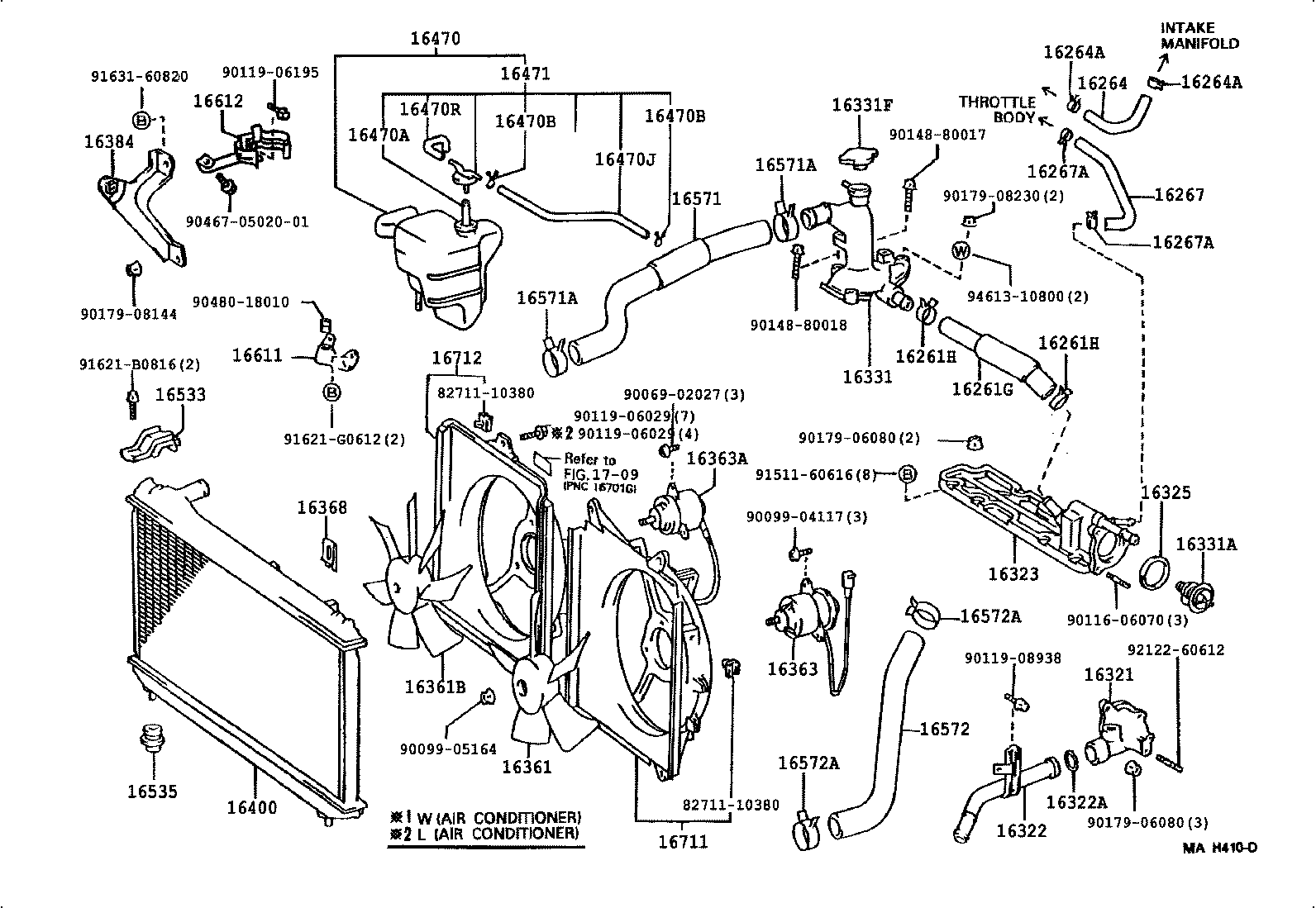

ILLUST NO. 1 OF 3(9408- )1MZFE..NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-0A010 |
1MZFE..MCV10..NAP (L) |
1 | ||
| 16261-20010 |
1MZFE..MCV10..NAP (J) |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-28008 |
1MZFE..MCV10..NAP |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 90467-28008 |
1MZFE..MCV10..NAP |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-20010 |
1MZFE..MCV10..NAP (J) |
1 | ||
| 16264-0A010 |
1MZFE..MCV10..NAP (L) |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-41300 |
1MZFE..MCV10..NAP |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96135-41300 |
1MZFE..MCV10..NAP |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-0A010 |
1MZFE..MCV10..NAP (L) |
1 | ||
| 16267-20010 |
1MZFE..MCV10..NAP (J) |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-41300 |
1MZFE..MCV10..NAP |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96135-41300 |
1MZFE..MCV10..NAP |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-20010 |
1MZFE..MCV10..NAP |
1 | ||
| 16321-0A010 |
1MZFE..MCV10..NAP (L) |
1 | ||
| 16321-20020 |
1MZFE..MCV10..NAP (J) |
1 | ||
| 16322 - PIPE, WATER INLET | ||||
| 16322-20010 |
1MZFE..MCV10..NAP (J) |
1 | ||
| 16322-0A010 |
1MZFE..MCV10..NAP (L) |
1 | ||
| 16322A - RING, O(FOR WATER INLET) | ||||
| 96761-35031 |
1MZFE..MCV10..NAP |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-20010 |
1MZFE..MCV10..NAP (J) |
1 | ||
| 16323-0A010 |
1MZFE..MCV10..NAP (L) |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-62010 |
1MZFE..MCV10..NAP |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-0A010 |
1MZFE..MCV10..NAP (L) |
1 | ||
| 16331-20020 |
1MZFE..MCV10..NAP (J) |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03084 |
1MZFE..MCV10..NAP *WAX 82-95 |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-62090 |
1MZFE..MCV10..NAP |
1 | ||
| 16361 - FAN | ||||
| 16911-64010 |
1MZFE..MCV10..NAP |
1 | ||
| 16361-0A010 |
1MZFE..MCV10..NAP |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-0A020 |
1MZFE..MCV10..NAP |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-0A011 |
1MZFE..MCV10..NAP |
1 | ||
| 16363A - MOTOR, COOLING FAN, NO.2 | ||||
| 16363-0A020 |
1MZFE..MCV10..NAP |
1 | ||
| 16368 - BRACKET, COOLING MOTOR | ||||
| 16368-0A010 |
1MZFE..MCV10..NAP |
1 | ||
| 16384 - BRACKET, FAN BELT ADJUSTING BAR | ||||
| 16384-20010 |
1MZFE..MCV10..NAP |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-20050 |
1MZFE..MCV10..NAP TYPE 2 |
1 | ||
| 16400-0A010 |
1MZFE..MCV10..NAP TYPE 1 |
1 | ||
| 16400-0A040 |
1MZFE..MCV10..NAP |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-0A010 |
1MZFE..MCV10..NAP |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16472-03010 |
1MZFE..MCV10..NAP |
1 | ||
| 16472-03010 |
1MZFE..MCV10..NAP SALGA |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1MZFE..MCV10..NAP |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1MZFE..MCV10..NAP |
2 | ||
| 16470J - HOSE, NO.3(FOR RADIATOR RESERVE TANK) | ||||
| 16472-0A020 |
1MZFE..MCV10..NAP |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 16472-0A010 |
1MZFE..MCV10..NAP |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-0A010 |
1MZFE..MCV10..NAP |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16533-74190 |
1MZFE..MCV10..NAP TYPE 1 |
2 | ||
| 16533-62020 |
1MZFE..MCV10..NAP |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 16535-0A010 |
1MZFE..MCV10..NAP (L) |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-0A010 |
1MZFE..MCV10..NAP |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
1MZFE..MCV10..NAP |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37002 |
1MZFE..MCV10..NAP |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-0A010 |
1MZFE..MCV10..NAP |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
1MZFE..MCV10..NAP |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-37002 |
1MZFE..MCV10..NAP |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-03020 |
1MZFE..MCV10..NAP |
1 | ||
| 16612 - BRACKET, RADIATOR RESERVE TANK, NO.2 | ||||
| 16612-03020 |
1MZFE..MCV10..NAP |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-0A010 |
1MZFE..MCV10..NAP |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16711-0A020 |
1MZFE..MCV10..NAP |
1 | ||
| Common parts | ||||
| 82711-10380 | ||||
| 90069-02027 | ||||
| 90099-04117 | ||||
| 90099-05164 | ||||
| 90116-06070 | ||||
| 90119-06029 | ||||
| 90119-06195 | ||||
| 90119-08938 | ||||
| 90148-80017 | ||||
| 90148-80018 | ||||
| 90179-06080 | ||||
| 90179-08144 | ||||
| 90179-08230 | ||||
| 90467-0502001 | ||||
| 90480-18010 | ||||
| 91511-60616 | ||||
| 91621-B0816 | ||||
| 91621-G0612 | ||||
| 91631-60820 | ||||
| 92122-60612 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 1709 | ||||
