MCV10L-CEPGKA (1993)

Toyota Camry (Nap)

Production Sep 1993 - Jul 1996
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(9309- )NAP

Click highlighted areas on diagram

W(ABS),BOSCH

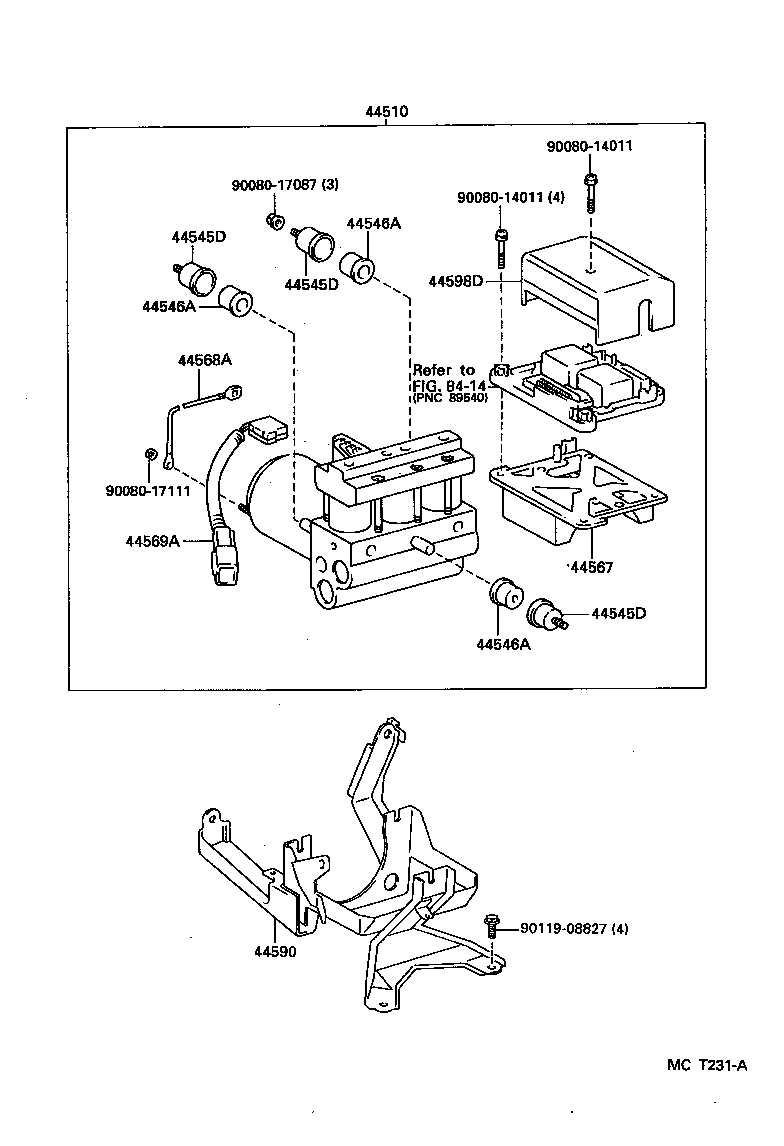

diagram 44510 44545D 44545D 44545D 44546A 44546A 44546A 44567 44568A 44569A 44590 44598D 8414 9008014011 9008014011 9008017087 9008017111 9011908827
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44510-06011

MCV10,SXV10..NAP

 1
44510-06010

MCV10,SXV10..NAP

 1
44510-06011

MCV10,SXV10..NAP

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-06010

MCV10,SXV10..NAP

 3
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-06010

MCV10,SXV10..NAP

 3
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-06010

MCV10,SXV10..NAP

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-06010

MCV10,SXV10..NAP

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-06010

MCV10,SXV10..NAP

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-06010

MCV10,SXV10..NAP

 3
44567 - SADDLE, BRAKE ACTUATOR
44567-06010

MCV10,SXV10..NAP

 1
44568A - CABLE, BRAKE ACTUATOR BOND
44568-06010

MCV10,SXV10..NAP

 1
44569A - HARNESS, BRAKE ACTUATOR
44569-06010

MCV10,SXV10..NAP

 1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-06010

MCV10,SXV10..NAP

 1
44590-06020

MCV10,SXV10..NAP

 1
44598D - COVER, BRAKE ACTUATOR
44598-06010

MCV10,SXV10..NAP

 1
Common parts
90080-14011
90080-17087
90080-17111
90119-08827
Linked diagrams
8414
