MCV10L-CCPSKA (1993)

Toyota Camry (Nap)

Production Sep 1993 - Jul 1996
Engine 1MZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

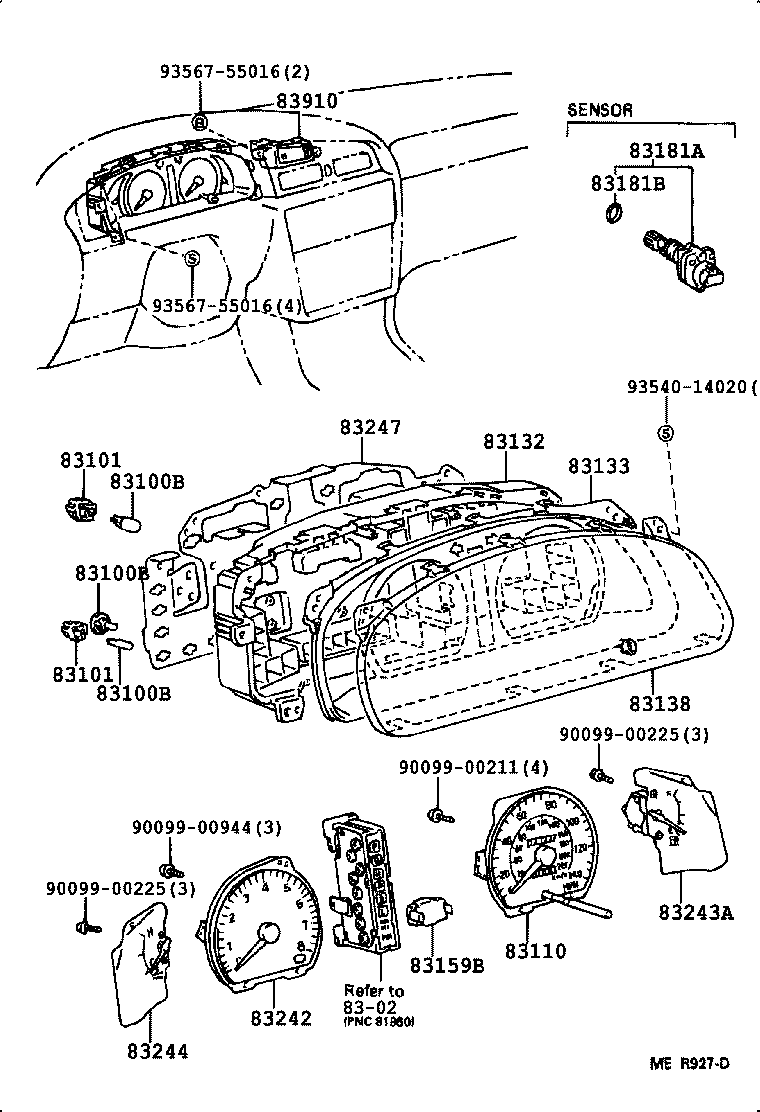

ILLUST NO. 1 OF 2(9109-9608)NAP

Click highlighted areas on diagram

diagram 8302 83100B 83100B 83100B 83101 83101 83110 83132 83133 83138 83159B 83181A 83181B 83242 83243A 83244 83247 83910 9009900211 9009900225 9009900225 9009900944 9354014020 9356755016 9356755016
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
83109-30070

MCV10,SXV10..NAP

14V 2.0W,W/O SOCKET

 1
83119-32010

MCV10,SXV10,VCV10..NAP

14V 3.0W

 1
83119-32010

MCV10,SXV10..NAP

14V 3.0W

 1
83119-24290

MCV10,SXV10..NAP

14V 3.78W

 4
83119-24330

MCV10,SXV10..NAP

14V 2.0W,B TYPE

 1
83109-30070

MCV10,SXV10..NAP;VCV10..NAP..ATM..(LE,SE,XLE)

14V 2.0W,W/O SOCKET

 1
83119-24290

MCV10,SXV10,VCV10..NAP

14V 3.78W

 4
83119-24310

MCV10,SXV10,VCV10..NAP

14V 2.0W,C TYPE

 1
90981-11018

MCV10,SXV10,VCV10..NAP

12V 1.2W W/O SOCKET

 1
83100B - BULB, COMBINATION METER, NO.1
83109-30070

MCV10,SXV10..NAP

14V 2.0W,W/O SOCKET

 1
83119-32010

MCV10,SXV10,VCV10..NAP

14V 3.0W

 1
83119-32010

MCV10,SXV10..NAP

14V 3.0W

 1
83119-24290

MCV10,SXV10..NAP

14V 3.78W

 4
83119-24330

MCV10,SXV10..NAP

14V 2.0W,B TYPE

 1
83109-30070

MCV10,SXV10..NAP;VCV10..NAP..ATM..(LE,SE,XLE)

14V 2.0W,W/O SOCKET

 1
83119-24290

MCV10,SXV10,VCV10..NAP

14V 3.78W

 4
83119-24310

MCV10,SXV10,VCV10..NAP

14V 2.0W,C TYPE

 1
90981-11018

MCV10,SXV10,VCV10..NAP

12V 1.2W W/O SOCKET

 1
83100B - BULB, COMBINATION METER, NO.1
83109-30070

MCV10,SXV10..NAP

14V 2.0W,W/O SOCKET

 1
83119-32010

MCV10,SXV10,VCV10..NAP

14V 3.0W

 1
83119-32010

MCV10,SXV10..NAP

14V 3.0W

 1
83119-24290

MCV10,SXV10..NAP

14V 3.78W

 4
83119-24330

MCV10,SXV10..NAP

14V 2.0W,B TYPE

 1
83109-30070

MCV10,SXV10..NAP;VCV10..NAP..ATM..(LE,SE,XLE)

14V 2.0W,W/O SOCKET

 1
83119-24290

MCV10,SXV10,VCV10..NAP

14V 3.78W

 4
83119-24310

MCV10,SXV10,VCV10..NAP

14V 2.0W,C TYPE

 1
90981-11018

MCV10,SXV10,VCV10..NAP

12V 1.2W W/O SOCKET

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040

MCV10,SXV10,VCV10..NAP

OD=11.3 BLACK

 1
83101-14030

MCV10,SXV10,VCV10..NAP

14V 3.78W

 4
83101-14030

MCV10,SXV10..NAP

14V 3.78W

 4
83101-32020

MCV10,SXV10..NAP

OD=12.2 BLUE

 1
83101-32020

MCV10,SXV10,VCV10..NAP

OD=12.2 BLUE

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040

MCV10,SXV10,VCV10..NAP

OD=11.3 BLACK

 1
83101-14030

MCV10,SXV10,VCV10..NAP

14V 3.78W

 4
83101-14030

MCV10,SXV10..NAP

14V 3.78W

 4
83101-32020

MCV10,SXV10..NAP

OD=12.2 BLUE

 1
83101-32020

MCV10,SXV10,VCV10..NAP

OD=12.2 BLUE

 1
83110 - SPEEDOMETER ASSY
83110-06010

MCV10,SXV10,VCV10..NAP..USA

 1
83132 - CASE, COMBINATION METER
83132-06010

MCV10,SXV10..NAP

 1
83132-33070

MCV10..NAP

 1
83133 - PLATE, COMBINATION METER, NO.1
83133-33030

MCV10..NAP

 1
83133-06010

MCV10..NAP;SXV10..NAP..ATM..(LE,XLE)

 1
83138 - GLASS, SPEEDOMETER
83138-33030

MCV10..NAP

 1
83138-06010

MCV10,SXV10..NAP

 1
83159B - RELAY ASSY, METER
83159-22170

MCV10,SXV10..NAP

 1
83159-22170

MCV10,SXV10,VCV10..NAP

 1
83181A - SENSOR, SPEEDOMETER
83181-12040

MCV10,SXV10..NAP..ATM

 1
83181B - RING, O (FOR SPEEDOMETER SENSOR)
96711-24018

MCV10,SXV10..NAP

 1
83242 - TACHOMETER ASSY, ENGINE
83242-06020

MCV10..NAP..USA

 1
83242-33330

MCV10..NAP..USA

 1
83243A - GAUGE SUB-ASSY, FUEL RECEIVER
83243-33030

MCV10..NAP

 1
83243-06010

MCV10,SXV10..NAP

 1
83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83244-33190

MCV10..NAP

 1
83244-06010

MCV10,SXV10..NAP..USA

 1
83247 - PLATE, METER CIRCUIT
83247-33110

MCV10,SXV10,VCV10..NAP..ATM..(LE,SE,XLE)

 1
83247-06010

MCV10..NAP;SXV10..NAP..ATM..(LE,XLE)

 1
83910 - CLOCK ASSY
83910-06011

MCV10,SXV10..NAP

 1
83910-06010

MCV10,SXV10,VCV10..NAP

 1
Common parts
90099-00211
90099-00225
90099-00944
93540-14020
93567-55016
Linked diagrams
8302
