GSV40L-CETSKA (2009)

Toyota Camry (Nap)

Production Mar 2009 - Sep 2011
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 9(0903- )GSV40..NAP

Click highlighted areas on diagram

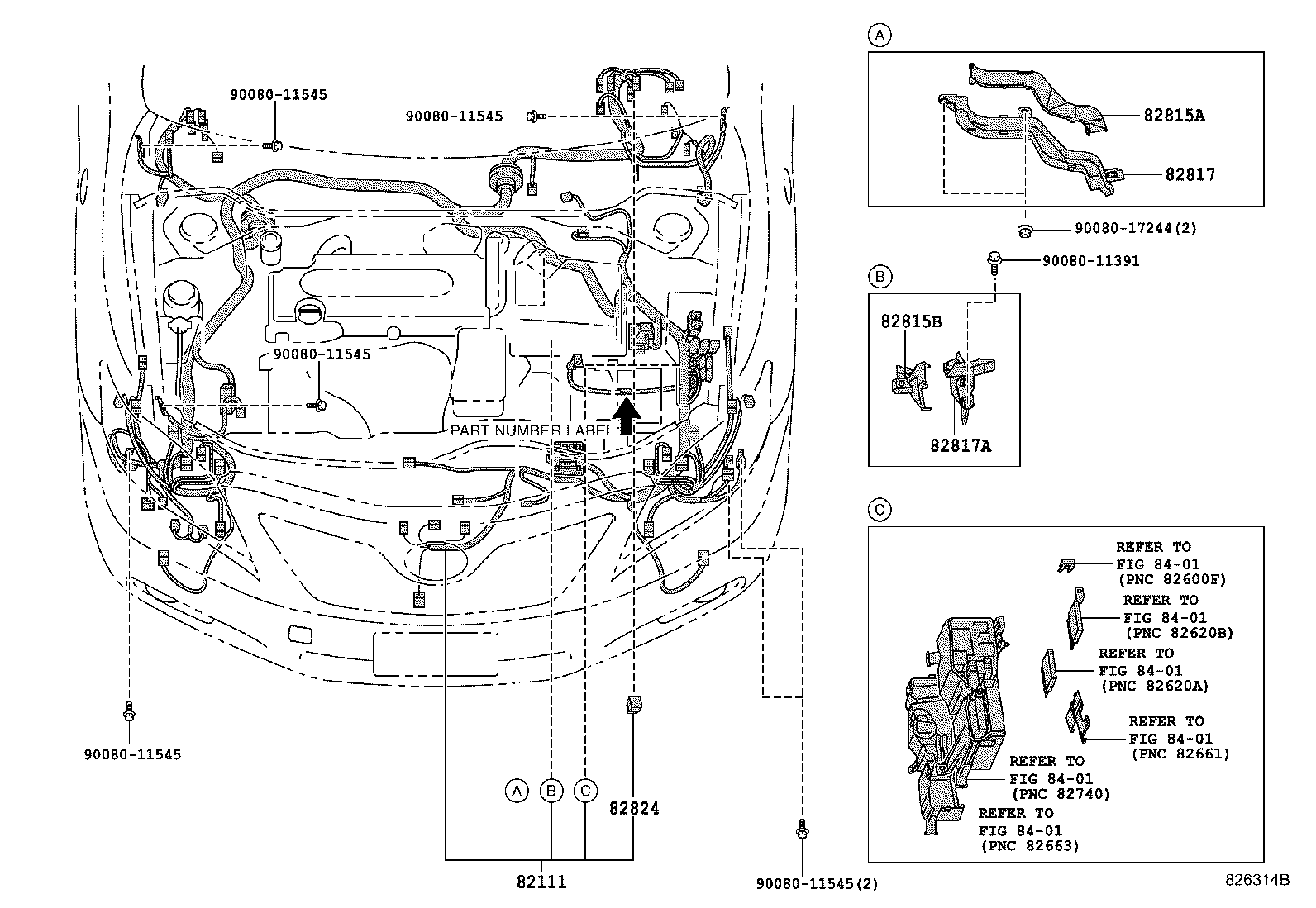

ENGINE ROOM

diagram 82111 82815A 82815B 82817 82817A 82824 8401 8401 8401 8401 8401 8401 9008011391 9008011545 9008011545 9008011545 9008011545 9008011545 9008017244
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-06F10

GSV40..NAP

 1
82111-06F20

GSV40..NAP

VSC-WITH

 1
82111-06P80

GSV40..NAP..(SE,XLE)

STARTING SYSTEM-PUSH BUTTON

 1
82111-06P71

GSV40..NAP

 1
82111-06P81

GSV40..NAP..(SE,XLE)

STARTING SYSTEM-PUSH BUTTON

 1
82111-06F10

GSV40..NAP

PART NUMBER LABEL=82111-06F10

 1
82111-06P70

GSV40..NAP

 1
82111-06F20

GSV40..NAP

PART NUMBER LABEL=82111-06F20

 1
82111-06P70

GSV40..NAP

PART NUMBER LABEL=82111-06P70

 1
82111-06P71

GSV40..NAP

PART NUMBER LABEL=82111-06P71

 1
82111-06P81

GSV40..NAP..(SE,XLE)

PART NUMBER LABEL=82111-06P81

 1
82111-06P80

GSV40..NAP..(SE,XLE)

PART NUMBER LABEL=82111-06P80

 1
82815A - COVER, WIRING HARNESS PROTECTOR
82815-07240

ACV40,GSV40..NAP

 1
82815-07240

ASV40,GSV40..NAP

 1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-07250

GSV40..NAP

 1
82815-07250

GSV40..NAP

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-07470

ASV40,GSV40..NAP

 1
82817-07470

ACV40,GSV40..NAP

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-07480

GSV40..NAP

 1
82817-07480

GSV40..NAP

 1
82824 - CONNECTOR, WIRING HARNESS
82824-52280

ACV40,GSV40..NAP

NO.2

 1
82824-48020

ACV40,GSV40..NAP

NO.1

 2
82824-52280

ASV40,GSV40..NAP

 1
Common parts
90080-11391
90080-11545
90080-17244
Linked diagrams
8401
