GSV40L-CETSKA (2009)

Toyota Camry (Nap)

Production Mar 2009 - Sep 2011
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0903-1109)NAP

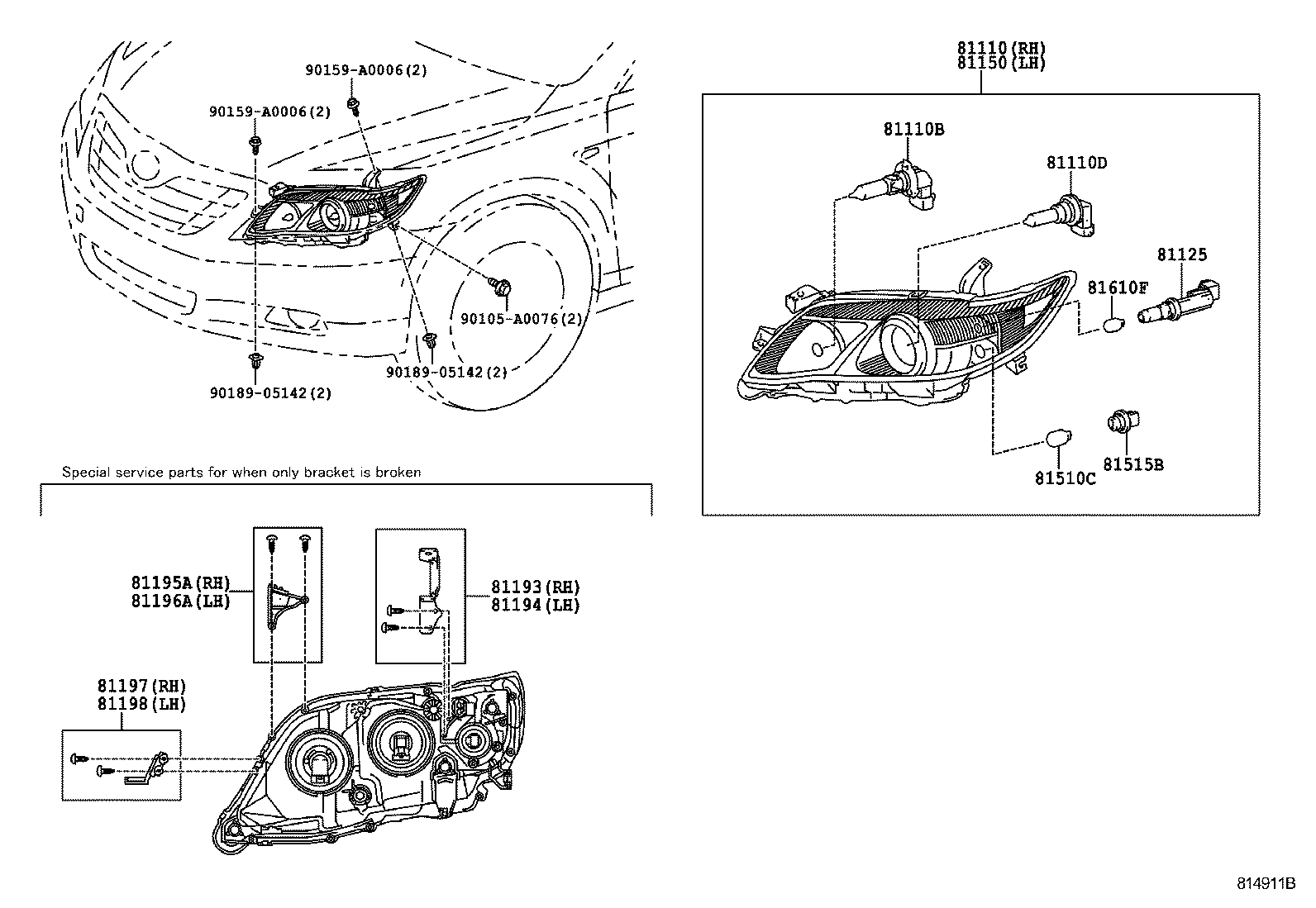

Click highlighted areas on diagram

diagram 81110 81110B 81110D 81125 81150 81193 81194 81195A 81196A 81197 81198 81510C 81515B 81610F 90105A0076 90159A0006 90159A0006 9018905142 9018905142
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-06510

ASV40,GSV40..NAP..SE

 1
81110-06210

ACV40,GSV40..NAP..SE

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90080-81041

ACV40,GSV40..NAP

12V 65W

 2
90981-13046

ASV40,GSV40..NAP

12V65W(SAE),60W(ECE)

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13075

ACV40,GSV40..NAP

12V 55W,HALOGEN

 2
90981-13075

ASV40,GSV40..NAP

12V 55W,HALOGEN

 2
81125 - CORD, HEADLAMP
81125-33700

ASV40,GSV40..NAP

 2
81150 - HEADLAMP ASSY, LH
81150-06210

ACV40,GSV40..NAP..SE

 1
81150-06510

ASV40,GSV40..NAP..SE

 1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-33050

ACV40,GSV40..NAP

 1
81193-33060

ASV40,GSV40..NAP

 1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-33060

ASV40,GSV40..NAP

 1
81194-33050

ACV40,GSV40..NAP

 1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-33020

ACV40,GSV40..NAP

 1
81195-33020

ASV40,GSV40..NAP

 1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-33020

ACV40,GSV40..NAP

 1
81196-33020

ASV40,GSV40..NAP

 1
81197 - BRACKET, HEADLAMP, LOWER RH
81197-33010

ASV40,GSV40..NAP

 1
81197-33010

ACV40,GSV40..NAP

 1
81198 - BRACKET, HEADLAMP, LWR LH
81198-33010

ACV40,GSV40..NAP

 1
81198-33010

ASV40,GSV40..NAP

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-AF003

ACV40,GSV40..NAP

12V 30/8W

 2
90981-15021

ASV40,GSV40..NAP

12V 21W,AMBER

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

ASV40,GSV40..NAP

 2
90069-81003

ACV40,GSV40..NAP

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

ACV40,GSV40..NAP

12V 5W

 2
90981-15012

ASV40,GSV40..NAP

12V 5W

 2
Common parts
90105-A0076
90159-A0006
90189-05142
