GSV40L-CETNKA (2006)

Toyota Camry (Nap)

Production Feb 2006 - Mar 2009
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0602-0902)NAP..SE ; (0602- )NAP..LE,XLE

Click highlighted areas on diagram

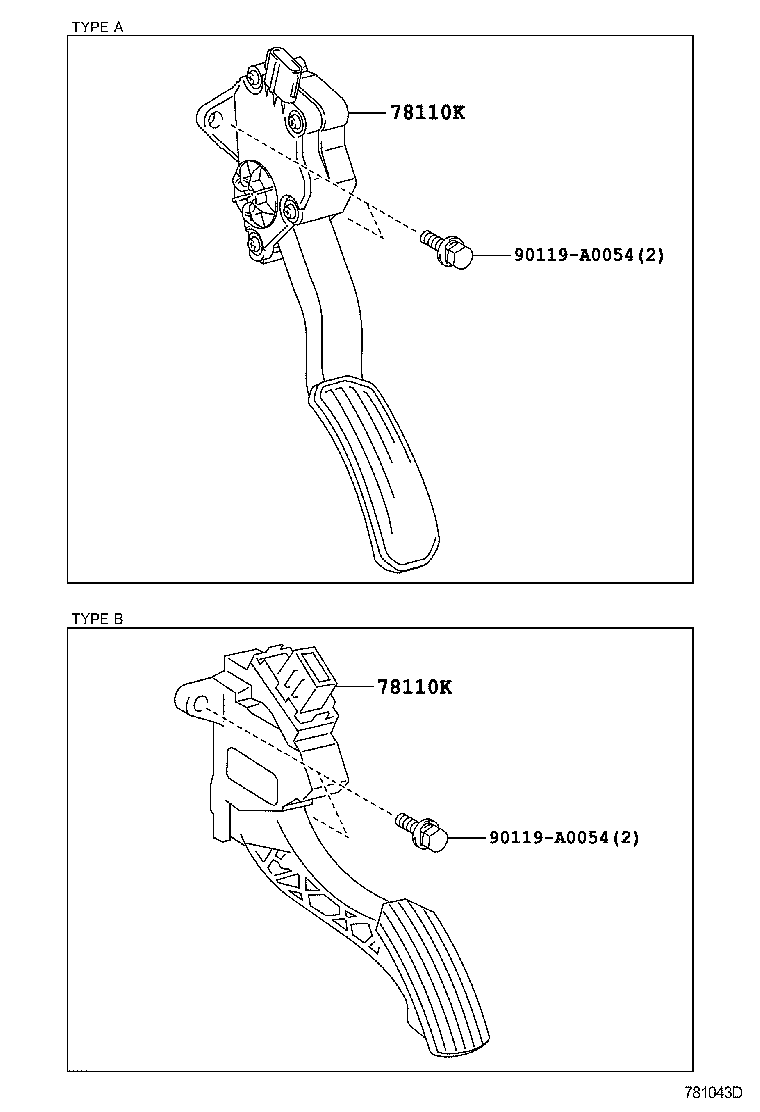

diagram 78110K 78110K 90119A0054 90119A0054
Part # Description Qty Price
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-07010

ACV40,GSV40..NAP

TYPE B:REFER ILLUST.

 1
78110-33020

ACV40,GSV40..NAP

TYPE A:REFER ILLUST.

 1
78110-07011

ACV40,GSV40..NAP

TYPE B:REFER ILLUST.

 1
78110K - ROD ASSY, ACCELERATOR PEDAL(W/SENSOR)
78110-07010

ACV40,GSV40..NAP

TYPE B:REFER ILLUST.

 1
78110-33020

ACV40,GSV40..NAP

TYPE A:REFER ILLUST.

 1
78110-07011

ACV40,GSV40..NAP

TYPE B:REFER ILLUST.

 1
Common parts
90119-A0054
