ASV40L-CETSKA (2009)

Toyota Camry (Nap)

Production Mar 2009 - Sep 2011
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

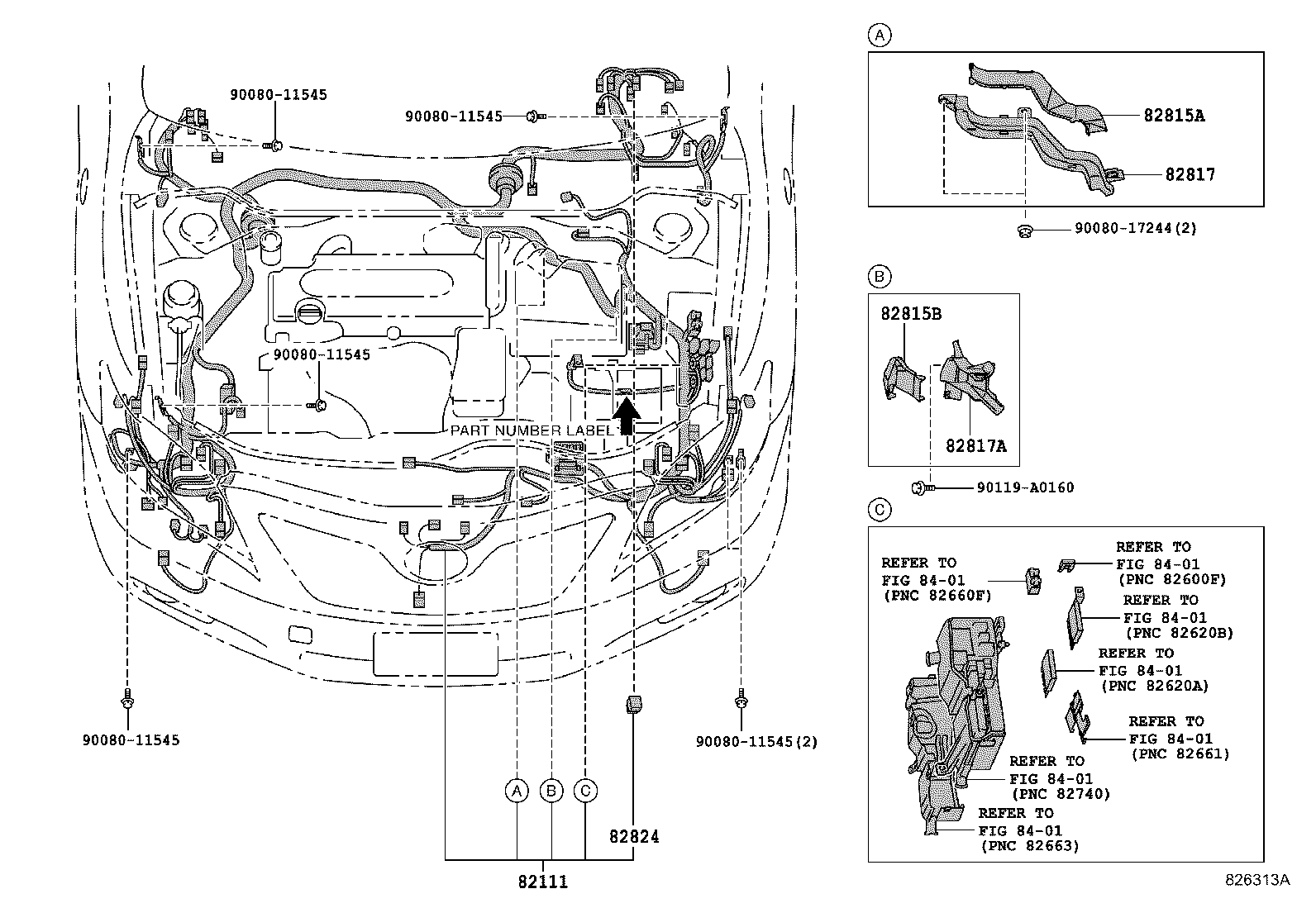

ILLUST NO. 1 OF 9(0903- )ASV40..NAP

Click highlighted areas on diagram

ENGINE ROOM

diagram 82111 82815A 82815B 82817 82817A 82824 8401 8401 8401 8401 8401 8401 8401 9008011545 9008011545 9008011545 9008011545 9008011545 9008017244 90119A0160
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-06P50

ASV40..NAP..6F..LE;ASV40..NAP..(SE,XLE)

 1
82111-06P60

ASV40..NAP..6FC..(SE,XLE)

STARTING SYSTEM-PUSH BUTTON

 1
82111-06V50

ASV40..NAP..6FC..(SE,XLE)

 1
82111-06P51

ASV40..NAP..6F

 1
82111-06P61

ASV40..NAP..6FC..(SE,XLE)

STARTING SYSTEM-PUSH BUTTON

 1
82111-06P60

ASV40..NAP..6FC..(SE,XLE)

PART NUMBER LABEL=82111-06P60

 1
82111-06P51

ASV40..NAP..6F

PART NUMBER LABEL=82111-06P51

 1
82111-06P61

ASV40..NAP..6FC..(SE,XLE)

PART NUMBER LABEL=82111-06P61

 1
82111-06P50

ASV40..NAP..6F..LE;ASV40..NAP..(SE,XLE)

PART NUMBER LABEL=82111-06P50

 1
82111-06V50

ASV40..NAP..6FC..(SE,XLE)

PART NUMBER LABEL=82111-06V50

 1
82815A - COVER, WIRING HARNESS PROTECTOR
82815-07240

ASV40,GSV40..NAP

 1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-33310

ASV40..NAP

 1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-07470

ASV40,GSV40..NAP

 1
82817A - PROTECTOR, WIRING HARNESS, NO.2
82817-33B00

ASV40..NAP

 1
82824 - CONNECTOR, WIRING HARNESS
82824-52280

ASV40,GSV40..NAP

 1
Common parts
90080-11545
90080-17244
90119-A0160
Linked diagrams
8401

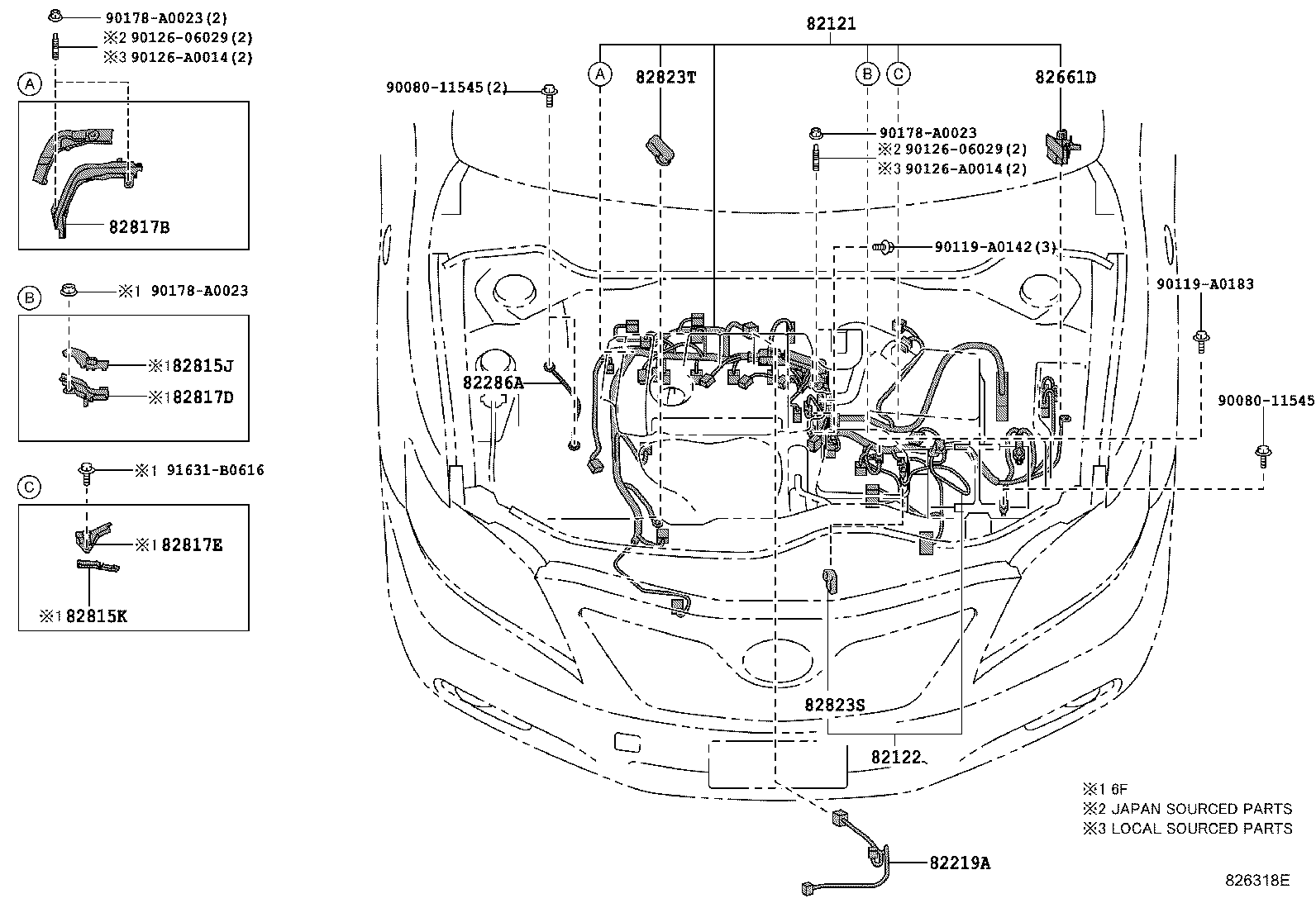

ILLUST NO. 2 OF 9(0903- )ASV40..NAP

Click highlighted areas on diagram

ENGINE

diagram 82121 82122 82219A 82286A 82661D 82815J 82815K 82817B 82817D 82817E 82823S 82823T 9008011545 9008011545 90119A0142 90119A0183 9012606029 9012606029 90126A0014 90126A0014 90178A0023 90178A0023 90178A0023 91631B0616
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-06C40

ASV40..NAP..6F

 1
82121-06840

ASV40..NAP..6FC

 1
82121-06C20

ASV40..NAP..6FC..(SE,XLE)

STARTING SYSTEM-PUSH BUTTON

 1
82121-06C20

ASV40..NAP..6FC

 1
82122 - WIRE, ENGINE, NO.2
82122-06060

ASV40,GSV40..NAP

 1
82219A - WIRE, SENSOR
82219-73010

ASV40..NAP

 1
82286A - WIRE, EARTH, NO.2
82286-06010

ASV40..NAP

 1
82661D - COVER, RELAY BLOCK, SIDE NO.1
82661-33010

ASV40,GSV40..NAP

 1
82815J - COVER, WIRING HARNESS PROTECTOR, NO.7
82815-06050

ASV40..NAP..6F

 1
82815K - COVER, WIRING HARNESS PROTECTOR, NO.8
82815-06060

ASV40..NAP..6F

 1
82817B - PROTECTOR, WIRING HARNESS, NO.3
82817-0T050

ASV40..NAP

 1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-06170

ASV40..NAP..6F

 1
82817E - PROTECTOR, WIRING HARNESS, NO.6
82817-06180

ASV40..NAP..6F

 1
82823S - CAP, STARTER TERMINAL
82823-12090

ASV40,GSV40..NAP

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22080

ASV40..NAP

 1
Common parts
90080-11545
90119-A0142
90119-A0183
90126-06029
90126-A0014
90178-A0023
91631-B0616

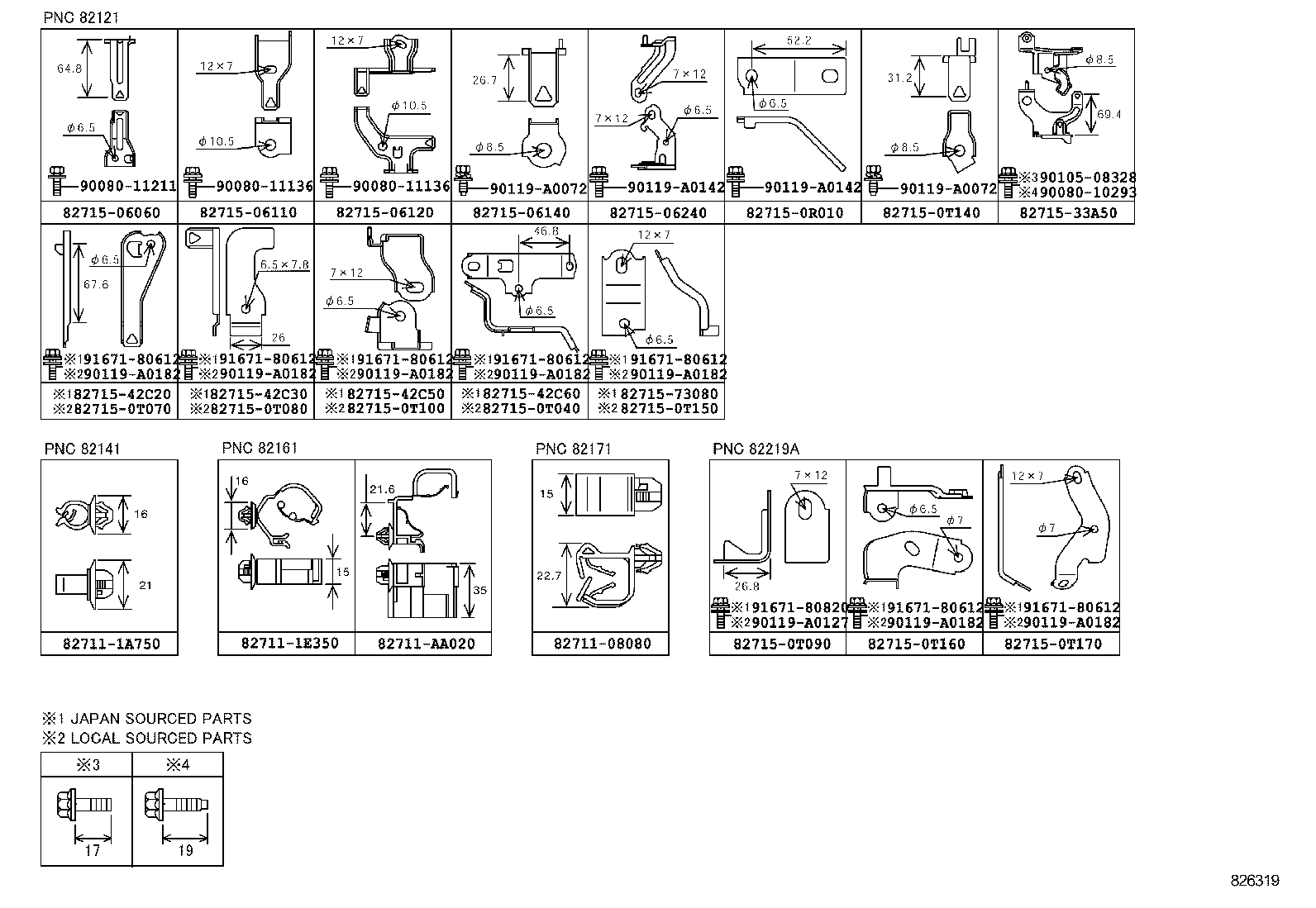

ILLUST NO. 7 OF 9(0903- )ASV40..NAP

Click highlighted areas on diagram

CLAMP & BRACKET

diagram 8271108080 827111A750 827111E350 82711AA020 8271506060 8271506110 8271506120 8271506140 8271506240 827150R010 827150T040 827150T070 827150T080 827150T090 827150T100 827150T140 827150T150 827150T160 827150T170 8271533A50 8271542C20 8271542C30 8271542C50 8271542C60 8271573080 9008010293 9008011136 9008011136 9008011211 9010508328 90119A0072 90119A0072 90119A0127 90119A0142 90119A0142 90119A0182 90119A0182 90119A0182 90119A0182 90119A0182 90119A0182 90119A0182 9167180612 9167180612 9167180612 9167180612 9167180612 9167180612 9167180612 9167180820
Part # Description Qty Price
Common parts
82711-08080
82711-1A750
82711-1E350
82711-AA020
82715-06060
82715-06110
82715-06120
82715-06140
82715-06240
82715-0R010
82715-0T040
82715-0T070
82715-0T080
82715-0T090
82715-0T100
82715-0T140
82715-0T150
82715-0T160
82715-0T170
82715-33A50
82715-42C20
82715-42C30
82715-42C50
82715-42C60
82715-73080
90080-10293
90080-11136
90080-11211
90105-08328
90119-A0072
90119-A0127
90119-A0142
90119-A0182
91671-80612
91671-80820

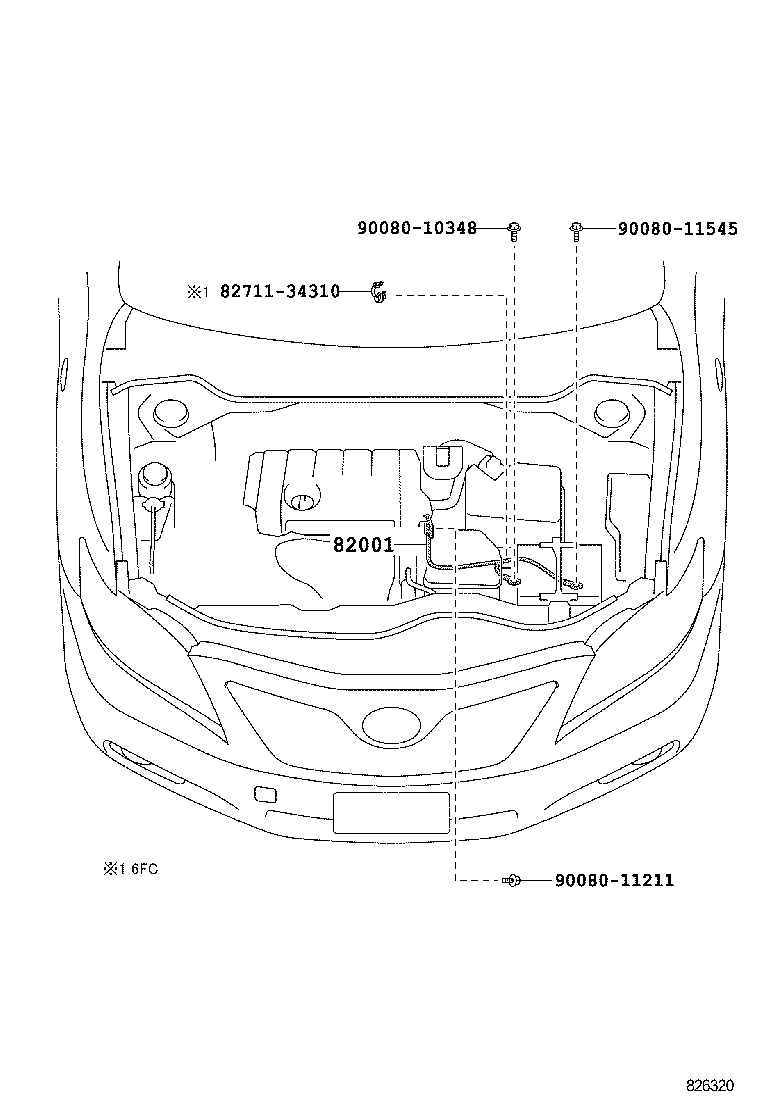

ILLUST NO. 8 OF 9(0903- )ASV40..NAP

Click highlighted areas on diagram

CABLE BOND

diagram 82001 8271134310 9008010348 9008011211 9008011545
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
90980-A7029

ASV40..NAP..6FC

 1
90980-A7026

ASV40..NAP..6F

 1
Common parts
82711-34310
90080-10348
90080-11211
90080-11545
