ASV40L-CETSKA (2009)

Toyota Camry (Nap)

Production Mar 2009 - Sep 2011
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )NAP

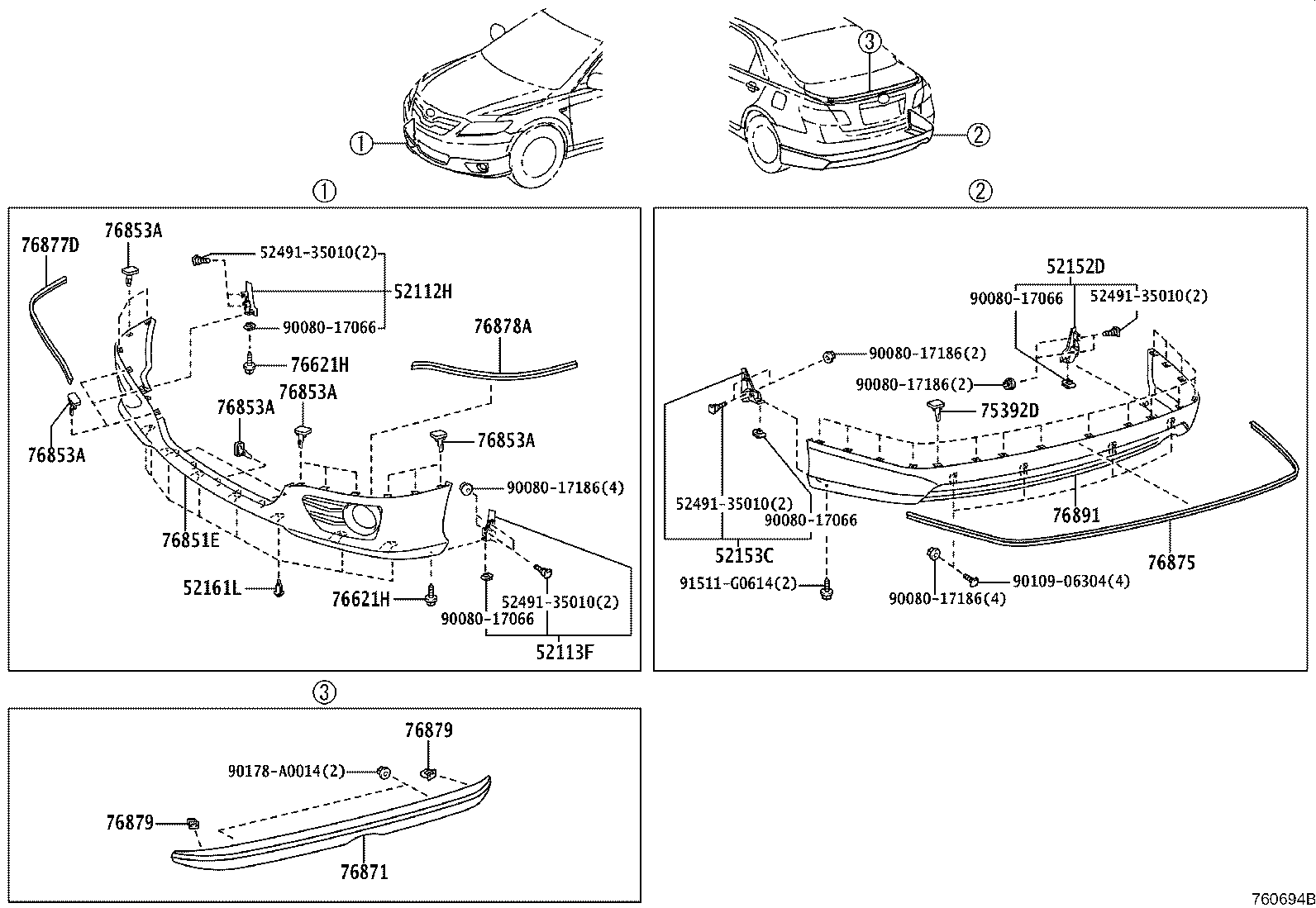

Click highlighted areas on diagram

diagram 52112H 52113F 52152D 52153C 52161L 5249135010 5249135010 5249135010 5249135010 75392D 76621H 76621H 76851E 76853A 76853A 76853A 76853A 76853A 76871 76875 76877D 76878A 76879 76879 76891 9008017066 9008017066 9008017066 9008017066 9008017186 9008017186 9008017186 9008017186 9010906304 90178A0014 91511G0614
Part # Description Qty Price
52112H - EXTENSION, FRONT BUMPER, RH
52112-06040

ASV40,GSV40..NAP..SE

 1
52113F - EXTENSION, FRONT BUMPER, LH
52113-06040

ASV40,GSV40..NAP..SE

 1
52152D - EXTENSION, REAR BUMPER, RH
52152-06010

ASV40,GSV40..NAP..SE

 1
52153C - EXTENSION, REAR BUMPER, LH
52153-06010

ASV40,GSV40..NAP..SE

 1
52161L - PIECE, FRONT SPOILER
52161-02020

ASV40,GSV40..NAP..SE

 8
75392D - RETAINER, OUTSIDE MOULDING
75392-35200

ASV40,GSV40..NAP..SE

 16
76621H - BOLT, NO.1
91511-G0614

ASV40,GSV40..NAP..SE

 2
76621H - BOLT, NO.1
91511-G0614

ASV40,GSV40..NAP..SE

 2
76851E - SPOILER, FRONT
76851-06906

ASV40,GSV40..NAP..SE

 1
76853A - RETAINER, FRONT SPOILER, UPPER NO.1
75392-35200

ASV40,GSV40..NAP..SE

 15
76853A - RETAINER, FRONT SPOILER, UPPER NO.1
75392-35200

ASV40,GSV40..NAP..SE

 15
76853A - RETAINER, FRONT SPOILER, UPPER NO.1
75392-35200

ASV40,GSV40..NAP..SE

 15
76853A - RETAINER, FRONT SPOILER, UPPER NO.1
75392-35200

ASV40,GSV40..NAP..SE

 15
76853A - RETAINER, FRONT SPOILER, UPPER NO.1
75392-35200

ASV40,GSV40..NAP..SE

 15
76871 - SPOILER, REAR
76871-06905

ASV40,GSV40..NAP..SE

PAINT REQ.,REAR SPOILER-WITH

 1
76875 - PROTECTOR, REAR SPOILER, NO.4
76875-06020C0

ASV40,GSV40..NAP..SE

BLACK,1G3 ,202 ,3R3 ,6V4 ,776 ,8T5

 1
76875-06020B0

ASV40,GSV40..NAP..SE

MEDIUM GRAY,040 ,1F7

 1
76877D - PROTECTOR, FRONT SPOILER SIDE, RH
76877-06080B0

ASV40,GSV40..NAP..SE

MEDIUM GRAY,040 ,1F7

 1
76877-06080C0

ASV40,GSV40..NAP..SE

BLACK,1G3 ,202 ,3R3 ,6V4 ,776 ,8T5

 1
76878A - PROTECTOR, FRONT SPOILER SIDE, LH
76878-06050C0

ASV40,GSV40..NAP..SE

BLACK,1G3 ,202 ,3R3 ,6V4 ,776 ,8T5

 1
76878-06050B0

ASV40,GSV40..NAP..SE

MEDIUM GRAY,040 ,1F7

 1
76879 - CLIP, REAR SPOILER, NO.1
76879-24020

ASV40,GSV40..NAP..SE

REAR SPOILER-WITH

 2
76879 - CLIP, REAR SPOILER, NO.1
76879-24020

ASV40,GSV40..NAP..SE

REAR SPOILER-WITH

 2
76891 - SPOILER, REAR NO.1
76891-06902

ASV40,GSV40..NAP..SE

 1
Common parts
52491-35010
90080-17066
90080-17186
90109-06304
90178-A0014
91511-G0614
