ASV40L-CETSKA (2009)

Toyota Camry (Nap)

Production Mar 2009 - Sep 2011
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )ASV40..NAP

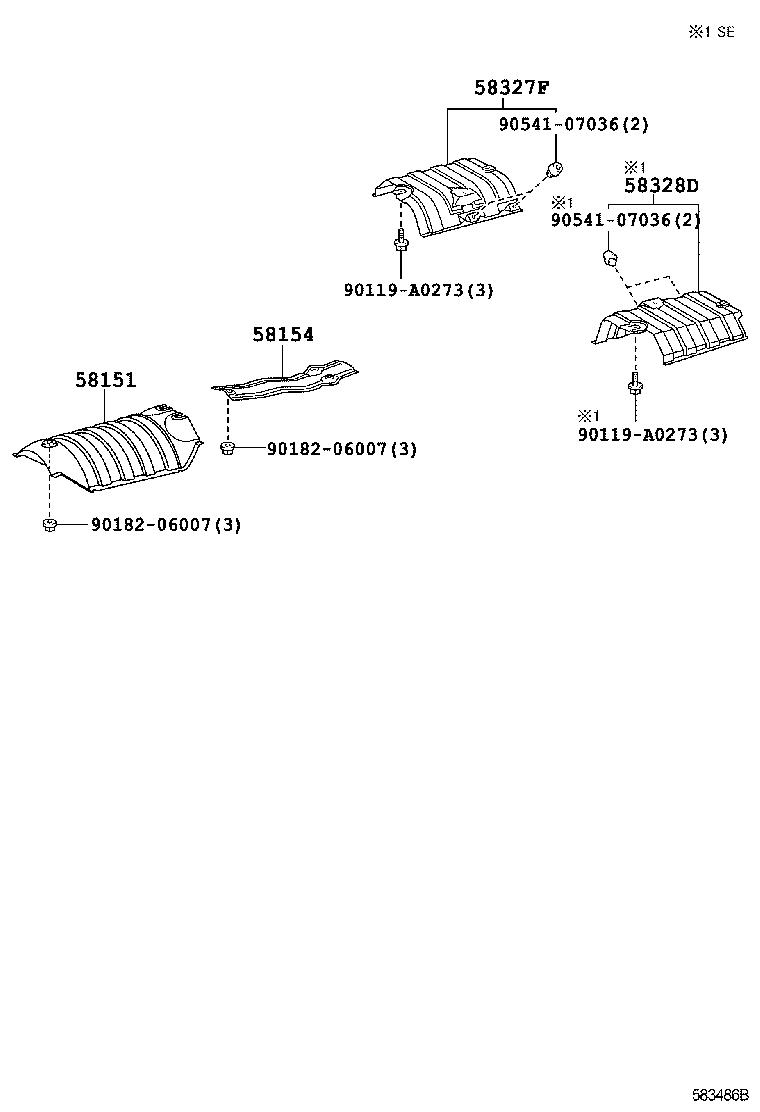

Click highlighted areas on diagram

diagram 58151 58154 58327F 58328D 90119A0273 90119A0273 9018206007 9018206007 9054107036 9054107036
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58152-07011

ASV40,GSV40..NAP

 1
58154 - INSULATOR, FRONT FLOOR HEAT, NO.2 LOWER
58154-06010

ASV40..NAP

 1
58327F - INSULATOR, MAIN MUFFLER HEAT, RH
58327-07011

ASV40,GSV40..NAP

 1
58328D - INSULATOR, MAIN MUFFLER HEAT, LH
58328-07012

GSV40..NAP;ASV40..NAP..SE

 1
Common parts
90119-A0273
90182-06007
90541-07036
