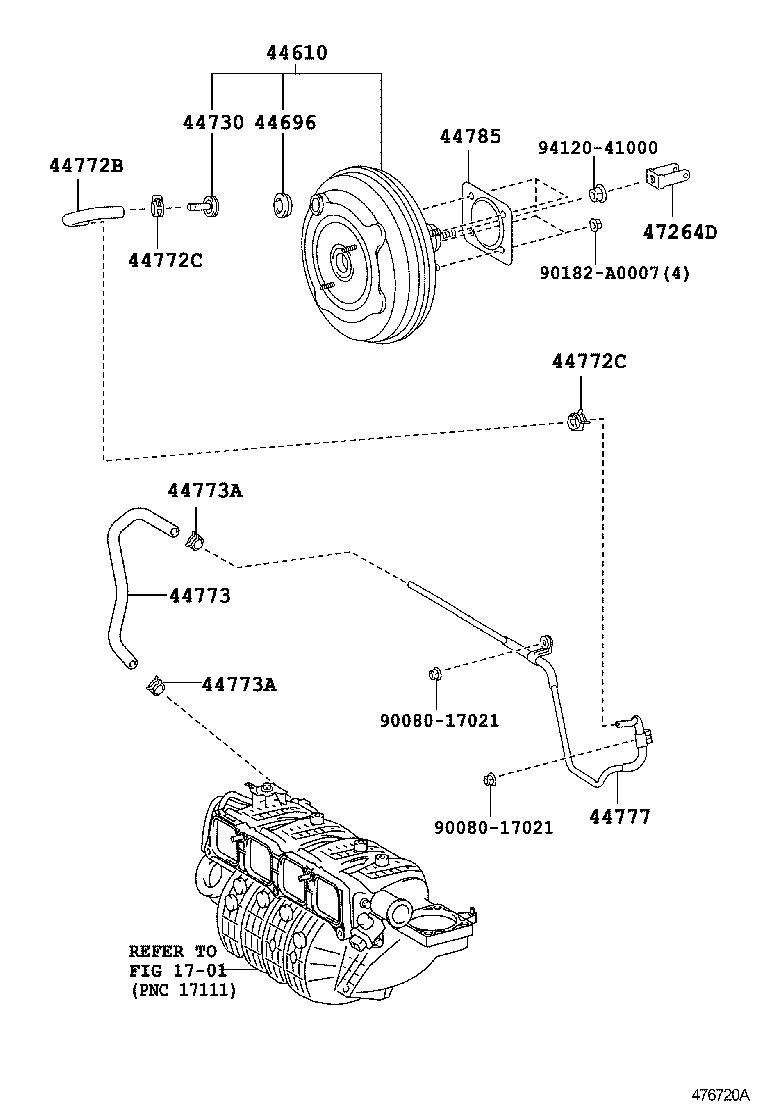

Toyota Camry (nap) ASV40 BRAKE BOOSTER & VACUUM TUBE

Part #	Description	Period	Qty
44610 - BOOSTER ASSY, BRAKE
44610-07132	ASV40,GSV40..NAP	08/2009 - 09/2011	1
44610-07131	ASV40,GSV40..NAP	03/2009 - 08/2009	1
44696 - GROMMET, CHECK VALVE
90080-48071	ASV40,GSV40..NAP	03/2009 - 09/2011	1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22150	ASV40,GSV40..NAP	03/2009 - 09/2011	1
44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER
44772-06130	ASV40..NAP	03/2009 - 09/2011	1
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90466-A0003	ASV40,GSV40..NAP	03/2009 - 09/2011	2
44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE)
90466-A0003	ASV40,GSV40..NAP	03/2009 - 09/2011	2
44773 - HOSE, VACUUM, NO.2
44772-06320	ASV40..NAP	03/2009 - 09/2011	1
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16014	ASV40..NAP	03/2009 - 09/2011	2
44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2)
90467-16014	ASV40..NAP	03/2009 - 09/2011	2
44777 - CONNECTOR, VACUUM HOSE, NO.1
44770-06100	ASV40..NAP	03/2009 - 09/2011	1
44785 - GASKET, BRAKE BOOSTER
44785-07010	ASV40,GSV40..NAP	03/2009 - 09/2011	1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-63020	ASV40,GSV40..NAP	03/2009 - 09/2011	1
Common parts
90080-17021
90182-A0007
94120-41000
Linked diagrams
1701

ASV40L-CETSKA (2009)
