ASV40L-CETSKA (2009)
Toyota Camry (Nap)
(0903- )NAP..6F
EB62
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105C - PIN, STRAIGHT(FOR TRANSAXLE CASE) | ||||
| 90250-08054 |
ASV40..NAP..6F |
5 | ||
| 31105C - PIN, STRAIGHT(FOR TRANSAXLE CASE) | ||||
| 90250-08054 |
ASV40..NAP..6F |
5 | ||
| 31105C - PIN, STRAIGHT(FOR TRANSAXLE CASE) | ||||
| 90250-08054 |
ASV40..NAP..6F |
5 | ||
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-27010 |
ASV40..NAP..6F |
1 | ||
| 90311-40029 |
ASV40..NAP..6FC |
1 | ||
| 31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE) | ||||
| 90311-50033 |
ASV40..NAP..6FC |
1 | ||
| 90311-40030 |
ASV40..NAP..6F |
1 | ||
| 90311-40036 |
ASV40..NAP..6F |
1 | ||
| 90311-50045 |
ASV40..NAP..6FC |
1 | ||
| 31115C - CASE, FRONT TRANSAXLE(MTM) | ||||
| 31105-33040 |
ASV40..NAP..6F |
1 | ||
| 31105-33041 |
ASV40..NAP..6F |
1 | ||
| 33143C - BAFFLE, FRONT DIFFERENTIAL OIL | ||||
| 33143-20060 |
ASV40..NAP..6F |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-33180 |
ASV40..NAP..6FC TOYOTA:REFER 35-01 |
1 | ||
| 41221-20490 |
ASV40..NAP..6F |
1 | ||
| 41221-33190 |
ASV40..NAP..6FC AISIN AW:REFER 35-01 |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-12319 |
ASV40..NAP..6F |
12 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-73010 |
ASV40..NAP..6FC TOYOTA:REFER 35-01 |
1 | ||
| 41301-20270 |
ASV40..NAP..6F |
1 | ||
| 41301-33100 |
ASV40..NAP..6FC AISIN AW:REFER 35-01 |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-61081 |
ASV40..NAP..6F T=2.25,MARK E |
1 | ||
| 90564-61077 |
ASV40..NAP..6F T=2.05,MARK A |
1 | ||
| 90564-61078 |
ASV40..NAP..6F T=2.10,MARK B |
1 | ||
| 90564-61079 |
ASV40..NAP..6F T=2.15,MARK C |
1 | ||
| 90564-61084 |
ASV40..NAP..6F T=2.40,MARK H |
1 | ||
| 90564-61082 |
ASV40..NAP..6F T=2.30,MARK F |
1 | ||
| 90564-61083 |
ASV40..NAP..6F T=2.35,MARK G |
1 | ||
| 90564-61089 |
ASV40..NAP..6F T=2.65,MARK N |
1 | ||
| 90564-61087 |
ASV40..NAP..6F T=2.55,MARK L |
1 | ||
| 90564-61086 |
ASV40..NAP..6F T=2.50,MARK K |
1 | ||
| 90564-61093 |
ASV40..NAP..6F T=2.85,MARK S |
1 | ||
| 90564-61088 |
ASV40..NAP..6F T=2.60,MARK M |
1 | ||
| 90564-61085 |
ASV40..NAP..6F T=2.45,MARK J |
1 | ||
| 90564-61092 |
ASV40..NAP..6F T=2.80,MARK R |
1 | ||
| 90564-61105 |
ASV40..NAP..6F T=2.55,MARK L |
1 | ||
| 90564-61091 |
ASV40..NAP..6F T=2.75,MARK Q |
1 | ||
| 90564-61096 |
ASV40..NAP..6F T=2.10,MARK B |
1 | ||
| 90564-61090 |
ASV40..NAP..6F T=2.70,MARK P |
1 | ||
| 90564-61080 |
ASV40..NAP..6F T=2.20,MARK D |
1 | ||
| 90564-61103 |
ASV40..NAP..6F T=2.45,MARK J |
1 | ||
| 90564-61100 |
ASV40..NAP..6F T=2.30,MARK F |
1 | ||
| 90564-61095 |
ASV40..NAP..6F T=2.05,MARK A |
1 | ||
| 90564-61104 |
ASV40..NAP..6F T=2.50,MARK K |
1 | ||
| 90564-61102 |
ASV40..NAP..6F T=2.40,MARK H |
1 | ||
| 90564-61097 |
ASV40..NAP..6F T=2.15,MARK C |
1 | ||
| 90564-61109 |
ASV40..NAP..6F T=2.75,MARK Q |
1 | ||
| 90564-61099 |
ASV40..NAP..6F T=2.25,MARK E |
1 | ||
| 90564-61094 |
ASV40..NAP..6F T=2.90,MARK T |
1 | ||
| 90564-61101 |
ASV40..NAP..6F T=2.35,MARK G |
1 | ||
| 90564-61098 |
ASV40..NAP..6F T=2.20,MARK D |
1 | ||
| 90564-61106 |
ASV40..NAP..6F T=2.60,MARK M |
1 | ||
| 90564-61111 |
ASV40..NAP..6F T=2.85,MARK S |
1 | ||
| 90564-61108 |
ASV40..NAP..6F T=2.70,MARK P |
1 | ||
| 90564-61112 |
ASV40..NAP..6F T=2.90,MARK T |
1 | ||
| 90564-61110 |
ASV40..NAP..6F T=2.80,MARK R |
1 | ||
| 90564-61107 |
ASV40..NAP..6F T=2.65,MARK N |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-57028 |
ASV40..NAP..6F |
1 | ||
| 90366-50118 |
ASV40..NAP..6FC |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-57028 |
ASV40..NAP..6F |
1 | ||
| 90366-55071 |
ASV40..NAP..6FC |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-12140 |
ASV40..NAP..6F |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-12140 |
ASV40..NAP..6F |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-12090 |
ASV40..NAP..6F |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-12090 |
ASV40..NAP..6F |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
ASV40,GSV40..NAP |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-33060 |
ASV40..NAP..6FC AISIN AW:REFER 35-01 |
1 | ||
| 41342-73010 |
ASV40..NAP..6FC TOYOTA:REFER 35-01 |
1 | ||
| 41342-28010 |
ASV40..NAP..6F |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
ASV40..NAP..6F |
2 | ||
| 41351-73010 |
ASV40..NAP..6FC |
2 | ||
| 41351-28010 |
ASV40..NAP..6F |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
ASV40..NAP..6F |
2 | ||
| 41351-73010 |
ASV40..NAP..6FC |
2 | ||
| 41351-28010 |
ASV40..NAP..6F |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-73010 |
ASV40..NAP..6FC T=1.00 |
2 | ||
| 41361-73030 |
ASV40..NAP..6FC T=1.20 |
2 | ||
| 41361-73040 |
ASV40..NAP..6FC T=1.30 |
2 | ||
| 41361-28240 |
ASV40..NAP..6F T=1.1,MARK 2 |
2 | ||
| 41361-28230 |
ASV40..NAP..6F T=1.0,MARK 1 |
2 | ||
| 41361-28260 |
ASV40..NAP..6F T=1.3,MARK 4 |
2 | ||
| 41361-28250 |
ASV40..NAP..6F T=1.2,MARK 3 |
2 | ||
| 41361-73020 |
ASV40..NAP..6FC T=1.10 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-73010 |
ASV40..NAP..6FC T=1.00 |
2 | ||
| 41361-73030 |
ASV40..NAP..6FC T=1.20 |
2 | ||
| 41361-73040 |
ASV40..NAP..6FC T=1.30 |
2 | ||
| 41361-28240 |
ASV40..NAP..6F T=1.1,MARK 2 |
2 | ||
| 41361-28230 |
ASV40..NAP..6F T=1.0,MARK 1 |
2 | ||
| 41361-28260 |
ASV40..NAP..6F T=1.3,MARK 4 |
2 | ||
| 41361-28250 |
ASV40..NAP..6F T=1.2,MARK 3 |
2 | ||
| 41361-73020 |
ASV40..NAP..6FC T=1.10 |
2 | ||
| Linked diagrams | ||||
| 3302 | ||||
| 3307 | ||||

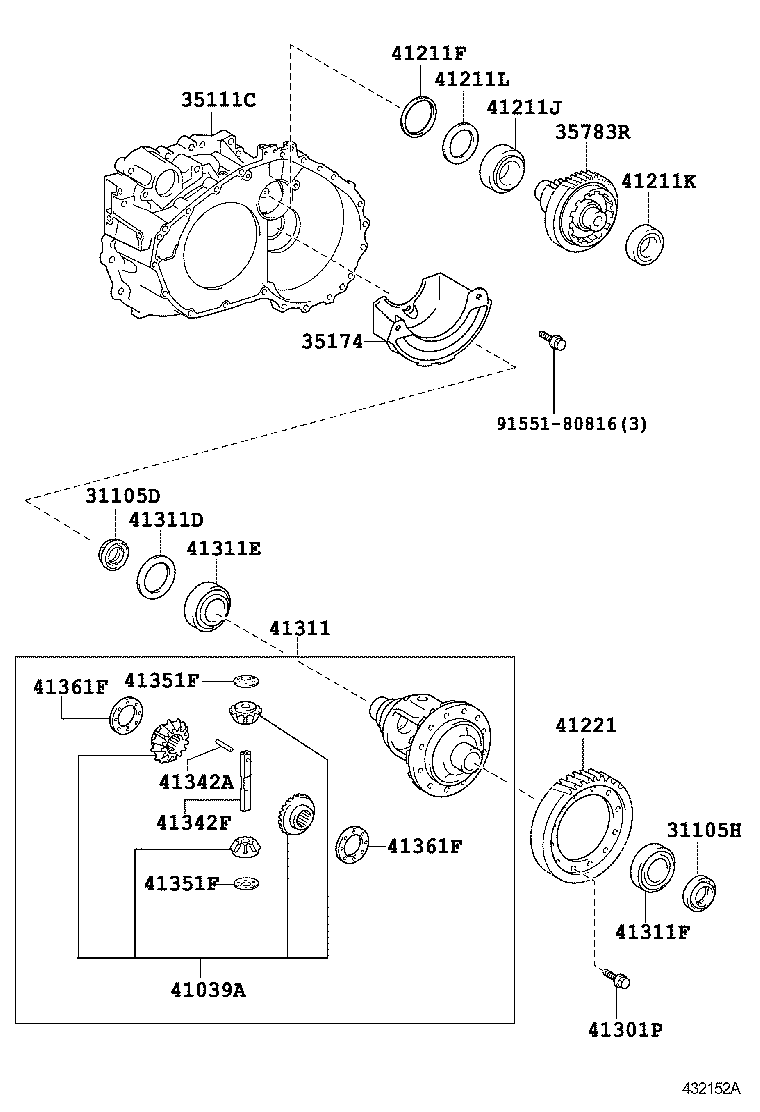

(0903- )ASV40..NAP..6FC
U760E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-27010 |
ASV40..NAP..6F |
1 | ||
| 90311-40029 |
ASV40..NAP..6FC |
1 | ||
| 31105H - SEAL, OIL, NO.2(FOR TRANSAXLE CASE) | ||||
| 90311-50033 |
ASV40..NAP..6FC |
1 | ||
| 90311-40030 |
ASV40..NAP..6F |
1 | ||
| 90311-40036 |
ASV40..NAP..6F |
1 | ||
| 90311-50045 |
ASV40..NAP..6FC |
1 | ||
| 35111C - HOUSING, TRANSAXLE | ||||
| 35105-33020 |
ASV40..NAP..6FC AISIN AW:REFER 35-01 |
1 | ||
| 35105-73030 |
ASV40..NAP..6FC TOYOTA:REFER 35-01 |
1 | ||
| 35174 - SEPARATOR, TRANSAXLE HOUSING OIL | ||||
| 35174-73010 |
ASV40..NAP..6FC |
1 | ||
| 35783R - GEAR, COUNTER DRIVEN | ||||
| 35705-33030 |
ASV40..NAP..6FC TOYOTA:REFER 35-01 |
1 | ||
| 35705-33040 |
ASV40..NAP..6FC AISIN AW:REFER 35-01 |
1 | ||
| 41039A - GEAR KIT, DIFFERENTIAL | ||||
| 41039-28020 |
ASV40..NAP..6FC |
1 | ||
| 41211F - BEARING, THRUST NEEDLE ROLLER(FOR FRONT DRIVE PINION RH | ||||
| 90564-61029 |
ASV40..NAP..6FC |
1 | ||
| 41211J - BEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION | ||||
| 90366-35145 |
ASV40..NAP..6FC |
1 | ||
| 90366-35167 |
ASV40..NAP..6FC |
1 | ||
| 41211K - BEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION | ||||
| 90366-32031 |
ASV40..NAP..6FC |
1 | ||
| 90366-32034 |
ASV40..NAP..6FC |
1 | ||
| 41211L - SHIM (FOR DIFFERENTIAL DRIVE PINION) | ||||
| 90564-61024 |
ASV40..NAP..6FC T=2.050 |
1 | ||
| 90564-61022 |
ASV40..NAP..6FC T=2.000 |
1 | ||
| 90564-61027 |
ASV40..NAP..6FC T=2.125 |
1 | ||
| 90564-61026 |
ASV40..NAP..6FC T=2.100 |
1 | ||
| 90564-61029 |
ASV40..NAP..6FC T=2.175 |
1 | ||
| 90564-61023 |
ASV40..NAP..6FC T=2.025 |
1 | ||
| 90564-61025 |
ASV40..NAP..6FC T=2.075 |
1 | ||
| 90564-61028 |
ASV40..NAP..6FC T=2.150 |
1 | ||
| 90564-61041 |
ASV40..NAP..6FC T=2.475 |
1 | ||
| 90564-61034 |
ASV40..NAP..6FC T=2.300 |
1 | ||
| 90564-61035 |
ASV40..NAP..6FC T=2.325 |
1 | ||
| 90564-61031 |
ASV40..NAP..6FC T=2.225 |
1 | ||
| 90564-61033 |
ASV40..NAP..6FC T=2.275 |
1 | ||
| 90564-61044 |
ASV40..NAP..6FC T=2.550 |
1 | ||
| 90564-61030 |
ASV40..NAP..6FC T=2.200 |
1 | ||
| 90564-61038 |
ASV40..NAP..6FC T=2.400 |
1 | ||
| 90564-61032 |
ASV40..NAP..6FC T=2.250 |
1 | ||
| 90564-61042 |
ASV40..NAP..6FC T=2.500 |
1 | ||
| 90564-61043 |
ASV40..NAP..6FC T=2.525 |
1 | ||
| 90564-61047 |
ASV40..NAP..6FC T=2.625 |
1 | ||
| 90564-61037 |
ASV40..NAP..6FC T=2.375 |
1 | ||
| 90564-61036 |
ASV40..NAP..6FC T=2.350 |
1 | ||
| 90564-61045 |
ASV40..NAP..6FC T=2.575 |
1 | ||
| 90564-61049 |
ASV40..NAP..6FC T=2.675 |
1 | ||
| 90564-61039 |
ASV40..NAP..6FC T=2.425 |
1 | ||
| 90564-61056 |
ASV40..NAP..6FC T=2.850 |
1 | ||
| 90564-61052 |
ASV40..NAP..6FC T=2.750 |
1 | ||
| 90564-61055 |
ASV40..NAP..6FC T=2.825 |
1 | ||
| 90564-61054 |
ASV40..NAP..6FC T=2.800 |
1 | ||
| 90564-61040 |
ASV40..NAP..6FC T=2.450 |
1 | ||
| 90564-61050 |
ASV40..NAP..6FC T=2.700 |
1 | ||
| 90564-61062 |
ASV40..NAP..6FC T=3.000 |
1 | ||
| 90564-61051 |
ASV40..NAP..6FC T=2.725 |
1 | ||
| 90564-61061 |
ASV40..NAP..6FC T=2.975 |
1 | ||
| 90564-61046 |
ASV40..NAP..6FC T=2.600 |
1 | ||
| 90564-61053 |
ASV40..NAP..6FC T=2.775 |
1 | ||
| 90564-61048 |
ASV40..NAP..6FC T=2.650 |
1 | ||
| 90564-61059 |
ASV40..NAP..6FC T=2.925 |
1 | ||
| 90564-61060 |
ASV40..NAP..6FC T=2.950 |
1 | ||
| 90564-61058 |
ASV40..NAP..6FC T=2.900 |
1 | ||
| 90564-61057 |
ASV40..NAP..6FC T=2.875 |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-33180 |
ASV40..NAP..6FC TOYOTA:REFER 35-01 |
1 | ||
| 41221-20490 |
ASV40..NAP..6F |
1 | ||
| 41221-33190 |
ASV40..NAP..6FC AISIN AW:REFER 35-01 |
1 | ||
| 41301P - SCREW(FOR FRONT DIFFERENTIAL CASE) | ||||
| 90105-12303 |
ASV40..NAP..6FC |
12 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-73010 |
ASV40..NAP..6FC TOYOTA:REFER 35-01 |
1 | ||
| 41301-20270 |
ASV40..NAP..6F |
1 | ||
| 41301-33100 |
ASV40..NAP..6FC AISIN AW:REFER 35-01 |
1 | ||
| 41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90564-69001 |
ASV40..NAP..6FC T=2.000 |
1 | ||
| 90564-69002 |
ASV40..NAP..6FC T=2.025 |
1 | ||
| 90564-69008 |
ASV40..NAP..6FC T=2.175 |
1 | ||
| 90564-69004 |
ASV40..NAP..6FC T=2.075 |
1 | ||
| 90564-69007 |
ASV40..NAP..6FC T=2.150 |
1 | ||
| 90564-69005 |
ASV40..NAP..6FC T=2.100 |
1 | ||
| 90564-69009 |
ASV40..NAP..6FC T=2.200 |
1 | ||
| 90564-69012 |
ASV40..NAP..6FC T=2.275 |
1 | ||
| 90564-69006 |
ASV40..NAP..6FC T=2.125 |
1 | ||
| 90564-69003 |
ASV40..NAP..6FC T=2.050 |
1 | ||
| 90564-69017 |
ASV40..NAP..6FC T=2.400 |
1 | ||
| 90564-69015 |
ASV40..NAP..6FC T=2.350 |
1 | ||
| 90564-69014 |
ASV40..NAP..6FC T=2.325 |
1 | ||
| 90564-69011 |
ASV40..NAP..6FC T=2.250 |
1 | ||
| 90564-69022 |
ASV40..NAP..6FC T=2.475 |
1 | ||
| 90564-69026 |
ASV40..NAP..6FC T=2.575 |
1 | ||
| 90564-69023 |
ASV40..NAP..6FC T=2.500 |
1 | ||
| 90564-69013 |
ASV40..NAP..6FC T=2.300 |
1 | ||
| 90564-69016 |
ASV40..NAP..6FC T=2.375 |
1 | ||
| 90564-69028 |
ASV40..NAP..6FC T=2.625 |
1 | ||
| 90564-69029 |
ASV40..NAP..6FC T=2.650 |
1 | ||
| 90564-69025 |
ASV40..NAP..6FC T=2.550 |
1 | ||
| 90564-69021 |
ASV40..NAP..6FC T=2.450 |
1 | ||
| 90564-69010 |
ASV40..NAP..6FC T=2.225 |
1 | ||
| 90564-69030 |
ASV40..NAP..6FC T=2.675 |
1 | ||
| 90564-69035 |
ASV40..NAP..6FC T=2.800 |
1 | ||
| 90564-69027 |
ASV40..NAP..6FC T=2.600 |
1 | ||
| 90564-69031 |
ASV40..NAP..6FC T=2.700 |
1 | ||
| 90564-69033 |
ASV40..NAP..6FC T=2.750 |
1 | ||
| 90564-69024 |
ASV40..NAP..6FC T=2.525 |
1 | ||
| 90564-69020 |
ASV40..NAP..6FC T=2.425 |
1 | ||
| 90564-69034 |
ASV40..NAP..6FC T=2.775 |
1 | ||
| 90564-69037 |
ASV40..NAP..6FC T=2.850 |
1 | ||
| 90564-69032 |
ASV40..NAP..6FC T=2.725 |
1 | ||
| 90564-69036 |
ASV40..NAP..6FC T=2.825 |
1 | ||
| 90564-69038 |
ASV40..NAP..6FC T=2.875 |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-57028 |
ASV40..NAP..6F |
1 | ||
| 90366-50118 |
ASV40..NAP..6FC |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-57028 |
ASV40..NAP..6F |
1 | ||
| 90366-55071 |
ASV40..NAP..6FC |
1 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
ASV40,GSV40..NAP |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-33060 |
ASV40..NAP..6FC AISIN AW:REFER 35-01 |
1 | ||
| 41342-73010 |
ASV40..NAP..6FC TOYOTA:REFER 35-01 |
1 | ||
| 41342-28010 |
ASV40..NAP..6F |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
ASV40..NAP..6F |
2 | ||
| 41351-73010 |
ASV40..NAP..6FC |
2 | ||
| 41351-28010 |
ASV40..NAP..6F |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
ASV40..NAP..6F |
2 | ||
| 41351-73010 |
ASV40..NAP..6FC |
2 | ||
| 41351-28010 |
ASV40..NAP..6F |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-73010 |
ASV40..NAP..6FC T=1.00 |
2 | ||
| 41361-73030 |
ASV40..NAP..6FC T=1.20 |
2 | ||
| 41361-73040 |
ASV40..NAP..6FC T=1.30 |
2 | ||
| 41361-28240 |
ASV40..NAP..6F T=1.1,MARK 2 |
2 | ||
| 41361-28230 |
ASV40..NAP..6F T=1.0,MARK 1 |
2 | ||
| 41361-28260 |
ASV40..NAP..6F T=1.3,MARK 4 |
2 | ||
| 41361-28250 |
ASV40..NAP..6F T=1.2,MARK 3 |
2 | ||
| 41361-73020 |
ASV40..NAP..6FC T=1.10 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-73010 |
ASV40..NAP..6FC T=1.00 |
2 | ||
| 41361-73030 |
ASV40..NAP..6FC T=1.20 |
2 | ||
| 41361-73040 |
ASV40..NAP..6FC T=1.30 |
2 | ||
| 41361-28240 |
ASV40..NAP..6F T=1.1,MARK 2 |
2 | ||
| 41361-28230 |
ASV40..NAP..6F T=1.0,MARK 1 |
2 | ||
| 41361-28260 |
ASV40..NAP..6F T=1.3,MARK 4 |
2 | ||
| 41361-28250 |
ASV40..NAP..6F T=1.2,MARK 3 |
2 | ||
| 41361-73020 |
ASV40..NAP..6FC T=1.10 |
2 | ||
| Common parts | ||||
| 91551-80816 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
