ASV40L-CETSKA (2009)

Toyota Camry (Nap)

Production Mar 2009 - Sep 2011
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )ASV40..NAP..6FC

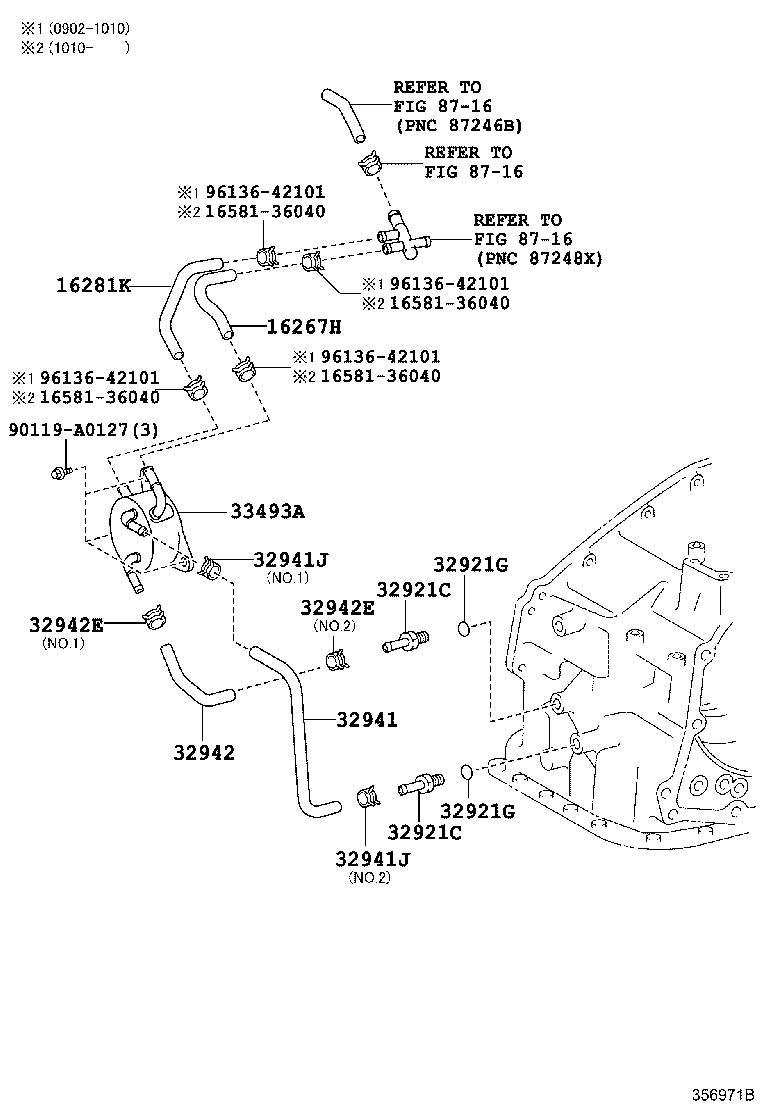

Click highlighted areas on diagram

U760E

diagram 16267H 16281K 1658136040 1658136040 1658136040 1658136040 32921C 32921C 32921G 32921G 32941 32941J 32941J 32942 32942E 32942E 33493A 8716 8716 8716 90119A0127 9613642101 9613642101 9613642101 9613642101
Part # Description Qty Price
16267H - HOSE, WATER BY-PASS, NO.3
16267-36010

2ARFE..ASV40..NAP..6FC

 1
16281K - HOSE, WATER BY-PASS, NO.4
16281-36010

2ARFE..ASV40..NAP..6FC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14027

ASV40..NAP..6FC

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-14027

ASV40..NAP..6FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

ASV40..NAP..6FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

ASV40..NAP..6FC

 2
32941 - HOSE, OIL COOLER INLET, NO.1
32941-33080

ASV40..NAP..6FC

 1
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004

ASV40..NAP..6FC

NO.1

 1
90467-A0012

ASV40..NAP..6FC

NO.2

 1
32941J - CLIP, NO.1(FOR OIL COOLER HOSE)
90466-16004

ASV40..NAP..6FC

NO.1

 1
90467-A0012

ASV40..NAP..6FC

NO.2

 1
32942 - HOSE, OIL COOLER OUTLET, NO.1
32942-33080

ASV40..NAP..6FC

 1
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90467-A0012

ASV40..NAP..6FC

NO.2

 1
90466-16004

ASV40..NAP..6FC

NO.1

 1
32942E - CLIP, NO.2(FOR OIL COOLER HOSE)
90467-A0012

ASV40..NAP..6FC

NO.2

 1
90466-16004

ASV40..NAP..6FC

NO.1

 1
33493A - COOLER, TRANSMISSION OIL
33493-33010

ASV40..NAP..6FC

 1
Common parts
16581-36040
90119-A0127
96136-42101
