ASV40L-CETSKA (2009)
Toyota Camry (Nap)

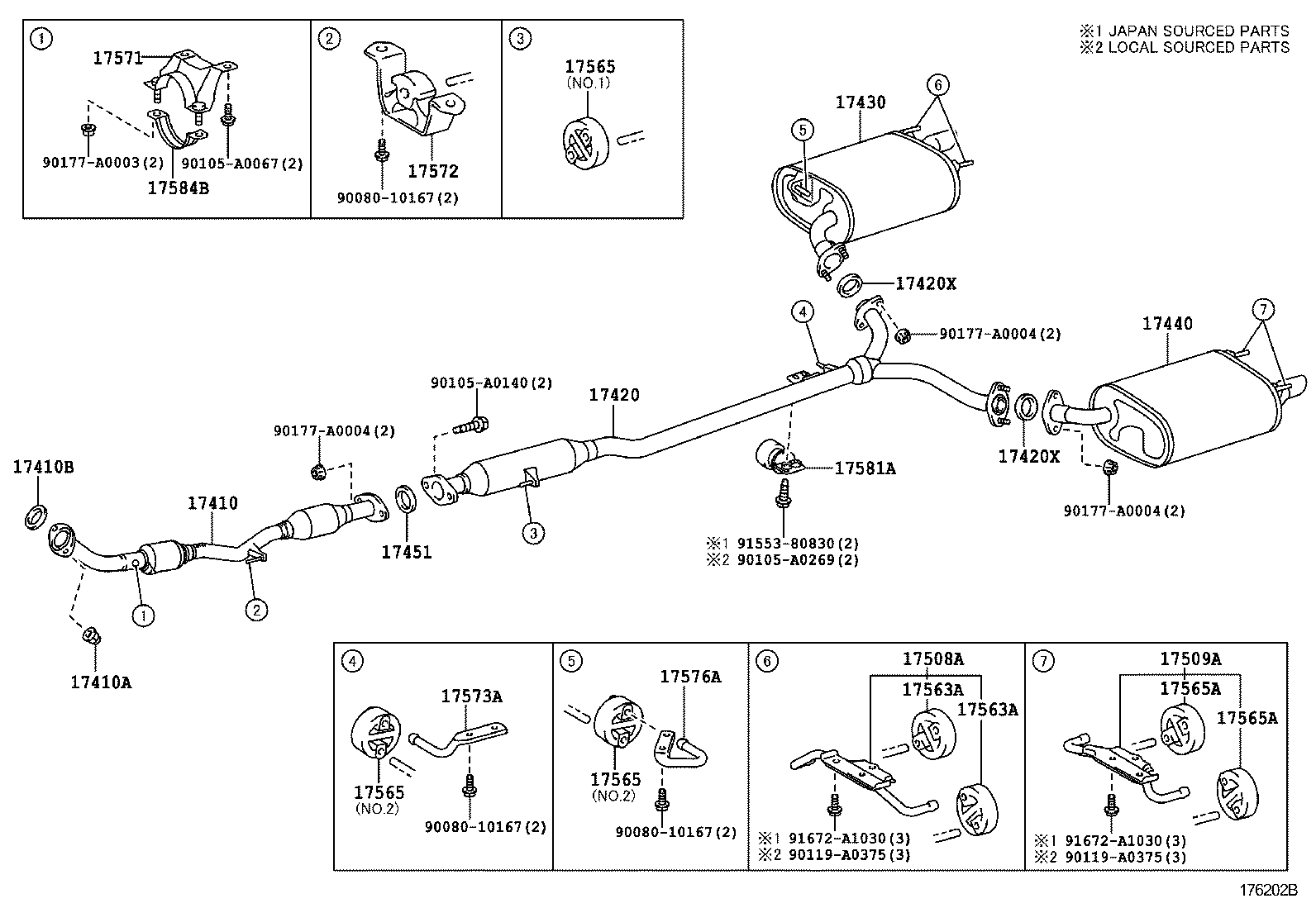

(0903-1010)2ARFE..NAP..SE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-0V050 |
2ARFE..ASV40..NAP |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90080-17187 |
2ARFE,2GRFE..ASV40,GSV40..NAP |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-A6001 |
2ARFE..ASV40..NAP (L) |
1 | ||
| 90917-06090 |
2ARFE..ASV40..NAP (J) |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-0P021 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17420-0P020 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90080-43028 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE (L) |
2 | ||
| 90917-06045 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE (J) |
2 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90080-43028 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE (L) |
2 | ||
| 90917-06045 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE (J) |
2 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-0P062 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17430-0P060 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17430-0P061 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17430-0P061 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17430-0P060 |
2ARFE..ASV40..NAP..6F..SE |
1 | ||
| 17440 - PIPE, EXHAUST TAIL, LH | ||||
| 17440-0P020 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17440-0P020 |
2ARFE..ASV40..NAP..6F..SE |
1 | ||
| 17440-0P021 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90080-43033 |
2ARFE,2GRFE..ASV40,GSV40..NAP (L) |
1 | ||
| 90917-06076 |
2ARFE,2GRFE..ASV40,GSV40..NAP (J) |
1 | ||
| 17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT | ||||
| 17508-0P010 |
2ARFE,2GRFE..ASV40,GSV40..NAP |
1 | ||
| 17508-0P010 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17508-0P011 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT | ||||
| 17509-0P021 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17509-0P020 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17509-0P020 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17565-0P050 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
2 | ||
| 17565-0P050 |
2ARFE,2GRFE..ASV40,GSV40..NAP |
2 | ||
| 17565-0P051 |
2ARFE,2GRFE..ASV40,GSV40..NAP |
2 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17565-0P050 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
2 | ||
| 17565-0P050 |
2ARFE,2GRFE..ASV40,GSV40..NAP |
2 | ||
| 17565-0P051 |
2ARFE,2GRFE..ASV40,GSV40..NAP |
2 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-0P030 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.1 |
1 | ||
| 17565-0P040 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.2 |
2 | ||
| 17565-0P040 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.2 |
1 | ||
| 17565-0P040 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.2 |
2 | ||
| 17565-0P031 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.1 |
1 | ||
| 17565-0P041 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.2 |
2 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-0P030 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.1 |
1 | ||
| 17565-0P040 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.2 |
2 | ||
| 17565-0P040 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.2 |
1 | ||
| 17565-0P040 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.2 |
2 | ||
| 17565-0P031 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.1 |
1 | ||
| 17565-0P041 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.2 |
2 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-0P030 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.1 |
1 | ||
| 17565-0P040 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.2 |
2 | ||
| 17565-0P040 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.2 |
1 | ||
| 17565-0P040 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.2 |
2 | ||
| 17565-0P031 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.1 |
1 | ||
| 17565-0P041 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.2 |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-0P050 |
2ARFE..ASV40..NAP..SE |
2 | ||
| 17565-0P050 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
2 | ||
| 17565-0P051 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-0P050 |
2ARFE..ASV40..NAP..SE |
2 | ||
| 17565-0P050 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
2 | ||
| 17565-0P051 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
2 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-0V010 |
2ARFE..ASV40..NAP |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-0H020 |
2ARFE,2GRFE..ASV40,GSV40..NAP |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-31020 |
2ARFE,2GRFE..ASV40,GSV40..NAP |
1 | ||
| 17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6 | ||||
| 17576-31070 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17576-31070 |
2ARFE,2GRFE..ASV40,GSV40..NAP |
1 | ||
| 17581A - DAMPER, EXHAUST PIPE | ||||
| 17581-70080 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17584B - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17584-28020 |
2ARFE..ASV40..NAP |
1 | ||
| Common parts | ||||
| 90080-10167 | ||||
| 90105-A0067 | ||||
| 90105-A0140 | ||||
| 90105-A0269 | ||||
| 90119-A0375 | ||||
| 90177-A0003 | ||||
| 90177-A0004 | ||||
| 91553-80830 | ||||
| 91672-A1030 | ||||

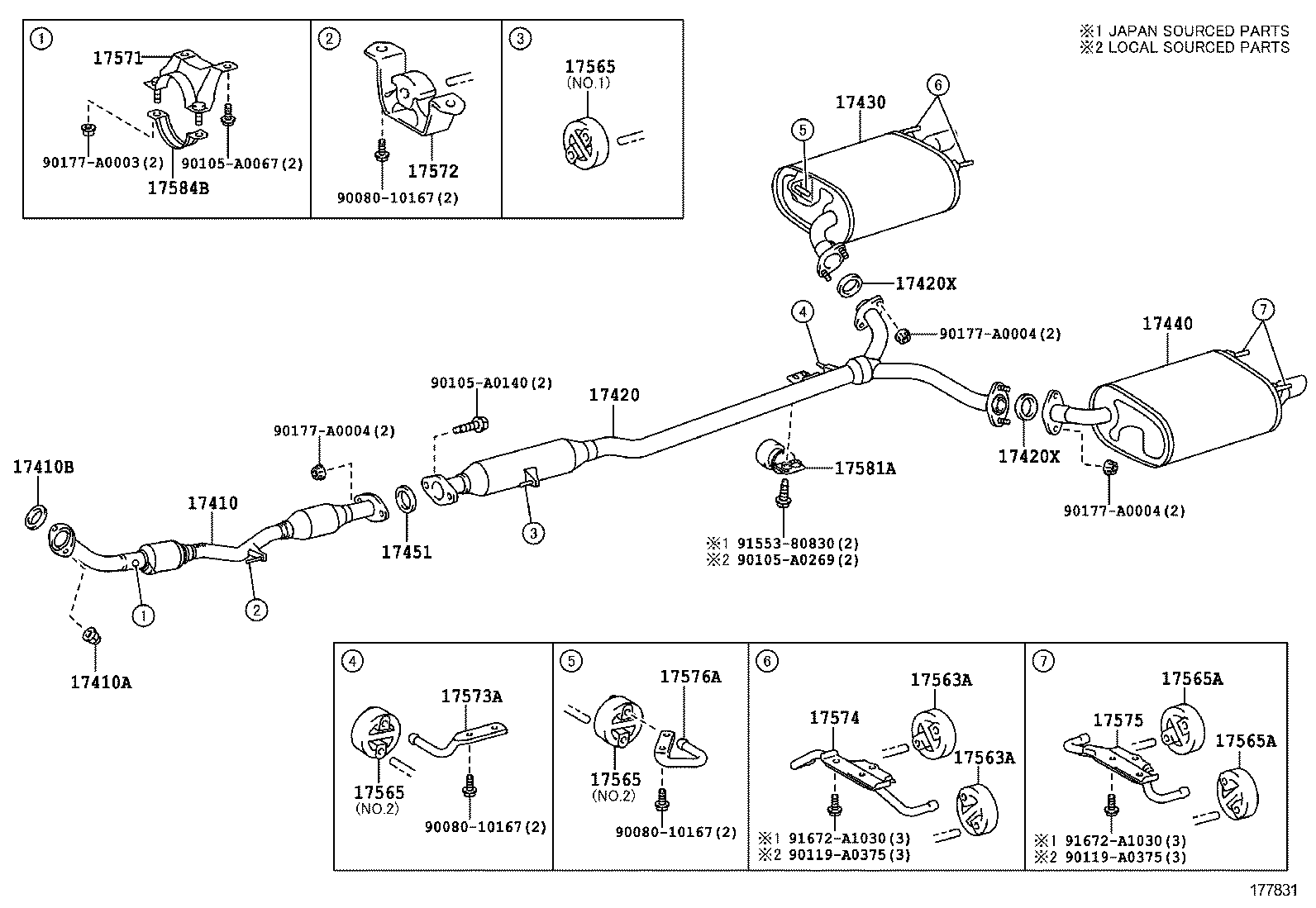

(1010- )2ARFE..NAP..SE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-0V050 |
2ARFE..ASV40..NAP |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90080-17187 |
2ARFE,2GRFE..ASV40,GSV40..NAP |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-A6001 |
2ARFE..ASV40..NAP (L) |
1 | ||
| 90917-06090 |
2ARFE..ASV40..NAP (J) |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-0P021 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17420-0P020 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90080-43028 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE (L) |
2 | ||
| 90917-06045 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE (J) |
2 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90080-43028 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE (L) |
2 | ||
| 90917-06045 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE (J) |
2 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-0P062 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17430-0P060 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17430-0P061 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17430-0P061 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17430-0P060 |
2ARFE..ASV40..NAP..6F..SE |
1 | ||
| 17440 - PIPE, EXHAUST TAIL, LH | ||||
| 17440-0P020 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17440-0P020 |
2ARFE..ASV40..NAP..6F..SE |
1 | ||
| 17440-0P021 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90080-43033 |
2ARFE,2GRFE..ASV40,GSV40..NAP (L) |
1 | ||
| 90917-06076 |
2ARFE,2GRFE..ASV40,GSV40..NAP (J) |
1 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17565-0P050 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
2 | ||
| 17565-0P050 |
2ARFE,2GRFE..ASV40,GSV40..NAP |
2 | ||
| 17565-0P051 |
2ARFE,2GRFE..ASV40,GSV40..NAP |
2 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17565-0P050 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
2 | ||
| 17565-0P050 |
2ARFE,2GRFE..ASV40,GSV40..NAP |
2 | ||
| 17565-0P051 |
2ARFE,2GRFE..ASV40,GSV40..NAP |
2 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-0P030 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.1 |
1 | ||
| 17565-0P040 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.2 |
2 | ||
| 17565-0P040 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.2 |
1 | ||
| 17565-0P040 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.2 |
2 | ||
| 17565-0P031 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.1 |
1 | ||
| 17565-0P041 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.2 |
2 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-0P030 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.1 |
1 | ||
| 17565-0P040 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.2 |
2 | ||
| 17565-0P040 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.2 |
1 | ||
| 17565-0P040 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.2 |
2 | ||
| 17565-0P031 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.1 |
1 | ||
| 17565-0P041 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.2 |
2 | ||
| 17565 - SUPPORT, EXHAUST PIPE, NO.5 | ||||
| 17565-0P030 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.1 |
1 | ||
| 17565-0P040 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.2 |
2 | ||
| 17565-0P040 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.2 |
1 | ||
| 17565-0P040 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.2 |
2 | ||
| 17565-0P031 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.1 |
1 | ||
| 17565-0P041 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE NO.2 |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-0P050 |
2ARFE..ASV40..NAP..SE |
2 | ||
| 17565-0P050 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
2 | ||
| 17565-0P051 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
2 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-0P050 |
2ARFE..ASV40..NAP..SE |
2 | ||
| 17565-0P050 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
2 | ||
| 17565-0P051 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
2 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-0V010 |
2ARFE..ASV40..NAP |
1 | ||
| 17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17572-0H020 |
2ARFE,2GRFE..ASV40,GSV40..NAP |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-31020 |
2ARFE,2GRFE..ASV40,GSV40..NAP |
1 | ||
| 17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17574-0P010 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5 | ||||
| 17575-0P010 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6 | ||||
| 17576-31070 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17576-31070 |
2ARFE,2GRFE..ASV40,GSV40..NAP |
1 | ||
| 17581A - DAMPER, EXHAUST PIPE | ||||
| 17581-70080 |
2GRFE..GSV40..NAP;2ARFE..ASV40..NAP..SE |
1 | ||
| 17584B - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17584-28020 |
2ARFE..ASV40..NAP |
1 | ||
| Common parts | ||||
| 90080-10167 | ||||
| 90105-A0067 | ||||
| 90105-A0140 | ||||
| 90105-A0269 | ||||
| 90119-A0375 | ||||
| 90177-A0003 | ||||
| 90177-A0004 | ||||
| 91553-80830 | ||||
| 91672-A1030 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
