ASV40L-CETSKA (2009)

Toyota Camry (Nap)

Production Mar 2009 - Sep 2011
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )2ARFE..NAP

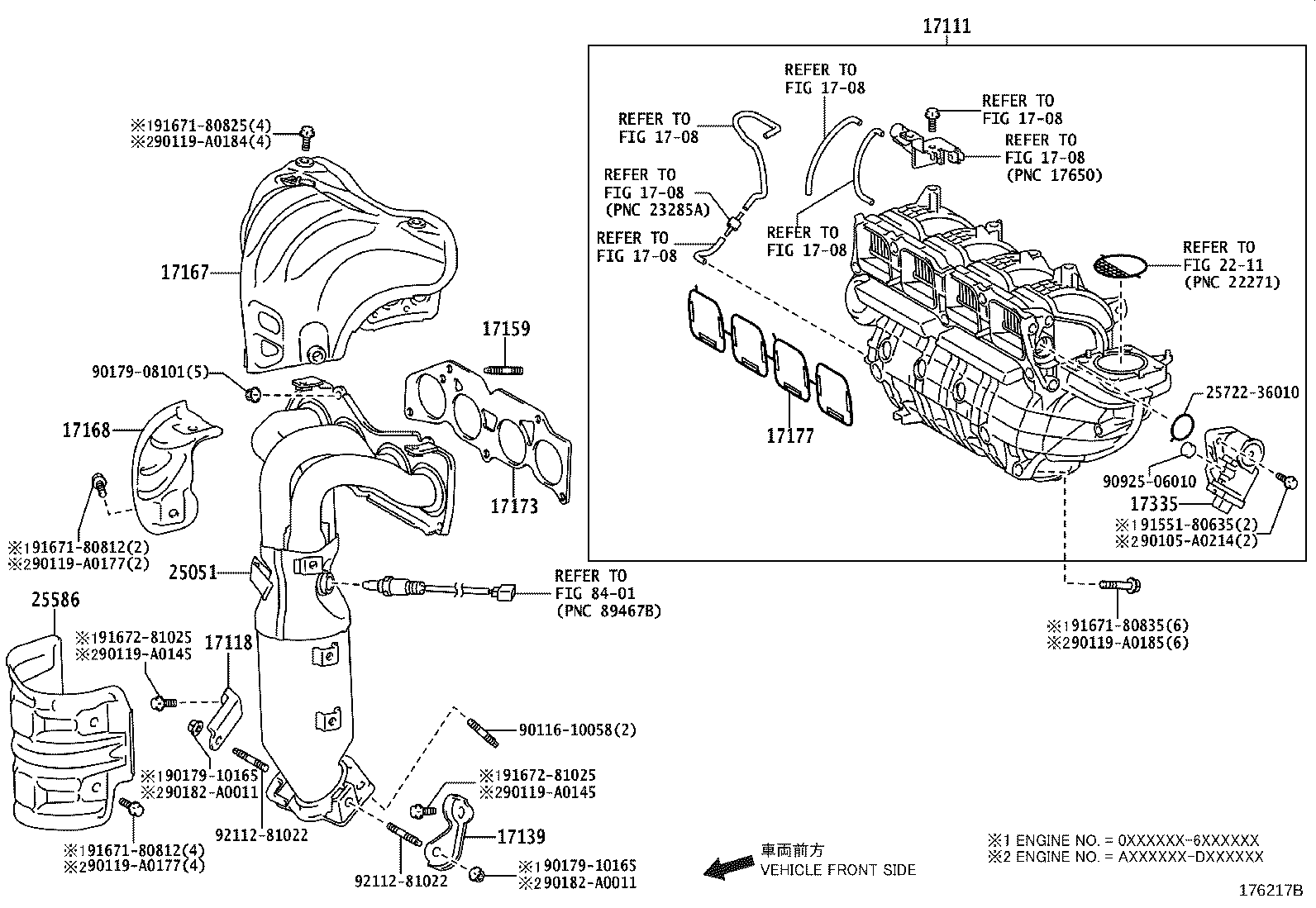

Click highlighted areas on diagram

diagram 1708 1708 1708 1708 1708 1708 1708 17111 17118 17139 17159 17167 17168 17173 17177 17335 2211 25051 25586 2572236010 8401 90105A0214 9011610058 90119A0145 90119A0145 90119A0177 90119A0177 90119A0184 90119A0185 9017908101 9017910165 9017910165 90182A0011 90182A0011 9092506010 9155180635 9167180812 9167180812 9167180825 9167180835 9167281025 9167281025 9211281022 9211281022
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-0V010

2ARFE..ASV40..NAP

*212

 1
17120-36010

2ARFE..ASV40..NAP

*107

 1
17118 - STAY, MANIFOLD
17118-36010

2ARFE..ASV40..NAP

(J),*212

 1
17118-0V010

2ARFE..ASV40..NAP

(L),*212

 1
17118-36010

2ARFE..ASV40..NAP

*107

 1
17118-0V010

2ARFE..ASV40..NAP

*212

 1
17139 - STAY, MANIFOLD, NO.2
17139-36020

2ARFE..ASV40..NAP

*212

 2
17139-36020

2ARFE..ASV40..NAP

*107

 1
17139-36020

2ARFE..ASV40..NAP

*212

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-A0007

2ARFE..ASV40..NAP

*212

 5
90126-08037

2ARFE..ASV40..NAP

*107

 5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-36011

2ARFE..ASV40..NAP

*107

 1
17167-36010

2ARFE..ASV40..NAP

*107

 1
17167-0V010

2ARFE..ASV40..NAP

*212

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-36010

2ARFE..ASV40..NAP

*107

 1
17168-0V010

2ARFE..ASV40..NAP

*212

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-36020

2ARFE..ASV40..NAP

*107

 1
17173-0V010

2ARFE..ASV40..NAP

*212

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-36010

2ARFE..ASV40..NAP

*107

 1
17171-0V010

2ARFE..ASV40..NAP

*212

 1
17335 - ACTUATOR, INTAKE AIR CONTROL VALVE
17335-0V010

2ARFE..ASV40..NAP

*212

 1
17335-36010

2ARFE..ASV40..NAP

*107

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-0V010

2ARFE..ASV40..NAP

*212

 1
25051-36020

2ARFE..ASV40..NAP

*107

 1
25586 - INSULATOR, MANIFOLD CONVERTER, NO.1
25586-36010

2ARFE..ASV40..NAP

*107

 1
25586-0V010

2ARFE..ASV40..NAP

*212

 1
Common parts
25722-36010
90105-A0214
90116-10058
90119-A0145
90119-A0177
90119-A0184
90119-A0185
90179-08101
90179-10165
90182-A0011
90925-06010
91551-80635
91671-80812
91671-80825
91671-80835
91672-81025
92112-81022
Linked diagrams
1708
2211
8401
