ASV40L-CETSKA (2009)

Toyota Camry (Nap)

Production Mar 2009 - Sep 2011
Engine 2ARFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0903- )2ARFE..NAP

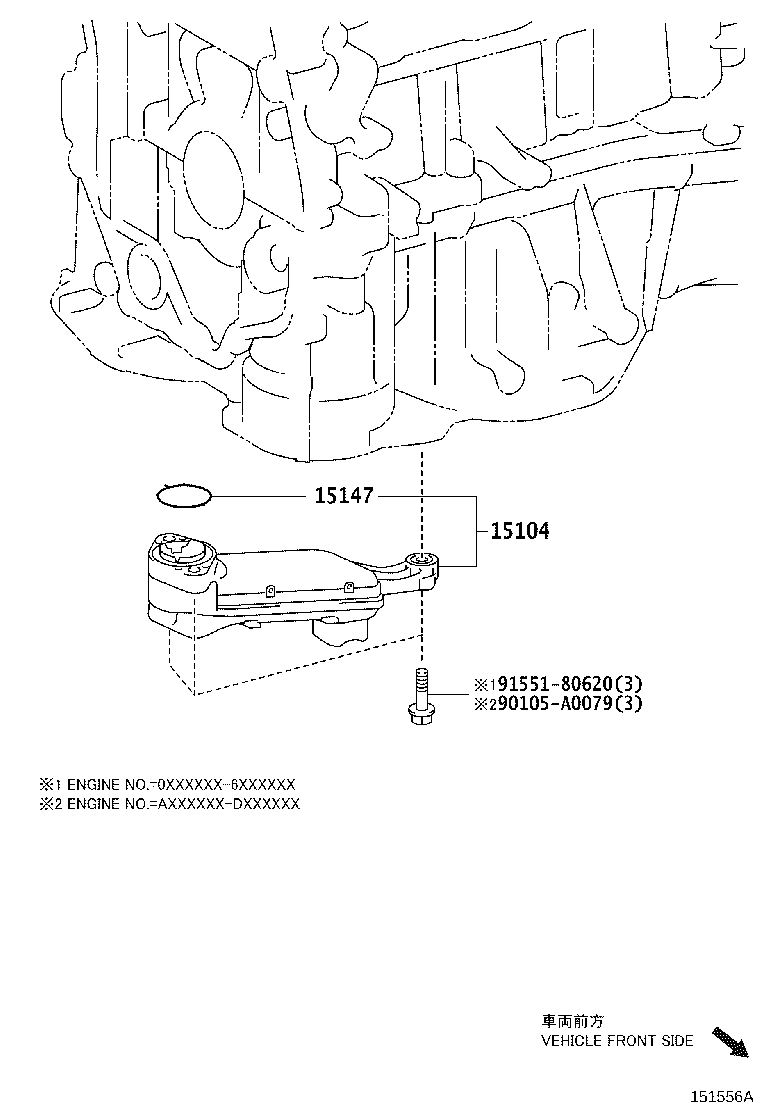

Click highlighted areas on diagram

diagram 15104 15147 90105A0079 9155180620
Part # Description Qty Price
15104 - STRAINER SUB-ASSY, OIL
15104-36020

2ARFE..ASV40..NAP

*107,*212

 1
15147 - GASKET, OIL STRAINER
15147-36010

2ARFE..ASV40..NAP

*107,*212

 1
Common parts
90105-A0079
91551-80620
