ASV40L-CEFNKA (2009)
Toyota Camry (Nap)
Production
Apr 2009
-
Sep 2011
Engine
2ARFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

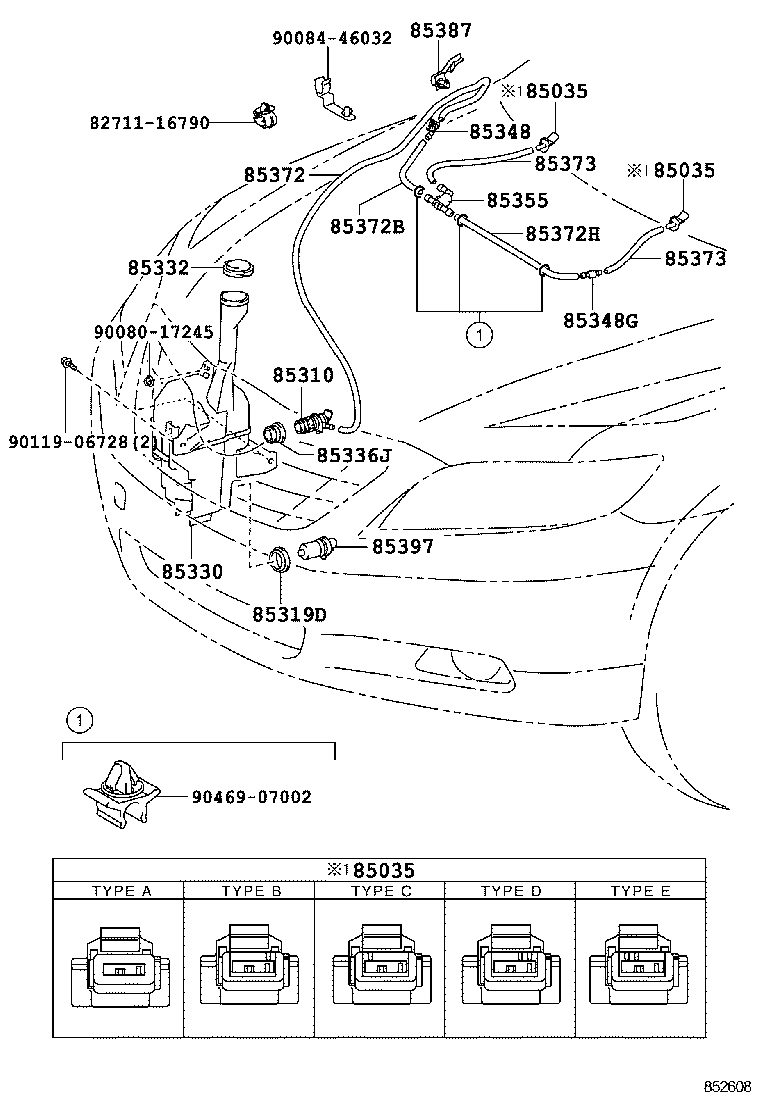

(0602-1009)NAP
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85376-06120 |
ASV40,GSV40..NAP |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85317-02300 |
ASV40,GSV40..NAP |
2 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90068-59053 |
ASV40,GSV40..NAP L=1485 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 85375-06081 |
ASV40,GSV40..NAP L=410 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90068-33142 |
ASV40,GSV40..NAP L=590 |
1 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 85387-33080 |
ASV40,GSV40..NAP |
1 | ||
| Common parts | ||||
| 82711-16790 | ||||
| 90080-17245 | ||||
| 90084-46032 | ||||
| 90119-06728 | ||||
| 90469-07002 | ||||

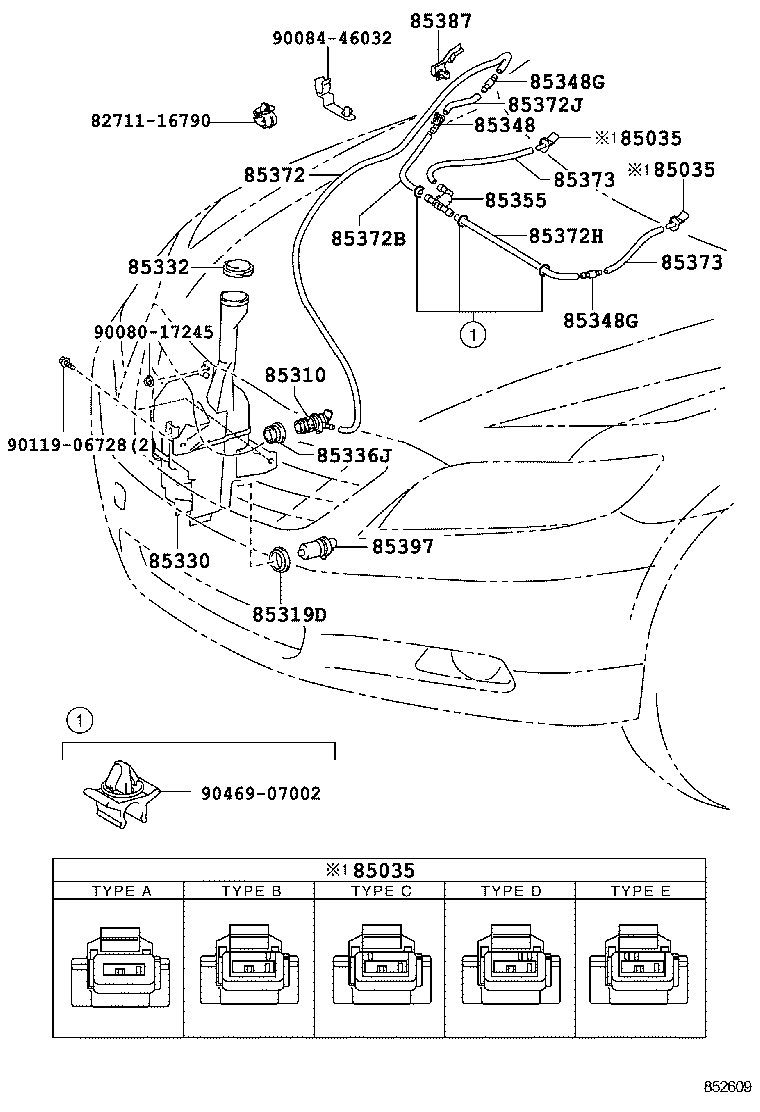

(1009- )NAP
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85376-06120 |
ASV40,GSV40..NAP |
1 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85317-02300 |
ASV40,GSV40..NAP |
2 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85317-02300 |
ASV40,GSV40..NAP |
2 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90068-59053 |
ASV40,GSV40..NAP L=1485 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 85375-06081 |
ASV40,GSV40..NAP L=410 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90068-33142 |
ASV40,GSV40..NAP L=590 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90068-45010 |
ASV40,GSV40..NAP L=30 |
1 | ||
| 85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER) | ||||
| 85387-33080 |
ASV40,GSV40..NAP |
1 | ||
| Common parts | ||||
| 82711-16790 | ||||
| 90080-17245 | ||||
| 90084-46032 | ||||
| 90119-06728 | ||||
| 90469-07002 | ||||
