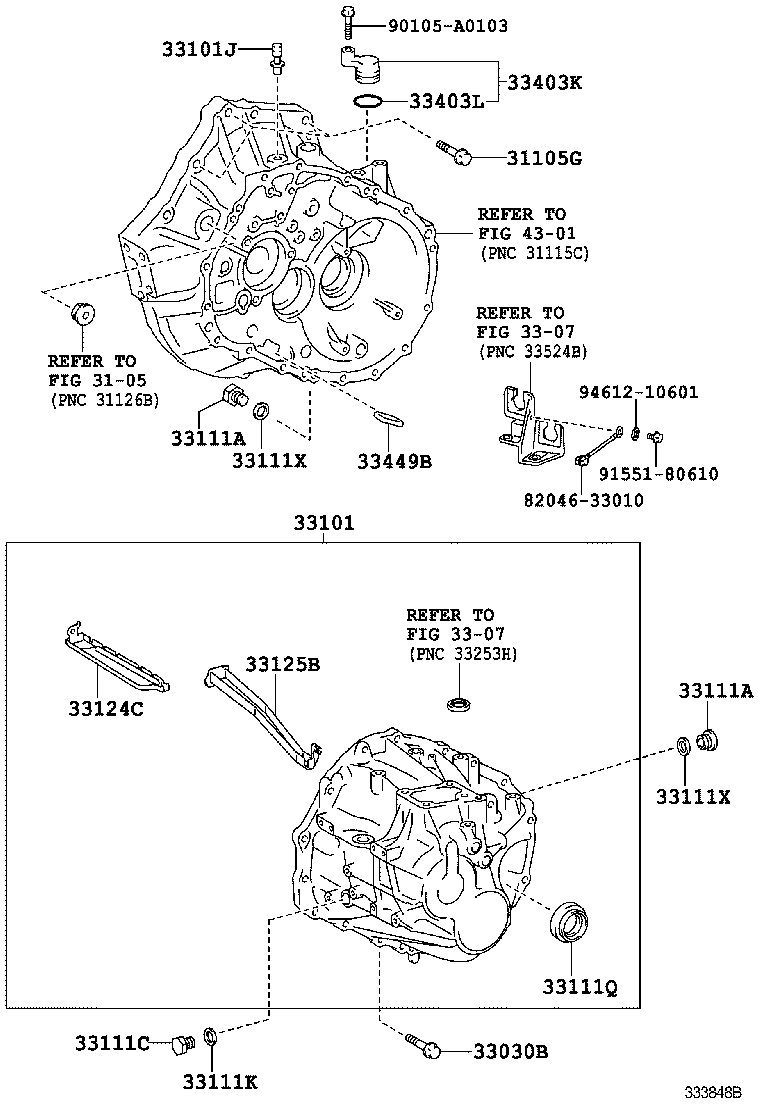

Toyota Camry (nap) ASV40 CLUTCH HOUSING & TRANSMISSION CASE (MTM)

Part #	Description	Period	Qty
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90080-10133	ASV40..NAP..6F *12-1.25PX74.5-25	04/2009 - 09/2011	1
90080-10207	ASV40..NAP..6F *10-1.25PX65-30	04/2009 - 09/2011	1
90080-11417	ASV40..NAP..6F *12-1.25PX60-30	04/2009 - 09/2011	2
91512-61060	ASV40..NAP..6F *10-1.25PX60-30	04/2009 - 09/2011	2
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
91551-10840	ASV40..NAP..6F *8-1.25PX40-22	04/2009 - 09/2011	17
33101 - CASE SUB-ASSY, MANUAL TRANSMISSION
33101-33030	ASV40..NAP..6F	04/2009 - 09/2011	1
33101J - PLUG, BREATHER
90930-03085	ASV40..NAP..6F	04/2009 - 09/2011	1
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006	ASV40..NAP..6F	04/2009 - 09/2011	2
33111A - PLUG, MANUAL TRANSMISSION CASE
90341-18006	ASV40..NAP..6F	04/2009 - 09/2011	2
33111C - PLUG(FOR TRANSMISSION CASE)
90341-18033	ASV40..NAP..6F OD=24	04/2009 - 09/2011	1
33111K - GASKET(FOR TRANSMISSION CASE)
90430-18008	ASV40..NAP..6F	04/2009 - 09/2011	1
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
90311-50046	ASV40..NAP..6F	01/2011 - 09/2011	1
90311-50032	ASV40..NAP..6F	04/2009 - 01/2011	1
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18008	ASV40..NAP..6F	04/2009 - 09/2011	2
33111X - GASKET, TRANSMISSION CASE PLUG
90430-18008	ASV40..NAP..6F	04/2009 - 09/2011	2
33125B - RECEIVER, MANUAL TRANSMISSION CASE
33125-20020	ASV40..NAP..6F	04/2009 - 09/2011	1
33403K - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-20230	ASV40..NAP..6F	04/2009 - 09/2011	1
33403L - RING, O
96711-24018	ASV40..NAP..6F	04/2009 - 09/2011	1
33449B - MAGNET, TRANSMISSION
33449-60010	ASV40..NAP..6F	04/2009 - 09/2011	1
Common parts
82046-33010
90105-A0103
91551-80610
94612-10601
Linked diagrams
3105
3307
4301

ASV40L-CEFNKA (2009)

(0904- )NAP..6F
