Toyota Camry (nap) ASV40 CLUTCH PEDAL & FLEXIBLE HOSE

ASV40L-CEFNKA (2009)

Toyota Camry (Nap)

Production Apr 2009 - Sep 2011

Engine 2ARFE

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

Click highlighted areas on diagram

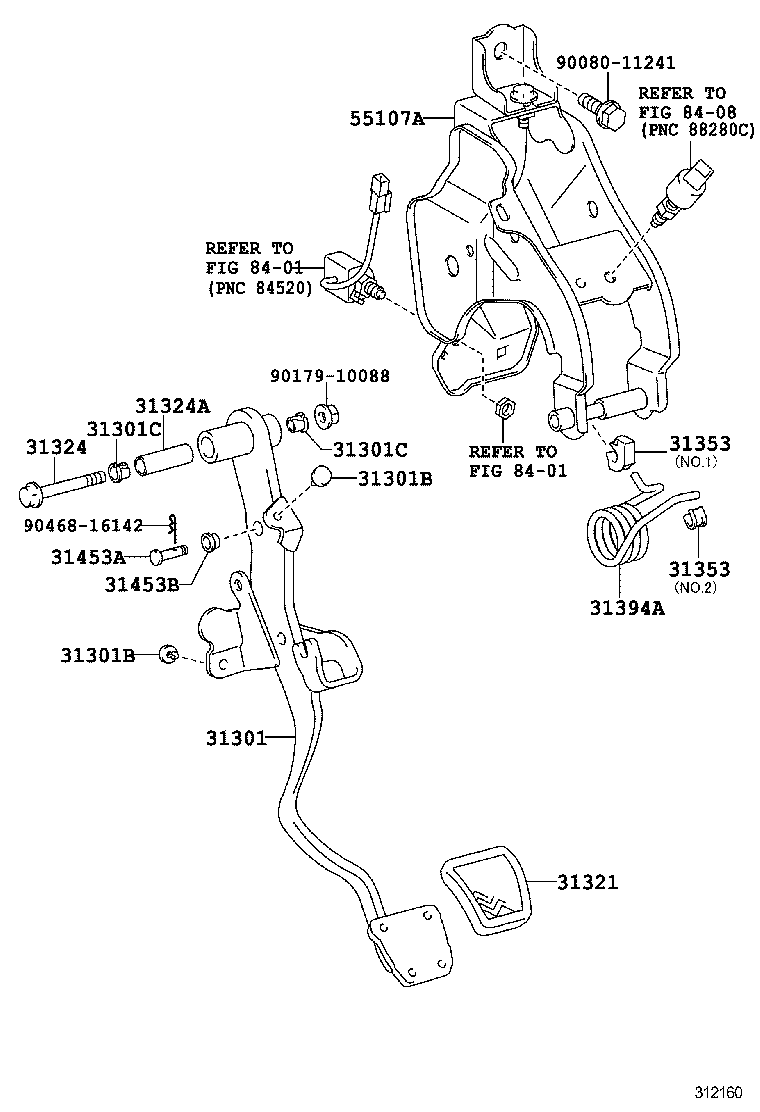

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-33100	ASV40..NAP..6F..LE	04/2009 - 09/2011	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	ASV40..NAP..6F	04/2009 - 09/2011	2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036	ASV40..NAP..6F	04/2009 - 09/2011	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	ASV40..NAP..6F	04/2009 - 09/2011	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	ASV40..NAP..6F	04/2009 - 09/2011	2
31321 - PAD, CLUTCH PEDAL
31321-52010	ASV40..NAP..6F..LE	04/2009 - 09/2011	1
31324 - SHAFT, CLUTCH PEDAL
90101-10164	ASV40..NAP..6F	04/2009 - 09/2011	1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10105	ASV40..NAP..6F	04/2009 - 09/2011	1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-33010	ASV40..NAP..6F NO.1	04/2009 - 09/2011	1
31353-33020	ASV40..NAP..6F NO.2	04/2009 - 09/2011	1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-33010	ASV40..NAP..6F NO.1	04/2009 - 09/2011	1
31353-33020	ASV40..NAP..6F NO.2	04/2009 - 09/2011	1
31394A - SPRING, PEDAL W/HOOK
31394-33060	ASV40..NAP..6F	04/2009 - 09/2011	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08051	ASV40..NAP..6F L=31.5	04/2009 - 09/2011	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08033	ASV40..NAP..6F	04/2009 - 09/2011	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-33060	ASV40..NAP..6F	04/2009 - 09/2011	1
Common parts
90080-11241
90179-10088
90468-16142
Linked diagrams
8401
8408

Click highlighted areas on diagram

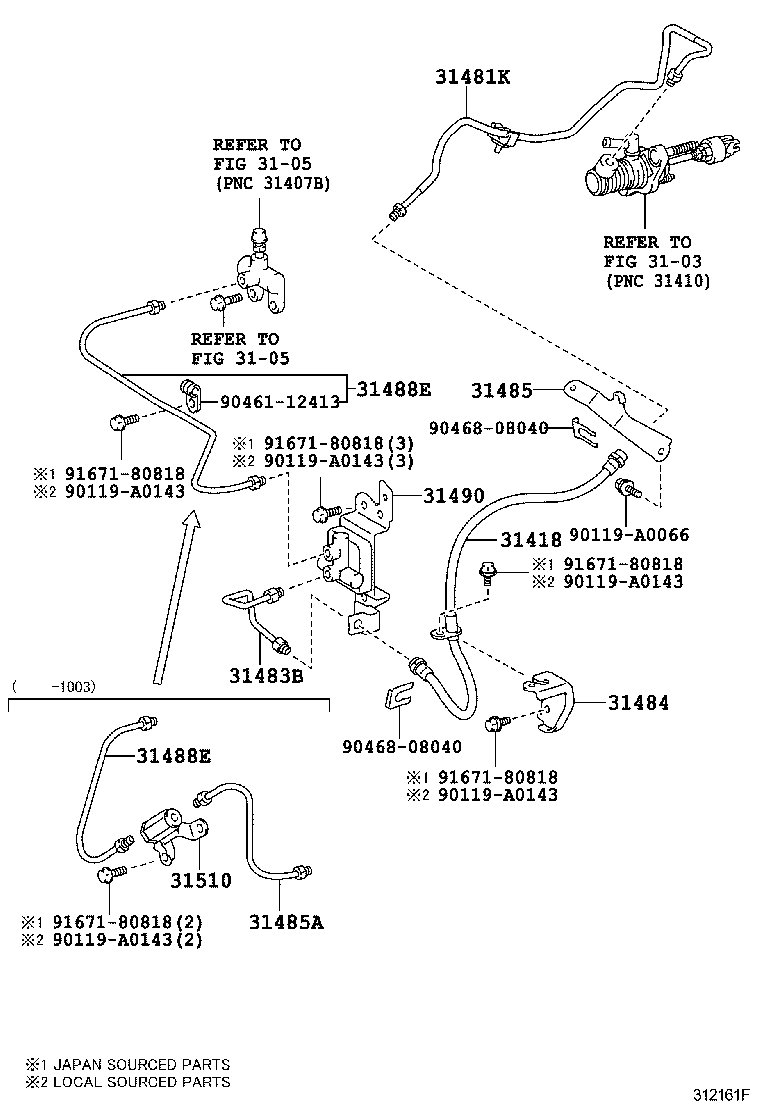

Part #	Description	Period	Qty
31418 - HOSE, CLUTCH
90947-A2059	ASV40..NAP..6F	04/2009 - 09/2011	1
31481K - TUBE, MASTER CYLINDER TO TUBE CONNECTOR
31481-06101	ASV40..NAP..6F	04/2009 - 09/2011	1
31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE
31483-06031	ASV40..NAP..6F	04/2009 - 09/2011	1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-33061	ASV40..NAP..6F	04/2009 - 09/2011	1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-33020	ASV40..NAP..6F	04/2009 - 09/2011	1
31485A - TUBE, ORIFICE TO FLEXIBLE HOSE
31485-33030	ASV40..NAP..6F	04/2009 - 03/2010	1
31488E - TUBE, BLEEDER TO ACCUMULATOR
31483-42100	ASV40..NAP..6F	04/2009 - 03/2010	1
31488-33010	ASV40..NAP..6F	03/2010 - 09/2011	1
31488E - TUBE, BLEEDER TO ACCUMULATOR
31483-42100	ASV40..NAP..6F	04/2009 - 03/2010	1
31488-33010	ASV40..NAP..6F	03/2010 - 09/2011	1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-33040	ASV40..NAP..6F	04/2009 - 09/2011	1
31510 - ORIFICE ASSY, CLUTCH
31510-20040	ASV40..NAP..6F	04/2009 - 03/2010	1
Common parts
90119-A0066
90119-A0143
90461-12413
90468-08040
91671-80818
Linked diagrams
3103
3105
