ACV40L-CEMSKA (2006)

Toyota Camry (Nap)

Production Feb 2006 - Mar 2009
Engine 2AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0602-0903)2AZFE..NAP

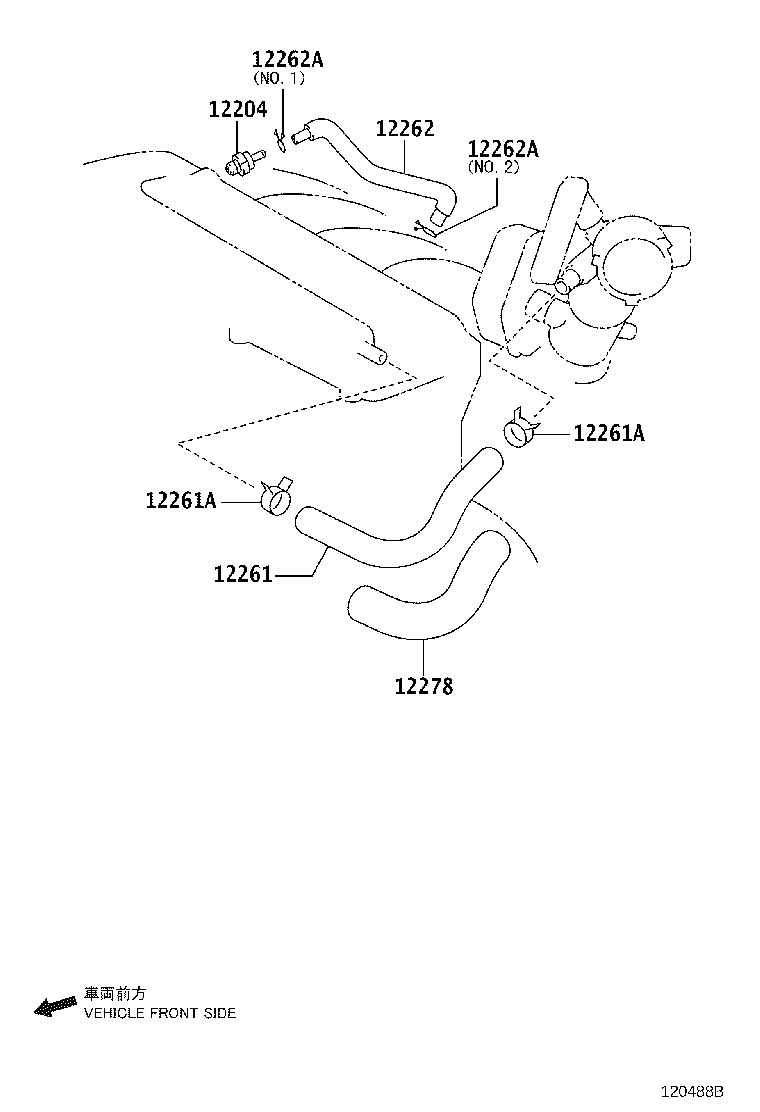

Click highlighted areas on diagram

diagram 12204 12261 12261A 12261A 12262 12262A 12262A 12278
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-28030

2AZFE..ACV40..NAP

*195,*108

 1
12261 - HOSE, VENTILATION
12261-0H080

2AZFE..ACV40..NAP

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90080-46349

2AZFE..ACV40..NAP

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90080-46349

2AZFE..ACV40..NAP

 2
12262 - HOSE, VENTILATION, NO.2
12262-0H010

2AZFE..ACV40..NAP

*195,*108

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16035

2AZFE..ACV40..NAP

*195,NO.2

 1
90467-13103

2AZFE..ACV40..NAP

*108,NO.1,*195,NO.1

 1
90467-17013

2AZFE..ACV40..NAP

*108,NO.2

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-16035

2AZFE..ACV40..NAP

*195,NO.2

 1
90467-13103

2AZFE..ACV40..NAP

*108,NO.1,*195,NO.1

 1
90467-17013

2AZFE..ACV40..NAP

*108,NO.2

 1
12278 - INSULATOR, VENTILATION HOSE HEAT
12278-0H030

2AZFE..ACV40..NAP

 1
