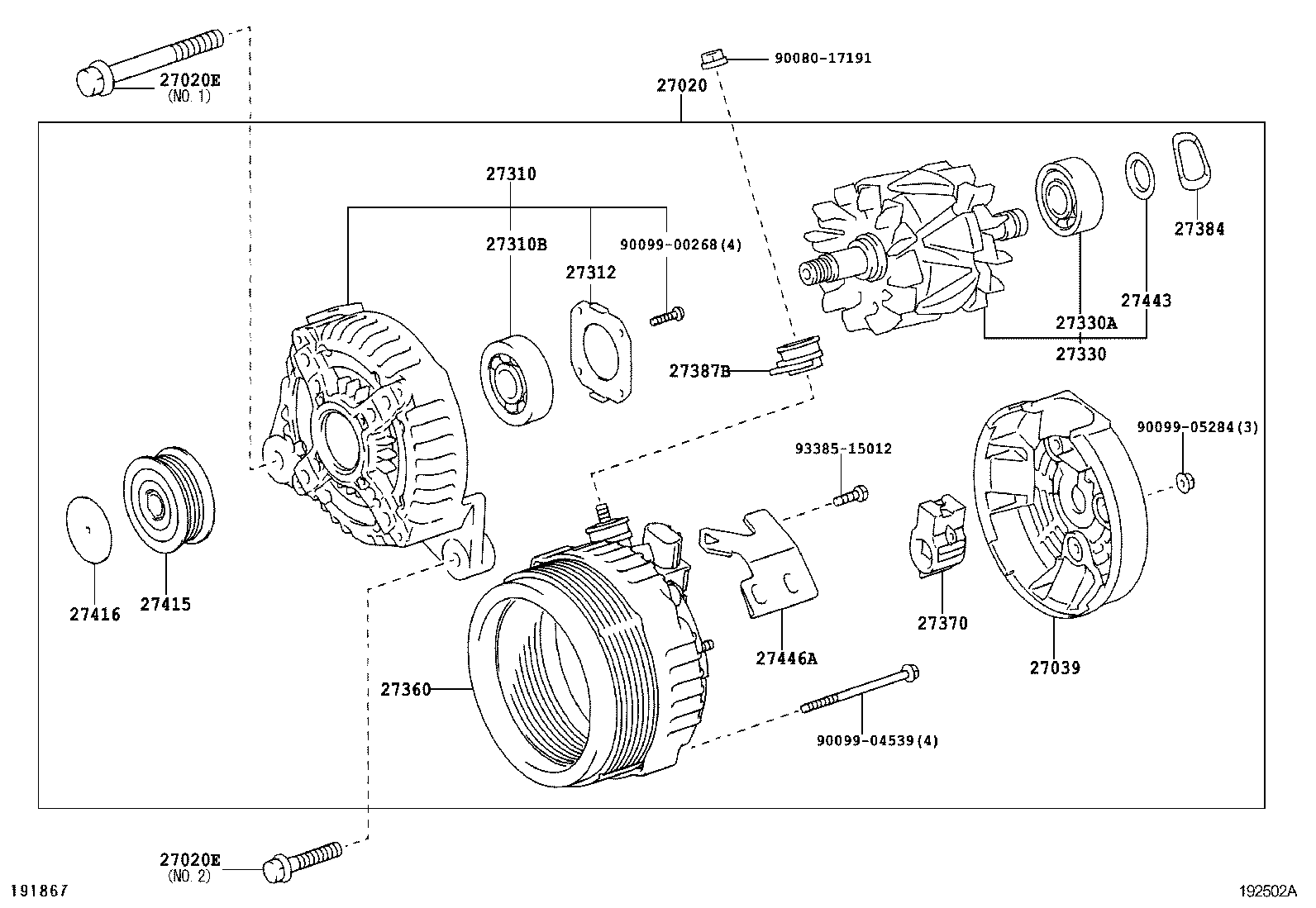

Toyota Camry (nap) ACV40 ALTERNATOR

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-0H111	2AZFE..ACV40..NAP 12V 100A	10/2008 - 03/2009	1
27060-0H110	2AZFE..ACV40..NAP 12V 100A	02/2006 - 09/2008	1
27020E - BOLT(FOR ALTERNATOR)
90080-10111	2AZFE..ACV40..NAP (L),NO.1	02/2006 - 03/2009	1
91551-80840	2AZFE..ACV40..NAP (J),NO.2	02/2006 - 03/2009	1
91512-81085	2AZFE..ACV40..NAP (J),NO.1	02/2006 - 03/2009	1
90105-A0145	2AZFE..ACV40..NAP (L),NO.2	02/2006 - 03/2009	1
27020E - BOLT(FOR ALTERNATOR)
90080-10111	2AZFE..ACV40..NAP (L),NO.1	02/2006 - 03/2009	1
91551-80840	2AZFE..ACV40..NAP (J),NO.2	02/2006 - 03/2009	1
91512-81085	2AZFE..ACV40..NAP (J),NO.1	02/2006 - 03/2009	1
90105-A0145	2AZFE..ACV40..NAP (L),NO.2	02/2006 - 03/2009	1
27039 - COVER, ALTERNATOR REAR END
27039-0A110	2AZFE,2GRFE..ACV40,GSV40..NAP	02/2006 - 03/2009	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-0H060	2AZFE..ACV40..NAP	02/2006 - 03/2009	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90068-10142	2AZFE,2GRFE..ACV40,GSV40..NAP	02/2006 - 05/2007	1
90068-10033	2AZFE,2GRFE..ACV40,GSV40..NAP	05/2007 - 03/2009	1
27312 - PLATE, RETAINER
27312-72100	2AZFE,2GRFE..ACV40,GSV40..NAP	02/2006 - 03/2009	1
27330 - ROTOR ASSY, ALTERNATOR
27330-0F060	2AZFE,2GRFE..ACV40,GSV40..NAP	02/2006 - 03/2009	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90068-10001	2AZFE,2GRFE..ACV40,GSV40..NAP	02/2006 - 03/2009	1
27360 - COIL ASSY, ALTERNATOR
27360-0H070	2AZFE..ACV40..NAP	02/2006 - 03/2009	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-0F060	2AZFE..ACV40..NAP	02/2006 - 03/2009	1
27384 - WASHER
27384-0A020	2AZFE,2GRFE..ACV40,GSV40..NAP	02/2006 - 03/2009	1
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-20130	2AZFE,2GRFE..ACV40,GSV40..NAP	11/2006 - 03/2009	1
27387-0F060	2AZFE,2GRFE..ACV40,GSV40..NAP	02/2006 - 11/2006	1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0W040	2AZFE..ACV40..NAP	02/2006 - 01/2009	1
27416 - CAP, ALTERNATOR PULLEY
27416-0W020	2AZFE..ACV40..NAP	02/2006 - 03/2009	1
27443 - COVER, ALTERNATOR BEARING
27443-0A020	2AZFE,2GRFE..ACV40,GSV40..NAP	02/2006 - 03/2009	1
27446A - CLAMP
27446-28120	2AZFE..ACV40..NAP	02/2006 - 03/2009	1
Common parts
90080-17191
90099-00268
90099-04539
90099-05284
93385-15012

ACV40L-CEASKA (2006)

(0602-0903)2AZFE..NAP
