ACV40L-CEASKA (2006)

Toyota Camry (Nap)

Production Feb 2006 - Mar 2009
Engine 2AZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0602-0903)2AZFE..NAP..5FC

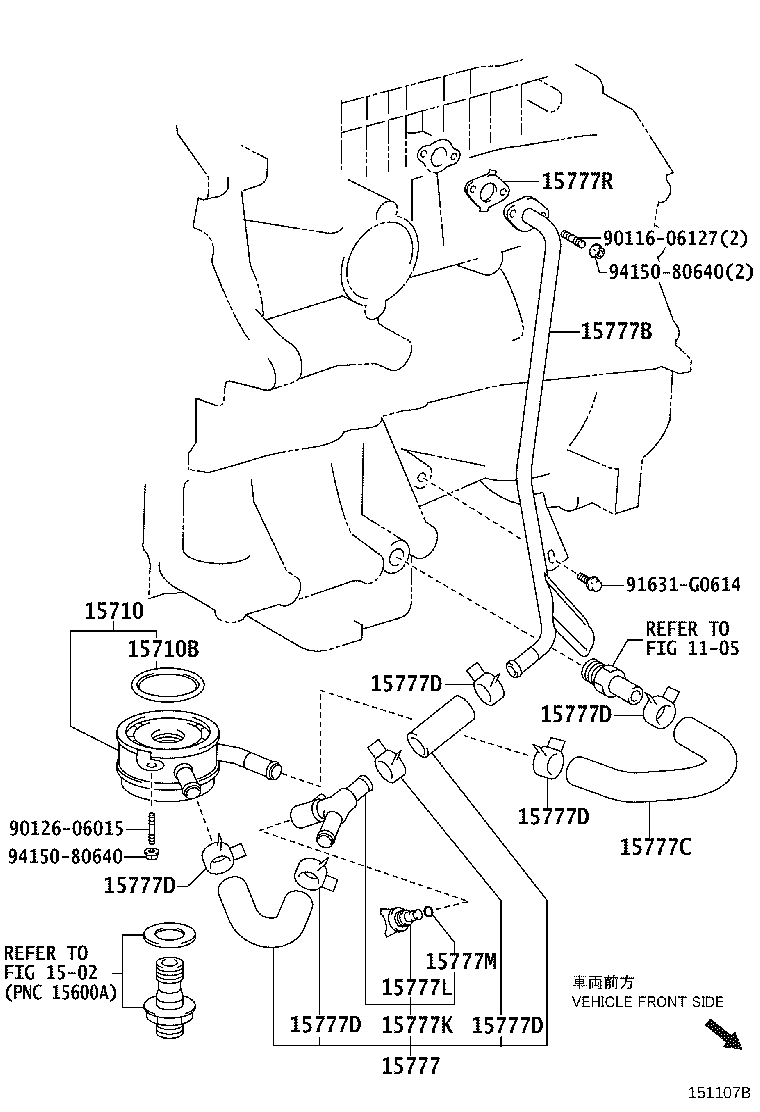

Click highlighted areas on diagram

W(ENGINE OIL COOLER)

diagram 1105 1502 15710 15710B 15777 15777B 15777C 15777D 15777D 15777D 15777D 15777D 15777D 15777K 15777L 15777M 15777R 9011606127 9012606015 91631G0614 9415080640 9415080640
Part # Description Qty Price
15710 - COOLER ASSY, OIL
15710-28020

2AZFE..ACV40..NAP..5FC

ENGINE OIL COOLER-WITH,*195,*108

 1
15710B - RING, O(FOR OIL COOLER)
90301-52006

2AZFE..ACV40..NAP..5FC

ENGINE OIL COOLER-WITH,*195,*108

 1
15777 - HOSE, OIL COOLER
16267-28020

2AZFE..ACV40..NAP..5FC

ENGINE OIL COOLER-WITH,*195,*108

 1
15777B - PIPE, OIL COOLER
16279-28010

2AZFE..ACV40..NAP..5FC

ENGINE OIL COOLER-WITH,*195,*108

 1
15777C - HOSE, OIL COOLER
16281-28010

2AZFE..ACV40..NAP..5FC

ENGINE OIL COOLER-WITH,*195,*108

 1
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96134-41900

2AZFE..ACV40..NAP..5FC

ENGINE OIL COOLER-WITH,*195,*108

 6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96134-41900

2AZFE..ACV40..NAP..5FC

ENGINE OIL COOLER-WITH,*195,*108

 6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96134-41900

2AZFE..ACV40..NAP..5FC

ENGINE OIL COOLER-WITH,*195,*108

 6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96134-41900

2AZFE..ACV40..NAP..5FC

ENGINE OIL COOLER-WITH,*195,*108

 6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96134-41900

2AZFE..ACV40..NAP..5FC

ENGINE OIL COOLER-WITH,*195,*108

 6
15777D - CLAMP OR CLIP, HOSE(FOR OIL COOLER HOSE)
96134-41900

2AZFE..ACV40..NAP..5FC

ENGINE OIL COOLER-WITH,*195,*108

 6
15777K - COCK ASSY, DRAIN(FOR OIL COOLER HOSE)
90910-09119

2AZFE..ACV40..NAP..5FC

ENGINE OIL COOLER-WITH,*195,*108

 1
15777L - PLUG,AIR(FOR OIL COOLER DRAIN COCK)
23322-54010

2AZFE..ACV40..NAP..5FC

ENGINE OIL COOLER-WITH,*195,*108

 1
15777M - RING, O(FOR OIL COOLER DRAIN COCK)
16492-21050

2AZFE..ACV40..NAP..5FC

ENGINE OIL COOLER-WITH,*195,*108

 1
15777R - GASKET(FOR OIL COOLER PIPE UNION BOLT)
16258-28040

2AZFE..ACV40..NAP..5FC

ENGINE OIL COOLER-WITH,*195,*108

 1
Common parts
90116-06127
90126-06015
91631-G0614
94150-80640
Linked diagrams
1105
1502
