ACV40L-CEANKA (2006)
Toyota Camry (Nap)
(0602- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69030A - LOCK ASSY, FRONT DOOR W/MOTOR, RH | ||||
| 69030-06200 |
ACV40,GSV40..NAP |
1 | ||
| 69030-06210 |
ACV40..NAP..LE WIRELESS DOOR LOCK-W/O |
1 | ||
| 69040A - LOCK ASSY, FRONT DOOR W/MOTOR, LH | ||||
| 69040-06180 |
ACV40,GSV40..NAP |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-06030 |
ACV40,GSV40..NAP |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-06030 |
ACV40,GSV40..NAP |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-06030 |
ACV40,GSV40..NAP |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-06030 |
ACV40,GSV40..NAP |
1 | ||
| 69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH | ||||
| 69205-06030C0 |
ACV40,GSV40..NAP..(LE,XLE) BLACK,TRIM1#,4# |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90080-54005 |
ACV40,GSV40..NAP |
2 | ||
| 69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH | ||||
| 69206-06030C0 |
ACV40,GSV40..NAP..(LE,XLE) BLACK,TRIM1#,4# |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69211-06060B0 |
ACV40,GSV40..NAP SILVER ME.,1D4 |
1 | ||
| 69211-06060A0 |
ACV40,GSV40..NAP SUPER WHITE 2,040 |
1 | ||
| 69211-06060C0 |
ACV40,GSV40..NAP BLACK,202 |
1 | ||
| 69211-06060B1 |
ACV40,GSV40..NAP GRAY ME.,1G3 |
1 | ||
| 69211-06060D0 |
ACV40,GSV40..NAP RED M.M.,3R3 |
1 | ||
| 69211-06060H0 |
ACV40,GSV40..NAP TURQUOISE M.M.,776 |
1 | ||
| 69211-06060E0 |
ACV40,GSV40..NAP..(LE,XLE) BEIGE M. M.,4Q2 |
1 | ||
| 69211-06060B2 |
ACV40,GSV40..NAP SILVER ME.,1F7 |
1 | ||
| 69211-06060J0 |
ACV40,GSV40..NAP LT.BLUE ME.,8S4 |
1 | ||
| 69211-06060J1 |
ACV40,GSV40..NAP DK.BLUE MC.,8T5 |
1 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69211-06060B0 |
ACV40,GSV40..NAP SILVER ME.,1D4 |
1 | ||
| 69211-06060A0 |
ACV40,GSV40..NAP SUPER WHITE 2,040 |
1 | ||
| 69211-06060C0 |
ACV40,GSV40..NAP BLACK,202 |
1 | ||
| 69211-06060B1 |
ACV40,GSV40..NAP GRAY ME.,1G3 |
1 | ||
| 69211-06060D0 |
ACV40,GSV40..NAP RED M.M.,3R3 |
1 | ||
| 69211-06060H0 |
ACV40,GSV40..NAP TURQUOISE M.M.,776 |
1 | ||
| 69211-06060E0 |
ACV40,GSV40..NAP..(LE,XLE) BEIGE M. M.,4Q2 |
1 | ||
| 69211-06060B2 |
ACV40,GSV40..NAP SILVER ME.,1F7 |
1 | ||
| 69211-06060J0 |
ACV40,GSV40..NAP LT.BLUE ME.,8S4 |
1 | ||
| 69211-06060J1 |
ACV40,GSV40..NAP DK.BLUE MC.,8T5 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-06030B1 |
ACV40..NAP..LE WIRELESS DOOR LOCK-W/O,GRAY ME.,1G3 |
1 | ||
| 69217-06030A0 |
ACV40..NAP..LE WIRELESS DOOR LOCK-W/O,SUPER WHITE 2,040 |
1 | ||
| 69217-06040B0 |
ACV40,GSV40..NAP SILVER ME.,1D4 |
1 | ||
| 69217-06030B0 |
ACV40..NAP..LE WIRELESS DOOR LOCK-W/O,SILVER ME.,1D4 |
1 | ||
| 69217-06030D0 |
ACV40..NAP..LE WIRELESS DOOR LOCK-W/O,RED M.M.,3R3 |
1 | ||
| 69217-06030E0 |
ACV40..NAP..LE WIRELESS DOOR LOCK-W/O,BEIGE M. M.,4Q2 |
1 | ||
| 69217-06030H0 |
ACV40..NAP..LE WIRELESS DOOR LOCK-W/O,TURQUOISE M.M.,776 |
1 | ||
| 69217-06030C0 |
ACV40..NAP..LE WIRELESS DOOR LOCK-W/O,BLACK,202 |
1 | ||
| 69217-06040H0 |
ACV40,GSV40..NAP TURQUOISE M.M.,776 |
1 | ||
| 69217-06030J0 |
ACV40..NAP..LE WIRELESS DOOR LOCK-W/O,LT.BLUE ME.,8S4 |
1 | ||
| 69217-06040D0 |
ACV40,GSV40..NAP RED M.M.,3R3 |
1 | ||
| 69217-06040C0 |
ACV40,GSV40..NAP BLACK,202 |
1 | ||
| 69217-06040J1 |
ACV40,GSV40..NAP DK.BLUE MC.,8T5 |
1 | ||
| 69217-06040A0 |
ACV40,GSV40..NAP SUPER WHITE 2,040 |
1 | ||
| 69217-06030J1 |
ACV40..NAP..LE WIRELESS DOOR LOCK-W/O,DK.BLUE MC.,8T5 |
1 | ||
| 69217-06040E0 |
ACV40,GSV40..NAP..(LE,XLE) BEIGE M. M.,4Q2 |
1 | ||
| 69217-06040B1 |
ACV40,GSV40..NAP GRAY ME.,1G3 |
1 | ||
| 69217-06040J0 |
ACV40,GSV40..NAP LT.BLUE ME.,8S4 |
1 | ||
| 69217-06040B2 |
ACV40,GSV40..NAP SILVER ME.,1F7 |
1 | ||
| 69217-06030B2 |
ACV40..NAP..LE WIRELESS DOOR LOCK-W/O,SILVER ME.,1F7 |
1 | ||
| 69217E - COVER, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69217-06030B1 |
ACV40..NAP..LE WIRELESS DOOR LOCK-W/O,GRAY ME.,1G3 |
1 | ||
| 69217-06030A0 |
ACV40..NAP..LE WIRELESS DOOR LOCK-W/O,SUPER WHITE 2,040 |
1 | ||
| 69217-06040B0 |
ACV40,GSV40..NAP SILVER ME.,1D4 |
1 | ||
| 69217-06030B0 |
ACV40..NAP..LE WIRELESS DOOR LOCK-W/O,SILVER ME.,1D4 |
1 | ||
| 69217-06030D0 |
ACV40..NAP..LE WIRELESS DOOR LOCK-W/O,RED M.M.,3R3 |
1 | ||
| 69217-06030E0 |
ACV40..NAP..LE WIRELESS DOOR LOCK-W/O,BEIGE M. M.,4Q2 |
1 | ||
| 69217-06030H0 |
ACV40..NAP..LE WIRELESS DOOR LOCK-W/O,TURQUOISE M.M.,776 |
1 | ||
| 69217-06030C0 |
ACV40..NAP..LE WIRELESS DOOR LOCK-W/O,BLACK,202 |
1 | ||
| 69217-06040H0 |
ACV40,GSV40..NAP TURQUOISE M.M.,776 |
1 | ||
| 69217-06030J0 |
ACV40..NAP..LE WIRELESS DOOR LOCK-W/O,LT.BLUE ME.,8S4 |
1 | ||
| 69217-06040D0 |
ACV40,GSV40..NAP RED M.M.,3R3 |
1 | ||
| 69217-06040C0 |
ACV40,GSV40..NAP BLACK,202 |
1 | ||
| 69217-06040J1 |
ACV40,GSV40..NAP DK.BLUE MC.,8T5 |
1 | ||
| 69217-06040A0 |
ACV40,GSV40..NAP SUPER WHITE 2,040 |
1 | ||
| 69217-06030J1 |
ACV40..NAP..LE WIRELESS DOOR LOCK-W/O,DK.BLUE MC.,8T5 |
1 | ||
| 69217-06040E0 |
ACV40,GSV40..NAP..(LE,XLE) BEIGE M. M.,4Q2 |
1 | ||
| 69217-06040B1 |
ACV40,GSV40..NAP GRAY ME.,1G3 |
1 | ||
| 69217-06040J0 |
ACV40,GSV40..NAP LT.BLUE ME.,8S4 |
1 | ||
| 69217-06040B2 |
ACV40,GSV40..NAP SILVER ME.,1F7 |
1 | ||
| 69217-06030B2 |
ACV40..NAP..LE WIRELESS DOOR LOCK-W/O,SILVER ME.,1F7 |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69217-06030B1 |
ACV40,GSV40..NAP GRAY ME.,1G3 |
1 | ||
| 69217-06030C0 |
ACV40,GSV40..NAP BLACK,202 |
1 | ||
| 69217-06030A0 |
ACV40,GSV40..NAP SUPER WHITE 2,040 |
1 | ||
| 69217-06030H0 |
ACV40,GSV40..NAP TURQUOISE M.M.,776 |
1 | ||
| 69217-06030B0 |
ACV40,GSV40..NAP SILVER ME.,1D4 |
1 | ||
| 69217-06030J1 |
ACV40,GSV40..NAP DK.BLUE MC.,8T5 |
1 | ||
| 69217-06030D0 |
ACV40,GSV40..NAP RED M.M.,3R3 |
1 | ||
| 69217-06030E0 |
ACV40,GSV40..NAP..(LE,XLE) BEIGE M. M.,4Q2 |
1 | ||
| 69217-06030B2 |
ACV40,GSV40..NAP SILVER ME.,1F7 |
1 | ||
| 69217-06030J0 |
ACV40,GSV40..NAP LT.BLUE ME.,8S4 |
1 | ||
| 69217F - COVER, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69217-06030B1 |
ACV40,GSV40..NAP GRAY ME.,1G3 |
1 | ||
| 69217-06030C0 |
ACV40,GSV40..NAP BLACK,202 |
1 | ||
| 69217-06030A0 |
ACV40,GSV40..NAP SUPER WHITE 2,040 |
1 | ||
| 69217-06030H0 |
ACV40,GSV40..NAP TURQUOISE M.M.,776 |
1 | ||
| 69217-06030B0 |
ACV40,GSV40..NAP SILVER ME.,1D4 |
1 | ||
| 69217-06030J1 |
ACV40,GSV40..NAP DK.BLUE MC.,8T5 |
1 | ||
| 69217-06030D0 |
ACV40,GSV40..NAP RED M.M.,3R3 |
1 | ||
| 69217-06030E0 |
ACV40,GSV40..NAP..(LE,XLE) BEIGE M. M.,4Q2 |
1 | ||
| 69217-06030B2 |
ACV40,GSV40..NAP SILVER ME.,1F7 |
1 | ||
| 69217-06030J0 |
ACV40,GSV40..NAP LT.BLUE ME.,8S4 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69211-06060B0 |
ACV40,GSV40..NAP SILVER ME.,1D4 |
1 | ||
| 69211-06060H0 |
ACV40,GSV40..NAP TURQUOISE M.M.,776 |
1 | ||
| 69211-06060B1 |
ACV40,GSV40..NAP GRAY ME.,1G3 |
1 | ||
| 69211-06060D0 |
ACV40,GSV40..NAP RED M.M.,3R3 |
1 | ||
| 69211-06060C0 |
ACV40,GSV40..NAP BLACK,202 |
1 | ||
| 69211-06060J0 |
ACV40,GSV40..NAP LT.BLUE ME.,8S4 |
1 | ||
| 69211-06060E0 |
ACV40,GSV40..NAP..(LE,XLE) BEIGE M. M.,4Q2 |
1 | ||
| 69211-06060A0 |
ACV40,GSV40..NAP SUPER WHITE 2,040 |
1 | ||
| 69211-06060J1 |
ACV40,GSV40..NAP DK.BLUE MC.,8T5 |
1 | ||
| 69211-06060B2 |
ACV40,GSV40..NAP SILVER ME.,1F7 |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69211-06060B0 |
ACV40,GSV40..NAP SILVER ME.,1D4 |
1 | ||
| 69211-06060H0 |
ACV40,GSV40..NAP TURQUOISE M.M.,776 |
1 | ||
| 69211-06060B1 |
ACV40,GSV40..NAP GRAY ME.,1G3 |
1 | ||
| 69211-06060D0 |
ACV40,GSV40..NAP RED M.M.,3R3 |
1 | ||
| 69211-06060C0 |
ACV40,GSV40..NAP BLACK,202 |
1 | ||
| 69211-06060J0 |
ACV40,GSV40..NAP LT.BLUE ME.,8S4 |
1 | ||
| 69211-06060E0 |
ACV40,GSV40..NAP..(LE,XLE) BEIGE M. M.,4Q2 |
1 | ||
| 69211-06060A0 |
ACV40,GSV40..NAP SUPER WHITE 2,040 |
1 | ||
| 69211-06060J1 |
ACV40,GSV40..NAP DK.BLUE MC.,8T5 |
1 | ||
| 69211-06060B2 |
ACV40,GSV40..NAP SILVER ME.,1F7 |
1 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-AE010 |
ACV40,GSV40..NAP |
2 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-AE010 |
ACV40,GSV40..NAP |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-AC031 |
ACV40,GSV40..NAP |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-AC031 |
ACV40,GSV40..NAP |
2 | ||
| 69283 - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-06010C0 |
ACV40,GSV40..NAP..(LE,XLE) BLACK,TRIM1#,4# |
1 | ||
| 69284C - PLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-06010C0 |
ACV40,GSV40..NAP..(LE,XLE) BLACK,TRIM1#,4# |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-33010 |
ACV40,GSV40..NAP RH |
1 | ||
| 69293-12040 |
ACV40,GSV40..NAP LH |
1 | ||
| 69293-12030 |
ACV40,GSV40..NAP RH |
1 | ||
| 69293-33020 |
ACV40,GSV40..NAP LH |
1 | ||
| 69293A - SNAP, FRONT DOOR OUTSIDE HANDLE | ||||
| 69293-33010 |
ACV40,GSV40..NAP RH |
1 | ||
| 69293-12040 |
ACV40,GSV40..NAP LH |
1 | ||
| 69293-12030 |
ACV40,GSV40..NAP RH |
1 | ||
| 69293-33020 |
ACV40,GSV40..NAP LH |
1 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-06050 |
ACV40,GSV40..NAP |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-06050 |
ACV40,GSV40..NAP |
1 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-AA030 |
ACV40,GSV40..NAP |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-06050 |
ACV40,GSV40..NAP |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-06050 |
ACV40,GSV40..NAP |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-06040 |
ACV40,GSV40..NAP |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-06040 |
ACV40,GSV40..NAP |
1 | ||
| Common parts | ||||
| 69296-02010 | ||||
| 69296-02020 | ||||
| 90084-14005 | ||||
| 90084-14006 | ||||
| 90084-17017 | ||||
| 90084-38006 | ||||
| 90148-A0004 | ||||
| 90148-A0005 | ||||
| 90148-A0017 | ||||
| 90167-A0001 | ||||
| 90179-05118 | ||||
| 90189-05003 | ||||

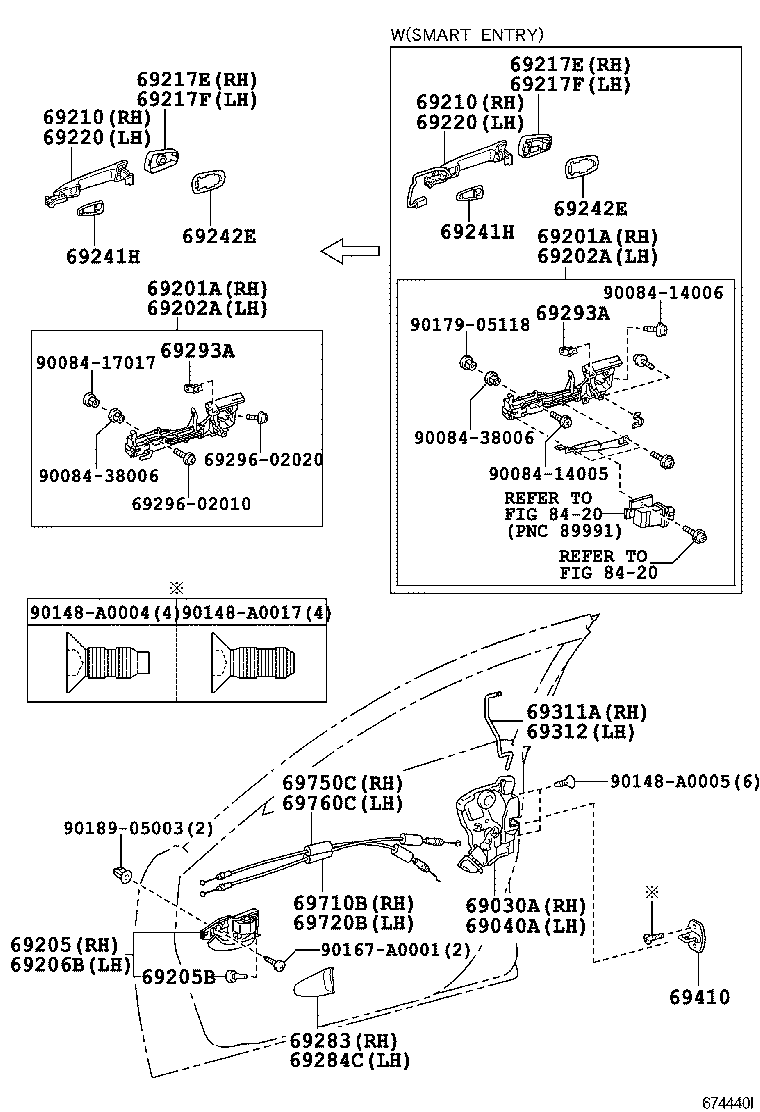

| Linked diagrams | ||||
| 8420 | ||||
