ACV30L-CEPSKA (2001)
Toyota Camry (Nap)

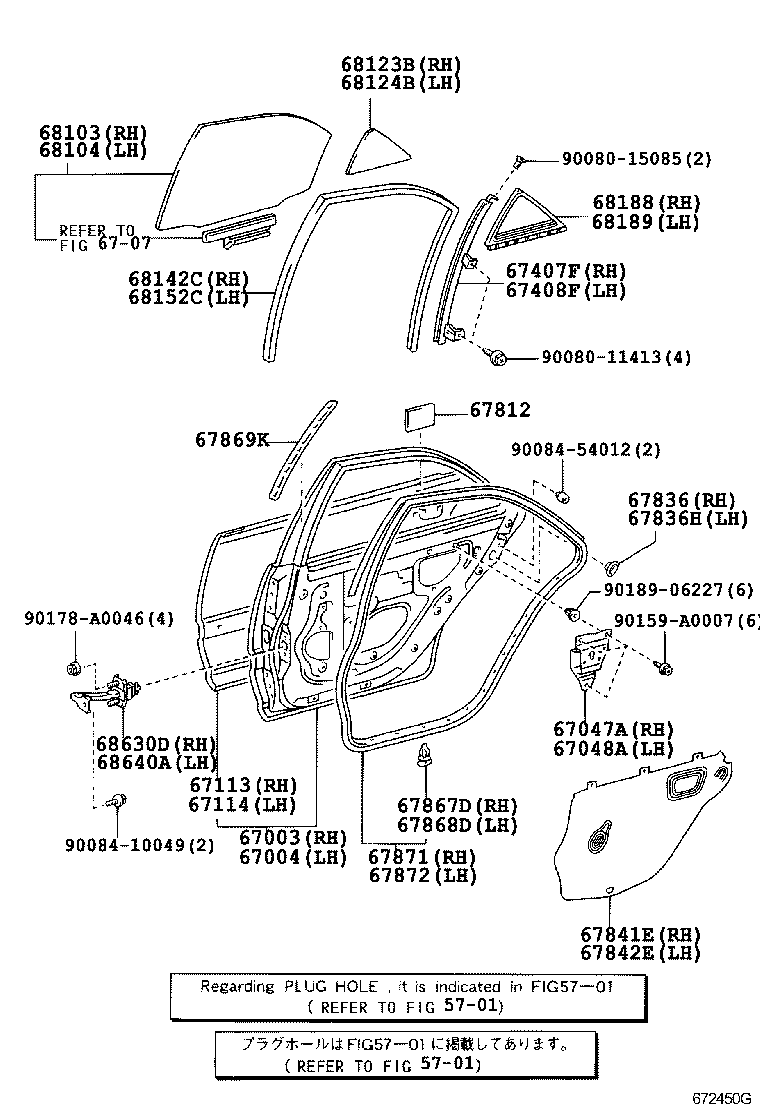

ILLUST NO. 2 OF 2(0107- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-AA040 |
ACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC |
1 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-AA040 |
ACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC |
1 | ||
| 67047A - PLATE SUB-ASSY, REAR DOOR LOWER FRAME, RH | ||||
| 67047-AA010 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
1 | ||
| 67048A - PLATE SUB-ASSY, REAR DOOR LOWER FRAME, LH | ||||
| 67048-AA010 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-AA020 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-AA020 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
1 | ||
| 67407F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH | ||||
| 67407-AA020 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
1 | ||
| 67408F - FRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH | ||||
| 67408-AA020 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
1 | ||
| 67812 - PAD, REAR DOOR SILENCER | ||||
| 67812-AA030 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
4 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-12040 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
1 | ||
| 67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH | ||||
| 67836-12040 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
1 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-AA030 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-AA030 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
ACV30,MCV3#..NAP NATURAL |
20 | ||
| 67867-12150 |
ACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC |
21 | ||
| 67868-02020 |
ACV30,MCV3#..NAP ORANGE |
1 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-02020 |
ACV30,MCV3#..NAP ORANGE |
1 | ||
| 67867-12150 |
ACV30,MCV3#..NAP BLUE |
20 | ||
| 67867-12140 |
ACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC |
21 | ||
| 67869K - CLIP, DOOR WEATHERSTRIP, LH | ||||
| 67869-AA010 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC (L) |
2 | ||
| 67869-30080 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC (J) |
2 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-AA020 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-AA020 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-AA010 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC *TT,T=4.0,GREEN |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-AA010 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC *TT,T=4.0,GREEN |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-AA010 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC *TT,T=4.0,GREEN |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-AA010 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC *TT,T=4.0,GREEN |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-AA020 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-AA020 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-AA010 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-AA010 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
1 | ||
| 68630D - CHECK ASSY, REAR DOOR, RH | ||||
| 68630-AA020 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
1 | ||
| 68640A - CHECK ASSY, REAR DOOR, LH | ||||
| 68640-AA020 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
1 | ||
| Common parts | ||||
| 90080-11413 | ||||
| 90080-15085 | ||||
| 90084-10049 | ||||
| 90084-54012 | ||||
| 90159-A0007 | ||||
| 90178-A0046 | ||||
| 90189-06227 | ||||
| Linked diagrams | ||||
| 5701 | ||||
| 6707 | ||||

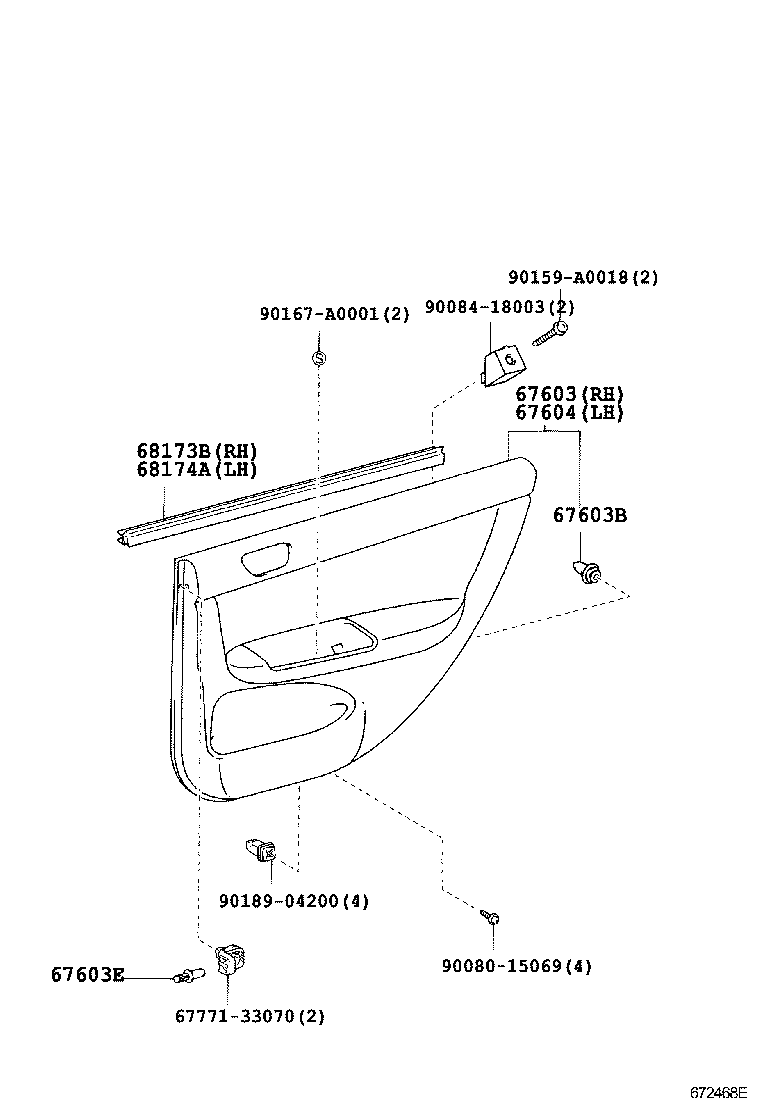

(0107- )NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-AA110B0 |
ACV30,MCV3#..NAP..SE DK.GRAY,TRIM1# |
1 | ||
| 67630-AA120B1 |
ACV30,MCV3#..NAP..SE LEATHER TYPE,DK.GRAY,TRIM1# |
1 | ||
| 67630-AA120E1 |
ACV30,MCV3#..NAP..SE LEATHER TYPE,FAWN,TRIM4# |
1 | ||
| 67630-AA110E0 |
ACV30,MCV3#..NAP..SE FAWN,TRIM4# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-10161 |
ACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC |
18 | ||
| 67603E - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-07066P6 |
ACV30,MCV31..NAP..SE DK.GRAY,TRIM1#,4# |
2 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-AA110E0 |
ACV30,MCV3#..NAP..SE FAWN,TRIM4# |
1 | ||
| 67640-AA110B0 |
ACV30,MCV3#..NAP..SE DK.GRAY,TRIM1# |
1 | ||
| 67640-AA120B1 |
ACV30,MCV3#..NAP..SE LEATHER TYPE,DK.GRAY,TRIM1# |
1 | ||
| 67640-AA120E1 |
ACV30,MCV3#..NAP..SE LEATHER TYPE,FAWN,TRIM4# |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-AA020 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-AA030 |
MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC |
1 | ||
| Common parts | ||||
| 67771-33070 | ||||
| 90080-15069 | ||||
| 90084-18003 | ||||
| 90159-A0018 | ||||
| 90167-A0001 | ||||
| 90189-04200 | ||||
