ACV30L-CEPSKA (2001)

Toyota Camry (Nap)

Production Jul 2001 - Jun 2004
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

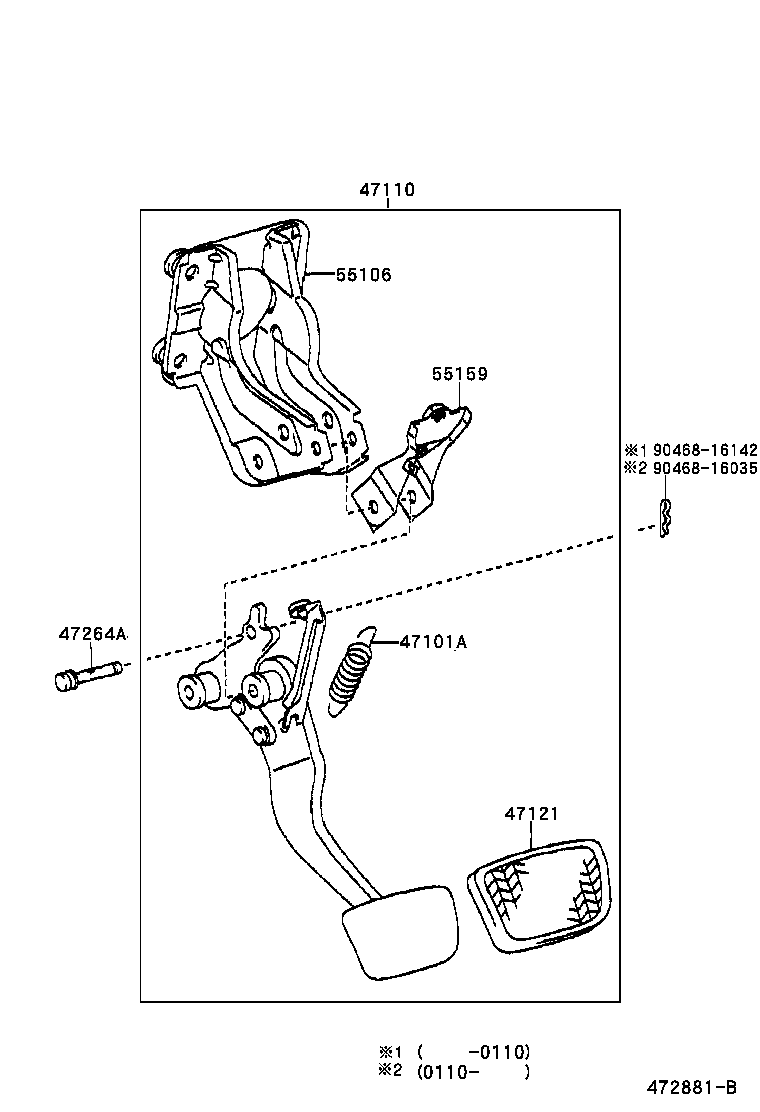

(0107-0209)ACV30..NAP ; (0107-0209)MCV30..NAP..LE

Click highlighted areas on diagram

diagram 47101A 47110 47121 47264A 55106 55159 9046816035 9046816142
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
47146-33010

ACV30..NAP..4FC;MCV30..NAP..LE..4FC

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-06050

ACV30..NAP;MCV30..NAP..LE

 1
47110-06051

ACV30..NAP..4FC;MCV30..NAP..LE..4FC

 1
47121 - PAD, BRAKE PEDAL
47121-50020

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

 1
47264A - PIN(FOR PUSH ROD)
47148-33011

ACV30,MCV3#..NAP

 1
47148-33010

ACV30,MCV30..NAP

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-06031

ACV30..NAP;MCV30..NAP..LE..5FC

 1
55106-06030

ACV30..NAP;MCV30..NAP..LE

 1
55159 - STAY, PEDAL BRACKET
55159-06010

ACV30..NAP;MCV30..NAP..LE

 1
Common parts
90468-16035
90468-16142

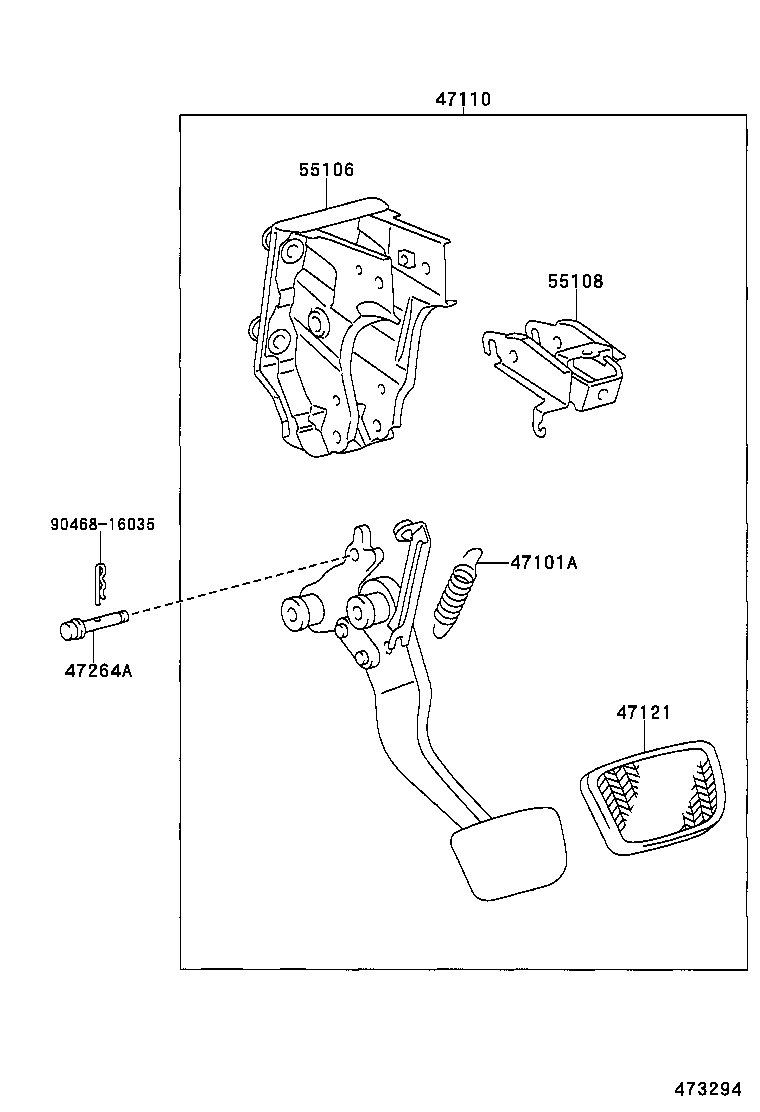

(0209- )ACV30..NAP ; (0209- )MCV30..NAP..LE

Click highlighted areas on diagram

TYPE A

diagram 47101A 47110 47121 47264A 55106 55108 9046816035
Part # Description Qty Price
47101A - SPRING(FOR BRAKE PEDAL RETURN)
47146-33010

ACV30..NAP..4FC;MCV30..NAP..LE..4FC

 1
47110 - SUPPORT ASSY, BRAKE PEDAL
47110-06050

ACV30..NAP;MCV30..NAP..LE

 1
47110-06051

ACV30..NAP..4FC;MCV30..NAP..LE..4FC

 1
47121 - PAD, BRAKE PEDAL
47121-50020

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

 1
47264A - PIN(FOR PUSH ROD)
47148-33011

ACV30,MCV3#..NAP

 1
47148-33010

ACV30,MCV30..NAP

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-06031

ACV30..NAP;MCV30..NAP..LE..5FC

 1
55106-06030

ACV30..NAP;MCV30..NAP..LE

 1
55108 - BRACKET SUB-ASSY, BRAKE PEDAL, NO.3
55108-06020

ACV30..NAP;MCV30..NAP..LE..5FC

 1
Common parts
90468-16035

(0209- )NAP

Click highlighted areas on diagram

POWER ADJUSTABLE PEDAL;TYPE C

diagram 7801 7801 7801 7801 7801 7801 7801 7801 7801
Part # Description Qty Price
Linked diagrams
7801
