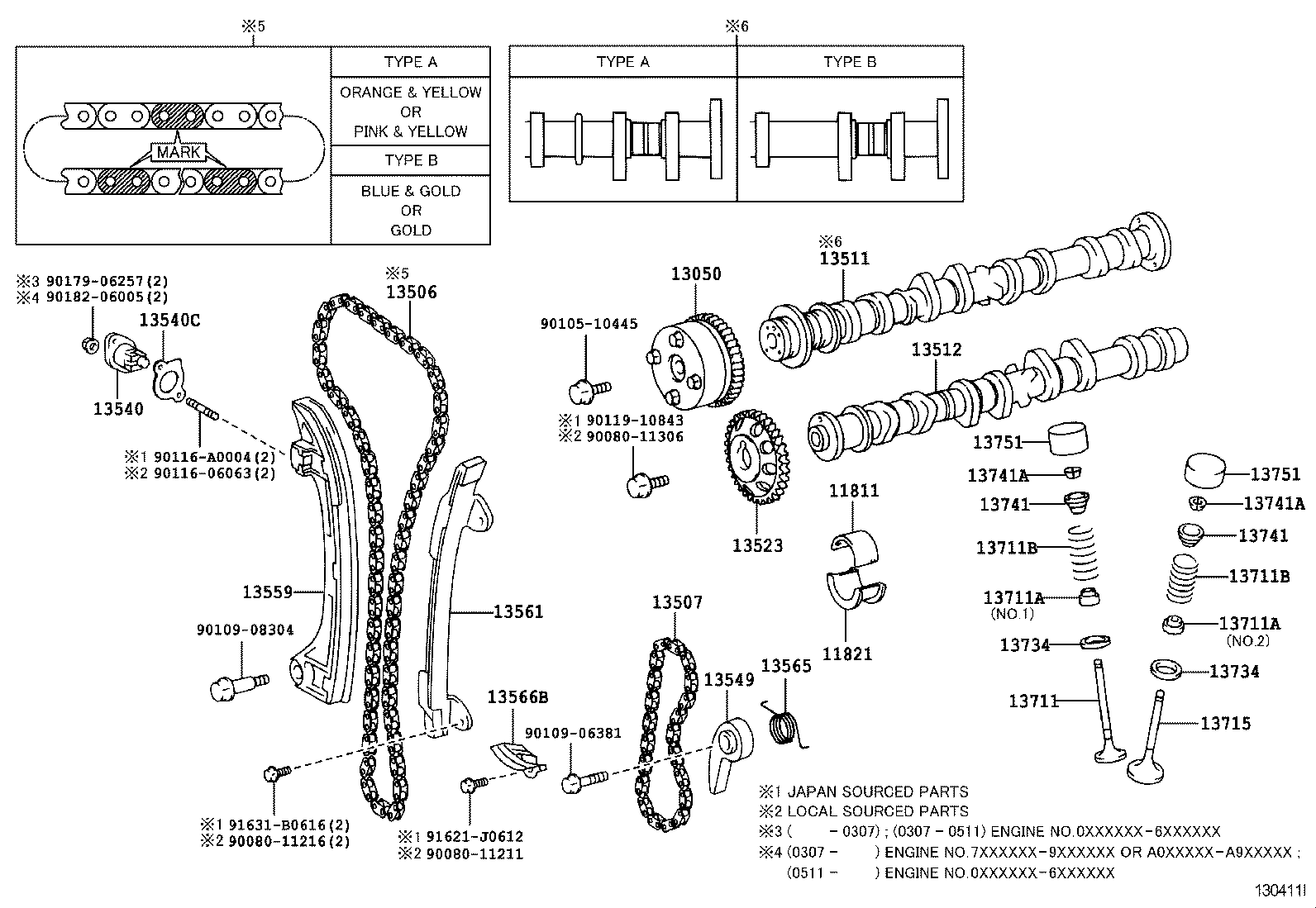

ACV30L-CEPSKA (2001)
Toyota Camry (Nap)
(0107- )2AZFE..NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11811 - BEARING, CAMSHAFT, NO.1 | ||||
| 11811-2801003 |
2AZFE..ACV30..NAP MARK 3 |
1 | ||
| 11811-2801001 |
2AZFE..ACV30..NAP MARK 1 |
1 | ||
| 11811-2801002 |
2AZFE..ACV30..NAP MARK 2 |
1 | ||
| 11821 - BEARING, CAMSHAFT, NO.2 | ||||
| 11821-2801001 |
2AZFE..ACV30..NAP MARK 1 |
1 | ||
| 11821-2801002 |
2AZFE..ACV30..NAP MARK 2 |
1 | ||
| 11821-2801003 |
2AZFE..ACV30..NAP MARK 3 |
1 | ||
| 13050 - GEAR ASSY, CAMSHAFT TIMING | ||||
| 13050-0H010 |
2AZFE..ACV30..NAP (L) |
1 | ||
| 13050-28011 |
2AZFE..ACV30..NAP |
1 | ||
| 13050-28020 |
2AZFE..ACV30..NAP CALIFORNIA SPEC |
1 | ||
| 13050-28020 |
2AZFE..ACV30..NAP (J) |
1 | ||
| 13506 - CHAIN SUB-ASSY | ||||
| 13506-0H010 |
2AZFE..ACV30..NAP (L),T/P A:REF.ILLUST |
1 | ||
| 13506-28010 |
2AZFE..ACV30..NAP (J),T/P A:REF.ILLUST |
1 | ||
| 13506-28020 |
2AZFE..ACV30..NAP (J),T/P B:REF.ILLUST |
1 | ||
| 13507 - CHAIN SUB-ASSY, NO.2 | ||||
| 13507-28010 |
2AZFE..ACV30..NAP |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-28010 |
2AZFE..ACV30..NAP (J) |
1 | ||
| 13501-0H020 |
2AZFE..ACV30..NAP..4FC TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 13501-28040 |
2AZFE..ACV30..NAP TYPE B:REFER TO ILLUSTRATION, CALIFORNIA SPEC |
1 | ||
| 13501-0H020 |
2AZFE..ACV30..NAP TYPE A:REFER TO ILLUSTRATION, CALIFORNIA SPEC |
1 | ||
| 13501-0H010 |
2AZFE..ACV30..NAP (L) |
1 | ||
| 13501-28040 |
2AZFE..ACV30..NAP..4FC TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-28010 |
2AZFE..ACV30..NAP (J) |
1 | ||
| 13502-0H010 |
2AZFE..ACV30..NAP (L) |
1 | ||
| 13523 - GEAR OR SPROCKET, CAMSHAFT TIMING | ||||
| 13523-22020 |
2AZFE..ACV30..NAP *107,(J) |
1 | ||
| 13523-0D010 |
2AZFE..ACV30..NAP *108,(L) |
1 | ||
| 13523-22020 |
2AZFE..ACV30..NAP |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-28010 |
2AZFE..ACV30..NAP (J) |
1 | ||
| 13540-0H010 |
2AZFE..ACV30..NAP (L) |
1 | ||
| 13540C - GASKET(FOR CHAIN TENSIONER) | ||||
| 13552-28010 |
2AZFE..ACV30..NAP..4FC (J) |
1 | ||
| 13552-0H010 |
2AZFE..ACV30..NAP (L) |
1 | ||
| 13549 - PLATE, CHAIN TENSIONER | ||||
| 13549-28012 |
2AZFE..ACV30..NAP |
1 | ||
| 13559 - SLIPPER, CHAIN TENSIONER | ||||
| 13559-28010 |
2AZFE..ACV30..NAP (J) |
1 | ||
| 13559-0H010 |
2AZFE..ACV30..NAP (L) |
1 | ||
| 13561 - DAMPER, CHAIN VIBRATION, NO.1 | ||||
| 13561-0H010 |
2AZFE..ACV30..NAP (L) |
1 | ||
| 13561-28010 |
2AZFE..ACV30..NAP (J) |
1 | ||
| 13565 - SPRING, CHAIN DAMPER | ||||
| 13565-28012 |
2AZFE..ACV30..NAP |
1 | ||
| 13566B - GUIDE, TIMING CHAIN | ||||
| 13566-28010 |
2AZFE..ACV30..NAP |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-0H010 |
2AZFE..ACV30..NAP (L) |
8 | ||
| 13711-28010 |
2AZFE..ACV30..NAP (J) |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90080-31043 |
2AZFE..ACV30..NAP NO.1,(L) |
8 | ||
| 90913-02111 |
2AZFE..ACV30..NAP NO.2,(J) |
8 | ||
| 90080-31046 |
2AZFE..ACV30..NAP NO.2,(L) |
8 | ||
| 90913-02101 |
2AZFE..ACV30..NAP NO.1,(J) |
8 | ||
| 90913-02112 |
2AZFE..ACV30..NAP NO.2,(J) |
8 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90080-31043 |
2AZFE..ACV30..NAP NO.1,(L) |
8 | ||
| 90913-02111 |
2AZFE..ACV30..NAP NO.2,(J) |
8 | ||
| 90080-31046 |
2AZFE..ACV30..NAP NO.2,(L) |
8 | ||
| 90913-02101 |
2AZFE..ACV30..NAP NO.1,(J) |
8 | ||
| 90913-02112 |
2AZFE..ACV30..NAP NO.2,(J) |
8 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90905-01066 |
2AZFE..ACV30..NAP (J) |
16 | ||
| 90080-50254 |
2AZFE..ACV30..NAP (L) |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90905-01066 |
2AZFE..ACV30..NAP (J) |
16 | ||
| 90080-50254 |
2AZFE..ACV30..NAP (L) |
16 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-0H010 |
2AZFE..ACV30..NAP (L) |
8 | ||
| 13715-28010 |
2AZFE..ACV30..NAP (J) |
8 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-74010 |
2AZFE..ACV30..NAP |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-74010 |
2AZFE..ACV30..NAP |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-22021 |
2AZFE..ACV30..NAP |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-22021 |
2AZFE..ACV30..NAP |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2AZFE..ACV30..NAP |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
2AZFE..ACV30..NAP |
32 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-22040 |
2AZFE..ACV30..NAP..4FC T=5.06,*108 |
16 | ||
| 13751-22050 |
2AZFE..ACV30..NAP..4FC T=5.08,*108 |
16 | ||
| 13751-22080 |
2AZFE..ACV30..NAP..4FC T=5.14,*108 |
16 | ||
| 13751-22070 |
2AZFE..ACV30..NAP..4FC T=5.12,*108 |
16 | ||
| 13751-22090 |
2AZFE..ACV30..NAP..4FC T=5.16,*108 |
16 | ||
| 13751-22110 |
2AZFE..ACV30..NAP..4FC T=5.20,*108 |
16 | ||
| 13751-22100 |
2AZFE..ACV30..NAP..4FC T=5.18,*108 |
16 | ||
| 13751-22190 |
2AZFE..ACV30..NAP..4FC T=5.36,*108 |
16 | ||
| 13751-22060 |
2AZFE..ACV30..NAP..4FC T=5.10,*108 |
16 | ||
| 13751-22130 |
2AZFE..ACV30..NAP..4FC T=5.24,*108 |
16 | ||
| 13751-22160 |
2AZFE..ACV30..NAP..4FC T=5.30,*108 |
16 | ||
| 13751-22120 |
2AZFE..ACV30..NAP..4FC T=5.22,*108 |
16 | ||
| 13751-22230 |
2AZFE..ACV30..NAP..4FC T=5.44,*108 |
16 | ||
| 13751-22200 |
2AZFE..ACV30..NAP..4FC T=5.38,*108 |
16 | ||
| 13751-22240 |
2AZFE..ACV30..NAP..4FC T=5.46,*108 |
16 | ||
| 13751-22140 |
2AZFE..ACV30..NAP..4FC T=5.26,*108 |
16 | ||
| 13751-22180 |
2AZFE..ACV30..NAP..4FC T=5.34,*108 |
16 | ||
| 13751-22150 |
2AZFE..ACV30..NAP..4FC T=5.28,*108 |
16 | ||
| 13751-22250 |
2AZFE..ACV30..NAP..4FC T=5.48,*108 |
16 | ||
| 13751-22320 |
2AZFE..ACV30..NAP..4FC T=5.62,*108 |
16 | ||
| 13751-22330 |
2AZFE..ACV30..NAP..4FC T=5.64,*108 |
16 | ||
| 13751-22260 |
2AZFE..ACV30..NAP..4FC T=5.50,*108 |
16 | ||
| 13751-22170 |
2AZFE..ACV30..NAP..4FC T=5.32,*108 |
16 | ||
| 13751-22350 |
2AZFE..ACV30..NAP..4FC T=5.68,*108 |
16 | ||
| 13751-22270 |
2AZFE..ACV30..NAP..4FC T=5.52,*108 |
16 | ||
| 13751-22290 |
2AZFE..ACV30..NAP..4FC T=5.56,*108 |
16 | ||
| 13751-22300 |
2AZFE..ACV30..NAP..4FC T=5.58,*108 |
16 | ||
| 13751-22340 |
2AZFE..ACV30..NAP..4FC T=5.66,*108 |
16 | ||
| 13751-22220 |
2AZFE..ACV30..NAP..4FC T=5.42,*108 |
16 | ||
| 13751-22280 |
2AZFE..ACV30..NAP..4FC T=5.54,*108 |
16 | ||
| 13751-22370 |
2AZFE..ACV30..NAP..4FC T=5.72,*108 |
16 | ||
| 13751-22210 |
2AZFE..ACV30..NAP..4FC T=5.40,*108 |
16 | ||
| 13751-46030 |
2AZFE..ACV30..NAP..4FC T=5.06,*107 |
16 | ||
| 13751-22310 |
2AZFE..ACV30..NAP..4FC T=5.60,*108 |
16 | ||
| 13751-46060 |
2AZFE..ACV30..NAP..4FC T=5.12,*107 |
16 | ||
| 13751-46120 |
2AZFE..ACV30..NAP..4FC T=5.24,*107 |
16 | ||
| 13751-46150 |
2AZFE..ACV30..NAP..4FC T=5.30,*107 |
16 | ||
| 13751-46080 |
2AZFE..ACV30..NAP..4FC T=5.16,*107 |
16 | ||
| 13751-46050 |
2AZFE..ACV30..NAP..4FC T=5.10,*107 |
16 | ||
| 13751-46100 |
2AZFE..ACV30..NAP..4FC T=5.20,*107 |
16 | ||
| 13751-46040 |
2AZFE..ACV30..NAP..4FC T=5.08,*107 |
16 | ||
| 13751-22360 |
2AZFE..ACV30..NAP..4FC T=5.70,*108 |
16 | ||
| 13751-46180 |
2AZFE..ACV30..NAP..4FC T=5.36,*107 |
16 | ||
| 13751-46090 |
2AZFE..ACV30..NAP..4FC T=5.18,*107 |
16 | ||
| 13751-46160 |
2AZFE..ACV30..NAP..4FC T=5.32,*107 |
16 | ||
| 13751-22380 |
2AZFE..ACV30..NAP..4FC T=5.74,*108 |
16 | ||
| 13751-46110 |
2AZFE..ACV30..NAP..4FC T=5.22,*107 |
16 | ||
| 13751-46070 |
2AZFE..ACV30..NAP..4FC T=5.14,*107 |
16 | ||
| 13751-46230 |
2AZFE..ACV30..NAP..4FC T=5.46,*107 |
16 | ||
| 13751-46130 |
2AZFE..ACV30..NAP..4FC T=5.26,*107 |
16 | ||
| 13751-46170 |
2AZFE..ACV30..NAP..4FC T=5.34,*107 |
16 | ||
| 13751-46260 |
2AZFE..ACV30..NAP..4FC T=5.52,*107 |
16 | ||
| 13751-46190 |
2AZFE..ACV30..NAP..4FC T=5.38,*107 |
16 | ||
| 13751-46290 |
2AZFE..ACV30..NAP..4FC T=5.58,*107 |
16 | ||
| 13751-46250 |
2AZFE..ACV30..NAP..4FC T=5.50,*107 |
16 | ||
| 13751-46240 |
2AZFE..ACV30..NAP..4FC T=5.48,*107 |
16 | ||
| 13751-46300 |
2AZFE..ACV30..NAP..4FC T=5.60,*107 |
16 | ||
| 13751-46200 |
2AZFE..ACV30..NAP..4FC T=5.40,*107 |
16 | ||
| 13751-46220 |
2AZFE..ACV30..NAP..4FC T=5.44,*107 |
16 | ||
| 13751-46140 |
2AZFE..ACV30..NAP..4FC T=5.28,*107 |
16 | ||
| 13751-46340 |
2AZFE..ACV30..NAP..4FC T=5.68,*107 |
16 | ||
| 13751-46270 |
2AZFE..ACV30..NAP..4FC T=5.54,*107 |
16 | ||
| 13751-46370 |
2AZFE..ACV30..NAP..4FC T=5.74,*107 |
16 | ||
| 13751-46280 |
2AZFE..ACV30..NAP..4FC T=5.56,*107 |
16 | ||
| 13751-46350 |
2AZFE..ACV30..NAP..4FC T=5.70,*107 |
16 | ||
| 13751-46330 |
2AZFE..ACV30..NAP..4FC T=5.66,*107 |
16 | ||
| 13751-46360 |
2AZFE..ACV30..NAP..4FC T=5.72,*107 |
16 | ||
| 13751-46210 |
2AZFE..ACV30..NAP..4FC T=5.42,*107 |
16 | ||
| 13751-46310 |
2AZFE..ACV30..NAP..4FC T=5.62,*107 |
16 | ||
| 13751-46320 |
2AZFE..ACV30..NAP..4FC T=5.64,*107 |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-22040 |
2AZFE..ACV30..NAP..4FC T=5.06,*108 |
16 | ||
| 13751-22050 |
2AZFE..ACV30..NAP..4FC T=5.08,*108 |
16 | ||
| 13751-22080 |
2AZFE..ACV30..NAP..4FC T=5.14,*108 |
16 | ||
| 13751-22070 |
2AZFE..ACV30..NAP..4FC T=5.12,*108 |
16 | ||
| 13751-22090 |
2AZFE..ACV30..NAP..4FC T=5.16,*108 |
16 | ||
| 13751-22110 |
2AZFE..ACV30..NAP..4FC T=5.20,*108 |
16 | ||
| 13751-22100 |
2AZFE..ACV30..NAP..4FC T=5.18,*108 |
16 | ||
| 13751-22190 |
2AZFE..ACV30..NAP..4FC T=5.36,*108 |
16 | ||
| 13751-22060 |
2AZFE..ACV30..NAP..4FC T=5.10,*108 |
16 | ||
| 13751-22130 |
2AZFE..ACV30..NAP..4FC T=5.24,*108 |
16 | ||
| 13751-22160 |
2AZFE..ACV30..NAP..4FC T=5.30,*108 |
16 | ||
| 13751-22120 |
2AZFE..ACV30..NAP..4FC T=5.22,*108 |
16 | ||
| 13751-22230 |
2AZFE..ACV30..NAP..4FC T=5.44,*108 |
16 | ||
| 13751-22200 |
2AZFE..ACV30..NAP..4FC T=5.38,*108 |
16 | ||
| 13751-22240 |
2AZFE..ACV30..NAP..4FC T=5.46,*108 |
16 | ||
| 13751-22140 |
2AZFE..ACV30..NAP..4FC T=5.26,*108 |
16 | ||
| 13751-22180 |
2AZFE..ACV30..NAP..4FC T=5.34,*108 |
16 | ||
| 13751-22150 |
2AZFE..ACV30..NAP..4FC T=5.28,*108 |
16 | ||
| 13751-22250 |
2AZFE..ACV30..NAP..4FC T=5.48,*108 |
16 | ||
| 13751-22320 |
2AZFE..ACV30..NAP..4FC T=5.62,*108 |
16 | ||
| 13751-22330 |
2AZFE..ACV30..NAP..4FC T=5.64,*108 |
16 | ||
| 13751-22260 |
2AZFE..ACV30..NAP..4FC T=5.50,*108 |
16 | ||
| 13751-22170 |
2AZFE..ACV30..NAP..4FC T=5.32,*108 |
16 | ||
| 13751-22350 |
2AZFE..ACV30..NAP..4FC T=5.68,*108 |
16 | ||
| 13751-22270 |
2AZFE..ACV30..NAP..4FC T=5.52,*108 |
16 | ||
| 13751-22290 |
2AZFE..ACV30..NAP..4FC T=5.56,*108 |
16 | ||
| 13751-22300 |
2AZFE..ACV30..NAP..4FC T=5.58,*108 |
16 | ||
| 13751-22340 |
2AZFE..ACV30..NAP..4FC T=5.66,*108 |
16 | ||
| 13751-22220 |
2AZFE..ACV30..NAP..4FC T=5.42,*108 |
16 | ||
| 13751-22280 |
2AZFE..ACV30..NAP..4FC T=5.54,*108 |
16 | ||
| 13751-22370 |
2AZFE..ACV30..NAP..4FC T=5.72,*108 |
16 | ||
| 13751-22210 |
2AZFE..ACV30..NAP..4FC T=5.40,*108 |
16 | ||
| 13751-46030 |
2AZFE..ACV30..NAP..4FC T=5.06,*107 |
16 | ||
| 13751-22310 |
2AZFE..ACV30..NAP..4FC T=5.60,*108 |
16 | ||
| 13751-46060 |
2AZFE..ACV30..NAP..4FC T=5.12,*107 |
16 | ||
| 13751-46120 |
2AZFE..ACV30..NAP..4FC T=5.24,*107 |
16 | ||
| 13751-46150 |
2AZFE..ACV30..NAP..4FC T=5.30,*107 |
16 | ||
| 13751-46080 |
2AZFE..ACV30..NAP..4FC T=5.16,*107 |
16 | ||
| 13751-46050 |
2AZFE..ACV30..NAP..4FC T=5.10,*107 |
16 | ||
| 13751-46100 |
2AZFE..ACV30..NAP..4FC T=5.20,*107 |
16 | ||
| 13751-46040 |
2AZFE..ACV30..NAP..4FC T=5.08,*107 |
16 | ||
| 13751-22360 |
2AZFE..ACV30..NAP..4FC T=5.70,*108 |
16 | ||
| 13751-46180 |
2AZFE..ACV30..NAP..4FC T=5.36,*107 |
16 | ||
| 13751-46090 |
2AZFE..ACV30..NAP..4FC T=5.18,*107 |
16 | ||
| 13751-46160 |
2AZFE..ACV30..NAP..4FC T=5.32,*107 |
16 | ||
| 13751-22380 |
2AZFE..ACV30..NAP..4FC T=5.74,*108 |
16 | ||
| 13751-46110 |
2AZFE..ACV30..NAP..4FC T=5.22,*107 |
16 | ||
| 13751-46070 |
2AZFE..ACV30..NAP..4FC T=5.14,*107 |
16 | ||
| 13751-46230 |
2AZFE..ACV30..NAP..4FC T=5.46,*107 |
16 | ||
| 13751-46130 |
2AZFE..ACV30..NAP..4FC T=5.26,*107 |
16 | ||
| 13751-46170 |
2AZFE..ACV30..NAP..4FC T=5.34,*107 |
16 | ||
| 13751-46260 |
2AZFE..ACV30..NAP..4FC T=5.52,*107 |
16 | ||
| 13751-46190 |
2AZFE..ACV30..NAP..4FC T=5.38,*107 |
16 | ||
| 13751-46290 |
2AZFE..ACV30..NAP..4FC T=5.58,*107 |
16 | ||
| 13751-46250 |
2AZFE..ACV30..NAP..4FC T=5.50,*107 |
16 | ||
| 13751-46240 |
2AZFE..ACV30..NAP..4FC T=5.48,*107 |
16 | ||
| 13751-46300 |
2AZFE..ACV30..NAP..4FC T=5.60,*107 |
16 | ||
| 13751-46200 |
2AZFE..ACV30..NAP..4FC T=5.40,*107 |
16 | ||
| 13751-46220 |
2AZFE..ACV30..NAP..4FC T=5.44,*107 |
16 | ||
| 13751-46140 |
2AZFE..ACV30..NAP..4FC T=5.28,*107 |
16 | ||
| 13751-46340 |
2AZFE..ACV30..NAP..4FC T=5.68,*107 |
16 | ||
| 13751-46270 |
2AZFE..ACV30..NAP..4FC T=5.54,*107 |
16 | ||
| 13751-46370 |
2AZFE..ACV30..NAP..4FC T=5.74,*107 |
16 | ||
| 13751-46280 |
2AZFE..ACV30..NAP..4FC T=5.56,*107 |
16 | ||
| 13751-46350 |
2AZFE..ACV30..NAP..4FC T=5.70,*107 |
16 | ||
| 13751-46330 |
2AZFE..ACV30..NAP..4FC T=5.66,*107 |
16 | ||
| 13751-46360 |
2AZFE..ACV30..NAP..4FC T=5.72,*107 |
16 | ||
| 13751-46210 |
2AZFE..ACV30..NAP..4FC T=5.42,*107 |
16 | ||
| 13751-46310 |
2AZFE..ACV30..NAP..4FC T=5.62,*107 |
16 | ||
| 13751-46320 |
2AZFE..ACV30..NAP..4FC T=5.64,*107 |
16 | ||
| Common parts | ||||
| 90080-11211 | ||||
| 90080-11216 | ||||
| 90080-11306 | ||||
| 90105-10445 | ||||
| 90109-06381 | ||||
| 90109-08304 | ||||
| 90116-06063 | ||||
| 90116-A0004 | ||||
| 90119-10843 | ||||
| 90179-06257 | ||||
| 90182-06005 | ||||
| 91621-J0612 | ||||
| 91631-B0616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
