ACV30L-CEPSKA (2001)
Toyota Camry (Nap)
Production
Jul 2001
-
Jun 2004
Engine
2AZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0107- )2AZFE..NAP

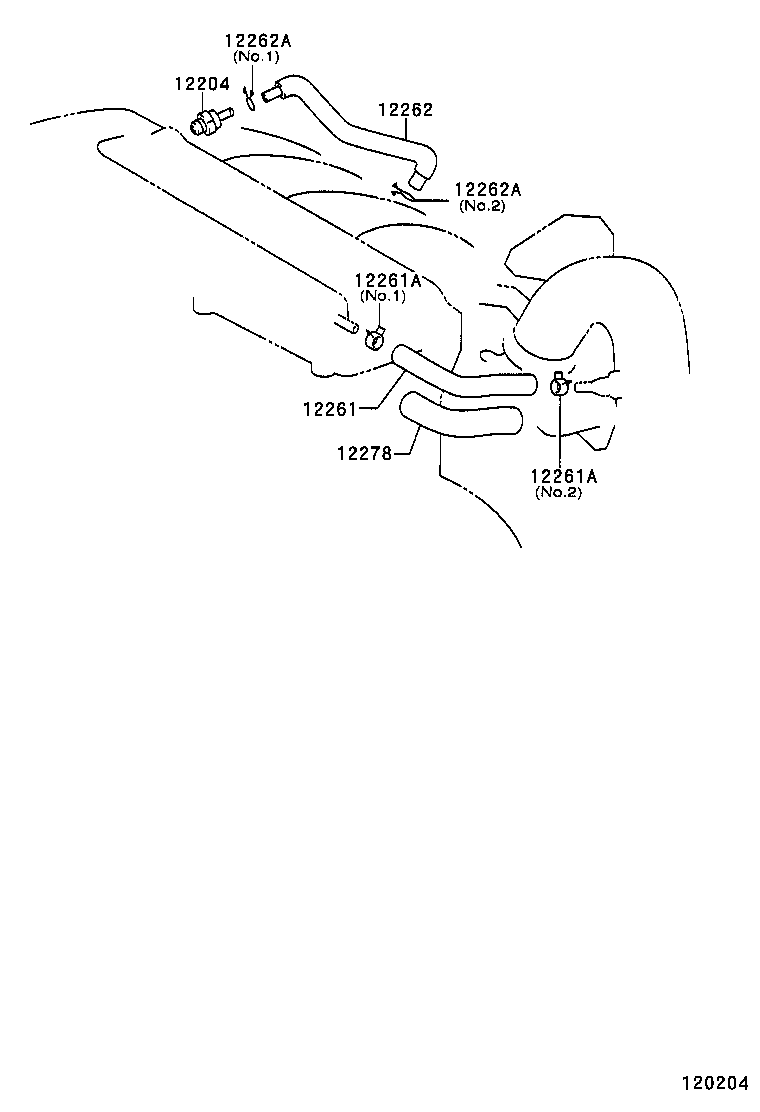

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-28020 |
2AZFE..ACV30..NAP |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-0H010 |
2AZFE..ACV30..NAP |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-20005 |
2AZFE..ACV30..NAP NO.2 |
1 | ||
| 96134-41900 |
2AZFE..ACV30..NAP NO.1 |
1 | ||
| 90080-46349 |
2AZFE..ACV30..NAP..4FC NO.1 & NO.2 |
2 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-20005 |
2AZFE..ACV30..NAP NO.2 |
1 | ||
| 96134-41900 |
2AZFE..ACV30..NAP NO.1 |
1 | ||
| 90080-46349 |
2AZFE..ACV30..NAP..4FC NO.1 & NO.2 |
2 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12262-0H010 |
2AZFE..ACV30..NAP |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-13103 |
2AZFE..ACV30..NAP NO.1 |
1 | ||
| 90467-17013 |
2AZFE..ACV30..NAP *108,NO.2 |
1 | ||
| 90467-16035 |
2AZFE..ACV30..NAP..4FC *107,NO.2 |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-13103 |
2AZFE..ACV30..NAP NO.1 |
1 | ||
| 90467-17013 |
2AZFE..ACV30..NAP *108,NO.2 |
1 | ||
| 90467-16035 |
2AZFE..ACV30..NAP..4FC *107,NO.2 |
1 | ||
| 12278 - INSULATOR, VENTILATION HOSE HEAT | ||||
| 12278-AB010 |
2AZFE..ACV30..NAP..4FC |
1 | ||
