ACV30L-CEPNKA (2001)

Toyota Camry (Nap)

Production Jul 2001 - Jun 2004
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )NAP

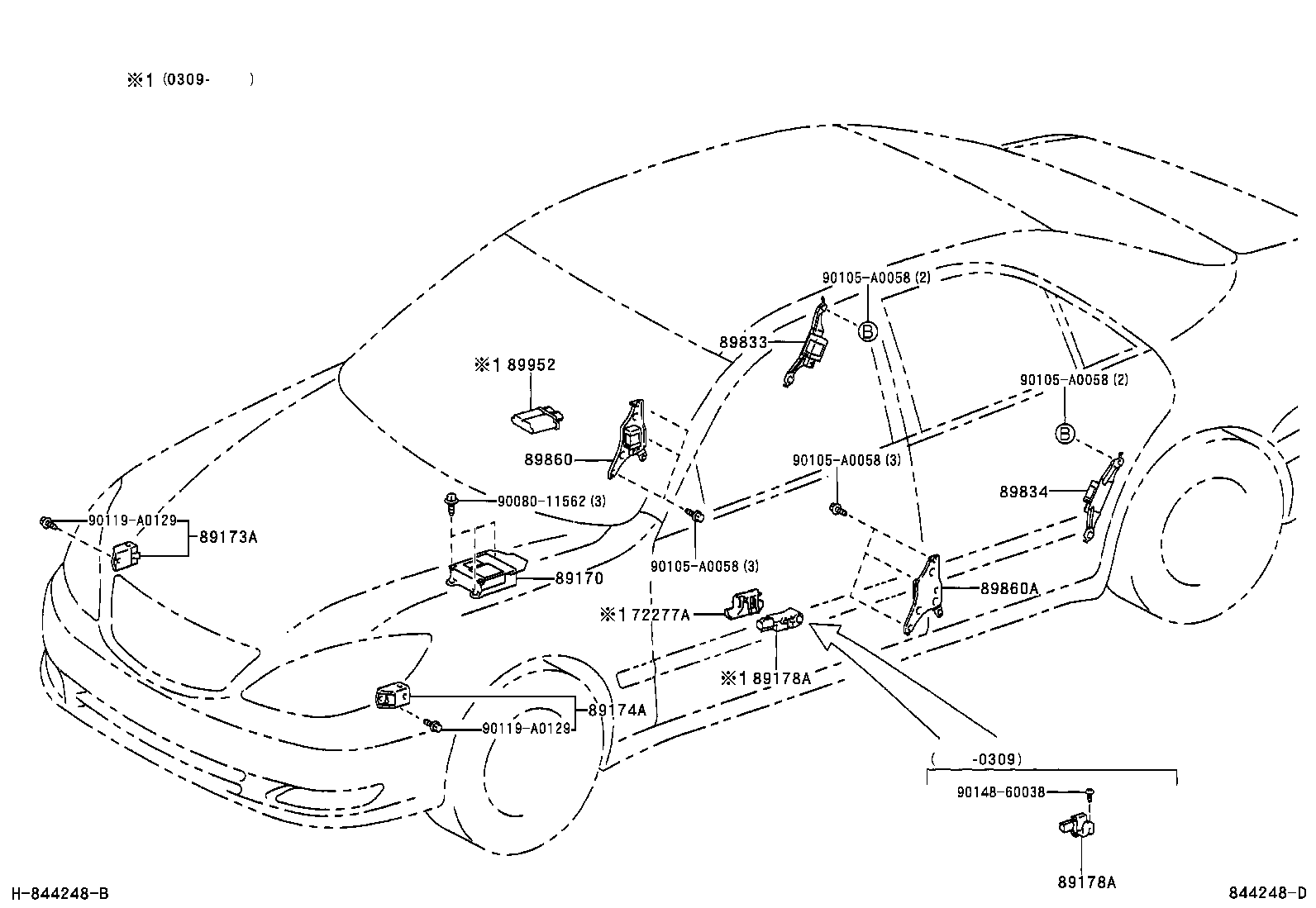

Click highlighted areas on diagram

diagram 72277A 89170 89173A 89174A 89178A 89178A 89833 89834 89860 89860A 89952 9008011562 90105A0058 90105A0058 90105A0058 90105A0058 90119A0129 90119A0129 9014860038
Part # Description Qty Price
72277A - PROTECTOR, SEAT SLIDE POSITION SENSOR
72277-33021

ACV30,MCV3#..NAP

W(POWER SEAT)

 1
72277-33010

ACV30..NAP..LE

W(MANUAL SEAT)

 1
89170 - SENSOR ASSY, AIR BAG
89170-06180

ACV30,MCV30..NAP

 1
89170-06260

ACV30,MCV3#..NAP

W(SRS CURTAIN SHIELD AIR BAG)

 1
89170-06190

ACV30,MCV30..NAP

W(SRS CURTAIN SHIELD AIR BAG)

 1
89170-06250

ACV30,MCV3#..NAP

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-09210

ACV30,MCV3#..NAP

 1
89173-09110

ACV30,MCV30..NAP

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-09110

ACV30,MCV30..NAP

 1
89173-09210

ACV30,MCV3#..NAP

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-33020

ACV30,MCV3#..NAP..(LE,SE)

 1
89178-33031

ACV30,MCV3#..NAP

W(POWER SEAT)

 1
89178-06020

ACV30,MCV30..NAP

 1
89178A - SENSOR, SEAT POSITION AIR BAG
89178-33020

ACV30,MCV3#..NAP..(LE,SE)

 1
89178-33031

ACV30,MCV3#..NAP

W(POWER SEAT)

 1
89178-06020

ACV30,MCV30..NAP

 1
89833 - SENSOR, AIR BAG, REAR RH
89833-06010

ACV30,MCV30..NAP

 1
89833-06030

ACV30,MCV3#..NAP

 1
89834 - SENSOR, AIR BAG, REAR LH
89834-06010

ACV30,MCV30..NAP

 1
89834-06030

ACV30,MCV3#..NAP

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89860-06030

ACV30,MCV30..NAP

 1
89860-06050

ACV30,MCV3#..NAP

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89830-06010

ACV30,MCV30..NAP

 1
89830-06050

ACV30,MCV3#..NAP

 1
89952 - COMPUTER, OCCUPANT DETECTION
89952-33010

ACV30,MCV3#..NAP

 1
Common parts
90080-11562
90105-A0058
90119-A0129
90148-60038
