ACV30L-CEPNKA (2001)

Toyota Camry (Nap)

Production Jul 2001 - Jun 2004
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )NAP

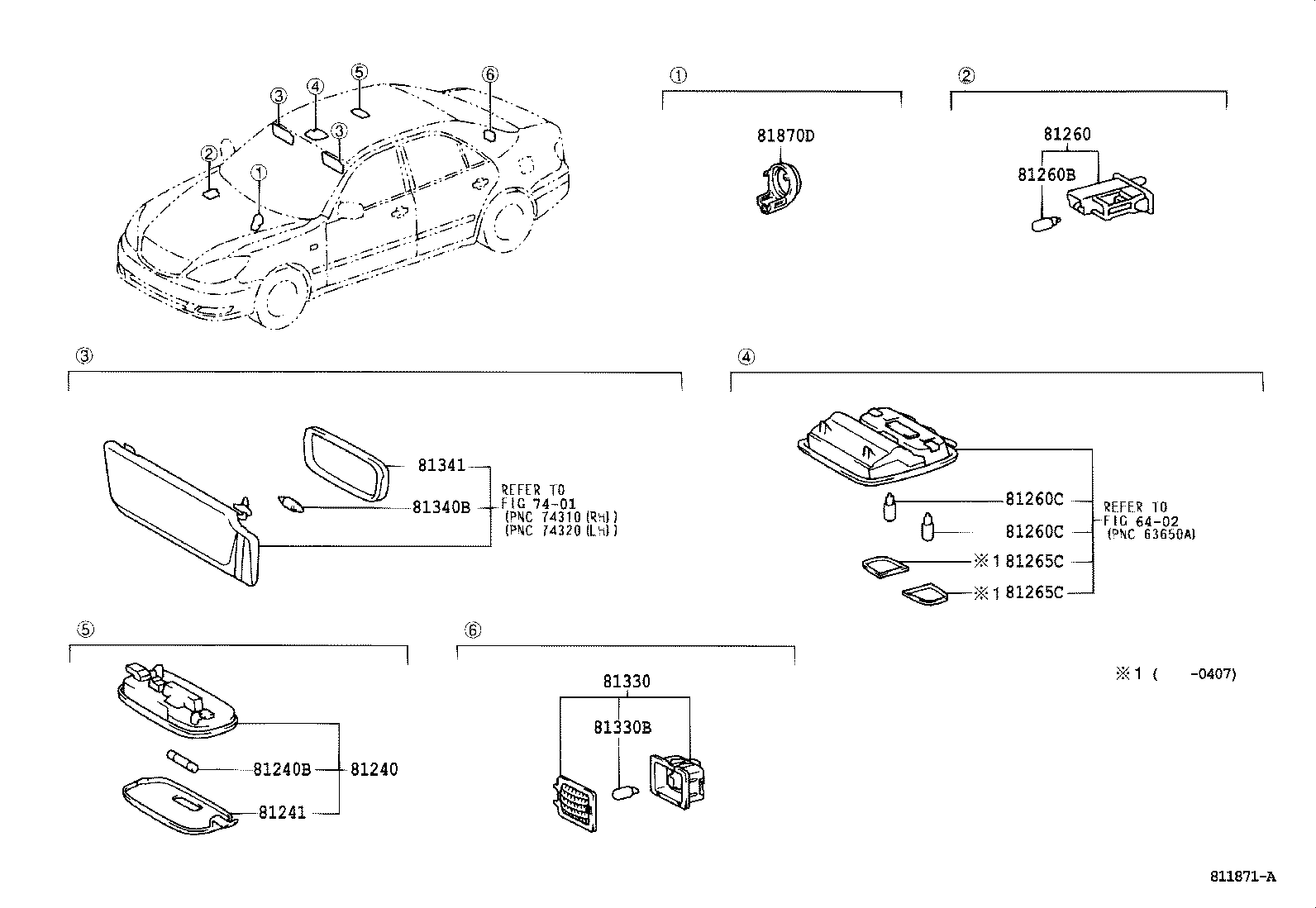

Click highlighted areas on diagram

diagram 6402 7401 81240 81240B 81241 81260 81260B 81260C 81260C 81265C 81265C 81330 81330B 81340B 81341 81870D
Part # Description Qty Price
81240 - LAMP ASSY, ROOM, NO.1
81240-AA020A0

ACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC

IVORY,TRIM4#

 1
81240-AA020B0

ACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC

LT.GRAY,TRIM1#

 1
81240B - BULB, ROOM LAMP, NO.1
90084-81003

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

12V 9W

 1
81241 - LENS, ROOM LAMP, NO.1
81241-AA010

ACV30,MCV30..NAP

 1
81241-AA020

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

 1
81260 - LAMP ASSY, GLOVE BOX
81260-33030

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

 1
81260B - BULB(FOR GLOVE BOX)
90981-11018

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

12V 1.2W W/O SOCKET

 1
81260C - BULB(FOR MAP LAMP)
90084-81002

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

12V 5W

 2
90084-98049

ACV30,MCV30..NAP

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90084-81002

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

12V 5W

 2
90084-98049

ACV30,MCV30..NAP

12V 8W

 2
81265C - LENS, MAP LAMP, NO.1
81265-AA020

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

LH

 1
81265-AA010

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

RH

 1
81265C - LENS, MAP LAMP, NO.1
81265-AA020

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

LH

 1
81265-AA010

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

RH

 1
81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330-AA010

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

 1
81330B - BULB, LUGGAGE COMPARTMENT LAMP
90084-98043

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

12V 5W

 1
84999-AA010

ACV30,MCV30..NAP

 1
81340B - BULB (FOR VANITY LAMP)
90084-98013

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

 4
81341 - LENS, VANITY LAMP
81351-AA010

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..4FC

 2
81870D - LAMP ASSY, KEY CYLINDER
81870-33070

ACV30..NAP..(LE,SE)..4FC

 1
Linked diagrams
6402
7401
