ACV30L-CEPNKA (2001)

Toyota Camry (Nap)

Production Jul 2001 - Jun 2004
Engine 2AZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107- )NAP

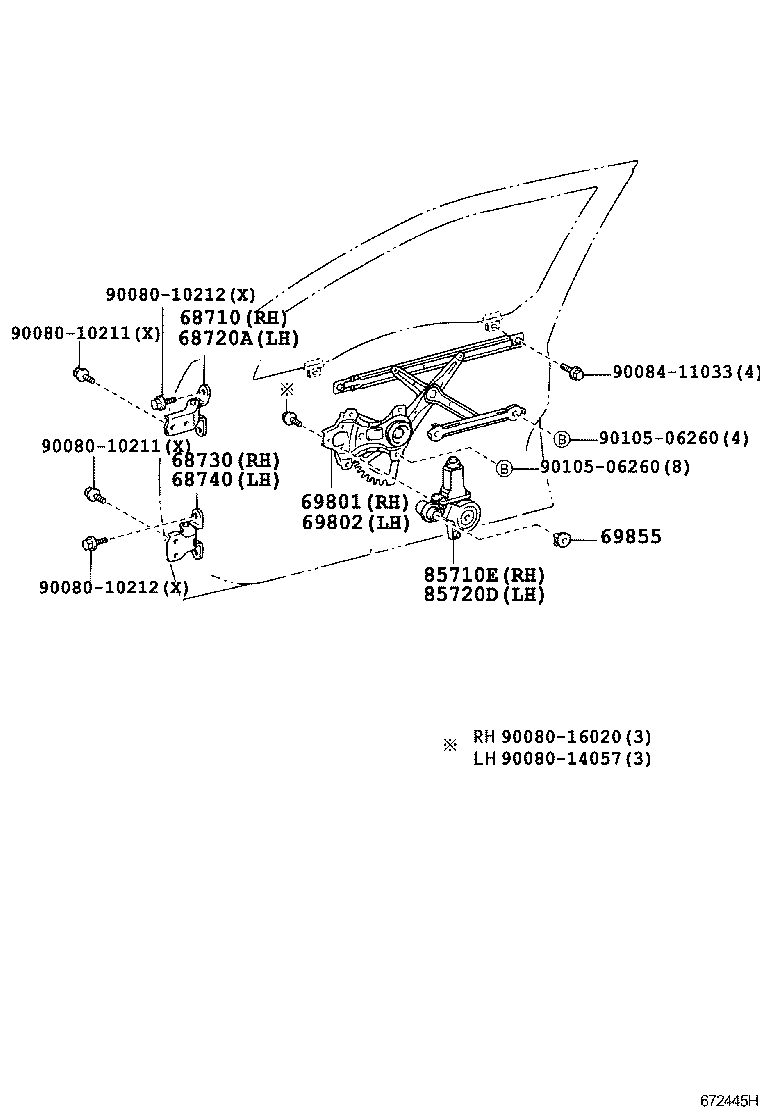

Click highlighted areas on diagram

diagram 68710 68720A 68730 68740 69801 69802 69855 85710E 85720D 9008010211 9008010211 9008010212 9008010212 9008014057 9008016020 9008411033 9010506260 9010506260
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-AA020

ACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC

 1
68720A - HINGE ASSY, FRONT DOOR, LH
68720-AA020

ACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-AC010

ACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-AC010

ACV30,MCV31..NAP;MCV30..NAP..(LE,XLE)..5FC

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69801-AA032

ACV30..NAP..4FC

 1
69801-AA030

ACV30,MCV30..NAP

 1
69801-AA031

MCV3#..NAP;ACV30..NAP..4FC

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69802-AA032

ACV30..NAP..4FC

 1
69802-AA031

MCV3#..NAP;ACV30..NAP..4FC

 1
69802-AA030

ACV30,MCV30..NAP

 1
69855 - COVER, DOOR WINDOW REGULATOR GEAR
69855-20010

ACV30,MCV30..NAP

 2
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85710-AA050

ACV30,MCV30..NAP

 2
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85720-AA050

MCV30..NAP..SE..5FC;ACV30,MCV30..NAP..(LE,SE)..4FC

 1
Common parts
90080-10211
90080-10212
90080-14057
90080-16020
90084-11033
90105-06260
