ACV30L-CEPGKA (2001)
Toyota Camry (Nap)
Production
Jul 2001
-
Jun 2004
Engine
2AZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0107- )2AZFE..NAP

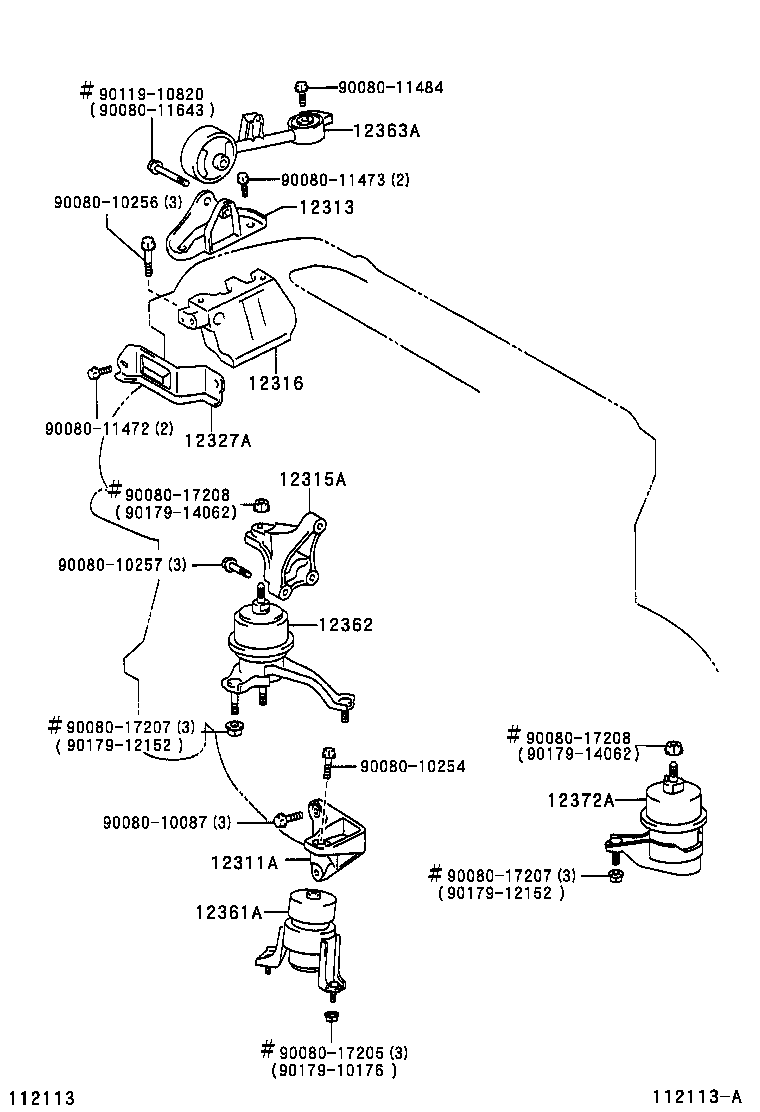

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-28080 |
2AZFE..ACV30..NAP |
1 | ||
| 12311-0H070 |
2AZFE..ACV30..NAP..4FC |
1 | ||
| 12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE) | ||||
| 12313-28020 |
2AZFE..ACV30..NAP |
1 | ||
| 12313-0H040 |
2AZFE..ACV30..NAP..4FC |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-0H010 |
2AZFE..ACV30..NAP..4FC |
1 | ||
| 12316 - BRACKET, ENGINE MOUNTING, NO.2 RH | ||||
| 12316-0H010 |
2AZFE..ACV30..NAP..4FC |
1 | ||
| 12327A - STAY, ENGINE MOUNTING, NO.2 RH | ||||
| 12327-0H010 |
2AZFE..ACV30..NAP..4FC |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-0H030 |
2AZFE..ACV30..NAP..4FC |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-0H010 |
2AZFE..ACV30..NAP..4FC |
1 | ||
| 12363A - ROD, ENGINE MOVING CONTROL | ||||
| 12363-0H050 |
2AZFE..ACV30..NAP..4FC |
1 | ||
| 12363-28060 |
2AZFE..ACV30..NAP |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-0H020 |
2AZFE..ACV30..NAP..4FC |
1 | ||
| Common parts | ||||
| 90080-10087 | ||||
| 90080-10254 | ||||
| 90080-10256 | ||||
| 90080-10257 | ||||
| 90080-11472 | ||||
| 90080-11473 | ||||
| 90080-11484 | ||||
| 90080-11643 | ||||
| 90080-17205 | ||||
| 90080-17207 | ||||
| 90080-17208 | ||||
| 90119-10820 | ||||
| 90179-10176 | ||||
| 90179-12152 | ||||
| 90179-14062 | ||||
