ACV30L-CEANKA (2004)
Toyota Camry (Nap)
(0406- )ACV30..NAP..LE

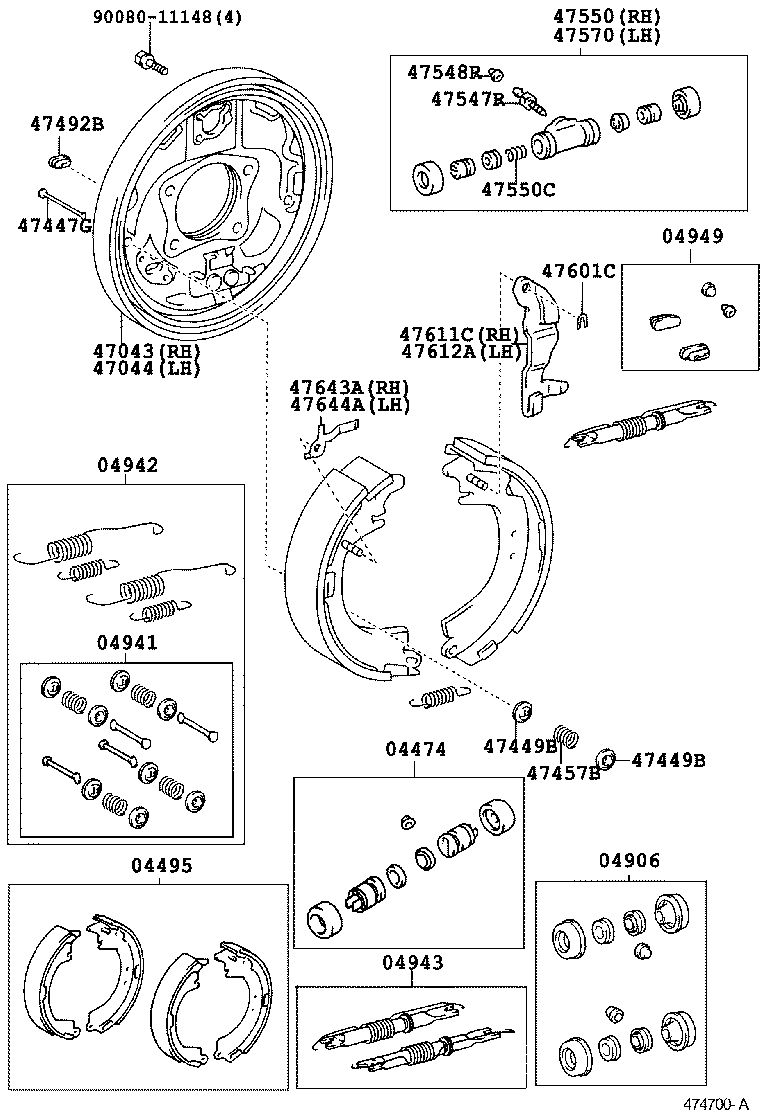

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-33030 |
ACV30..NAP..LE |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-06010 |
ACV30..NAP..LE MARK AK LA509A |
1 | ||
| 04495-06040 |
ACV30..NAP..LE MARK NAC LN521 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-33020 |
ACV30..NAP..LE |
1 | ||
| 04906-33030 |
ACV30..NAP..LE |
1 | ||
| 04941 - SPRING KIT, REAR BRAKE SHOE HOLD DOWN | ||||
| 04941-06040 |
ACV30..NAP..LE |
1 | ||
| 04942 - SPRING KIT, REAR BRAKE | ||||
| 04942-06040 |
ACV30..NAP..LE |
1 | ||
| 04943 - STRUT KIT, REAR BRAKE, RH | ||||
| 04943-06020 |
ACV30..NAP..LE |
1 | ||
| 04949 - PLUG KIT, REAR BRAKE | ||||
| 04949-06030 |
ACV30..NAP..LE |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-06030 |
ACV30..NAP..LE |
1 | ||
| 47043-06080 |
ACV30..NAP..LE |
1 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-06030 |
ACV30..NAP..LE |
1 | ||
| 47044-06080 |
ACV30..NAP..LE |
1 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-20030 |
ACV30..NAP..LE |
4 | ||
| 47447-07020 |
ACV30..NAP..LE |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-06010 |
ACV30..NAP..LE |
8 | ||
| 47449-06010 |
ACV30..NAP..LE |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-06010 |
ACV30..NAP..LE |
8 | ||
| 47449-06010 |
ACV30..NAP..LE |
8 | ||
| 47457B - SPRING, COMPRESSION(FOR REAR SHOE HOLD DOWN SPRING PIN) | ||||
| 90080-50066 |
ACV30..NAP..LE |
4 | ||
| 90080-50397 |
ACV30..NAP..LE |
4 | ||
| 47492B - PLUG, SHOE INSPECTION(FOR REAR BRAKE) | ||||
| 47492-06020 |
ACV30..NAP..LE |
2 | ||
| 47492-06020 |
ACV30..NAP..LE |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-22020 |
ACV30..NAP..LE |
2 | ||
| 47547-22020 |
ACV30..NAP..LE |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
ACV30..NAP..LE |
2 | ||
| 31478-30010 |
ACV30..NAP..LE |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-06050 |
ACV30..NAP..LE |
1 | ||
| 47550-06051 |
ACV30..NAP..LE RH |
1 | ||
| 47550C - SPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER) | ||||
| 90501-09079 |
ACV30..NAP..LE |
2 | ||
| 90501-09079 |
ACV30..NAP..LE |
2 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47570-06051 |
ACV30..NAP..LE LH |
1 | ||
| 47570-06050 |
ACV30..NAP..LE |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90080-20012 |
ACV30..NAP..LE T=1.2 |
3 | ||
| 90080-20012 |
ACV30..NAP..LE T=1.2 |
2 | ||
| 47611C - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-06020 |
ACV30..NAP..LE |
1 | ||
| 47611-33010 |
ACV30..NAP..LE |
1 | ||
| 47612A - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-33010 |
ACV30..NAP..LE |
1 | ||
| 47612-06020 |
ACV30..NAP..LE |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-06020 |
ACV30..NAP..LE |
1 | ||
| 47643-42010 |
ACV30..NAP..LE |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-42010 |
ACV30..NAP..LE |
1 | ||
| 47644-06020 |
ACV30..NAP..LE |
1 | ||
| Common parts | ||||
| 90080-11148 | ||||
