VCV10L-AEPDKK (1991)

Toyota Camry (Jpp)

Production Jun 1991 - Aug 1993
Engine 3VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9608)JPP

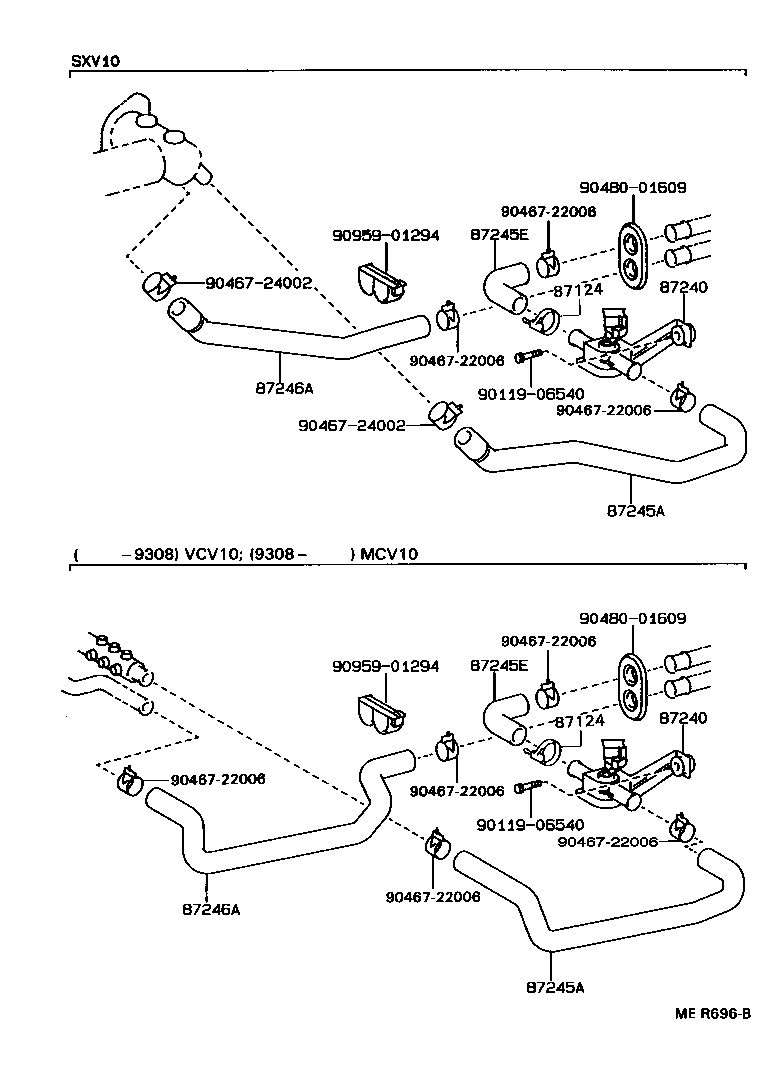

Click highlighted areas on diagram

diagram 87124 87124 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 9011906540 9011906540 9046722006 9046722006 9046722006 9046722006 9046722006 9046722006 9046722006 9046722006 9046724002 9046724002 9048001609 9048001609 9095901294 9095901294
Part # Description Qty Price
87124 - CLAMP, HEATER
87124-28030

MCV10,SXV10,VCV10..JPP

 1
87124 - CLAMP, HEATER
87124-28030

MCV10,SXV10,VCV10..JPP

 1
87240 - VALVE ASSY, HEATER WATER
87240-33010

MCV10,SXV10,VCV10..JPP

 1
87240 - VALVE ASSY, HEATER WATER
87240-33010

MCV10,SXV10,VCV10..JPP

 1
87245A - HOSE, HEATER WATER, INLET A
87245-33030

VCV10..JPP

 1
87245A - HOSE, HEATER WATER, INLET A
87245-33030

VCV10..JPP

 1
87245E - HOSE, HEATER WATER, INLET E
87245-33110

MCV10,SXV10,VCV10..JPP

 1
87245E - HOSE, HEATER WATER, INLET E
87245-33110

MCV10,SXV10,VCV10..JPP

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-33040

VCV10..JPP

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-33040

VCV10..JPP

 1
Common parts
90119-06540
90467-22006
90467-24002
90480-01609
90959-01294
