VCV10L-AEPDKK (1991)
Toyota Camry (Jpp)
Production
Jun 1991
-
Aug 1993
Engine
3VZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9106-9608)JPP

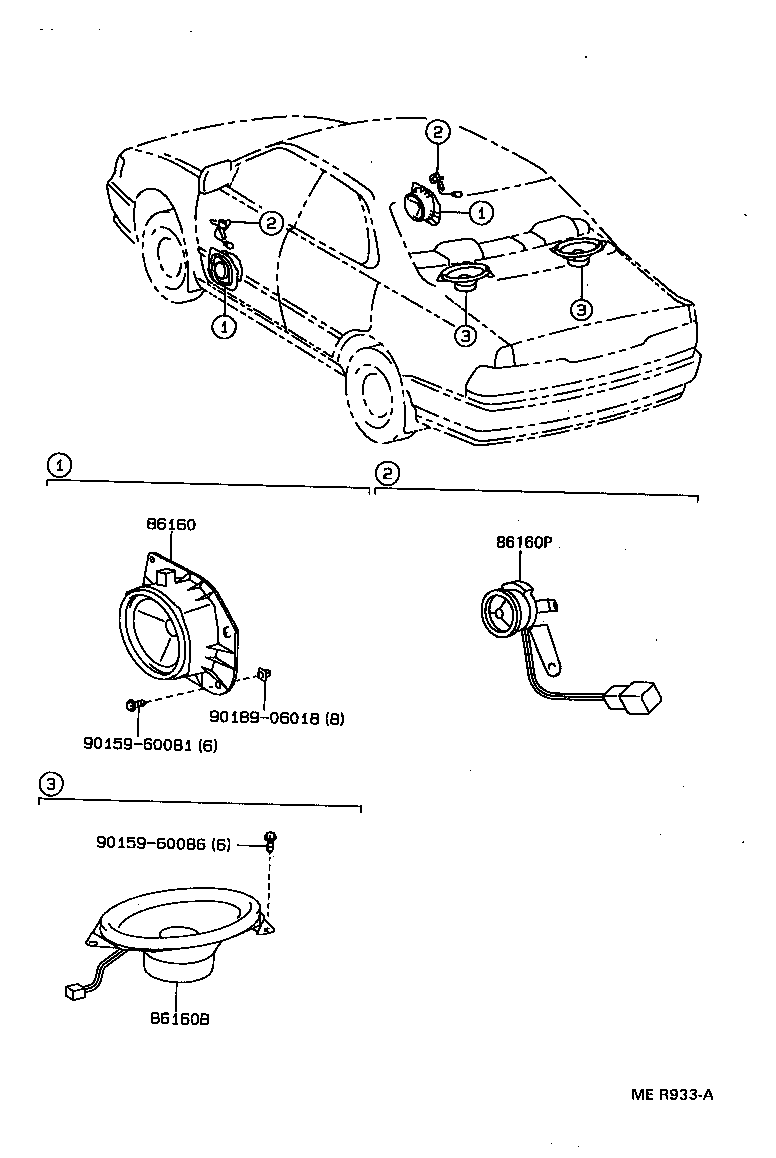

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-33100 |
VCV10..JPP..SE W(6SPEAKER) OR W(POWER WINDOW),LH |
1 | ||
| 86160-33090 |
VCV10..JPP..SE W(6SPEAKER) OR W(POWER WINDOW),RH |
1 | ||
| 86160-33100 |
SXV10,VCV10..JPP..DX..CND W(POWER WINDOW),LH |
1 | ||
| 86160-33040 |
MCV10,SXV10,VCV10..JPP..(DX,SE) LH |
1 | ||
| 86160-33030 |
MCV10,SXV10,VCV10..JPP..(DX,SE) RH |
1 | ||
| 86160-33090 |
SXV10,VCV10..JPP..DX..CND W(POWER WINDOW),RH |
1 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-33120 |
SXV10,VCV10..JPP RH |
1 | ||
| 86160-33020 |
SXV10,VCV10..JPP LH |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90159-60086 | ||||
| 90189-06018 | ||||
