VCV10L-AEPDKK (1991)

Toyota Camry (Jpp)

Production Jun 1991 - Aug 1993
Engine 3VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )JPP

Click highlighted areas on diagram

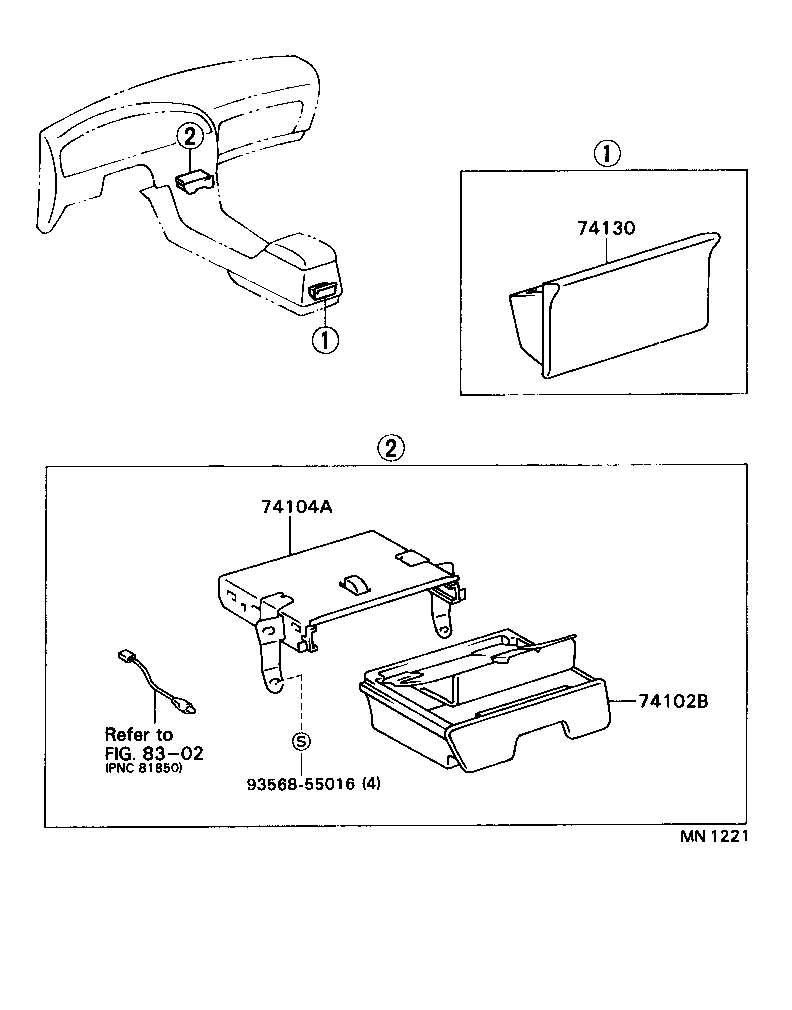

diagram 74102B 74104A 74130 8302 9356855016
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-3301003

MCV10,SXV10,VCV10..JPP

MEDIUM GRAY,TRIM1#

 1
74102-3301002

MCV10,SXV10,VCV10..JPP

TAUPE,TRIM9#

 1
74102-3301004

SXV10,VCV10..JPP

DARK BLUE,TRIM8#

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-33010

MCV10,SXV10,VCV10..JPP

 1
74130 - RECEPTACLE ASSY, REAR ASH
74109-32040B0

MCV10,SXV10,VCV10..JPP

MEDIUM GRAY,TRIM1#

 1
74109-32040J0

SXV10,VCV10..JPP

DARK BLUE,TRIM8#

 1
74109-32040K0

MCV10,SXV10,VCV10..JPP

TAUPE,TRIM9#

 1
Common parts
93568-55016
Linked diagrams
8302
