VCV10L-AEPDKK (1991)

Toyota Camry (Jpp)

Production Jun 1991 - Aug 1993
Engine 3VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )JPP

Click highlighted areas on diagram

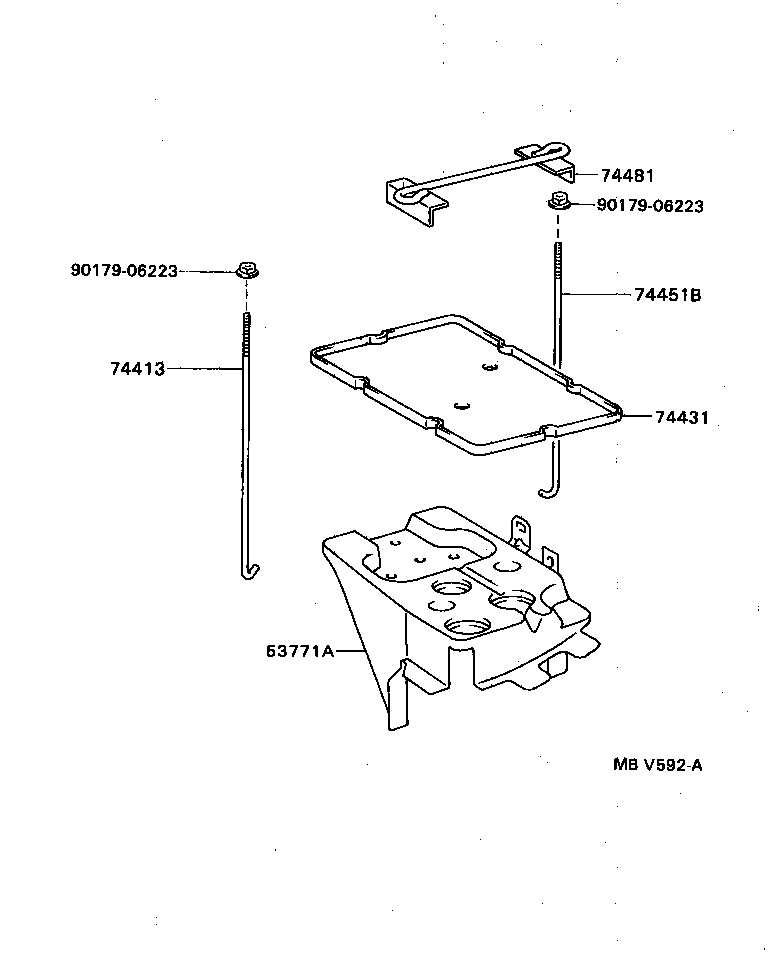

diagram 53771A 74413 74431 74451B 74481 9017906223 9017906223
Part # Description Qty Price
53771A - SUPPORT, BATTERY CARRIER
53704-33010

MCV10,SXV10,VCV10..JPP

 1
74413 - BOLT, BATTERY CLAMP
74451-33010

MCV10,SXV10,VCV10..JPP

 1
74431 - TRAY, BATTERY
74431-33010

MCV10,SXV10,VCV10..JPP

 1
74451B - BOLT, BATTERY CLAMP
74452-33010

MCV10,SXV10,VCV10..JPP

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-33020

SXV10,VCV10..JPP..CND

 1
Common parts
90179-06223
