VCV10L-AEPDKK (1991)

Toyota Camry (Jpp)

Production Jun 1991 - Aug 1993
Engine 3VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106- )JPP

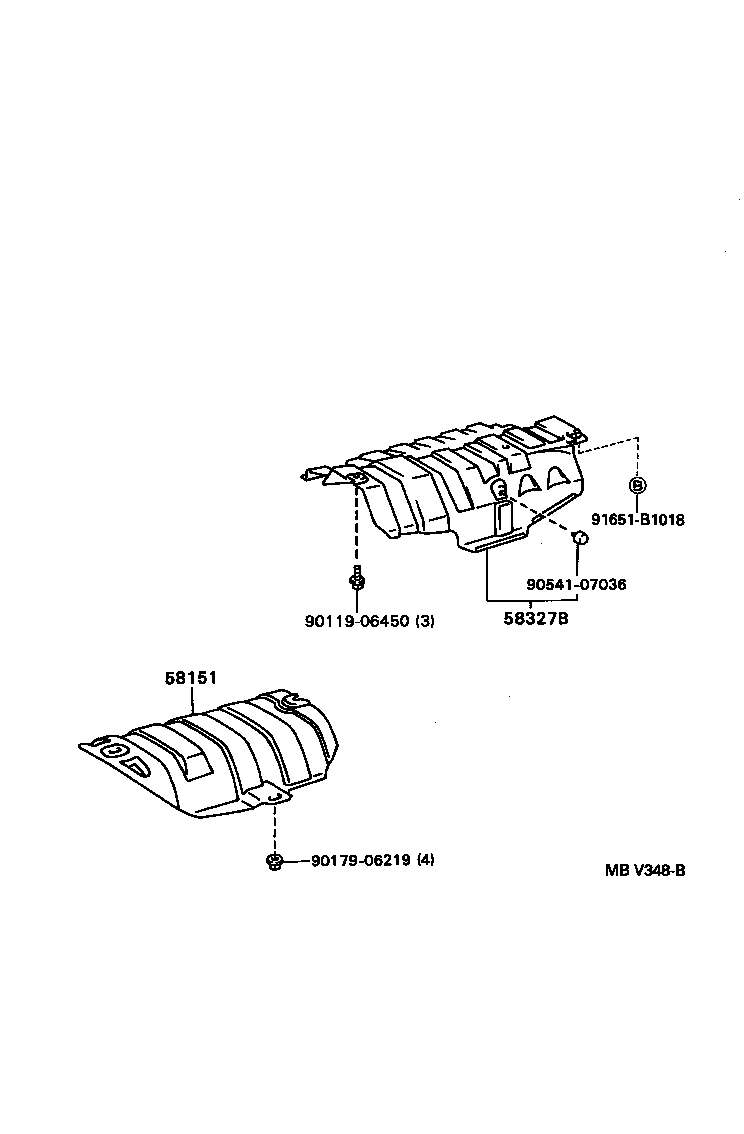

Click highlighted areas on diagram

diagram 58151 58327B 9011906450 9017906219 9054107036 91651B1018
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58152-33010

MCV10,SXV10,VCV10..JPP

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-33010

MCV10,SXV10,VCV10..JPP

 1
Common parts
90119-06450
90179-06219
90541-07036
91651-B1018
