VCV10L-AEPDKK (1991)

Toyota Camry (Jpp)

Production Jun 1991 - Aug 1993
Engine 3VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9408)JPP

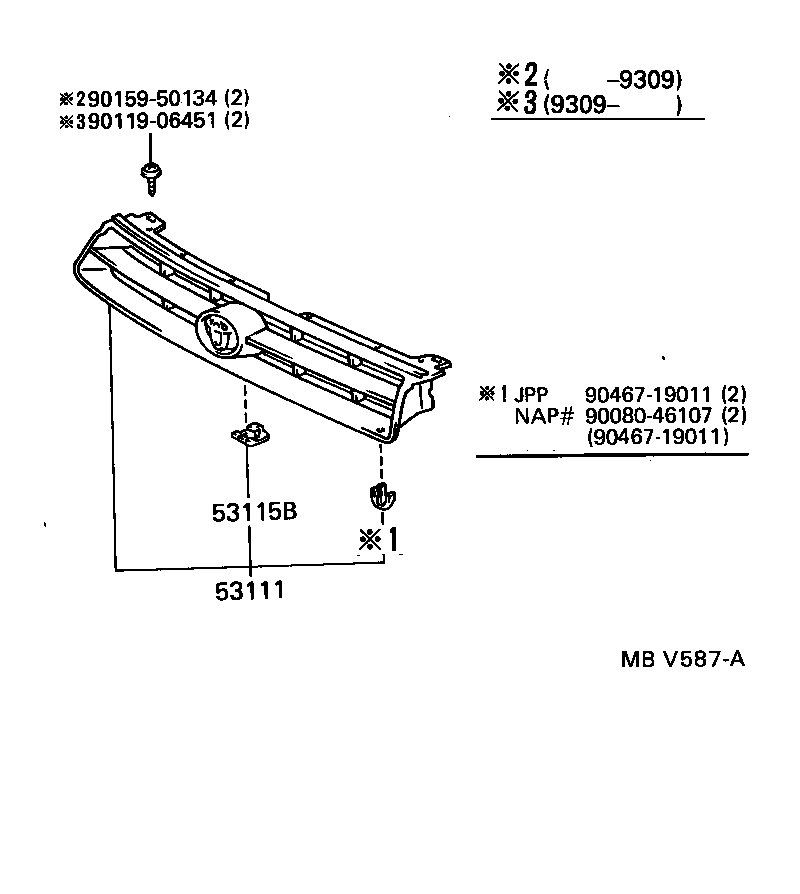

Click highlighted areas on diagram

diagram 53111 53115B 9008046107 9011906451 9015950134 9046719011 9046719011
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-33010

MCV10,SXV10,VCV10..JPP

 1
53115B - BRACKET, RADIATOR GRILLE
53115-16010

MCV10,SXV10,VCV10..JPP

 1
Common parts
90080-46107
90119-06451
90159-50134
90467-19011
