VCV10L-AEPDKK (1991)
Toyota Camry (Jpp)
(9106-9308)VCV10..JPP..ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46200 - PEDAL ASSY, PARKING BRAKE CONTROL | ||||
| 46200-33010 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
1 | ||
| 46201B - SPRING, TENSION | ||||
| 90507-16023 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-17010J0 |
SXV10..JPP;VCV10..JPP..SE;VCV10..JPP..MTM..CND DARK BLUE,TRIM8# |
1 | ||
| 46217-33010 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
1 | ||
| 46220 - ABSORBER ASSY, PARKING BRAKE PEDAL RETURN | ||||
| 46220-30010 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
1 | ||
| 46220A - CUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 90540-07010 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
2 | ||
| 46220A - CUSHION(FOR PARKING BRAKE PEDAL RETURN ABSORBER) | ||||
| 90540-07010 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
2 | ||
| 46252 - PAD, PARKING PEDAL | ||||
| 46252-20010 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
1 | ||
| 46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER) | ||||
| 46442-32010 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-33020 |
SXV10..JPP;MCV10,VCV10..JPP..SE;VCV10..JPP..MTM..CND |
1 | ||
| 46410-33040 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
1 | ||
| 46410C - CLAMP(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90461-10648 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
1 | ||
| 46410D - PIN(FOR PARKING BRAKE FRONT CABLE) | ||||
| 90240-08062 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-33010 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
1 | ||
| 46451B - BRACKET, PARKING BRAKE CABLE SUPPORT | ||||
| 46451-33020 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
1 | ||
| Common parts | ||||
| 82711-14080 | ||||
| 90119-06685 | ||||
| 90119-08148 | ||||
| 90119-10402 | ||||
| 90119-10508 | ||||
| 90159-60438 | ||||
| 90179-08038 | ||||
| 90468-08001 | ||||
| 90468-14004 | ||||
| 90468-14011 | ||||
| 94185-60600 | ||||
| 96991-10080 | ||||
| Linked diagrams | ||||
| 8401 | ||||

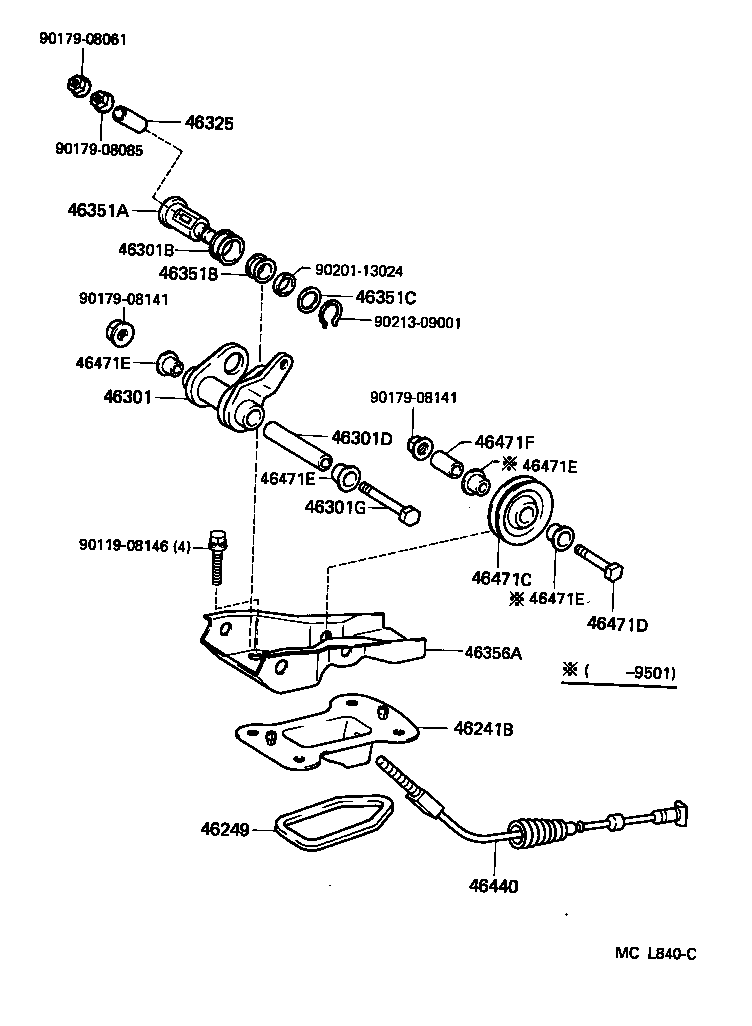

(9106-9308)VCV10..JPP..ATM ; (9308- )MCV10..JPP..LE,XLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46241B - BOOT, INTERMEDIATE LEVER | ||||
| 46241-32040 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-32020 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
1 | ||
| 46249-32030 |
SXV10..JPP;MCV10,VCV10..JPP..SE;VCV10..JPP..MTM..CND |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-33010 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
1 | ||
| 46301D - COLLAR(FOR INTERMEDIATE LEVER) | ||||
| 90387-08044 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
1 | ||
| 46301G - BOLT(FOR INTERMEDIATE LEVER) | ||||
| 90101-08111 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
1 | ||
| 46325 - SLEEVE, PARKING BRAKE CABLE | ||||
| 46325-32010 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
1 | ||
| 46351A - SHAFT, INTERMEDIATE LEVER | ||||
| 46351-32020 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
1 | ||
| 46351B - BUSH(FOR INTERMEDIATE LEVER SHAFT) | ||||
| 90386-13013 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) ID=13,ID=13 |
1 | ||
| 46351C - SHIM(FOR INTERMEDIATE LEVER SHAFT) | ||||
| 90564-13002 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) T=0.3 |
1 | ||
| 90564-13008 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) T=1.8 |
1 | ||
| 90564-13003 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) T=0.6 |
1 | ||
| 90564-13006 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) T=1.2 |
1 | ||
| 90564-13007 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) T=1.5 |
1 | ||
| 90564-13005 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) T=0.9 |
1 | ||
| 46356A - BRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE) | ||||
| 46356-33010 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
1 | ||
| 46440 - CABLE ASSY, PARKING BRAKE, NO.4 | ||||
| 46440-33010 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
1 | ||
| 46471C - PULLEY, INTERMEDIATE LEVER | ||||
| 46471-32010 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
1 | ||
| 46471D - BOLT(FOR INTERMEDIATE LEVER PULLEY) | ||||
| 90101-08112 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
1 | ||
| 46471E - BUSH(FOR INTERMEDIATE LEVER PULLEY) | ||||
| 90386-13011 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
4 | ||
| 46471E - BUSH(FOR INTERMEDIATE LEVER PULLEY) | ||||
| 90386-13011 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
4 | ||
| 46471E - BUSH(FOR INTERMEDIATE LEVER PULLEY) | ||||
| 90386-13011 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
4 | ||
| 46471E - BUSH(FOR INTERMEDIATE LEVER PULLEY) | ||||
| 90386-13011 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
4 | ||
| 46471F - COLLAR(FOR INTERMEDIATE LEVER PULLEY) | ||||
| 90387-08045 |
MCV10,VCV10..JPP..ATM..(DX,LE,XLE) |
1 | ||
| Common parts | ||||
| 90119-08146 | ||||
| 90179-08061 | ||||
| 90179-08085 | ||||
| 90179-08141 | ||||
| 90201-13024 | ||||
| 90213-09001 | ||||

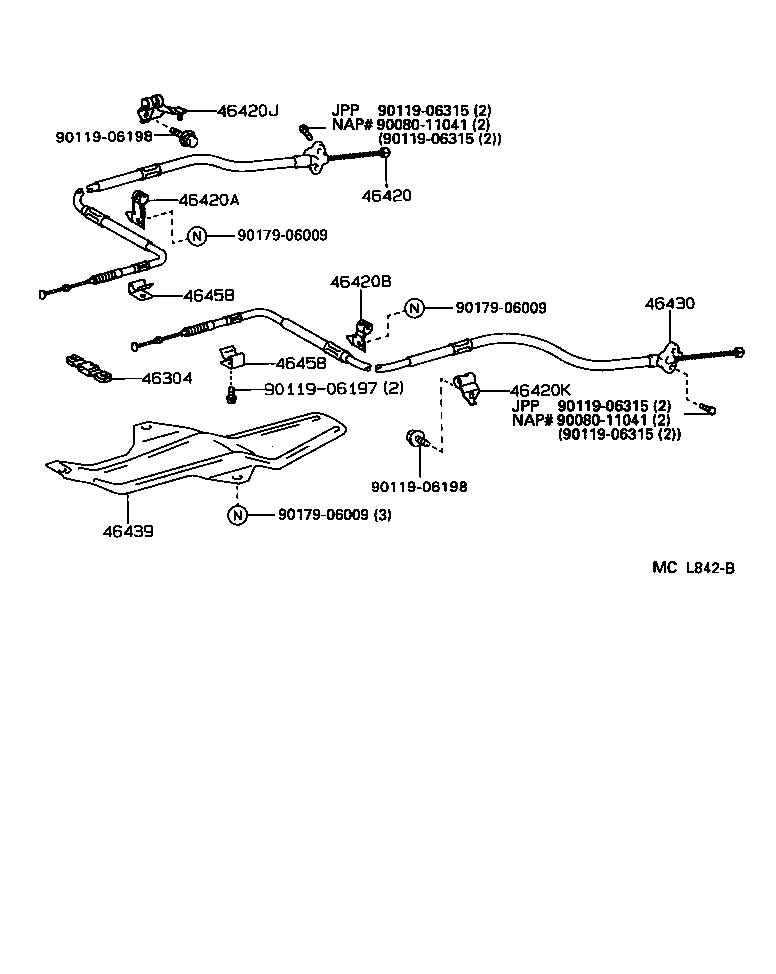

(9106- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-33010 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-33040 |
VCV10..JPP |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01663 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01664 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01709 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 90949-01711 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-33040 |
VCV10..JPP |
1 | ||
| 46439 - INSULATOR, PARKING BRAKE CABLE HEAT | ||||
| 46439-33010 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
MCV10,SXV10,VCV10..JPP |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
MCV10,SXV10,VCV10..JPP |
2 | ||
| Common parts | ||||
| 90080-11041 | ||||
| 90119-06197 | ||||
| 90119-06198 | ||||
| 90119-06315 | ||||
| 90179-06009 | ||||

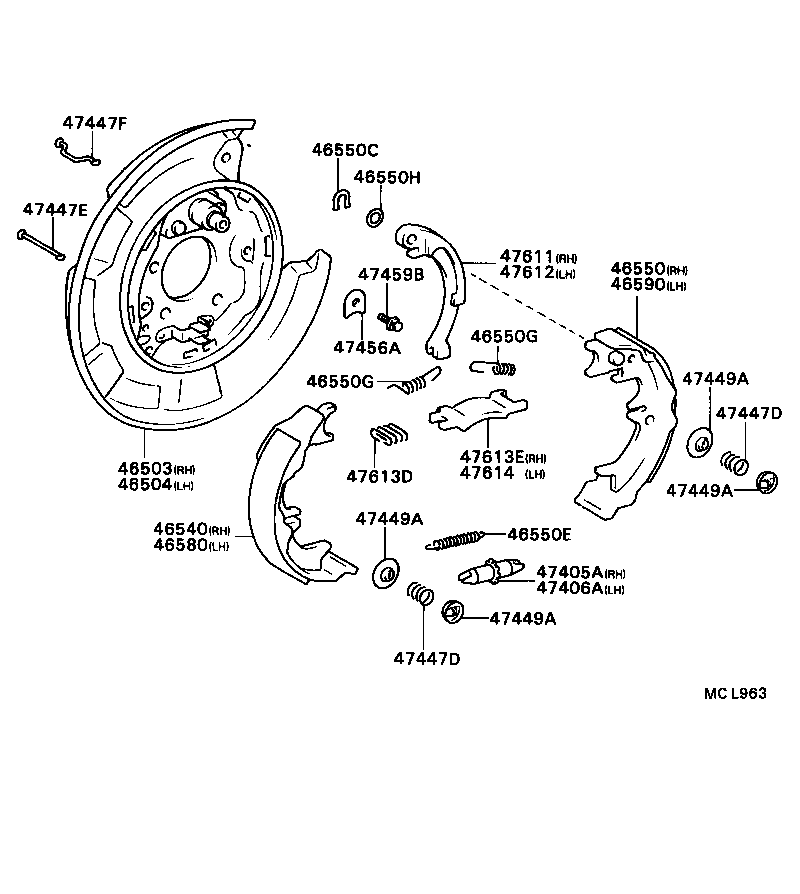

(9106- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-20010 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-20010 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-20040 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-20040 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07018 |
MCV10,SXV10,VCV10..JPP |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12010 |
MCV10,SXV10,VCV10..JPP |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-16009 |
MCV10,SXV10,VCV10..JPP |
4 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-16009 |
MCV10,SXV10,VCV10..JPP |
4 | ||
| 46550H - SHIM(FOR PARKING BRAKE SHOE) | ||||
| 90564-09186 |
MCV10,SXV10,VCV10..JPP T=0.9 |
1 | ||
| 90564-09184 |
MCV10,SXV10,VCV10..JPP T=0.3 |
1 | ||
| 90564-09185 |
MCV10,SXV10,VCV10..JPP T=0.6 |
1 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-20040 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-20040 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-14049 |
MCV10,SXV10,VCV10..JPP |
4 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-14049 |
MCV10,SXV10,VCV10..JPP |
4 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-20030 |
MCV10,SXV10,VCV10..JPP |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47447-22020 |
MCV10,SXV10,VCV10..JPP |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-22010 |
SXV10,VCV10..JPP INNER |
4 | ||
| 47449-30030 |
MCV10,SXV10,VCV10..JPP OUTER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-22010 |
SXV10,VCV10..JPP INNER |
4 | ||
| 47449-30030 |
MCV10,SXV10,VCV10..JPP OUTER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-22010 |
SXV10,VCV10..JPP INNER |
4 | ||
| 47449-30030 |
MCV10,SXV10,VCV10..JPP OUTER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-22010 |
SXV10,VCV10..JPP INNER |
4 | ||
| 47449-30030 |
MCV10,SXV10,VCV10..JPP OUTER |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-20030 |
MCV10,SXV10,VCV10..JPP |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
MCV10,SXV10,VCV10..JPP |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-20030 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-20030 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
MCV10,SXV10,VCV10..JPP |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-20040 |
MCV10,SXV10,VCV10..JPP |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47614-20010 |
MCV10,SXV10,VCV10..JPP |
1 | ||
