VCV10L-AEPDKK (1991)

Toyota Camry (Jpp)

Production Jun 1991 - Aug 1993
Engine 3VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9308)VCV10..JPP..ATM

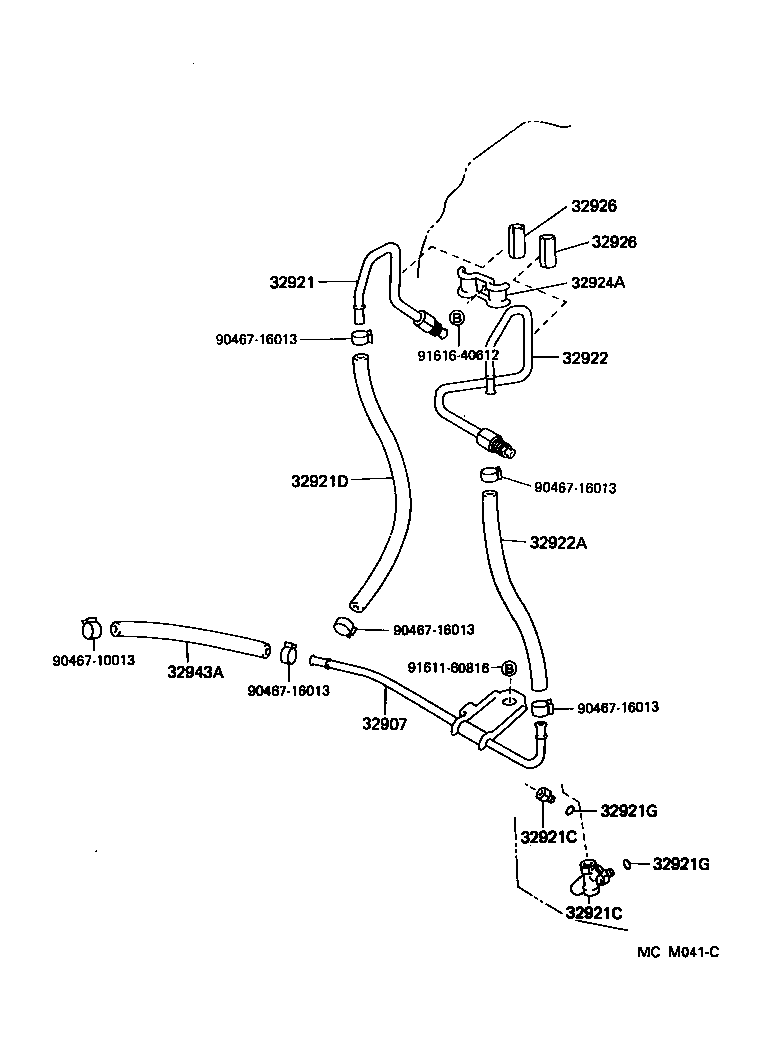

Click highlighted areas on diagram

diagram 32907 32921 32921C 32921C 32921D 32921G 32921G 32922 32922A 32924A 32926 32926 32943A 9046710013 9046716013 9046716013 9046716013 9046716013 9046716013 9161160816 9161640612
Part # Description Qty Price
32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2
32907-33030

VCV10..JPP..ATM

 1
32921 - TUBE, OIL COOLER INLET, NO.1
32921-33030

VCV10..JPP..ATM

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16021

SXV10,VCV10..JPP..ATM

INLET

 1
32901-32060

MCV10,SXV10,VCV10..JPP..ATM

OUTLET

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-16021

SXV10,VCV10..JPP..ATM

INLET

 1
32901-32060

MCV10,SXV10,VCV10..JPP..ATM

OUTLET

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-17106

VCV10..JPP..ATM

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

MCV10,SXV10,VCV10..JPP..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

MCV10,SXV10,VCV10..JPP..ATM

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-33030

VCV10..JPP..ATM

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-17096

VCV10..JPP..ATM

 1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12044

VCV10..JPP..ATM

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

MCV10,SXV10,VCV10..JPP..ATM

L=35,ID=10

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

MCV10,SXV10,VCV10..JPP..ATM

L=35,ID=10

 2
32943A - HOSE, TRANSMISSION OIL COOLER, NO.2
90445-17100

VCV10..JPP..ATM

 1
Common parts
90467-10013
90467-16013
91611-60816
91616-40612
