VCV10L-AEPDKK (1991)

Toyota Camry (Jpp)

Production Jun 1991 - Aug 1993
Engine 3VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9106-9308)VCV10..JPP..ATM

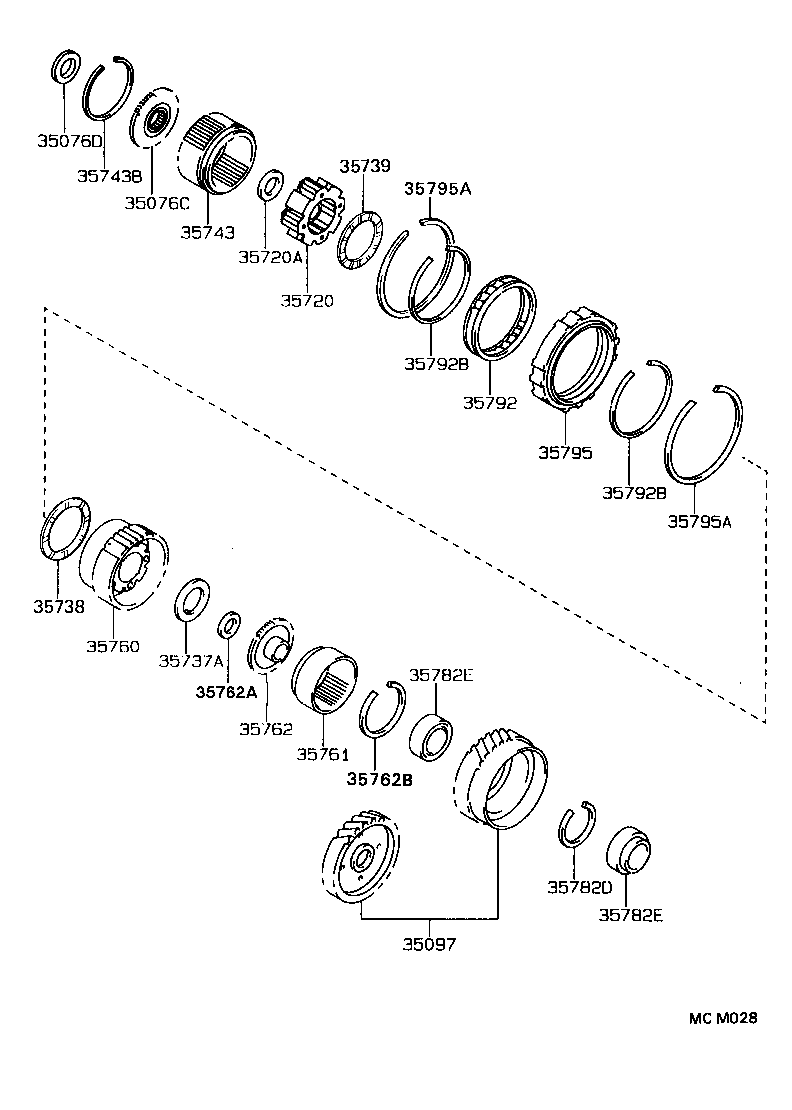

Click highlighted areas on diagram

diagram 35076C 35076D 35097 35720 35720A 35737A 35738 35739 35743 35743B 35760 35761 35762 35762A 35762B 35782D 35782E 35782E 35792 35792B 35792B 35795 35795A 35795A
Part # Description Qty Price
35076C - FLANGE SUB-ASSY, FRONT PLANETARY RING GEAR
35076-32020

VCV10..JPP..ATM

 1
35076D - BEARING, THRUST NEEDLE ROLLER(FOR FRONT PLANETARY FLANG
90374-31001

VCV10..JPP..ATM

 1
35097 - COUNTER GEAR KIT, AUTOMATIC TRANSAXLE
35097-32020

VCV10..JPP..ATM

 1
35720 - GEAR ASSY, FRONT PLANETARY
35720-32020

MCV10,VCV10..JPP..ATM

 1
35720A - BEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR
90374-30008

MCV10,VCV10..JPP..ATM

 1
35737A - WASHER, PLANETARY CARRIER THRUST, NO.1
35738-32030

VCV10..JPP..ATM

 1
35738 - WASHER, PLANETARY CARRIER THRUST, NO.2
35738-33010

VCV10..JPP..ATM

 1
35738-33010

VCV10..JPP..ATM

 1
35738-32020

VCV10..JPP..ATM

 1
35739 - WASHER, PLANETARY CARRIER THRUST, NO.3
35739-32020

VCV10..JPP..ATM

 1
35743 - GEAR, FRONT PLANETARY RING
35743-33010

VCV10..JPP..ATM

 1
35743B - RING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR)
90521-99014

MCV10,VCV10..JPP..ATM

 1
35760 - GEAR ASSY, REAR PLANETARY
35760-32020

VCV10..JPP..ATM

 1
35760-33010

VCV10..JPP..ATM

 1
35761 - GEAR, REAR PLANETARY RING
35761-32020

MCV10,VCV10..JPP..ATM

 1
35762 - FLANGE, REAR PLANETARY RING GEAR
35762-32021

MCV10,VCV10..JPP..ATM

 1
35762A - BEARING, THRUST NEEDLE ROLLER (FOR REAR PLANETARY FLANG
90374-22002

MCV10,VCV10..JPP..ATM

 1
35762B - RING, HOLE SNAP (FOR REAR PLANETARY RING GEAR FLANGE)
90521-90001

MCV10,SXV10,VCV10..JPP..ATM

 1
35782D - RING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
90521-67001

MCV10,SXV10,VCV10..JPP..ATM

 1
35782E - BEARING(FOR COUNTER DRIVE GEAR)
90368-40004

SXV10,VCV10..JPP..ATM

 2
35782E - BEARING(FOR COUNTER DRIVE GEAR)
90368-40004

SXV10,VCV10..JPP..ATM

 2
35792 - CLUTCH, 1 WAY, NO.2
35792-20020

SXV10,VCV10..JPP..ATM

 1
35792-20020

VCV10..JPP..ATM

 1
35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
90521-99010

SXV10,VCV10..JPP..ATM

 2
35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2)
90521-99010

SXV10,VCV10..JPP..ATM

 2
35795 - RACE, 1 WAY CLUTCH OUTER
35795-32010

SXV10,VCV10..JPP..ATM

 1
35795A - RING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE)
90521-99011

SXV10,VCV10..JPP..ATM

 2
35795A - RING, HOLE SNAP (FOR 1 WAY CLUTCH OUTER RACE)
90521-99011

SXV10,VCV10..JPP..ATM

 2
